Allied Telesis AT-x510DP-52GTX Installation Manual

Allied Telesis AT-x510DP-52GTX Installation Manual

Gigabit ethernet switch
Hide thumbs Also See for AT-x510DP-52GTX:
Table of Contents

Advertisement

Quick Links

Download this manual
1
2

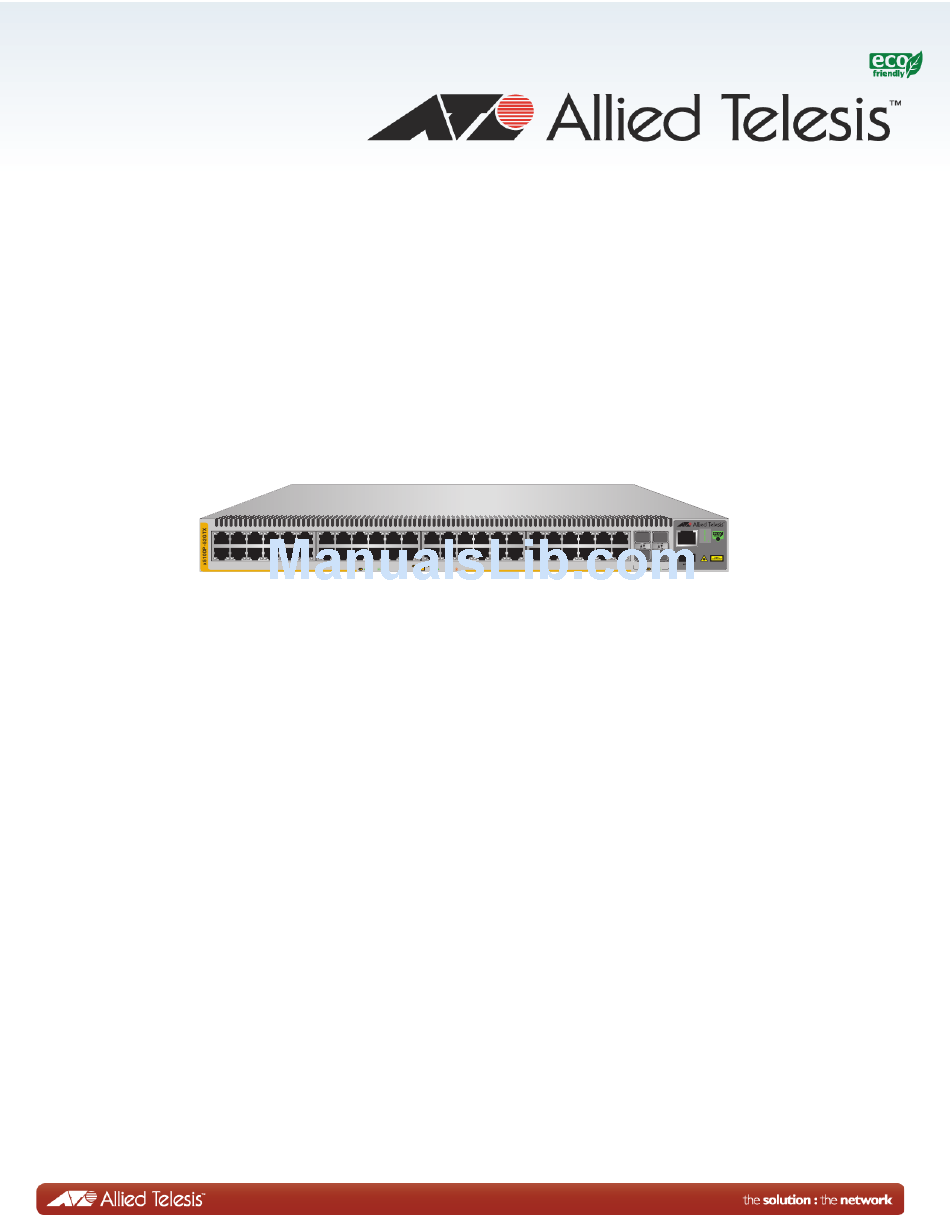

Installation Guide

C613-04066-00 REV B
3
5
7
9
11
13
15
17
19
21
23
4
6
8
10
12
14
16
18
20
22
24
1000 LINK
ACT
10/100 LINK
ACT
AT-x510DP-52GTX
Gigabit Ethernet Switch
25
27
29
31
33
35
37
39
41
43
45
26
28
30
32
34
36
38
40
42
44
46
FDX
HDX
COL
47
SFP+
49
S1/51
CONSOLE
50
S2/52
48
2662

Advertisement

Table of Contents
loading

Related Manuals for Allied Telesis AT-x510DP-52GTX

Summary of Contents for Allied Telesis AT-x510DP-52GTX

  • Page 1: Installation Guide

    AT-x510DP-52GTX Gigabit Ethernet Switch SFP+ S1/51 CONSOLE S2/52 1000 LINK 10/100 LINK 2662 Installation Guide C613-04066-00 REV B...
  • Page 2 Allied Telesis, Inc. has been advised of, known, or should have known, the...

  • Page 3: Electrical Safety And Emissions Standards

    Electrical Safety and Emissions Standards This product meets the following standards. U.S. Federal Communications Commission Radiated Energy Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules.

  • Page 4: Translated Safety Statements

    Translated Safety Statements Important: Safety statements that have the symbol are translated into multiple languages in the Translated Safety Messages document at alliedtelesis.com/support/documentation.

  • Page 5: Table Of Contents

    Contents Preface ....................................11 Document Conventions ................................12 Contacting Allied Telesis ..............................13 Chapter 1: Overview ................................15 Features ....................................16 10/100/1000 Mbps Twisted Pair Ports ..........................16 SFP+ Slots ..................................16 Power Supply Modules..............................17 Stacking Slots................................17 LEDs....................................17 Installation Options ................................17 MAC Address Table ..............................17 Management Software and Interfaces ..........................17 Management Methods..............................17...
  • Page 6 Contents Unpacking the Switch ................................55 Chapter 4: Installing the Switch and its Power Supplies ....................57 Installing the Power Cord Retaining Clip ..........................58 Installing Power Supply Modules ............................59 Overview..................................59 Installing a Power Supply ..............................59 Installing the Switches on a Table or Desktop ........................63 Installing the Switch in an Equipment Rack ..........................64 Connecting AC Power to a Power Supply Module........................67 Power Wiring to a DC AT-PWR250R-80 Power Supply Module ..................69...
  • Page 7 Figures Figure 1: Front Panel of the AT-x510DP-52GTX Switch ......................18 Figure 2: Back Panel of the Switch............................18 Figure 3: AT-x510DP-52GTX Management Panel .......................19 Figure 4: LEDs for the 10/100/1000Base-T Ports.........................25 Figure 5: SFP+ Slot LEDs ..............................26 Figure 6: Switch ID LED ...............................28 Figure 7: Switch ID LED ...............................28...
  • Page 8 Figures Figure 50: Moving to the Global Configuration Mode with the CONFIGURE TERMINAL Command........88 Figure 51: Activating VCStack with the STACK ENABLE Command ...................88 Figure 52: Returning to the Privileged Exec Mode with the EXIT Command ...............88 Figure 53: Saving the Change with the WRITE Command....................88 Figure 54: Rebooting the Switch with the REBOOT Command....................89 Figure 55: Removing the Dust Plug from the S1 Slot ......................92 Figure 56: Removing the Dust Cover from the AT-StackXS/1.0 Transceiver ...............93...
  • Page 9 Tables Table 1: Twisted Pair Cable for the 10/100/1000Base-T Ports ...................21 Table 2: LEDs on the 10/100/1000Base-T Ports .........................25 Table 3: SFP+ Slot LEDs ..............................27 Table 4: Stacking Slot LEDs ..............................27 Table 5: Stacking Transceivers ............................38 Table 6: Operating Distances of the AT-StackOP/0.3 Transceiver ..................54 Table 7: Physical Specifications ............................123 Table 8: Environmental Specifications ..........................123 Table 9: Power Specifications ............................124...
  • Page 10 Tables...

  • Page 11: Preface

    Preface This guide contains the installation instructions for the AT-x510DP-52GTX Gigabit Ethernet switch. This preface contains the following sections: “Document Conventions” on page 12 “Contacting Allied Telesis” on page 13 Note You can install AT-x510DP-52GTX switches as stand-alone devices or in a stack configuration with Virtual Chassis Stacking ™...

  • Page 12: Document Conventions

    Preface Document Conventions This document uses the following conventions: Note Notes provide additional information. Caution Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data. Warning Warnings inform you that performing or omitting a specific action may result in bodily injury.

  • Page 13: Contacting Allied Telesis

    Installation Guide Contacting Allied Telesis If you need assistance with this product, you may contact Allied Telesis technical support by going to the Support & Services section of the Allied Telesis web site at www.alliedtelesis.com/support. You can find links for the following services on this page: 24/7 Online Support —...
  • Page 14 Preface...

  • Page 15: Chapter 1: Overview

    “LEDs” on page 25 “USB Port” on page 30 “Console Port” on page 31 “Power Supplies” on page 32 Note You can install AT-x510DP-52GTX switches as stand-alone devices or in a stack configuration with Virtual Chassis Stacking (VCStack). This guide explains both options.

  • Page 16: Features

    Chapter 1: Overview Features Here are the features of the AT-x510DP-52GTX switch: 10/100/1000 Here are the basic features of the 10/100/1000 Mbps twisted pair ports: Mbps Twisted 48 ports per switch Pair Ports 10Base-T, 100Base-TX, and 1000Base-T compliant IEEE 802.3u Auto-Negotiation compliant...

  • Page 17: Power Supply Modules

    Two SFP+ slots can be used with special stacking transceivers to create a VCStack of up to four switches that operate as a virtual switch. Here are the basic features of the stacking slots on the AT-x510DP-52GTX switch: Two stacking ports per switch...

  • Page 18: Front And Rear Panels

    Chapter 1: Overview Front and Rear Panels The front panel of the AT-x510DP-52GTX switch is shown in Figure 1. SFP+ S1/51 CONSOLE S2/52 1000 LINK 10/100 LINK 2662 10/100/1000Base-T Ports Management Panel SFP+ Slots SFP+ or Stacking Slots Figure 1. Front Panel of the AT-x510DP-52GTX Switch Figure 2 on page 18 shows the back panel.

  • Page 19: Management Panel

    Installation Guide Management Panel Figure 3 identifies the components in the management panel on the AT- x510DP-52GTX switch. Console Management Port Switch ID LED eco-friendly Button USB Port Figure 3. AT-x510DP-52GTX Management Panel...

  • Page 20: 10/100/1000Base-T Twisted Pair Ports

    Chapter 1: Overview 10/100/1000Base-T Twisted Pair Ports The switches have 48 10/100/1000Base-T ports. Speed The ports can operate at 10, 100, or 1000 Mbps. The speeds may be set manually using the management software or automatically with Auto- Negotiation (IEEE 802.3u), the default setting. Note The ports must be set to Auto-Negotiation to function at 1000 Mbps and are not compatible with devices that are not IEEE 802.3u...

  • Page 21: Maximum Distance

    x510DP-52GTX Installation Guide The MDI and MDI-X settings do not apply when ports are operating at 1000 Mbps. Maximum The ports have a maximum operating distance of 100 meters (328 feet). Distance Cable The cable requirements of the ports are given in Table 1. Requirements Table 1.

  • Page 22: Sfp+ Slots

    The switches support a variety of short and long distance SFP and SFP+ modules. For a list of supported SFP modules, contact your Allied Telesis representative or visit our web site. Note SFP+ slots 51 and 52 are initially configured as stacking slots for the VCStack feature.

  • Page 23: Stacking Sfp+ Slots

    SFP and SFP+ transceivers by disabling the VCStack feature. See Chapter 5, “Configuring the Switch for Stand-alone Operations” on page 77 for instructions. You can stack any combination of the following switches, up to a total of four switches: AT-x510DP-52GTX AT-x510-28GTX AT-x510-52GTX AT-x510-28GPX AT-x510-52GPX...

  • Page 24: Eco-Friendly Button

    Chapter 1: Overview eco-friendly Button You may turn off the port LEDs to conserve electricity when you are not monitoring the switch. The LEDs are toggled with the eco-friendly button on the front panel of the switch or the ECOFRIENDLY LED and NO ECOFRIENDLY LED commands in the Global Configuration mode of the command line interface.

  • Page 25: Leds

    x510DP-52GTX Installation Guide LEDs Here are descriptions of the LEDs. LEDs for the Each twisted pair port has two LEDs that display link, activity and duplex mode information. The LEDs are shown in Figure 4. Twisted Pair Ports Link/Activity Duplex Mode Duplex Mode Link/Activity Figure 4.

  • Page 26: Leds For The Sfp+ Slots

    Chapter 1: Overview Table 2. LEDs on the 10/100/1000Base-T Ports (Continued) State Description Duplex Green A port is operating in full duplex mode. Mode Amber A port is operating in half-duplex mode at 10 or 100 Mbps. (Half-duplex mode does not apply to 1000 Mbps operation.) Flashing Collisions are occurring on a port operating...

  • Page 27: Leds For The Stacking Slots

    x510DP-52GTX Installation Guide Table 3. SFP+ Slot LEDs State Description Link/Activity The slot is empty, the SFP or SFP+ transceiver has not established a link to a network device, or the LEDs are turned off. To turn on the LEDs, use the eco- friendly button.

  • Page 28: Figure 6: Switch Id Led

    Chapter 1: Overview Switch ID LED Figure 6. Switch ID LED The states of the LED when the switch is not operating in the low power mode are shown in Figure 7. The switch is booting up. The switch has encountered a fault condition. The switch is operating as a stand-alone unit, with the ID number 0.

  • Page 29: Figure 8: Switch Id Leds In The Low Power Mode

    x510DP-52GTX Installation Guide Note You can use the SHOW SYSTEM ENVIRONMENT command in the command line interface to identify the source of the problem. The states of the LED when the switch is operating in the low power mode are shown in Figure 8. The switch is the master switch of a VCStack.

  • Page 30: Usb Port

    Chapter 1: Overview USB Port The management panel has a USB port. You may use the port to store configuration files on flash drives and to restore the files to switches whose settings have been lost or corrupted, or to quickly configure replacement units.

  • Page 31: Console Port

    x510DP-52GTX Installation Guide Console Port The Console port is used to establish a management session with the switch to configure its features and parameter settings. This type of management uses serial RS-232 and is commonly referred to as local or out-of-band management because it is not conducted over your network.

  • Page 32: Power Supplies

    Chapter 1: Overview Power Supplies The AT-x510DP-52GTX switch has two rear slots for hot-swappable power supplies. The switch is supplied with a factory installed blank panel that covers both power supply slots, and with a separate blank panel to use if you only install one power supply.

  • Page 33: Figure 9: At-Pwr100R Ac Power Supply

    x510DP-52GTX Installation Guide DC OUT FAULT 100-240VAC~ 2A MAX 2196 Figure 9. AT-PWR100R AC Power Supply DC PWR FAULT 100-240VAC~ 5A MAX 2196 Figure 10. AT-PWR250 AC Power Supply 40-60VDC OUTPUT POWER FAULT 2197 Figure 11. AT-PWR250R DC Power Supply...
  • Page 34 Chapter 1: Overview...

  • Page 35: Chapter 2: Virtual Chassis Stacking

    Chapter 2 Virtual Chassis Stacking The sections in this chapter are: “Overview” on page 36 “Stacking Slots” on page 37 “Stacking Transceivers” on page 38 “Stacking Port Topologies” on page 40 “Master and Member Switches” on page 44 “Specifying Ports in the Command Line Interface” on page 46 For more information on the VCStack feature, refer to the Stacking Introduction and Stacking Commands chapters in the Software Reference: AlliedWare Plus Operating System for x510 Series.

  • Page 36: Overview

    Reduces protocol requirements - Creating a stack might eliminate your need to configure some protocols, such as the Virtual Router Redundancy Protocol and Spanning Tree Protocol. You can stack any combination of the following switches, up to a total of four switches: AT-x510DP-52GTX AT-x510-28GTX AT-x510-52GTX AT-x510-28GPX AT-x510-52GPX...

  • Page 37: Stacking Slots

    Installation Guide Stacking Slots The AT-x510DP-52GTX switches come with two stacking slots. The slots are the last two SFP+ slots on the switches and are labeled S1/51 and S2/ The slots have two functions. You may use them with the VCStack feature...

  • Page 38: Stacking Transceivers

    Chapter 2: Virtual Chassis Stacking Stacking Transceivers You connect the switches of the VCStack with the stacking transceivers listed in Table 5 and shown in Figure 12. Table 5. Stacking Transceivers Stacking Cable Type Operating Distance Transceiver Model AT-StackXS/1.0 Twinax cable 1 meter AT-StackOP/0.3 62.5/125 µm multi-...
  • Page 39 x510DP-52GTX Installation Guide Here are the transceiver guidelines: The stacking transceivers may only be used in the stacking slots and only with the VCStack feature. You may not use the transceivers as regular networking ports. The AT-StackOP/0.3 and AT-StackOP/9.0 transceivers must be connected to other AT-StackOP/0.3 and AT-StackOP/9.0 transceivers.

  • Page 40: Stacking Port Topologies

    Chapter 2: Virtual Chassis Stacking Stacking Port Topologies The switches of a stack are connected with the S1 and S2 ports and the stacking transceivers shown in Figure 12 on page 38. There are two wiring configurations. The first topology is called the linear topology.

  • Page 41: Figure 14: Stack Of Four Switches In The Linear Topology

    x510DP-52GTX Installation Guide The stack in Figure 14 on page 41 has four switches in the linear topology. SFP+ S1/27 CONSOLE S2/28 SFP+ S1/27 CONSOLE S2/28 SFP+ S1/27 CONSOLE S2/28 SFP+ S1/27 CONSOLE S2/28 2695 Figure 14. Stack of Four Switches in the Linear Topology The second topology is called the ring topology.

  • Page 42: Figure 15: Stack Of Two Switches In The Ring Topology

    Chapter 2: Virtual Chassis Stacking SFP+ S1/27 CONSOLE S2/28 SFP+ S1/27 CONSOLE S2/28 2696 Figure 15. Stack of Two Switches in the Ring Topology Figure 16 on page 43 is an example of a stack of four switches in the ring topology.

  • Page 43: Figure 16: Stack Of Four Switches In The Ring Topology

    x510DP-52GTX Installation Guide SFP+ S1/27 CONSOLE S2/28 SFP+ S1/27 CONSOLE S2/28 SFP+ S1/27 CONSOLE S2/28 SFP+ S1/27 CONSOLE S2/28 2697 Figure 16. Stack of Four Switches in the Ring Topology The topologies are the same in terms of network speed and performance. However, the ring topology is the recommended wiring configuration because of the secondary path through the stacking ports.

  • Page 44: Master And Member Switches

    Chapter 2: Virtual Chassis Stacking Master and Member Switches The stack has one master switch. The functions of the master switch include: Coordinating and monitoring stack operations. Verifying that the switches are using the same version of management software. It automatically downloads its management software over the stacking cables to switches with different software versions.

  • Page 45: Id Numbers

    x510DP-52GTX Installation Guide ID Numbers Each switch must be assigned an ID number. The range is 1 to 4 and the default is 1. The ID numbers are displayed on the ID LEDs on the front panels of the units. You may assign the numbers yourself or you can let the master switch assign the numbers automatically, as explained in Chapter 8, “Powering On the Stack”...

  • Page 46: Specifying Ports In The Command Line Interface

    Chapter 2: Virtual Chassis Stacking Specifying Ports in the Command Line Interface The command line interface in the management software on the switch has a parameter that you use to specify the individual ports. The parameter is the PORT parameter and Figure 17 shows its format. port1 Stack ID Module ID...

  • Page 47: Chapter 3: Beginning The Installation

    Chapter 3 Beginning the Installation The chapter contains the following sections: “Reviewing Safety Precautions” on page 48 “Choosing a Site for the Switches” on page 52 “Planning a Stack” on page 53 “Unpacking the Switch” on page 55...

  • Page 48: Reviewing Safety Precautions

    Chapter 3: Beginning the Installation Reviewing Safety Precautions Please review the following safety precautions before beginning the installation procedure. Note Safety statements that have the symbol are translated into multiple languages in the Translated Safety Messages document at www.alliedtelesis.com/support/documentation. Warning Class 1 Laser product.
  • Page 49 x510 Series Installation Guide for Virtual Chassis Stacking Warning For AC PSUs, power cord is used as a disconnection device. To de- energize equipment, disconnect the power cord. Warning Class I Equipment. This equipment must be earthed. The power plug must be connected to a properly wired earth ground socket outlet.
  • Page 50 Chapter 3: Beginning the Installation Caution Risk of explosion if battery is replaced by an incorrect type. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Attention: Le remplacement de la batterie par une batterie de type incorrect peut provoquer un danger d’explosion.
  • Page 51 x510 Series Installation Guide for Virtual Chassis Stacking Warning Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuits (e.g., use of power strips). Caution The unit does not contain serviceable components. Please return damaged units for servicing.

  • Page 52: Choosing A Site For The Switches

    Chapter 3: Beginning the Installation Choosing a Site for the Switches Observe these requirements when planning the installation of the switches of a stack. If you plan to install the switches in an equipment rack, check to be sure that the rack is safely secured so that it will not tip over. Devices in a rack should be installed starting at the bottom, with the heavier devices near the bottom of the rack.

  • Page 53: Planning A Stack

    x510 Series Installation Guide for Virtual Chassis Stacking Planning a Stack Here are the guidelines to planning a stack: A stack can have up to four switches. A stack can have different models of x510 Series switches. It cannot contain other switches, such as IX5 or x610 Series switches.

  • Page 54: Table 6: Operating Distances Of The At-Stackop/0.3 Transceiver

    Chapter 3: Beginning the Installation Table 6. Operating Distances of the AT-StackOP/0.3 Transceiver Minimum Modal Fiber Type Bandwidth @ 850 Operating Range nm (MHz*km) 62.5/125 µm multi- 2 to 26 meters mode fiber optic (7 to 85 feet) cable 2 to 33 meters (7 to 108 feet) 50/125 µm multi- 2 to 66 meters...

  • Page 55: Unpacking The Switch

    Unpacking the Switch Figure 18 lists the items that come with the switch. If any item is missing or damaged, contact your Allied Telesis sales representative for assistance. One 2 m (6.6 ft) local management cable with RJ-45 (8P8C) and DB-9 (D-sub 9-pin) connectors.
  • Page 56 Chapter 3: Beginning the Installation...

  • Page 57: Chapter 4: Installing The Switch And Its Power Supplies

    Chapter 4 Installing the Switch and its Power Supplies The procedures in this chapter are: “Installing the Power Cord Retaining Clip” on page 58 “Installing Power Supply Modules” on page 59 “Installing the Switches on a Table or Desktop” on page 63 “Installing the Switch in an Equipment Rack”...

  • Page 58: Installing The Power Cord Retaining Clip

    Chapter 4: Installing the Switch and its Power Supplies Installing the Power Cord Retaining Clip This section applies to AC power supply modules. Perform the following procedure to install the power cord retaining clip on each power supply module: 1. Locate the power cord retaining clip, shown in Figure 19. Figure 19.

  • Page 59: Installing Power Supply Modules

    Installation Guide Installing Power Supply Modules Overview The AT-x510DP-52GTX switch has two rear slots for hot-swappable power supplies. The switch is supplied with a factory installed blank panel that covers both power supply slots, and with a separate blank panel to use if you only install one power supply.

  • Page 60: Figure 21: Removing The Rear Panel

    Chapter 4: Installing the Switch and its Power Supplies 2. Remove the blank panel from the power supply slots on the rear panel of the switch by unscrewing it, as shown in the following figure. Figure 21. Removing the rear panel 3.

  • Page 61: Figure 22: Installing The At-Pwr100R Ac Power Supply Module

    x510DP-52GTX Installation Guide 2268 D C O FA U LT 10 0- 24 0V AC ~ 2A M Figure 22. Installing the AT-PWR100R AC Power Supply Module 4. Secure the power supply module to the chassis by tightening the two captive screws with a cross-head screwdriver, as shown below.

  • Page 62: Figure 24: Installing The Blank Panel On The Power Supply Slot

    Chapter 4: Installing the Switch and its Power Supplies 5. If you are going to operate the switch with a single power supply module, install the supplied blank panel over the second power supply module bay, as shown in the following figure. This is necessary for correct airflow.

  • Page 63: Installing The Switches On A Table Or Desktop

    x510DP-52GTX Installation Guide Installing the Switches on a Table or Desktop You may install the switches on a table or desktop. Here are the guidelines to selecting a site: The table should be level and stable. The power outlets should be located near the switches and be easily accessible.

  • Page 64: Installing The Switch In An Equipment Rack

    52. Here is the procedure for installing the switch horizontally or vertically in a 19-inch equipment rack. Caution The chassis may be heavy and awkward to lift. Allied Telesis recommends that you get assistance when mounting the chassis in an equipment rack.

  • Page 65: Figure 27: Attaching The Equipment Rack Brackets

    x510DP-52GTX Installation Guide 3. Turn the switch over. 4. Attach the two rack mount brackets to the sides of the switch using the bracket screws included with the unit. Figure 27 on page 65 illustrates the four possible bracket positions. 1000 LINK 10/1...

  • Page 66: Figure 28: Mounting The Switch Horizontally In An Equipment Rack

    Chapter 4: Installing the Switch and its Power Supplies 5. While another person holds the switch in the equipment rack, secure it using standard equipment rack screws (not provided), as shown in Figure 28 for horizontal mounting and Figure 29 for vertical mounting. 10 00 10 /10 0 LIN...

  • Page 67: Connecting Ac Power To A Power Supply Module

    x510DP-52GTX Installation Guide Connecting AC Power to a Power Supply Module To power on a switch with one or two AC Power Supply Modules, perform the following procedure: 1. Position the power cord retaining clip in the up position, as shown in Figure 30.
  • Page 68 Chapter 4: Installing the Switch and its Power Supplies 3. Connect the other end of the power cord to an appropriate AC power outlet. For power specifications for the switch, refer to “Power Specifications” on page 124. Warning This unit might have more than one power supply. To reduce the risk of electric shock, disconnect all power cords before servicing the unit.

  • Page 69: Power Wiring To A Dc At-Pwr250R-80 Power Supply Module

    x510DP-52GTX Installation Guide Power Wiring to a DC AT-PWR250R-80 Power Supply Module This section describes how to power on a switch with a DC AT-PWR250R-80 Power Supply Module, and essential safety information. Warning As a safety precaution, install a double-pole circuit breaker with a maximum value of 20 Amps and a minimum value of 15 Amps between the equipment and the DC power source.

  • Page 70: Figure 32: Dc Terminal Block On The Dc At-Pwr250R-80 Power Supply Module

    Chapter 4: Installing the Switch and its Power Supplies as this equipment. Switching or disconnecting devices shall not be in the earthed circuit conductor between the DC source and the point of connection of the earthing electrode conductor. Warning Enough wiring space is required to allow the conductors to be introduced and connected easily.

  • Page 71: Figure 33: Stripped Wire

    x510DP-52GTX Installation Guide 4. With a 14-gauge wire-stripping tool, strip the three wires in the tray cable coming from the DC input power source to 8mm ± 1mm (0.31 in., ± 0.039 in.), as shown in Figure 33 on page 71. Warning Do not strip more than the recommended amount of wire.
  • Page 72 Chapter 4: Installing the Switch and its Power Supplies 6. Connect the +48 VDC (RTN) feed wire to the terminal block marked + (plus). 7. Connect the -48 VDC feed wire to the terminal block marked - (minus). Warning Check to see if there are any exposed copper strands coming from the installed wires.

  • Page 73: Starting A Local Management Session

    x510DP-52GTX Installation Guide Starting a Local Management Session This procedure requires a terminal or a terminal emulator program and the management cable that comes with the switch. To start a local management session on the switch, perform the following procedure: 1.

  • Page 74: Monitoring The Initialization Processes

    \ \_ __/ /| ______ | | ______ | \ ____ / /______/\____\ \/ /____________/ Allied Telesis Inc. AlliedWare Plus (TM) v5.4.2A Current release filename: x510-5.4.3-3.7.rel Original release filename: x510-5.4.3-3.7.rel Built: 08-Oct-2013 10:43:42 NZDT 2013 by: maker@maker04-build Mounting static filesystems...

  • Page 75: Figure 37: Switch Initialization Messages (Continued)

    x510DP-52GTX Installation Guide Starting base/loopback... Starting base/sysctl... Received event poefw.done Starting base/portmapper... Received event syslog.done Starting base/reboot-stability... Starting base/autofs-card... Checking system reboot stability... Starting base/cron... Starting base/appmond... Starting hardware/openhpi... Starting hardware/timeout... Starting base/inet... Starting base/modules... Received event modules.done Received event board.inserted Received event hardware.done Starting network/startup...

  • Page 76: Figure 38: Switch Initialization Messages (Continued)

    Chapter 4: Installing the Switch and its Power Supplies Assigning Active Workload to HA processes: hsl, nsm, rmond, sflowd, vrrpd, irdpd, lacpd lldpd, loopprotd, mstpd, authd, epsrd, imi, imiproxyd Received event network.activated Loading default configuration Warning: flash:/default.cfg does not exist, loading factory defaults. done! Received event network.configured awplus login:...

  • Page 77: Chapter 5: Configuring The Switch For Stand-Alone Operations

    Chapter 5 Configuring the Switch for Stand-alone Operations Use this chapter if you wish to operate the switch as a single stand-alone switch, instead of stacking it with other switches. This chapter contains the following procedures: “Configuring the Switch for Stand-alone Operations” on page 78 “Specifying Ports in the Command Line Interface for Stand-alone Switches”...

  • Page 78: Configuring The Switch For Stand-Alone Operations

    Chapter 5: Configuring the Switch for Stand-alone Operations Configuring the Switch for Stand-alone Operations Disabling After the switch has initialized its management software, examine the switch ID LED on the front panel and do one of the following: VCStack If the LED is displaying “0,” the installation procedure is complete. The switch is now ready for network operations as a stand-alone unit.

  • Page 79: Figure 40: Show Stack Command

    x510DP-52GTX Installation Guide Note The User Exec mode is the first level in the command mode interface. For complete information on the modes and commands, refer to the Software Reference: AlliedWare Plus Operating System for x510 Series. 3. Enter the SHOW STACK command to display the status of the VCStack feature.

  • Page 80: Figure 42: Confirmation Prompt For The No Stack Enable Command

    Chapter 5: Configuring the Switch for Stand-alone Operations The ID parameter is the ID number of the switch, displayed on the ID LED. Replace the parameter with whatever number is on the ID LED. For example, if the ID number of the switch is 1, the default value, enter the command as follows: awplus(config)# no stack 1 enable This confirmation prompt in Figure 42 is displayed.

  • Page 81: Confirming The Status Of The Vcstack Feature

    x510DP-52GTX Installation Guide Confirming the Another way to confirm that VCStack is disabled on the switch is by displaying the status of the last two SFP+ slots on the switch. These are Status of the slots 51 and 52. If VCStack is disabled, you should be able to display the VCStack Feature status of the slots even when they do not have transceivers.

  • Page 82: Figure 46: Status Of A Stacking Slot When Vcstack Is Enabled

    Chapter 5: Configuring the Switch for Stand-alone Operations The switch displays the message in Figure 46 on page 82 if VCStack is not disabled, in which case you need to disable it by performing the commands in “Disabling VCStack” on page 78. awplus# show interface port1.0.51 %Can’t find interface port1.0.51 awplus#...

  • Page 83: Specifying Ports In The Command Line Interface For Stand-Alone Switches

    x510DP-52GTX Installation Guide Specifying Ports in the Command Line Interface for Stand-alone Switches The command line interface in the management software on the switch has a parameter that you use to specify the individual ports. The parameter is the PORT parameter and Figure 47 shows its format. port1 Stack ID Module ID...
  • Page 84 Chapter 5: Configuring the Switch for Stand-alone Operations...

  • Page 85: Chapter 6: Verifying The Status Of Vcstack And Activating Vcstack

    Chapter 6 Verifying the Status of VCStack and Activating VCStack The procedures in this chapter are: “Verifying the Status of VCStack” on page 86 “Activating the VCStack Feature” on page 87...

  • Page 86: Verifying The Status Of Vcstack

    Chapter 6: Verifying the Status of VCStack and Activating VCStack Verifying the Status of VCStack Before you install the stacking transceivers to build the stack, you should first test the switches to determine whether the VCStack feature is enabled or disabled, and enable it on any units where it is disabled. On new switches, the feature should be activated because that is the default setting.

  • Page 87: Activating The Vcstack Feature

    x510DP-52GTX Installation Guide Activating the VCStack Feature Perform the following procedure to activate the VCStack feature on switches that display the number “0” on their ID LEDs in the previous procedure. The tasks follow on from “Monitoring the Initialization Processes” on page 74. Activating To activate VCStack, perform the following procedure: VCStack...

  • Page 88: Figure 50: Moving To The Global Configuration Mode With The Configure Terminal Command

    Chapter 6: Verifying the Status of VCStack and Activating VCStack 4. Enter the CONFIGURE TERMINAL command to move to the Global Configuration mode, as shown in Figure 50. awplus# configure terminal Enter configuration commands, one per line. End with CNTL/Z. awplus(config)# Figure 50.

  • Page 89: Figure 54: Rebooting The Switch With The Reboot Command

    x510DP-52GTX Installation Guide 8. Restart the switch with the REBOOT command, as shown in Figure 54. awplus# reboot reboot system? (y/n): awplus# Figure 54. Rebooting the Switch with the REBOOT Command 9. Type “Y” for yes. 10. Wait one minute for the switch to initialize its management software. 11.
  • Page 90 Chapter 6: Verifying the Status of VCStack and Activating VCStack...

  • Page 91: Chapter 7: Cabling The Stacking Ports

    Chapter 7 Cabling the Stacking Ports This chapter contains the following procedures: “Cabling Switches with AT-StackXS/1.0 Transceivers” on page 92 “Cabling Switches with AT-StackOP/0.3 or AT-StackOP/9.0 Transceivers” on page 97...

  • Page 92: Cabling Switches With At-Stackxs/1.0 Transceivers

    Chapter 7: Cabling the Stacking Ports Cabling Switches with AT-StackXS/1.0 Transceivers To cable the switches of the stack with AT-StackXS/1.0 transceivers, perform the following procedure: Warning A transceiver can be damaged by static electricity. Be sure to observe all standard electrostatic discharge (ESD) precautions, such as wearing an antistatic wrist strap, to avoid damaging the device.

  • Page 93: Figure 56: Removing The Dust Cover From The At-Stackxs/1.0 Transceiver

    x510DP-52GTX Installation Guide 3. Remove the dust cap from one end of the transceiver, as shown in Figure 56 on page 93. Figure 56. Removing the Dust Cover from the AT-StackXS/1.0 Transceiver...

  • Page 94: Figure 57: Installing The At-Stackxs/1.0 Transceiver In Slot S1

    Chapter 7: Cabling the Stacking Ports 4. Position the transceiver with the release tab on top and slide the transceiver into the slot, as shown in Figure 57 on page 94. / 2 7 / 2 8 2683 Release tab Figure 57.

  • Page 95: Figure 58: Removing The Dust Plug From The S2 Slot

    x510DP-52GTX Installation Guide 5. Remove the dust cover from the S2 slot in the next switch in the stack as shown in Figure 58 on page 95. Note The cable must crossover to different slots on the switches. The stack will not work if you connect two S1 or S2 slots together. / 2 7 / 2 8 2684...

  • Page 96: Figure 59: Installing The At-Stackxs/1.0 Transceiver In Slot S2

    Chapter 7: Cabling the Stacking Ports 7. Position the transceiver with the release tab on the bottom and slide it into the slot until it clicks into place, as shown in Figure 59 on page 96. / 2 7 / 2 8 2685 Figure 59.

  • Page 97: Cabling Switches With At-Stackop/0.3 Or At-Stackop/9.0 Transceivers

    x510DP-52GTX Installation Guide Cabling Switches with AT-StackOP/0.3 or AT-StackOP/9.0 Transceivers For guidelines to cabling the switches with AT-StackOP/0.3 or AT- StackOP/9.0 fiber optic transceivers, refer to “Planning a Stack” on page 53. To cable switches with fiber optic transceivers, perform the following procedure: 1.

  • Page 98: Figure 61: Installing The At-Stackop/0.3 Or At-Stackop/9.0 Transceiver

    Chapter 7: Cabling the Stacking Ports 3. Slide the transceiver into the slot until it clicks into place, as shown in Figure 61 on page 98. / 2 7 / 2 8 2687 / 2 7 / 2 8 2688 Figure 61.

  • Page 99: Figure 62: Removing The Dust Cover From A Stacking Transceiver

    x510DP-52GTX Installation Guide 4. Remove the dust cover from the transceiver, as shown in Figure 62 on page 99. / 2 7 / 2 8 2689 Figure 62. Removing the Dust Cover from a Stacking Transceiver 5. Verify the position of the handle on the transceiver. If the transceiver is in the S1 slot, the handle should be in the upright position, as shown in Figure 63.

  • Page 100: Figure 64: Connecting The Fiber Optic Cable To The Stacking Transceiver

    Chapter 7: Cabling the Stacking Ports 6. Connect the fiber optic cable to the transceiver, as shown in Figure 64 on page 100. The connector on the cable should fit snugly into the port, and the tab should lock the connector into place. / 2 7 / 2 8 2691...

  • Page 101: Chapter 8: Powering On The Stack

    Chapter 8 Powering On the Stack This chapter contains the following procedures: “Powering On the Switches Individually” on page 102 “Powering On the Switches Simultaneously” on page 104 “Verifying the Stack” on page 106 Perform “Powering On the Switches Individually” on page 102 if you want to control the assignment of the ID numbers to the switches of the stack.

  • Page 102: Powering On The Switches Individually

    Chapter 8: Powering On the Stack Powering On the Switches Individually This procedure explains how you can control the assignment of the ID numbers of the switches by powering on the units one at a time during the initial power-on sequence. The first switch is assigned ID number 1, the next unit is assigned ID number 2, and so on.
  • Page 103 x510DP-52GTX Installation Guide 2. Wait one minute for the switch to initialize its management software. The switch should be displaying the number 1 on its ID LED. 3. Power on the switch to be assigned ID number 2. 4. Wait two minutes for the new switch to join the stack as a member. As the new switch boots up, the first switch, which has the ID number 1 and at this point is the master switch of the stack, notifies the new switch that its current ID number is already being used and that it...

  • Page 104: Powering On The Switches Simultaneously

    Chapter 8: Powering On the Stack Powering On the Switches Simultaneously If you want the switches of the stack to use their MAC addresses to automatically assign the ID numbers during the initial power on sequence, all you have to do is power them on simultaneously, rather than one at a time as in the previous procedure.
  • Page 105 x510DP-52GTX Installation Guide 2. Wait two or three minutes for the switches to select a master switch and to assign the ID numbers. At this point, the stack is operational. The ID numbers are automatically stored in special files in the flash memories of the switches and are retained by the devices even if you reset or power cycle the stack.

  • Page 106: Verifying The Stack

    Chapter 8: Powering On the Stack Verifying the Stack To verify stack operations, perform the following procedure: 1. Establish a local management session on any switch in the stack. For instructions, refer to “Starting a Local Management Session” on page 73. 2.

  • Page 107: Setting The Priority Numbers

    x510DP-52GTX Installation Guide Setting the This procedure is optional. It explains how to configure the priority settings of the switches. Changing the priority settings protects the stack Priority Numbers configuration should you ever power on the stack with a new member switch that has a lower MAC address than an existing master or member switch.

  • Page 108: Figure 68: Saving The Priority Values With The Write Command

    Chapter 8: Powering On the Stack 4. Enter the WRITE command to save your change in the configuration file. The switch displays the confirmation prompt in Figure 68. awplus# write Building configuration ... [OK] awplus# Figure 68. Saving the Priority Values with the WRITE Command 5.

  • Page 109: Chapter 9: Cabling The Networking Ports

    Chapter 9 Cabling the Networking Ports This chapter contains the following procedures: “Cabling the Twisted Pair Ports” on page 110 “Installing SFP and SFP+ Transceivers” on page 112...

  • Page 110: Cabling The Twisted Pair Ports

    Chapter 9: Cabling the Networking Ports Cabling the Twisted Pair Ports Here are the guidelines to cabling the 10/100/1000Base-T twisted pair ports: The cable specifications for the 10/100/1000Base-T twisted pair ports are listed in Table 1 on page 21. The connectors on the cables should fit snugly into the ports, and the tabs should lock the connectors into place.
  • Page 111 x510DP-52GTX Installation Guide The default duplex mode setting of Auto-Negotiation is not appropriate for ports connected to network devices that do not support Auto-Negotiation and have a fixed duplex mode. You should disable Auto-Negotiation on those ports and set their duplex modes manually to avoid the possibility of duplex mode mismatches.

  • Page 112: Installing Sfp And Sfp+ Transceivers

    SFP and SFP+ transceivers are hot-swappable. You may install them while the chassis is powered on. Your Allied Telesis sales representative can provide you with a list of supported transceivers for the line cards. The operational specifications and fiber optic cable requirements of the transceivers are provided in the documents included with the devices.

  • Page 113: Figure 69: Removing The Dust Plug From An Sfp+ Slot

    3. If you are installing the transceiver in a top slot, position the transceiver with the Allied Telesis label facing up. If you are installing the transceiver in a bottom slot, position the transceiver with the label...

  • Page 114: Figure 70: Installing An Sfp Or Sfp+ Transceiver

    Chapter 9: Cabling the Networking Ports 4. Slide the transceiver into the slot until it clicks into place, as shown in Figure 70 on page 114. / 2 7 / 2 8 2676 Figure 70. Installing an SFP or SFP+ Transceiver Note If you are ready to attach the fiber optic cable to the transceiver, continue with the next step.

  • Page 115: Figure 72: Positioning The Sfp Or Sfp+ Handle In The Upright Position

    x510DP-52GTX Installation Guide 6. Verify the position of the handle on the SFP transceiver. If the transceiver is in a top slot, the handle should be in the upright position, as shown in Figure 72 on page 115. If the transceiver is in a bottom slot, the handle should be in the down position.
  • Page 116 Chapter 9: Cabling the Networking Ports...

  • Page 117: Chapter 10: Troubleshooting

    Check whether the switch is powered up, for example by listening for fan operation, checking the port LEDs and/or starting a management session. If it is powered up, then the Switch ID LED may be faulty. Please contact your Allied Telesis sales representative for assistance. Note The switch may be operating in low power mode, which reduces the number of lit LED segments.
  • Page 118 Chapter 10: Troubleshooting — Try connecting the unit to another power source. — Try a different power cord. — Verify that the voltage from the power source is within the required levels for your region. If the PSU LED is not lit, then for DC power supply modules: —...
  • Page 119 x510DP-52GTX Installation Guide Problem 4: A twisted pair port on the switch is connected to a network device but the port’s LINK/ACT LED is off. Solutions: The port is unable to establish a link to a network device. Try the following: Verify that the port is connected to the correct twisted pair cable.
  • Page 120 Chapter 10: Troubleshooting Verify that the correct type of fiber optic cabling is being used. Verify that the port is connected to the correct fiber optic cable. This is to eliminate the possibility that the port is connected to the wrong remote network device.
  • Page 121 The internal temperature of the switch has exceeded the normal operating range and the switch may shut down. Note You can use the SHOW SYSTEM ENVIRONMENT command in the command line interface to identify the source of the problem. Contact your Allied Telesis sales representative for assistance.
  • Page 122 Chapter 10: Troubleshooting...

  • Page 123: Appendix A: Technical Specifications

    Appendix A Technical Specifications Physical Specifications Table 7. Physical Specifications Dimensions 4.4 cm x 44.0 cm x 48.0 cm (H x W x D) (1.7 in. x 17.3 in. x 18.9 in.) Weight 5.7 kg Recommended Minimum 10 cm (4.0 in) Ventilation on All Sides Environmental Specifications Table 8.

  • Page 124: Power Specifications

    Appendix A: Technical Specifications Power Specifications Table 9. Power Specifications Maximum Power Consumption 110W with two AT-PWR100R PSUs 130W with two AT-PWR250 PSUs 130W with two AT-PWR250R PSUs Input Voltage: AT-PWR100R PSU 100-240 VAC, 2 A maximum, 50/60 Hz per input Input Voltage: AT-PWR250 PSU 100-240 VAC, 5 A maximum, 50/60 Hz per input...

  • Page 125: Rj-45 Twisted Pair Port Pinouts

    x510DP-52GTX Installation Guide RJ-45 Twisted Pair Port Pinouts Figure 74 illustrates the pin layout of the RJ-45 connectors and ports. Figure 74. RJ-45 Socket Pin Layout (Front View) Table 11 on page 125 lists the pin signals for 10 and 100 Mbps. Table 11.

  • Page 126: Table 12: Pin Signals For 1000 Mbps

    Appendix A: Technical Specifications Table 12 lists the pin signals when a port operating at 1000 Mbps. Table 12. Pin Signals for 1000 Mbps Pinout Pair Pair 1 + Pair 1 - Pair 2 + Pair 3 + Pair 3 - Pair 2 - Pair 4 + Pair 4 -...

  • Page 127: Rj-45 Style Serial Console Port Pinouts

    x510DP-52GTX Installation Guide RJ-45 Style Serial Console Port Pinouts Table 13 lists the pin signals of the RJ-45 style serial Console port. Table 13. RJ-45 Style Serial Console Port Pin Signals Signal Looped to pin 8. Looped to pin 7. Transmit Data Ground Ground...

  • Page 128: Fiber Optic Specifications Of The At-Stackop/0.3 And At-Stackop/9.0 Transceivers

    Appendix A: Technical Specifications Fiber Optic Specifications of the AT-StackOP/0.3 and AT-StackOP/9.0 Transceivers Table 14 lists the fiber optic port specifications for the AT-StackOP/0.3 transceiver. Table 14. Fiber Optic Port Specifications for the AT-StackOP/0.3 Module General Maximum Distances 33 m with 62.5/125 µm (core/ cladding) multimode fiber optic cable 300 m with 50/125 µm (core/...

  • Page 129: Table 15: Fiber Optic Port Specifications For The At-Stackop/9.0 Transceiver

    x510DP-52GTX Installation Guide Table 15 lists the fiber optic port specifications for the AT-StackOP/9.0 transceiver. Table 15. Fiber Optic Port Specifications for the AT-StackOP/9.0 Transceiver General Maximum Distances 9 km Fiber Optic Cable 9/125 µm (core/cladding) single- mode fiber optic cable Transmitter Wavelength 1310 nm...
