MAC Address Label

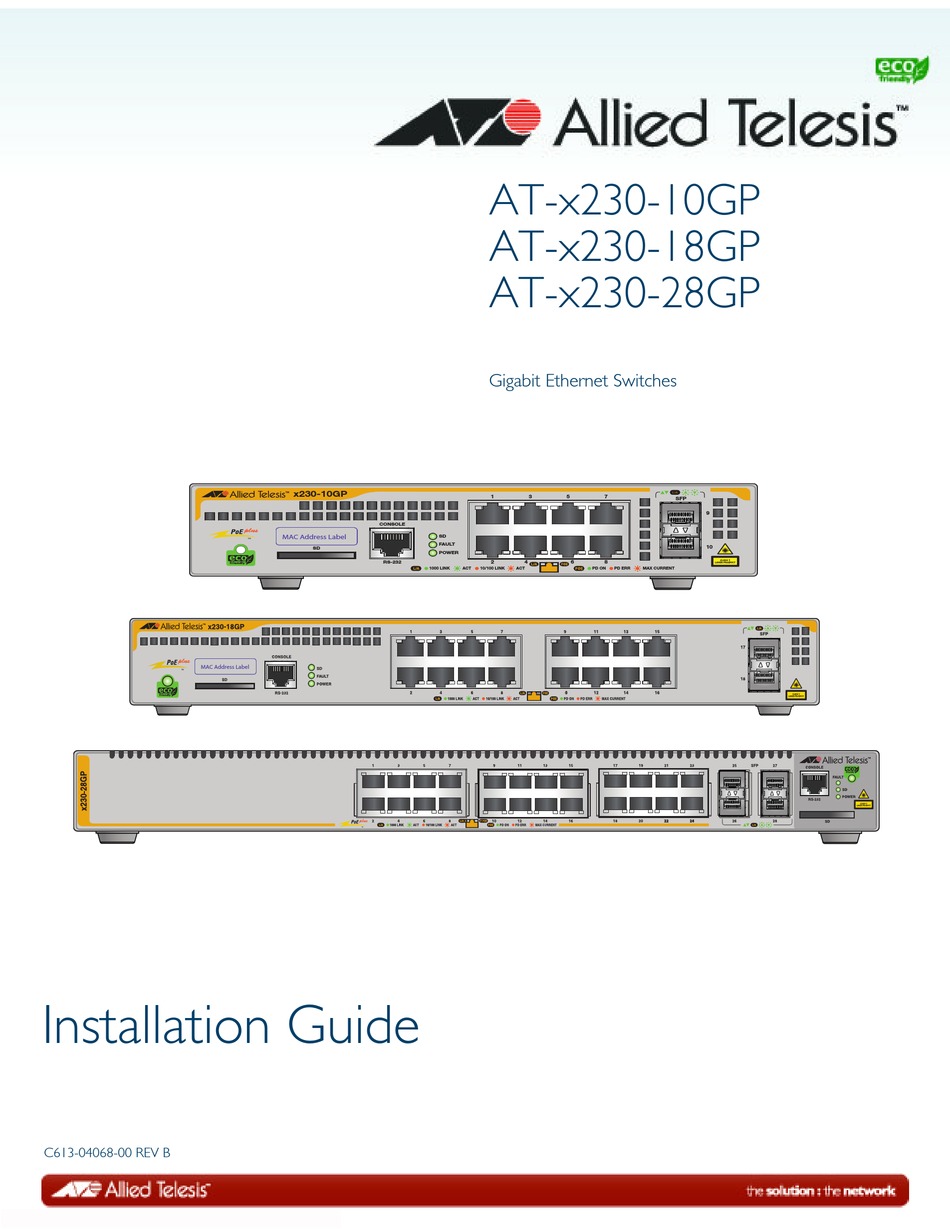

Installation Guide

C613-04068-00 REV B
x230-10GP
CONSOLE
MAC Address Label
SD
FAULT
SD
POWER
RS-232
1000 LINK
AT-x230-10GP
AT-x230-18GP
AT-x230-28GP
Gigabit Ethernet Switches
1
3
5
7
2
4
6
8
ACT
10/100 LINK
ACT
PD ON
PD ERR
SFP
9
10
MAX CURRENT
