Installing The Nxd Into A Flat Surface Using #4 Screws - AMX NXD-1200VG Operation/Reference Manual

Installation Procedures: 12" and 15" Panels
Install the four drywall
clip sets (included)
into these holes
Mounting Tab
A - Faceplate
(bezel)

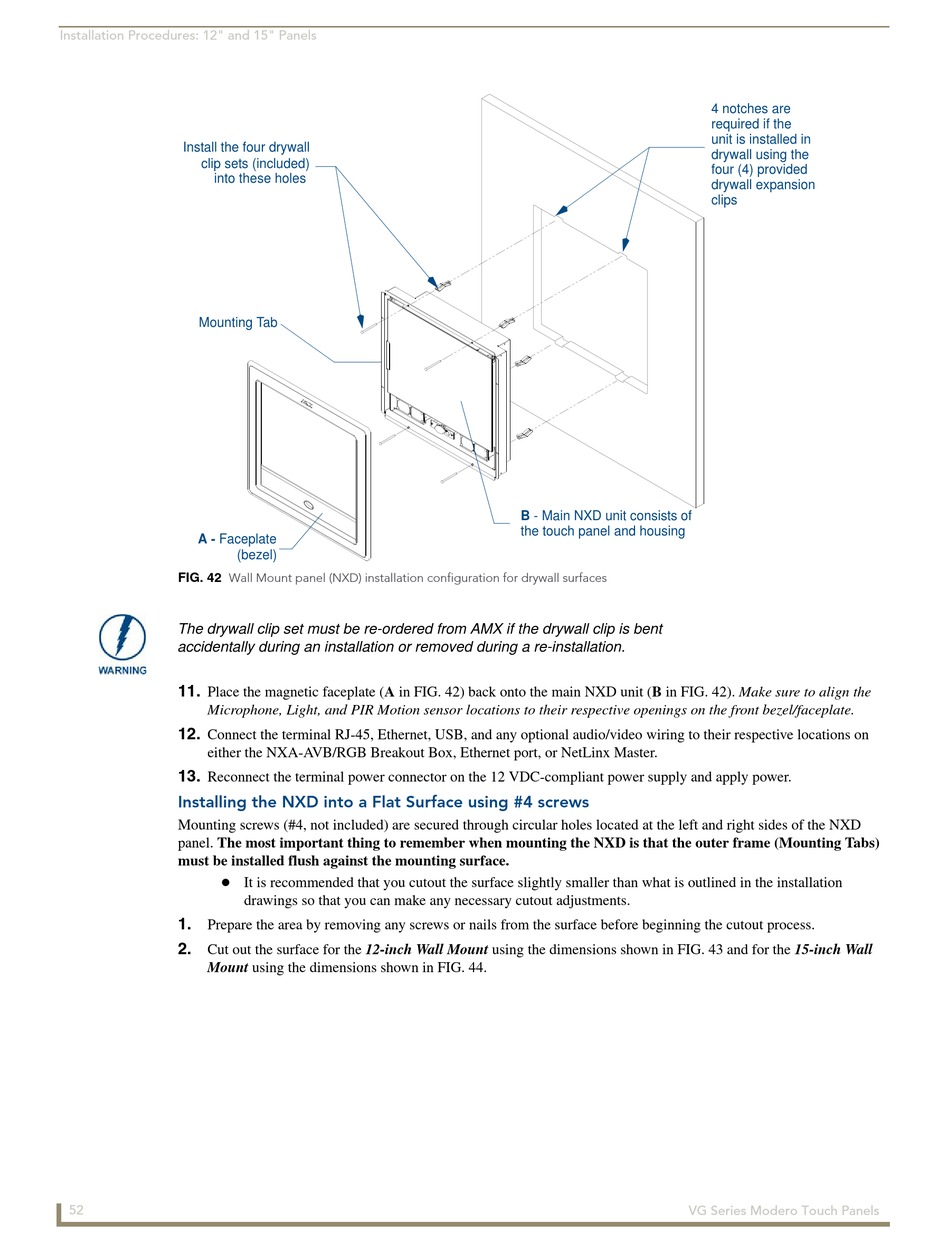

FIG. 42 Wall Mount panel (NXD) installation configuration for drywall surfaces
The drywall clip set must be re-ordered from AMX if the drywall clip is bent
accidentally during an installation or removed during a re-installation.
11.
Place the magnetic faceplate (A in FIG. 42) back onto the main NXD unit (B in FIG. 42). Make sure to align the
Microphone, Light, and PIR Motion sensor locations to their respective openings on the front bezel/faceplate.
12.
Connect the terminal RJ-45, Ethernet, USB, and any optional audio/video wiring to their respective locations on
either the NXA-AVB/RGB Breakout Box, Ethernet port, or NetLinx Master.
13.
Reconnect the terminal power connector on the 12 VDC-compliant power supply and apply power.

Installing the NXD into a Flat Surface using #4 screws

Mounting screws (#4, not included) are secured through circular holes located at the left and right sides of the NXD
panel. The most important thing to remember when mounting the NXD is that the outer frame (Mounting Tabs)
must be installed flush against the mounting surface.

1.
Prepare the area by removing any screws or nails from the surface before beginning the cutout process.
2.
Cut out the surface for the 12-inch Wall Mount using the dimensions shown in FIG. 43 and for the 15-inch Wall
Mount using the dimensions shown in FIG. 44.
52
It is recommended that you cutout the surface slightly smaller than what is outlined in the installation
drawings so that you can make any necessary cutout adjustments.
B - Main NXD unit consists of
the touch panel and housing
VG Series Modero Touch Panels
4 notches are
required if the
unit is installed in
drywall using the
four (4) provided
drywall expansion
clips
