Page 1 Operation/Reference Guide Modero VG-Series ® G4 Touch Panels NXD/NXT-1200VG, NXD/NXT-1500VG, and NXD/NXT-1700VG L as t R e vi s ed: 1 0 /1 /20 0 8 To u ch P a n e l s...
Page 2 Products repaired under this policy will carry a ninety (90) day warranty on material and labor. • AMX will notify the AMX Authorized Partner with the cost of repair, if cost is greater than the Standard Repair Fee, within five (5) days of receipt.
Page 3: Fcc Information
FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of...
Page 5: Table Of Contents
Introduction ...1 Multimedia Streaming Video Touch Panels (VG-Series) ... 1 Product Specifications (NXD-1200VG and NXT-1200VG) ... 2 Product Specifications (NXD-1500VG and NXT-1500VG) ... 7 Product Specifications (NXD-1700VG and NXT-1700VG) ... 12 VG-Series Modero Connectors ... 17 Connecting and Using USB Input Devices... 17 Cleaning the Touch Overlay...
Page 6 Table of Contents Installation and Upgrade of the Internal NXD Components ... 42 Step 1: Remove the existing NXD Outer Housing... 42 Step 2: Install the new 802.11g mini-PCI Wireless card (NXD) ... 43 Step 3: Install the new RGB Card Component (NXD) ... 43 Step 4: Install the new Compact Flash Memory card (NXD) ...
Page 7 Step 2: Confirming the Installation of the USB Driver on the PC ... 96 Step 3: Confirm and View the current AMX USB device connections ... 98 Step 4: Using a USB to Configure a Virtual Master (using NetLinx Studio) ... 98 Step 5: Confirm and View the current AMX USB device connections ...
Page 8 Table of Contents Wireless communication using a DHCP Address ... 102 Wireless communication using a Static IP Address... 103 Step 2: Configuring the Card’s Wireless Security Settings ... 104 Configuring the Modero’s wireless card for unsecured access to a WAP200G ... 104 Configuring the Modero’s wireless card for secured access to a WAP200G ...
Page 9 Volume Page ... 139 Supported sampling rates for WAV ... 140 Protected Setup Page ... 140 Video Adjustment Slide-Out Option Bar ... 141 Video Adjustment - Video Adjustment Page... 141 Video Adjustment - RGB Adjustment Page ... 142 Adjusting the Incoming Signal on the RGB Adjustment Page ... 145 Video Adjustment - Streaming Adjustment Page...
Page 10 Table of Contents Embedded Codes ... 227 Panel Setup Commands ... 228 Dynamic Image Commands... 229 Troubleshooting ...231 Appendix ...235 Text Formatting Codes for Bargraphs/Joysticks ... 235 Text Area Input Masking... 236 Input mask character types ... 236 Input mask ranges ... 237 Input mask next field characters...
Page 11: Introduction
Introduction AMX has taken a quantum leap forward with the release of their new VG-Series of Modero touch panels. These panels offer streaming MPEG video, high-definition Component RGB input and display, USB support for extended input devices, and panel programming via a mini-USB port.
Page 12: Product Specifications (Nxd-1200Vg And Nxt-1200Vg)

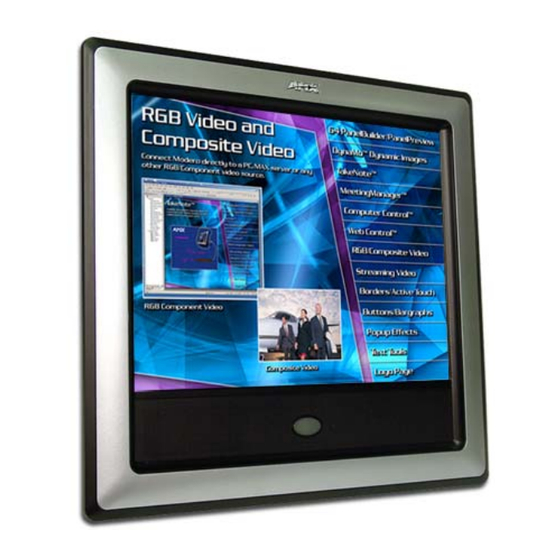

NXD-1200VG (FG2251-61RGB) 12" Modero Multimedia WallMount Touch Panel with RGB Kit. NXT-1200VG (FG2250-61RGB) NXD-1500VG (FG2253-61RGB) 15" Modero Multimedia WallMount Touch Panel with RGB Kit. NXT-1500VG (FG2252-61RGB) NXD-1700VG (FG2256-61RGB) 17" Modero Widescreen WallMount Touch Panel with RGB Kit. NXT-1700VG (FG2257-61RGB) The RGB Kits include the following components:...
Page 13 1200VG Panel Specifications (Cont.) Panel LCD Parameters: Active Screen Area: Viewing Angles: Features: Supported Audio Sample Rates: • 48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz, 12000Hz, Certifications: Supported Transport Protocols: • RTP (MPEG-2/MPEG-4 Transport Stream) Supported Audio Codecs: Supported Video Codecs: Button Assignments: VG-Series Modero Touch Panels •...
Page 14 Introduction 1200VG Panel Specifications (Cont.) Front Panel Components: Light sensor: Motion sensor (PIR): Front setup access button: Microphone: Speakers: Rear Panel Components: RGB connector Audio/Video connector: Ethernet 10/100 port: Ethernet 10/100 LEDs: • Photosensitive light detector for automatic adjustment of the panel brightness (a dim room results in a dimmer LCD display and a bright room results in a brighter LCD display).
Page 15 On before attempting to connect the USB cable from the PC to the mini-USB port on the panel. Refer to the Step 5: Confirm and View the current AMX USB device connections section on page 100 for more information.
Page 16 Introduction 1200VG Panel Specifications (Cont.) Other AMX Equipment: Several items are included within both the Video and RGB Kits. Any items not specifically included within those kits can be considered as optional accessories. • CB-TP12 (FG031-10): - 12" metallic conduit box for Wall Mount installations.
Page 17: Product Specifications (Nxd-1500Vg And Nxt-1500Vg)
• NXD-1500VG (with faceplate): 14.37" x 15.20" x 3.31" (36.50 cm x 38.61 cm x 8.40 cm) • NXT-1500VG (Fully raised): 12.94" x 14.95" x 11.73" (32.87 cm x 37.97 cm x 29.78 cm) • NXT-1500VG (Fully lowered): 7.45" x 14.95" x 11.72"...
Page 18 Introduction 1500VG Panel Specifications (Cont.) Features: Supported Audio Sample Rates: • 48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz, 12000Hz, Certifications: Supported Transport Protocols: • RTP (MPEG-2/MPEG-4 Transport Stream) Supported Audio Codecs: Supported Video Codecs: Button Assignments: • Display of Component RGB/HDTV signals (done through the use of both an internal NXA-RGB card and an external NXA-AVB/RGB Breakout Box) •...
Page 19 1500VG Panel Specifications (Cont.) Front Panel Components: Light sensor: Motion sensor (PIR): Front setup access button: Microphone: Speakers: Rear Panel Components: RGB connector Audio/Video connector: Ethernet 10/100 port: Ethernet 10/100 LEDs: PWR connector: Stereo Output connector: VG-Series Modero Touch Panels •...
Page 20 On before attempting to connect the USB cable from the PC to the mini-USB port on the panel. Refer to the Step 5: Confirm and View the current AMX USB device connections section on page 100 for more information.
Page 21 1500VG Panel Specifications (Cont.) Other AMX Equipment: VG-Series Modero Touch Panels Several items are included within both the Video and RGB Kits. Any items not specifically included within those kits are considered optional. • CB-TP15 (FG032-10): 15" metallic conduit box for Wall Mount installations.
Page 22: Product Specifications (Nxd-1700Vg And Nxt-1700Vg)
Introduction 1500VG Panel Specifications (Cont.) Other AMX Equipment (Cont.): Product Specifications (NXD-1700VG and NXT-1700VG) The following table outlines the specifications for VG-Series of 17" Modero panels. 1700VG Panel Specifications Dimensions (HWD): Power Requirements: Memory (factory default): Weight: Panel LCD Parameters: Viewing Angles: •...
Page 23 1700VG Panel Specifications (Cont.) Features: Supported Audio Sample Rates: • 48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz, 12000Hz, Certifications: Supported Transport Protocols: • RTP (MPEG-2/MPEG-4 Transport Stream) Supported Audio Codecs: Supported Video Codecs: Button Assignments: VG-Series Modero Touch Panels • Display of Component RGB/HDTV signals (done through the use of both an internal NXA-RGB card and an external NXA-AVB/RGB Breakout Box) •...
Page 24 Introduction 1700VG Panel Specifications (Cont.) Front Panel Components: Light sensor: Motion sensor (PIR): Front setup access button: Microphone: Speakers: Rear Panel Components: RGB connector Audio/Video connector: Ethernet 10/100 port: PWR connector: Stereo Output connector: Ethernet 10/100 LEDs: • Photosensitive light detector for automatic adjustment of the panel brightness (a dim room results in a dimmer LCD display and a bright room results in a brighter LCD display).
Page 25 On before attempting to connect the USB cable from the PC to the mini-USB port on the panel. Refer to the Step 5: Confirm and View the current AMX USB device connections section on page 100 for more information.
Page 26 Introduction 1700VG Panel Specifications (Cont.) Other AMX Equipment: Several items are included within both the Video and RGB Kits. Any items not specifically included within those kits are considered optional. • CB-TP17 (FG034-10): 17" metallic conduit box for Wall Mount installations.
Page 27: Vg-Series Modero Connectors
1700VG Panel Specifications (Cont.) Other AMX Equipment (Cont.): VG-Series Modero Connectors FIG. 1 shows the connectors on the VG-Series Modero panels. NXT VG-Series connectors located on rear panel of the base Composite/RGB Audio-Video from and pass-thru control (CAT5) FIG. 1...
Page 28: Cleaning The Touch Overlay
Introduction Cleaning the Touch Overlay You should clean the touch screen overlay after each day’s use. Always use clean cotton cloths and a spray bottle containing water. VG-Series Modero Touch Panels...
Page 29: Touch Panel Accessories
FIG. 2 NXA-AVB/RGB Breakout Box (front and rear views) The NXA-AVB/RGB Breakout Box is available either separately or as part of AMX’s exclusive RGB Kit (NXA-RGBKIT). The RGB Breakout Box (combined with the panel’s internal NXA-RGB interface card) allows the Modero to accept and display high-bandwidth and high-quality RGB and HDTV Component video signals.
Page 30: Product Specifications
Touch Panel Accessories Product Specifications NXA-AVB/RGB Specifications Dimensions (HWD): Power Consumption: Certifications: Features: Availability: Front Components: Rear Components: Included Accessories: • 1.52" x 5.54" x 4.93" (3.86 cm x 14.07 cm x 12.52 cm) • Width when attached to mounting ears: 6.65" (16.86 cm) •...
Page 31: Rgb Rj-45 Connection And Wiring Information
50 feet (15.24 m). For cable runs over 50 feet (15.24 m), AMX recommends using the Belden Brilliance VideoTwist 7987. This Belden cable is not CAT5 compliant, but is designed to control skew between the red, green, and blue video signals. Therefore, for longer cable runs, the video quality will be much higher using the Belden VideoTwist 7987 cable versus standard CAT5 (or other Ethernet compliant cables).
Page 32: Using The Hd-15 High-Density Connector
Touch Panel Accessories Using the HD-15 high-density connector Connect the RGB/Comp source equipment HD-15 (male) connector to the RGB/COMPONENT HD-15 high-density connector (female) on the rear of the NXA-AVB/RGB Breakout Box. The following table below lists the HD-15 connector pinouts. HD-15 Connector Pinouts Signal Function...
Page 33: Wiring The Nxa-Avb/Rgb Connectors And Cables
The breakout box unit can be mounted on either a horizontal flat surface or into an equipment rack (by removing the front screws and attaching it to an optional AC-RK). The power supply being used on the NXA-AVB/RGB is dependant on the power requirements of the target touch panel.
Page 34: Wiring The Nxa-Avb/Rgb For Unbalanced Audio
Mic Out port. This signal can be fed as a Line Level In to either an amplifier or an AMX VOL card. Either a balanced (+, -, and GND) or unbalanced (+ and GND) audio signal can be connected to this output.
Page 35: Wiring The Nxa-Avb/Rgb For Balanced Audio
AUDIO IN MIC OUT OUT- OUT+ FIG. 5 Wiring the rear AUDIO IN and MIC OUT for use with Unbalanced Audio Wiring the NXA-AVB/RGB for Balanced Audio Professional audio equipment will often use balanced audio inputs and outputs, usually on 3-pin "XLR" connectors.
Page 36: Preparing Your Panel For Pass-Thru Control (Using The Nxa-Avb/Rgb Breakout Box)
Note that Streaming Source is only available as a Video Fill option if the project specifies a touch panel that supports streaming video (NXD/NXT-1200VG, NXD/NXT-1500VG, and NXD/NXT-1700VG only). 4. Set up a touch panel page (via TPDesign4) with the necessary Video Touch Pass-thru property (yes) selected.
Page 37: Wiring For Pass-Thru Computer Control
Wiring for Pass-Thru Computer Control 1. Discharge any acquired static electricity by touching a grounded metal object. 2. Turn-off your computer and remove any installed power cables. Review FIG. 7 for an overview of the overall wiring configuration surrounding pass-thru control. RGB/Component In (Type-A) 12 VDC power...
Page 38: Nxa-Mtc/Rgb Combo Table Top Cable (Ca2250-70)
NXA-MTC/RGB Specifications Dimensions (HWD): Connectors: Included Accessories: Other AMX Equipment: • Length: 10 feet (3.048 m) • Ethernet RJ-45 connector (White) routes Ethernet signals between the touch panel and the AVB/RGB Breakout Box. • Audio/Video RJ-45 connector (Black) routes differential audio/video signals between the touch panel and the box.
Page 39: Wiring And Connection Information
NXD-1200VG RGB KIT, 12" MODERO WALLMOUNT RGB KIT NXT-1200VG RGBKIT, 12" MODERO TABLETOP RGB KIT NXD-1500VG RGB KIT, 15" MODERO WALLMOUNT RGB KIT NXT-1500VG RGB KIT, 15" MODERO TABLETOP RGB KIT NXD-1700VG RGB KIT, 17" MODERO WALLMOUNT RGB KIT NXT-1700VG RGB KIT, 17" MODERO TABLETOP RGB KIT...
Page 40: Installing Cat5 Suppression Ferrites
Touch Panel Accessories The following table provides the wiring information for each of the four (4) available connectors on each side of the NXA-MTC/RGB Tabletop Cable. Wire Table Wire Connector 1 White/Orange Orange/White White/Green Blue/White White/Blue Green/White White/Brown Brown/White Installing CAT5 Suppression Ferrites Before connecting the RJ-45 cables to the Modero Touch Panel, install the necessary number of CAT5 Suppression Ferrites (FIG.
Page 41: Nxa-Rgb Rgb/Vga Interface Card (Fg2260)
NXA-RGB RGB/VGA Interface Card (FG2260) The NXA-RGB (FIG. 12) is an RGB/VGA plug-in interface card that allows any of AMX’s VG-Series Modero Touch Panels to accept either RGB or HDTV Component signals directly from an external source when routed through an optional NXA-AVB/RGB Breakout Box. This card is field upgradeable and works in-tandem with the RGB connector on the front of an NXA-AVB/RGB Breakout Box.
Page 42: Product Specifications
Features: Availability: Connector: Included Accessories: Other AMX Equipment: • 0.88" x 3.50" x 6.50" (2.22 cm x 8.89 cm x 16.51 cm) • 0.85 lbs (0.39 kg) • 240 mA @ 12 VDC • FCC Part 15 Class B, CE, and EN 60950 •...
Page 43: Supported Component/Vga Video Resolutions And Formats
50 feet (15.24 m). For cable runs over 50 feet (15.24 m), AMX recommends using the Belden Brilliance VideoTwist 7987. This Belden cable is not CAT5 compliant, but is designed to control skew between the red, green, and blue video signals. Therefore, for longer cable runs, the video quality will be much higher using the Belden VideoTwist 7987 cable versus standard CAT5 (or other Ethernet compliant cables).
Page 44: Nxa-Cftp Compact Flash (Fg2116-22)
The default 128 MB Compact Flash card is factory programmed with specific panel firmware and is the only upgradeable memory component. This component can be ordered from AMX in several different upgrade sizes (as listed in the following table):...
Page 45: Nxa-Pci80211G Wireless Card (Fg2255-04)
NXA-PCI80211G Wireless Card (FG2255-04) The 1200V-Series and VG-Series Modero touch panels can connect to an internal NXA-PCI80211G mini-PCI Wireless Card (FIG. 13) connected to two antennas (57-2250-10). FIG. 13 NXA-PCI80211G mini-PCI Wireless Card The NXA-PCI80211G card functions using a 2.4GHz bandwidth with a maximum data transfer rate of 54Mbps.
Page 46 • Operates from 2.300-2.500 GHz • Operate at ISM frequency bands (2.4GHz) with 54Mbps data rate • Pre-configured to communicate with current AMX Wireless Access Points • Support for IEEE 802.11b and 802.11g • Wired Equivalent Privacy (WEP) 64-bit and 128-bit data encryption •...
Page 47: Installation And Upgrade Of The Internal Nxt Components
NXA-PCI80211G Specifications (Cont.) Security: Availability: Installation and Upgrade of the Internal NXT Components Upgrading the components within each of the Table Top panels involves removing the outer housing (with speaker plate), removing and/or installing an existing component, and then placing the outer housing back onto the NXT panel, as described in the following sections.
Page 48: Step 2: Install The 802.11G Mini-Pci Wireless Card
Touch Panel Accessories 6. In a single motion, carefully pull the outer housing up and then out (away from the LCD panel) to expose the internal circuit board (FIG. 19). The NXA-RGB card is available within both the optional RGB Kit and NXA-RGBKIT upgrade. 7.
Page 49: Step 3: Install The Nxa-Rgb Card Component (Nxt)
5. While maintaining the 25° angle alignment on the new module, push it in firmly until the contact pins are completely inside the connector and the card "snaps" into place (FIG. 18). 6. Push the card downward (to the main board) until the side braces snap atop the NXA-PCI80211G and hold it in place.
Page 50: Step 4: Install The Compact Flash Memory Card Upgrade
Touch Panel Accessories NXA-RGB card NXA-RGB card screw locations (4) RGB I/O connector plate FIG. 19 Location of the NXA-RGB card and I/O plate Step 4: Install the Compact Flash Memory Card upgrade 1. Discharge any static electricity from your body by touching a grounded metal object and then locate the existing Compact Flash card (factory-shipped with 128 MB) on the main board (FIG.
Page 51: Step 5: Close And Resecure The Nxt Panel Enclosure
Card removal grooves Insert with arrow facing towards the pins FIG. 21 Removing/installing a Compact Flash Memory card 4. Remove the new CF memory card from it’s anti-static bag. 5. Grip the sides of the new CF memory card and firmly insert it into the slot opening (with the arrow facing towards the pins) until the contact pins are completely inside the flash card and it is then securely attached to the pin sockets.
Page 52: Installation And Upgrade Of The Internal Nxd Components
Touch Panel Accessories 8. Grasp both the LCD and housing and then rotate the entire unit back onto a flat surface. 9. Insert all connectors and apply power. Installation and Upgrade of the Internal NXD Components Upgrading the components within a WallMount panel involves removing the rear plastic outer housing (back box), removing and/or installing an existing component, and then placing the back box back onto the NXD panel, as described in the following sections.
Page 53: Step 2: Install The New 802.11G Mini-Pci Wireless Card (Nxd)
Step 2: Install the new 802.11g mini-PCI Wireless card (NXD) Complete the procedures outlined within Step 2: Install the 802.11g mini-PCI Wireless Card section on page 38 and then continue with the following step. Step 3: Install the new RGB Card Component (NXD) 1.
Page 54: Nxt-Bp Power Pack (Fg2255-10)
Touch Panel Accessories 3. Remove the previous I/O plate adhesive overlay (this reveals a pre-drilled RGB connector opening) and replace it with the new adhesive RGB overlay (53-2250-03). 4. Reinstall the upgraded RGB I/O connector plate by aligning all connectors to their respective locations (FIG.
Page 55: Nxa-Base/B Battery Base Kit (Fg2255K)
Power Requirements: Weight: Features: Operating / Storage Environment: Other AMX Equipment: It is recommended to fully charge the batteries before their initial use. VG-Series Modero Touch Panels NXT-BP Battery Pack • 1.13" x 8.63" x 11.81" (2.86 cm x 21.91 cm x 30.00 cm) •...
Page 56: Checking The Nxt-Bp Battery Charge
Touch Panel Accessories Checking the NXT-BP battery charge 1. Press the Battery Life Indicator button (FIG. 27) once to illuminate the Battery Life LEDs and display the percent charge remaining on the battery (this indication lasts a few seconds). FIG. 27 NXT-BP (showing Battery Life Indicator button and charge) 2.
Page 57: Installing An Nxt-Bp Into The Nxa-Base/B
The battery base cannot be "hot-swapped". A panel receiving power through a connected 12 VDC-compliant power supply cannot have a battery base installed onto the bottom of the panel while powered. POWER OFF the panel before installing the NXA-BASE/B. "Hot swapping" could damage the base and cause it not to be recognized by the panel.
Page 58: Charging The Nxt-Bp Batteries With The Nxa-Base/B
5. Repeat steps 2 through 4 for the other battery. 6. Apply a small amount of pressure to close the battery compartment until the compartment latches. After a few seconds, the panel will turn On and the AMX logo will appear (indicating the panel is receiving power.
Page 59: Nxt-Chg Battery Charger Kit (Fg2255-50K)
Power Requirements: Weight: Features: Other AMX Equipment: The batteries are charged in the order they are inserted into the NXT-CHG. SLOT 1 of the NXT-CHG has the ability to completely discharge and recharge (recalibrate) a battery. Recalibration improves the reporting accuracy of the battery charge back to the Modero panel.
Page 60: Powering The Nxt-Chg
Touch Panel Accessories Powering the NXT-CHG The NXT-CHG Smart Battery Charger uses an included power supply to charge inserted batteries. 1. Connect the rear of the NXT-CHG to the power adapter. 2. Connect the power adapter to the provided power cord (with plug). 3.
Page 61: Recalibrating The Batteries
Touch Panel Accessories Recalibrating the batteries The recalibration process increases the accuracy of the battery charge level. Recalibration of the batteries is only done upon request from the Modero on-screen Battery Base page. Refer to the Battery Base Page section on page 151 for more detailed Battery Base page information. Recalibration can only be done with Slot 1 on the NXT-CHG.
Page 62 Touch Panel Accessories VG-Series Modero Touch Panels...
Page 63: Installation Procedures: 12" And 15" Panels
1. Inspect and confirm the contents of the shipment box to verify that you have all specified parts. Refer to the Specifications sections on page 2 and page 7 for more information about included accessories and other AMX equipment. 2. Carefully remove the panel from the shipping box.
Page 64: Removing The Original Modero Back Box
Installation Procedures: 12" and 15" Panels Removing the Original Modero Back Box 1. Detach all connectors from the side of the touch panel. 2. Remove the magnetic faceplate from the NXD unit by gripping the faceplate and pulling outwards while applying a small amount of pressure to remove it from the main unit. 3.
Page 65: Cable Installation For The Mp-Tp12/15 Back Box
DO NOT REMOVE Twelve #6-32 securing screws Securing hole locations (3 on each side) Internal panel casing Four (pan-head) Housing Screws FIG. 34 Location of the attachment screws on the NXD back box and VESA housing Cable Installation for the MP-TP12/15 Back Box 1.
Page 66 Installation Procedures: 12" and 15" Panels VERIFY THE LENGTH AND LOCATION OF THE INSERTED CABLES. ONCE THE STRAIN RELIEF GROMMET IS CLOSED, IT IS DIFFICULT TO RE-OPEN. 4. Carefully apply pressure to close the strain relief grommet over the desired cable location. Verify the Strain Relief Grommet is securely closed over the cables and the clip is facing the correct direction (upwards).
Page 67 FIG. 36 MB-TP15 Mounting contact surface area When installing a VESA mount to the rear plastic cover, use only the AMX provided #8-32 screws. 11. Secure these four #8-32 screws to the rear plastic cover by using a grounded Phillips-head screwdriver.
Page 68: Pre-Wall Installation Of The Conduit Boxes
Installation Procedures: 12" and 15" Panels Pre-wall Installation of the Conduit Boxes Wall Mount panels (NXDs) are contained within a metallic outer housing (back box). This back box is not removed when installing the NXD into a conduit box (CB-TP15 or CB-TP12). The back box is only removed to either gain access for the replacement of the Memory/Compact Flash or upgrade the unit with an MB-TP Universal VESA Mounting Kit.
Page 69: Installation Of The Nxd Touch Panel
Installation of the NXD Touch Panel The NXD panel can be installed either directly into the (optional) CB-TP12/15 or other solid surface environment using the two different mounting options: drywall clips or solid surface screws. The following sections describe mounting the touch panel directly into a pre-wall installed conduit box, a solid surface or drywall, and optional NXA-RK Rack Mount Kit.
Page 70: Installing The Nxd Into Drywall Using Expansion Clips
Installation Procedures: 12" and 15" Panels 4. Test the incoming wiring by connecting the panel connections to their terminal locations and applying power. Verify the panel is receiving power and functioning properly to prevent repetition of the installation. 5. Disconnect the terminal end of the power cable from the connected power supply. Don’t disconnect the connectors from the touch panel.
Page 71 FIG. 40 NXD-1200VG 12-inch Wall Mount panel dimensions using expansion clips 3. Remove the magnetic faceplate/bezel (A in FIG. 42) from the main NXD unit (B in FIG. 42) by gripping the faceplate and pulling with gentle outward force. 4. Thread the incoming RJ-45, Ethernet, USB, and any other audio/video wiring (from their terminal locations) through the cutout opening.
Page 72 Installation Procedures: 12" and 15" Panels FIG. 41 NXD-1500VG 15-inch Wall Mount panel dimensions using expansion clips Don’t disconnect the connectors from the touch panel. The unit must be installed with the attached connectors before being inserted into the drywall. 8.
Page 73: Installing The Nxd Into A Flat Surface Using #4 Screws
FIG. 42 Wall Mount panel (NXD) installation configuration for drywall surfaces The drywall clip set must be re-ordered from AMX if the drywall clip is bent accidentally during an installation or removed during a re-installation. 11. Place the magnetic faceplate (A in FIG. 42) back onto the main NXD unit (B in FIG. 42). Make sure to align the Microphone, Light, and PIR Motion sensor locations to their respective openings on the front bezel/faceplate.
Page 74 Installation Procedures: 12" and 15" Panels FIG. 43 NXD 12-inch Wall Mount panel dimensions using #4 mounting screws 3. Remove the magnetic faceplate/bezel (A in FIG. 45) from the main NXD unit (B in FIG. 45) by gripping the faceplate and pulling with gentle outward force. 4.
Page 75 FIG. 44 NXD 15-inch Wall Mount panel dimensions using #4 mounting screws 5. Connect all data and power wiring to their corresponding locations along the side of the (un-powered) NXD touch panel. Verify the terminal end of the power cable is not connected to power supply before plugging in the 2-pin power connector.
Page 76: Installing An Nxd Into An (Optional) Rack Mount Kit (Nxa-Rk12 Or Nxa-Rk15)
Installation Procedures: 12" and 15" Panels Install the four (#4) mounting screws into the holes (screws not included) A - Faceplate (bezel) FIG. 45 Wall Mount panel installation configuration for flat/solid surfaces 11. Reconnect the terminal RJ-45, Ethernet, USB, and any optional audio/video wiring to their respective locations on either the NXA-AVB/RGB Breakout Box, Ethernet port, or NetLinx Master.
Page 77 Don’t disconnect the connectors from the touch panel. The unit must be installed with the necessary connectors before being inserted into the equipment rack. 6. Insert the main 12-inch Modero unit into an NXA-RK12 (FIG. 46) or the 15-inch Modero into an NXA-RK15 (FIG.
Page 78: Wiring Guidelines For The 1200Vg And 1500Vg Panels
Installation Procedures: 12" and 15" Panels 9. Use a grounded Phillips-head screwdriver to secure the NXA-RK (with connected NXD unit) to the equipment rack using #10-32 screws (not included). 10. Place the magnet faceplate back onto the main NXD unit by gripping the faceplate and placing it on the housing with gentle force.
Page 79: Audio/Video Port: Connections And Wiring
3. Verify the connection of the 2-pin 3.5 mm mini-Phoenix to the power supply. Audio/Video Port: Connections and Wiring The following table shows the signal and pinout/pairing information used on the RJ-45 Audio and Video connections. Audio/Video RJ-45 Pinout Information Wire Color Orange/White Orange...
Page 80 Installation Procedures: 12" and 15" Panels The following table lists the pinouts, signals, and pairing associated with the Ethernet connector. Ethernet RJ-45 Pinouts and Signals Signals TX + TX - RX + no connection 4 --------- 4 no connection 5 --------- 5 RX - no connection 7 --------- 7 no connection 8 --------- 8...
Page 81: Installation Procedures: 17" Panels
1. Inspect and confirm the contents of the shipment box to verify that you have all specified parts. Refer to the Specifications section on page 12 for more information about included accessories and other AMX equipment. 2. Carefully remove the panel from the shipping box.
Page 82: Installing The Mp-Tp17 Back Box
Installation Procedures: 17" Panels DO NOT REMOVE THE PANEL SECURING SCREWS. These screws secure the LCD to the metallic casing underneath. 4. Unscrew the Stereo Output nut from the Stereo Output jack. 5. Remove the I/O connector plate by using a grounded Phillips-head screwdriver to remove the two screws and slide the I/O connector plate away from the back box housing.
Page 83: Cable Installation For The Mp-Tp17 Back Box
DO NOT REMOVE #6-32 securing screws Securing hole locations (2 on each side) Internal panel casing Four (pan-head) Housing Screws FIG. 52 Location of the attachment screws on the NXD back box and VESA housing Cable Installation for the MP-TP17 Back Box 1.
Page 84 10. Insert the four provided #8-32 screws through the VESA mount’s four holes and then into the pre- drilled holes on the rear plastic cover. When installing a VESA mount to the rear plastic cover, use only the AMX provided #8-32 screws.
Page 85: Pre-Wall Installation Of The Cb-Tp17 Conduit Box
VG-Series Modero Touch Panels Installation Procedures: 17" Panels Rear plastic cover (rear view) Rim of the strain relief grommet should lie flush against enclosure CLIP FACING UP VESA mount connection location (USE ONLY AMX PROVIDED #8-32 screws) This gap allows the installation of...
Page 86 Installation Procedures: 17" Panels 3. Cutout the notched beam using a height of 13.554" (34.43 cm) (as shown below in FIG. 55) and a depth equal to the thickness of the drywall. 17.07" (43.36 cm) FIG. 55 CB-TP17 conduit box installation into a notched stud (showing before and after installation) The determining factor in the depth of the cut into the beam is the thickness of the drywall.
Page 87: Installation Of An Nxd-1700Vg
Stud Drywall/sheetrock Mounting tabs for NXD Wall Mount panel should be flush with the outside of the sheetrock FIG. 56 Screw locations for conduit box attachment in a pre-wall installation Installation of an NXD-1700VG The NXD-1700VG can be installed either directly into the (optional) CB-TP17 or other solid surface environment using the two different mounting options: drywall clips or solid surface screws.
Page 88 Installation Procedures: 17" Panels Four #8 flat-head Mounting Screws (not included) secure the NXD to the Conduit Box A - Faceplate (bezel) FIG. 57 Wall Mount panel installation configuration of a CB-TP17 in a pre-wall construction 4. Test the incoming wiring by connecting the panel connections to their terminal locations and applying power.
Page 89: Installing The Nxd-1700Vg Into Drywall Using Expansion Clips
Offset vertical beam Refer to the SP2256-11 engineering drawing on www.amx.com for more detailed framing information FIG. 58 NXD-1700VG framing installation overview With an existing wall in place, continue with steps 3 and 4 to notch one or both selected beams.
Page 90 Installation Procedures: 17" Panels INSTALLER: LEAVE A GAP BETWEEN THE SURFACE OF THE STUD AND THE BACK BOX MOUNTING RIDGE TO ACCOMMODATE THE DRYWALL/ SHEETROCK. This gap allows the installation of the drywall/sheetrock after the back box has been mounted onto the beams. 2.
Page 91 Install the four drywall clip sets (included) into these holes Mounting A - Faceplate (bezel) FIG. 60 Wall Mount panel (NXD) installation using expansion clips 7. Carefully lay the separated LCD (from the main unit) onto a soft cloth resting on a level surface to prevent scratching of the LCD.
Page 92 (on the right) and the connector-side of the unit pressed into the notched beam (on the left). Replacement drywall clip sets must be ordered from AMX. 17. Tighten the drywall clip sets (screws and clips) until the Mounting Tabs are securely fastened and flush against the wall.
Page 93: Installing The Nxd-1700Vg Into A Flat Surface Using #6 Screws
Installing the NXD-1700VG into a Flat Surface using #6 screws Mounting screws (#6, not included) are secured through two sets of circular holes located at the left and right sides of the NXD-1700VG. The most important thing to remember when mounting the NXD Wall Mount is that the outer frame (Mounting Tabs) must be installed flush against the mounting surface.
Page 94 Installation Procedures: 17" Panels FIG. 61 NXD-1700VG Wall Mount panel dimensions using #4 mounting screws 6. Remove the magnetic faceplate/bezel (A in FIG. 62) from the main NXD unit (B in FIG. 62) by gripping the faceplate and pulling with gentle outward force. Install the four (#6) Mounting Screws into the holes...
Page 95 7. Carefully lay the separated LCD (from the main unit) onto a soft cloth resting on a level surface. This soft cloth prevents scratching during the rest of the installation procedure. 8. Insert the back box into the surface cutout to check for fit. Make any adjustments to the dimension of the cutout to accommodate the back box.
Page 96: Installing An Nxd Into An (Optional) Rack Mount Kit (Nxa-Rk17)
Installation Procedures: 17" Panels 18. Reconnect the terminal RJ-45, Ethernet, and any optional audio/video wiring to their respective terminal locations on either the NXA-AVB/RGB Breakout Box, Ethernet port, or NetLinx Master. 19. Reconnect the terminal power connector on the 12 VDC-compliant power supply and apply power. Installing an NXD into an (optional) Rack Mount Kit (NXA-RK17) 1.
Page 97: Wiring Guidelines For The 1700Vg Panels
9. Use a grounded Phillips-head screwdriver to secure the NXA-RK17 to the equipment rack using #10-32 screws (not included). 10. Place the magnetic faceplate back onto the main NXD unit by gripping the faceplate and placing it on the housing with gentle force. Make sure to align the Microphone, Light, and PIR Motion sensor locations to their respective openings on the front bezel/faceplate.
Page 98: Audio/Video Port: Connections And Wiring
Installation Procedures: 17" Panels 3. Verify the connection of the 2-pin 3.5 mm mini-Phoenix to the power supply. Audio/Video Port: Connections and Wiring The following table shows the signal and pinout/pairing information used on the RJ-45 Audio and Video connections. Audio/Video RJ-45 Pinout Information Wire Color Orange/White...
Page 99 The following table lists the pinouts, signals, and pairing associated with the Ethernet connector. Ethernet RJ-45 Pinouts and Signals Signals TX + TX - RX + no connection 4 --------- 4 no connection 5 --------- 5 RX - no connection 7 --------- 7 no connection 8 --------- 8 FIG.
Page 100 Installation Procedures: 17" Panels VG-Series Modero Touch Panels...
Page 101: Panel Calibration
Modero panels are factory setup with specific demo touch panel pages. The first splash screen that appears indicates the panel is receiving power, beginning to load firmware, and preparing to display the default touch panel pages. When the panel is ready, the AMX Splash Screen is replaced by the Initial Panel Page (FIG. 67).
Page 102: Testing Your Calibration
Panel Calibration 2. Press the crosshairs (on the Calibration page) to set the calibration points on the LCD (FIG. 69). FIG. 69 Touch Panel Calibration Screens 3. After the "Calibration Successful." message appears, press anywhere on the screen to continue and return to the Setup page.
Page 103: Configuring Communication
G4 panel is powered-up. The panel will not detect a USB connection of this type until after the unit cycles power. Before commencing, verify you are using the latest NetLinx Master and Modero panel firmware. Verify you are using the latest versions of AMX’s NetLinx Studio and TPDesign4 programs. Modero Setup and System Connection 1.
Page 104 Configuring Communication 6. Press Done to close the keypad, assign the number, and return to the Protected Setup page. FIG. 72 Protected Setup page 7. Press the on-screen Reboot button to restart the panel and incorporate any changes. Before continuing, open NetLinx Studio. This program assists in developing a System Number, Master IP/URL, and Master Port number.
Page 105: Configuring And Using Usb With A Virtual Master
Step 1: Setting up the USB Driver on the PC 1. If you do not currently have the latest version of TPDesign4, navigate to www.amx.com > Tech Center > Downloadable Files > Application Files > NetLinx Design Tools section of the website and locate the AMX USB Driver executable (AMX USBLAN Setup exe).
Page 106: Step 2: Confirming The Installation Of The Usb Driver On The Pc
Step 2: Confirming the Installation of the USB Driver on the PC The first time each AMX touch panel is connected to the PC it is detected as a new hardware device and the USBLAN driver becomes associated with it (panel specific). Each time thereafter the panel is "recognized"...
Page 107 Each time a different touch panel is connected to the computer, the previous procedures will need to be repeated. The previous version of the AMX USBLAN driver showed a USB connection icon in the system tray when a panel was connected. The new version of the driver does not show an icon in the System Tray.
Page 108: Step 3: Confirm And View The Current Amx Usb Device Connections
Within the Device Manager dialog, the AMX USBLAN device appears under Network Adapters (FIG. 76) and has a unique name such as AMX USB LAN LINK #2. The number changes depending on which recognized panel is currently connected. FIG. 76...
Page 109 FIG. 77 Assigning Communication Settings for a Virtual Master 5. Click on the NetLinx Master radio button (from the Platform Selection section) to indicate that you are working as a NetLinx Master. 6. Click on the Virtual Master radio box (from the Transport Connection Option section) to indicate you are wanting to configure the PC to communicate directly with a panel.
Page 110: Step 5: Confirm And View The Current Amx Usb Device Connections
Configuring Communication Step 5: Confirm and View the current AMX USB device connections Use the CC-USB Type-A to Mini-B 5-wire programming cable (FG10-5965) to provide communication between the mini-USB Program port on the touch panel and the PC. This method of communication is used to transfer firmware KIT files and TPD4 touch panel files.
Page 111: Wireless Settings Page - Wireless Access Overview
Ethernet Communication from the panel can be direct (using an Ethernet cable) or indirect (through the optional NXA-PCI80211G AMX Wireless Card (FG2255-04) communicating to a Wireless Access Point such as the NXA-WAP200G). In determining the Ethernet method of communication, the panel will always default first to the direct Ethernet communication.
Page 112: Configuring A Wireless Connection
Configuring Communication Although the calculations required to encrypt data with WEP can impact the performance of your wireless network, it's generally seen only when running benchmarks, and not large enough to be noticeable in the course of normal network usage. Configuring a Wireless Connection When working with a wireless card, the first step is to configure wireless communication parameters within the Wireless Settings page.
Page 113: Wireless Communication Using A Static Ip Address
The information can be found in either the Workspace - System name > Define Device section of your code (that defines the properties for your panel), or in the Device Addressing/Network Addresses section of the Tools > NetLinx Diagnostics dialog. 8.
Page 114: Step 2: Configuring The Card's Wireless Security Settings
The card should be given the SSID used by the target WAP. If this field is left blank, the unit will attempt to connect to the first available WAP. By default, all WAP200Gs use AMX as their assigned SSID value.
Page 115: Configuring The Modero's Wireless Card For Secured Access To A Wap200G
The remaining Wireless Settings fields are then greyed-out and become read-only. All NXA-WAP200Gs are factory-shipped as an unsecured WAP with no WEP encryption. The WAP200G initial Status page will display the status of both the WEP and WPA (both disabled). 10.
Page 116 The card should be given the SSID used by the target WAP. If this field is left blank, the unit will attempt to connect to the first available WAP. By default, all WAP200Gs use AMX as their assigned SSID value.
Page 117 10. Toggle the Default Key field until the you’ve chosen a WEP Key value (from 1- 4) that matches what you’ll be using on your target WAP200G. These WEP Key identifier values must match for both devices. 11. With the proper WEP Key value displayed, press the Generate button to launch the WEP Passphrase keyboard.
Page 118: Configuring Multiple Wireless Moderos To Communicate To A Target Wap200G
Configuring Communication 13. Write down this Current Key string value for later entry into your WAP’s WEP Key field (typically entered without colons) and into the communicating panel’s Current Key field (FIG. 81). 14. If you are entering a Current Key generated either by your target WAP or another Modero panel, within the WEP Keys section, touch the Key # button to launch the WEP Key # keyboard (FIG.
Page 119: Configuring A Wired Ethernet Connection
Configuring a Wired Ethernet Connection It is necessary to tell the panel which Master it should be communicating with. This "pointing to a Master" is done via the System Settings page where you configure the IP Address, System Number and Username/Password information assigned to the target Master.
Page 120: Ip Settings Section - Configuring A Static Ip Address Over Ethernet
Configuring Communication IP Settings section - Configuring a Static IP Address over Ethernet 1. Select Protected Setup > System Settings (located on the lower-left) to open the System Settings page. 2. Locate the IP Settings section of this page. Check with your System Administrator for a pre-reserved Static IP Address assigned to the panel.
Page 121: Step 3: Configuring The Ethernet Connection Type
Step 3: Configuring the Ethernet Connection Type When using Ethernet as your communication method, the NetLinx Master must first be setup with either a Static IP or DHCP Address obtained from either NetLinx Studio or your System Administrator. Before beginning: 1.
Page 122: Master Connection - Virtual Master Communication Over Ethernet
1. Verify the panel has been configured to communicate either through an Ethernet cable (connected from either the panel to a valid Ethernet Hub) or wireless to the Wireless Access Point. 2. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx Studio 2 > NetLinx Studio 2).
Page 123 By selecting URL, the System Number field becomes read-only (grey) because the panel pulls this value directly from the communicating target Master (virtual or not). A Virtual Master system value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or IREdit.
Page 124: Master Connection Section - Netlinx Master Ethernet Ip Address - Url Mode
By selecting URL, the System Number field becomes read-only (grey) because the panel pulls this value directly from the communicating target Master (virtual or not). A Virtual Master system value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or IREdit.
Page 125: Master Connection Section - Netlinx Master Ethernet Ip Address - Auto Mode
6. Select Diagnostics > URL Listing from the Main menu (FIG. 87). System Address reflects the value set in the Device Addressing tab Used to obtain an existing URL List from Master Used to set the URL List on Master FIG.
Page 126: Using G4 Web Control To Interact With A G4 Panel
Refer to the G4 Web Control Page section on page 156 for more detailed field information. Verify your NetLinx Master (ME260/64 or NI-Series) has been installed with the latest firmware KIT file from www.amx.com. Refer to your NetLinx Master Instruction Manual for more detailed information on the use of the new web-based NetLinx Security.
Page 127 9. From the Web Name keyboard, enter a unique alpha-numeric string to identify this panel. This information is used by the NetLinx Security Web Server to display on-screen links to the panel. The on-screen links use the IP Address of the panel and not the name for communication (FIG. 89). FIG.
Page 128: Using Your Netlinx Master To Control The G4 Panels
If the Master has been previously configured for secured communication, click OK to accept the AMX SSL certificate (if SSL is enabled) and then enter a valid username and password into the fields within the Login dialog. 4. Click OK to enter the information and proceed to the Master’s Manage WebControl Connections window.
Page 129 6. Click on the G4 panel name link associated with the target panel. A secondary web browser window appears on the screen (FIG. 91). FIG. 91 Web Control VNC installation and Password entry screens 7. Click Yes from the Security Alert popup window to agree to the installation of the G4 WebControl application on your computer.
Page 130 Configuring Communication 10. Enter the Web Control session password into the Session Password field (FIG. 91). This password was previously entered into the Web Control Password field within the G4 Web Control page on the panel. 11. Click OK to send the password to the panel and begin the session. A confirmation message appears stating "Please wait, Initial screen loading.".
Page 131: Upgrading Modero Firmware
Upgrading Modero Firmware Overview Before beginning the Upgrade process: Setup and configure your NetLinx Master. Refer to your particular NetLinx Master instruction manual for detailed setup procedures. Calibrate and prepare the communication pages on the Modero panel for use. Refer to the Panel Calibration section on page 91.
Page 132: Step 2: Prepare Netlinx Studio For Communication Via The Usb Port
8. Navigate back to the System Settings page. Step 2: Prepare NetLinx Studio for communication via the USB port 1. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx Studio 2 > NetLinx Studio 2).
Page 133: Step 3: Confirm And Upgrade The Firmware Via The Usb Port
NetLinx Workspace window (showing panel connection via a Virtual NetLinx Master) The panel firmware is shown on the right of the listed panel. Download the latest firmware file from www.amx.com and then save the KIT file to your computer. VG-Series Modero Touch Panels...
Page 134 5. If the panel firmware being used is not current, download the latest Kit file by first logging in to www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section of the web page locate your Modero panel.
Page 135: Upgrading The Modero Firmware Via An Ip Address
NetLinx Master instruction manual to use an address. Note the IP Address and Gateway information. 2. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx Studio 2 > NetLinx Studio 2).
Page 136: Step 2: Prepare The Panel For Communication Via An Ip
By selecting URL, the System Number field becomes read-only (grey) because the panel pulls this value directly from the communicating target Master (virtual or not). A Virtual Master system value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or IREdit.
Page 137: Step 3: Verify And Upgrade The Panel Firmware Via An Ip
4. If the panel firmware being used is not current, download the latest Kit file by first logging in to www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section of the web page locate your Modero panel.
Page 138: Upgrading Accessory Devices Via An Ip Address
Upgrading Modero Firmware FIG. 98 Send to NetLinx Device dialog (showing Modero firmware update via IP) 11. Click Close (after the panel reboots) to return to the main program. 12. Right-click the associated System number and select Refresh System. This causes a refresh of all project systems, establishes a new connection to the Master, and populates the System list with devices on your particular system.
Page 139: Step 1: Prepare The Nxa-Base/B For Firmware Transfer
Target Panel Device # NetLinx Studio Online Tree tab FIG. 99 Location of Firmware version information within NetLinx Studio Firmware can also be downloaded to accessory items via a direct USB connection using the PC as a Virtual Master (Upgrading the Modero Firmware via the USB port section on page 121).
Page 140: Step 2: Upgrade The Nxa-Base/B Firmware Via An Ip
The default Modero panel value is 10001. The NXA-BASE/B will not appear on the system listing. 4. Locate the latest Kit file by first logging in to www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section of the web page locate the Modero Battery Base section of the website.
Page 141 FIG. 101 Send to NetLinx Device dialog (showing NXA-BASE/B firmware update via IP) The firmware for the battery base can not be downloaded directly. Download of the KIT file to the BASE/B is done through the panel. The procedures for updating firmware to the base are nearly identical to those for updating panel firmware, except that the KIT file selected must be that of the BASE/B.
Page 142: Upgrading The Nxa-Rgb And Nxa-Avb/Rgb Firmware
Upgrading Modero Firmware Upgrading the NXA-RGB and NXA-AVB/RGB Firmware 1. Identify the Device number of the target panel being used for firmware routing to the accessories. 2. Complete the instructions for configuring the NetLinx Master for IP communication found in the Step 1: Prepare the Master for communication via an IP section on page 125.
Page 143: Firmware Pages And Descriptions
Firmware Pages and Descriptions Overview This section describes each firmware page and their specific functional elements. Setup Navigation Buttons The Setup Navigation Buttons (FIG. 103) appear on-screen when the Setup page is active. Modero Setup Navigation Buttons FIG. 103 Setup Navigation Buttons These Navigation Buttons are specific to these Modero panels and include the specific elements described in the following table: Setup Navigation Button Elements...
Page 144: Setup Page
Firmware Pages and Descriptions Setup Navigation Button Elements (Cont.) Video Adjustment: Battery Base: Setup Page This page (FIG. 104) centers around basic Modero panel properties such as: Connection Status of the panel, Display Timeout, Inactivity Page Flip Time, Inactivity page file, and the Panel Brightness. FIG.
Page 145 Setup Page Elements (Cont.) Connection Status: Display/Panel Timeout: Inactivity Page Flip Timeout: Panel Brightness: VG-Series Modero Touch Panels Displays whether the panel is communicating externally, the encryption status of the communicating Master, what connection type is being used (Ethernet or USB), and what System the panel is a part of.
Page 146: Project Information Page
Firmware Pages and Descriptions Project Information Page The Project Information page displays the TPDesign4 (TPD4) project file properties currently loaded on the selected Modero panel (FIG. 105). Refer to the TPDesign4 Touch Panel Program instruction manual for more specific information on uploading TPDesign4 files to a panel. FIG.
Page 147: Panel Information Page
Displays the model of the Modero panel being used. Displays the G4 firmware version being used by the panel. • Verify you have the latest version from www.amx.com. Displays the setup port information/value being used by the panel. Displays the high port (port count) value for the panel.
Page 148: Time & Date Setup Page
Firmware Pages and Descriptions Panel Information Page Elements (Cont.) Power Up Pages: Start Up String: Wake Up String: Sleep String: File System: RAM: Time & Date Setup Page The Time & Date Setup page (FIG. 107) allows you to alter/set the time and date information on the NetLinx Master.
Page 149: Volume Page
Time & Date Setup Page Elements (Cont.) Time Display fields: Date Display fields: Set Date/Time: Modero touch panels do not have an on-board clock. This page both receives and sets the time/date of the NetLinx Master. Volume Page The Volume page (FIG. 108) (accessed by pressing the Audio Adjustments button on the Setup page) allows you to adjust the master volume parameters and default panel sounds on the panel.
Page 150: Supported Sampling Rates For Wav
Firmware Pages and Descriptions Volume Page Elements (Cont.) Master Volume: Default Panel Sounds: Internal Sound Level: Line In Level: Mic Out Level: Supported sampling rates for WAV The following is a listing of supported sampling rates associated for WAV files played on these panels. Some WAV files currently played on Modero's may not work on these panels.
Page 151: Video Adjustment Slide-Out Option Bar
Video Adjustment Slide-Out Option Bar Pressing the on-screen Video Adjustment button causes an option bar to slide outwards from the Navigation buttons (FIG. 109). This option bar provides you with three choices: Video Adjustment, RGB Adjustment, and Streaming Adjustment. Each of these options corresponds to an on-board slot position where the related components reside (as seen below).
Page 152: Video Adjustment - Rgb Adjustment Page
Firmware Pages and Descriptions Video Adjustment Page Elements (Cont.) Video Settings: Status: Format: Brightness: Contrast: Saturation: Hue: Video Adjustment - RGB Adjustment Page The RGB Adjustment page (FIG. 111) (accessed by pressing the Video Adjustment button on the Setup page and then selecting the appropriate button from the option bar) sets the RGB properties for the detected NXA-RGB card located within the target panel on Slot 2 where pass-thru occurs.
Page 153 RGB Adjustment Page Elements (Cont.) Settings: Version: BOB Version: Status: Cable Variance: RGB Input Resolution: Phase: Geometry: H Position H Size V Position VG-Series Modero Touch Panels • The Default Settings button sets the RGB settings to their default values (indicated in this table).
Page 154 Firmware Pages and Descriptions RGB Adjustment Page Elements (Cont.) All Brightness: Red Brightness Green Brightness Blue Brightness All Contrast: Red Contrast Green Contrast Blue Contrast Provides an on-screen RGB Brightness popup dialog that allows you to select from several brightness level adjustment settings.The bargraph only serves to give the user a visual indication of the individual brightness levels and launch the RGB Brightness popup dialog.
Page 155: Adjusting The Incoming Signal On The Rgb Adjustment Page
30 nano-seconds @ 200ft, and that can be more than enough to cause the image to appear "off" or blurry. For this reason, AMX recommends using the Belden Brilliance VideoTwist 7987 cable. Although this cable is not CAT5 compliant, it is designed to control skew between the red, green, and blue video signals.
Page 156 Firmware Pages and Descriptions To adjust these properties: 1. Press the incoming signal area of the RGB Adjustments page to launch the Full Screen Edit mode, display the incoming image at full screen, and place a grey RGB Adjustments bar on the bottom of the screen.
Page 157 8. Use the UP/DN Contrast buttons (from the RGB Contrast popup dialog) to adjust the overall or individual Red, Green, and Blue contrast of the incoming image/video. Increasing the value can increase sharpness. This All Contrast bargraph gives a visual representation of the overall contrast level and cycles through an entire turn.
Page 158: Video Adjustment - Streaming Adjustment Page
Firmware Pages and Descriptions Video Adjustment - Streaming Adjustment Page The Streaming Video Adjustment page (FIG. 110) (accessed by pressing the Video Adjustment button on the Setup page and then selecting the appropriate button from the option bar) adjusts the Video properties of the incoming MPEG video streaming from the external content server.
Page 159 Streaming Video Adjustment Page Elements (Cont.) Video: Codec (Short for enCOder/ DECoder or COmpressor/ DECompressor) Resolution Scaling VG-Series Modero Touch Panels This read-only field displays the video stream information (Video Streaming format and resolution). • The properties of this incoming (detected) stream is given as: Video Codec and Resolution.
Page 160 Firmware Pages and Descriptions Streaming Video Adjustment Page Elements (Cont.) Audio: Codec (Short for enCOder/ DECoder or COmpressor/ DECompressor) Sampling Rate Audio Channels Brightness: Contrast: Saturation: Hue: Refer to the Displaying Stream Content section on page 169 for the procedures used to configure the TPD4 touch panel pages and media stream source (using MAX-CSE for example purposes).
Page 161: Battery Base Page
Battery Base Page This page (FIG. 115) allows you to alter/set the power warning preferences, monitor battery status information, and alter the display times for the battery warnings. The fields on this page are populated with information after the panel is connected to an optional NXA-BASE/B Battery Base containing up to two NXT-BP batteries.
Page 162 Firmware Pages and Descriptions Battery Base Page Elements (Cont.) Very Low Battery Warning: The Very Low Battery Warning UP/DN buttons alter the time value Battery Status fields: Battery Power Brightness Limit: The term "quality" (in the context of a battery), refers to the current capacity relative to the batteries’...
Page 163: Protected Setup Navigation Buttons
Protected Setup Navigation Buttons The Protected Setup Navigation Buttons (FIG. 116) appear on the left of the panel screen when the Protected Setup page is currently active. Modero Protected Setup Navigation Buttons FIG. 116 Protected Setup Navigation Buttons These Navigation Buttons are specific to these Modero panels and include the panel specific elements described in the following table: Protected Setup Navigation Button Elements G4 Web Control:...
Page 164: Protected Setup Page
Firmware Pages and Descriptions Protected Setup Page The Protected Setup page (FIG. 117) centers around the properties used by the panel to properly communicate with the NetLinx Master. Enter the factory default password (1988) into the password keypad to access this page. FIG.
Page 165 • The Remove User Pages button allows you remove all current TPD4 touch panel pages currently on the panel (including the pre-installed AMX Demo pages). - Pressing this button launches a Confirmation dialog (FIG. 118) which asks you to confirm your selection.
Page 166: G4 Web Control Page
Firmware Pages and Descriptions Channel Port 3,132 Level Port Channel Code Number FIG. 119 Button/slider Function Show example G4 Web Control Page The G4 Web Control page (FIG. 120) centers around enabling and disabling both the display and control of your panel (via the web). An external PC running a VNC client (installed during the initial communication to the G4 panel) makes this possible.
Page 167 G4 Web Control Page Elements (Cont.) G4 Web Control Settings: Enable/Enabled Network Interface Select Web Control Name Web Control Password Web Control Port Maximum Number of Connections Current Connection Count G4 Web Control Timeout: FIG. 121 Sample relationship between G4 Web Control and Mange WebControl Connections window Refer to the Using G4 Web Control to Interact with a G4 Panel section on page 116 for more detailed instructions on how to use the G4 Web Control page with the new web-based NetLinx Security application.
Page 168: Sensor Setup Page
Firmware Pages and Descriptions Sensor Setup Page The Sensor Setup page (FIG. 122) allows you to adjust the Light and Motion Sensor parameters on a Modero touch panel. FIG. 122 Sensor Setup page A light level value between the Minimum and Maximum DIM Mode values delivers an average light level.
Page 169: Using The Automated Brightness Control Feature (Dim Mode)
Sensor Setup Page Elements (Cont.) Motion Sensor: Wake Panel On Motion Sense: Dim Mode Minimum Brightness: There is a relationship between the motion sensor and the panel sleep feature. If a panel is set to Sleep Mode, there is a time delay before the motion sensor is activated to detect motion.
Page 170: Password Setup Page
Firmware Pages and Descriptions 3. Open the Sensors Setup page (FIG. 122 on page 158) from the Protected Setup menu sections. 4. Move around the panel and block the direct or indirect light from the room fixtures with your body. Take note of the drop in the lighting level being detected by the panel in response to your movements.
Page 171: Calibration Page
The elements of the Password Setup page are described in the table below: Password Setup Page Elements Back: Connection Status icon: In Panel Password Change: Calibration Page This page (FIG. 124) allows you to calibrate the input touch device (touch panel) using the pre-selected touch driver.
Page 172: Wireless Settings Page
Firmware Pages and Descriptions Wireless Settings Page The Wireless Settings page (FIG. 125) sets the communication information for the installed wireless interface card. This information includes its corresponding IP communication parameters, wireless communication settings, and read the device number assigned to the Modero panel. These panels can use the optional NXA-PCI80211G wireless card for wireless communication.
Page 173 Wireless Settings Page Elements (Cont.) IP Settings (Cont.): Host Name Primary DNS Secondary DNS Domain MAC Address Access Point MAC Address: Wireless Settings: Network Name (SSID) Authentication Encryption VG-Series Modero Touch Panels Sets the host name of the panel. • PRIMARY DNS sets the address of the primary DNS server being used by the Modero panel for host name lookups.
Page 174 3rd-party Wireless Access Point, it comes back with 1a:2b:3c:4d:etc. Entering the same apple in the Passphrase generator of any Modero panel generates a different key: a1:b2:c3:d4:etc. Only AMX Modero panels generate the same Current Key by using a unique Passphrase key generation technology.
Page 175 Wireless Settings Page Elements (Cont.) Wireless Settings (Cont.): Channel Link Quality Signal Strength Data Rate: Refer to both the Wireless Settings Page - Wireless Access Overview section on page 101 and Configuring a Wireless Connection section on page 102 for more detailed information of setting up the Modero panel for wireless network access.
Page 176: System Settings Page
Firmware Pages and Descriptions System Settings Page The System Settings page (FIG. 126) sets the Secondary DNS Address information with its corresponding IP communication parameters, NetLinx Master communication settings, and reads the device number assigned to the Modero panel. FIG. 126 System Settings page showing default values (reads and assigns values to the panel and Master) The elements of the System Settings page are described in the table below: System Settings Page Elements...
Page 177 • Choices are: Auto, 10 Half Duplex, 10 Full Duplex, 100 Half Duplex, or 100 Full Duplex. Displays a read-only field that is factory set by AMX for the built-in Ethernet interface. Sets the NetLinx Master to communicate with the panel via either USB or Ethernet.
Page 178 Firmware Pages and Descriptions VG-Series Modero Touch Panels...
Page 179: Displaying Stream Content
Displaying Stream Content Overview The current build of Modero firmware currently supports the display of both MPEG-2 and MPEG-4 media streams via the TPDesign touch panel pages. These incoming media signals can utilize either a UDP or RTP Transport protocol. For the purposes of these instructions, we will be setting up a Modero touch panel to display an incoming media stream sent from a MAX Video Encoder.
Page 180: Requirements For Receiving Streamed Content
Verify you have installed the latest version of TPDesign4 on your PC. Updates are available from the www.amx.com > Tech Center > Application Files > Touch Panel Design Tools section of the website. This application is needed to create the necessary page (popup page) used to display the incoming MPEG audio/video stream, identify the IP of the source MAX-CSE, and define the target audio/video ports on the panel.
Page 181: Setting Up A Modero Panel To Receive And Display A Stream
Determine what is the available data rate for the network on which the encoder currently resides. This information will determine what encoder profile can be used on the outgoing media content. If the network can only handle a throughput of 4 Mbps from the encoder, it is recommended that you use something less than or equal to the High Quality encoder profile.
Page 182: Step 2: Configuring The Max-Cse For Communication
Displaying Stream Content Step 2: Configuring the MAX-CSE for communication 1. Complete the procedures outlined within the Configuring the MAX Communication Parameters section of the MAX-CSE Instruction Manual to establish an active connection to the source MAX-CSE. 2. Confirm the MAX-CSE is properly configured to use the newly established Static IP Address by launching your browser and entering the MAX’s new Static IP Address into the browser’s Address field.
Page 183 9. Click the Apply button to save the encoding profiles to the MAX (FIG. 130). 10. From the Stream section of the page, locate the Transport Protocol field and use the drop-down arrow to select a desired protocol. For the purposes of these procedures, we’ve chosen UDP as the protocol (FIG.
Page 184: Step 3: Configuring The Max-Cse Audio/Video Inputs
Displaying Stream Content 14. Click the Apply button to save the encoding profiles to the MAX-CSE. If using RTP, both the Target Port and Target Audio Port must be different and should use even numbers. Step 3: Configuring the MAX-CSE audio/video inputs 1.
Page 185: Step 4: Setup A Streaming Page Within Tpdesign4
Step 4: Setup a streaming page within TPDesign4 1. Launch TPDesign4 (default location is Start > Programs > AMX Control Disc > TPDesign4 > TPDesign4). Refer to the TPDesign4 Instruction Manual for more detailed instructions of these procedures. 2. From the menu bar, select File > New (or click the New Project toolbar button).
Page 186 Displaying Stream Content FIG. 133 Button Properties tab 10. Click the States tab of the Button Properties Control window to show a list of all states associated with the selected button. Each state represented in the States tab is a collapsed folder containing the state properties for that particular state (On/Off/All).
Page 187: Step 5: Establishing The Final Connection Between The Two Units
FIG. 135 Example of the current display When using an RTP Transport Protocol, determine whether you are using an MPEG-2 or MPEG-4 stream and enter the following into the Streaming Source field: rtpmpeg#://IP Address of MAX-CSE:Target Video Port Although our example doesn’t use RTP, you could enter the following: for MPEG-2 rtpmpeg2://192.199.99.99:5000 for MPEG-4 rtpmpeg4://192.199.99.99:5000 Modero doesn’t require that an audio port be entered within the Streaming Source...
Page 188 Displaying Stream Content FIG. 136 Video Adjustment page (showing default values) If there is no signal displayed, return to the MAX-CSE UI pages and from the Encoder Profiles page, confirm that the correct panel IP Address and target port where entered into the Streaming Source field within the TPDesign4 project. If this still doesn’t produce a displayed signal, cycle the Play/Stop buttons and verify that both the encoding Status says encoding is underway) and that the unit is detecting an incoming signal (shown by...
Page 189: Programming
Programming You can program the touch panel, using the commands in this section, to perform a wide variety of operations using Send_Commands and variable text commands. A device must first be defined in the NetLinx programming language with values for the Device: Port: System (in all programming examples - Panel is used in place of these values and represents all Modero panels).
Page 190 Programming Page Commands (Cont.) Syntax: @DPG Delete a specific popup page from Variable: specified popup group if it exists. Example: Deletes the popup page ’Popup1’ from the popup group ’Group1’. @PDR If the flag is set, the popup will return to its default location on show instead of its last drag location.
Page 191 Page Commands (Cont.) If the page name is empty, the current page is used. Same as the ’Clear Page’ command @PPA in TPDesign4. Close all popups on a specified Syntax: page. "'@PPA-<page name>'" Variable: page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On. Example: SEND_COMMAND Panel,"'@PPA-Page1'"...
Page 192 Programming Page Commands (Cont.) A Modal popup page, when active, only allows you to use the buttons and features on that @PPM popup page. All other buttons on the panel page are inactivated. Set the modality of a specific Syntax: popup page to Modal or Variable:...
Page 193 Page Commands (Cont.) Syntax: @PSE Set the show "'@PSE-<popup page name>;<show effect name>'" effect for the Variable: specified popup popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed page to the named show show effect name = Refers to the popup effect name being used.
Page 194 Programming Page Commands (Cont.) If the page name is empty, the current page is used (see example 2). If the popup page is PPOF part of a group, the whole group is deactivated. This command works in the same way as Deactivate a the ’Hide Popup’...
Page 195: Programming Numbers
Programming Numbers The following information provides the programming numbers for colors, fonts, and borders. Colors can be used to set the colors on buttons, sliders, and pages. The lowest color number represents the lightest color-specific display; the highest number represents the darkest display. For example, 0 represents light red, and 5 is dark red.
Page 196 Programming RGB Values for all 88 Basic Colors (Cont.) Index No. Name Very Light Cyan Light Cyan Cyan Medium Cyan Dark Cyan Very Dark Cyan Very Light Aqua Light Aqua Aqua Medium Aqua Dark Aqua Very Dark Aqua Very Light Blue Light Blue Blue Medium Blue...
Page 197: Font Styles And Id Numbers
Courier New Courier New Courier New Courier New Courier New AMX Bold AMX Bold AMX Bold You must import fonts into a TPDesign4 project file. The font ID numbers are assigned by TPDesign4. These values are also listed in the Generate Programmer’s Report.
Page 198: Border Styles
The TPDesign4 Touch Panel Design program has pre-set border styles that are user selectable. TPD4 border styles can ONLY be changed by using the name. TPD4 Border Styles by Name Border styles None AMX Elite -L AMX Elite -M AMX Elite -S Bevel -L Bevel -M...
Page 199 TPD4 Border Styles by Name (Cont.) Border styles Menu Left Rounded 105 Menu Left Rounded 115 Menu Left Rounded 125 Menu Left Rounded 135 Menu Left Rounded 145 Menu Left Rounded 155 Menu Left Rounded 165 Menu Left Rounded 175 Menu Left Rounded 185 Menu Left Rounded 195 Menu Right Rounded 15...
Page 200: Button Commands
Programming "^" Button Commands These Button Commands are used in NetLinx Studio and are case insensitive. All commands that begin with "^" have the capability of assigning a variable text address range and button state range. A device must first be defined in the NetLinx programming language with values for the Device: Port : System (in all programming examples - Panel is used in place of these values).
Page 201 "^" Button Commands (Cont.) Syntax: ^BAT Append "'^BAT-<vt addr range>,<button states range>,<new text>'" non-unicode text. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 202 Programming "^" Button Commands (Cont.) Only if the specified fill color is not the same as the current color. ^BCF Set the fill color to Note: Color can be assigned by color name (without spaces), number or R,G,B value the specified (RRGGBB or RRGGBBAA).
Page 203 "^" Button Commands (Cont.) Determines what order each layer of the button is drawn. ^BDO Set the button Syntax: draw order. "'^BDO-<vt addr range>,<button states range>,<1-5><1-5><1-5><1- 5><1-5>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 204 Programming "^" Button Commands (Cont.) Syntax: ^BIM Set the input mask for the Variable: specified address. Example: Sets the input mask to ten ’A’ characters, that are required, to either a letter or digit (entry is required). ^BLN The maximum number of lines to remove is 240. A value of 0 will display the incoming video signal unaffected.
Page 205 "^" Button Commands (Cont.) Note that the source is a single button state. Each state must be copied as a separate ^BMC command. The <codes> section represents what attributes will be copied. All codes are Button copy 2 char pairs that can be separated by comma, space, percent or just ran together. command.
Page 206 Programming "^" Button Commands (Cont.) Syntax: ^BMF Set any/all button parameters by Variables: sending embedded codes and data. "'^BMF-<vt addr range>,<button states range>,<data>'" variable text address char array = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 207 "^" Button Commands (Cont.) For some of these commands and values, refer to theRGB Values for all 88 Basic ^BMF (Cont.) Colors table on page 185. ’%CF<on fill color>’ = Set Fill Color. ’%CB<on border color>’ = Set Border Color. ’%CT<on text color>’...
Page 208 Programming "^" Button Commands (Cont.) Mask image is used to crop a borderless button to a non-square shape. This is typically ^BMI used with a bitmap. Set the button mask image. Syntax: Variable: Example: Sets the button with variable text 530 ON/OFF state mask image to 'newmac.png'. ^BML If this value is set to zero (0) there is no max length.
Page 209 "^" Button Commands (Cont.) Syntax: ^BNN Set the TakeNote "'^BNN-<vt addr range>,<network name>'" network name for Variable: the specified variable text address range = 1 - 4000. Addresses. network name = Use a valid IP Address. Example: SEND_COMMAND Panel,"'^BNN-973,192.168.169.99'" Sets the TakeNote button network name to 192.168.169.99. ^BNT Syntax: Set the TakeNote...
Page 210 Sets the border by number (#10) to those buttons with the variable text range of 500-504 & 510-515. Sets the border by name (AMX Elite) to those buttons with the variable text range of 500-504 & 510-515. The border style is available through the TPDesign4 border-style drop-down list. Refer to theTPD4 Border Styles by Name table on page 188 for more information.
Page 211 "^" Button Commands (Cont.) Zero clears the flag. ^BPP Set or clear the Syntax: protected page flip "'^BPP-<vt addr range>,<protected page flip flag value>'" flag of a button. Variable: variable text address range = 1 - 4000. protected page flip flag value range = 0 - 4 (0 clears the flag). Example: SEND_COMMAND Panel,"'^BPP-500,1'"...
Page 212 Programming "^" Button Commands (Cont.) If the sound name is blank the sound is then cleared. If the sound name is not matched, ^BSO the button sound is not changed. Set the sound played when a Syntax: button is pressed. Variable: Example: Assigns the sound 'music.wav' to the button Off/On states.
Page 213 "^" Button Commands (Cont.) By default, word-wrap is Off. ^BWW Set the button Syntax: word wrap "'^BWW-<vt addr range>,<button states range>,<word wrap>'" feature to those Variable: buttons with a defined address variable text address range = 1 - 4000. range. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 214 Programming "^" Button Commands (Cont.) Font ID numbers are generated by the TPDesign4 programmers report. ^FON Set a font to a Syntax: specific Font ID value for those Variable: buttons with a defined address range. Example: Sets the font size to font ID #4 for the On and Off states of buttons with the variable text range of 500-504 &...
Page 215 "^" Button Commands (Cont.) Syntax: ^GLH Change the "'^GLH-<vt addr range>,<bargraph hi>'" bargraph upper Variable: limit. variable text address range = 1 - 4000. bargraph limit range = 1 - 65535 (bargraph upper limit range). Example: SEND_COMMAND Panel,"'^GLH-500,1000'" Changes the bargraph upper limit to 1000. ^GLL Syntax: Change the...
Page 216 Programming "^" Button Commands (Cont.) Slider names and cursor names can be found in the TPDesign4 slider name and cursor ^GSN drop-down list. Change the bargraph slider Syntax: name or joystick cursor name. Variable: Example: Changes the bargraph slider name or the Joystick cursor name to ’Ball’. ^ICO Syntax: Set the icon to a...
Page 217 "^" Button Commands (Cont.) The alignment of 0 is followed by ',<left>,<top>'. The left and top coordinates are relative ^JSB to the upper left corner of the button. Set bitmap/ picture alignment Syntax: using a numeric "'^JSB-<vt addr range>,<button states range>,<new text keypad layout for alignment>'"...
Page 218 Programming "^" Button Commands (Cont.) The alignment of 0 is followed by ',<left>,<top>'. The left and top coordinates are relative ^JST to the upper left corner of the button. Set text alignment using a Syntax: numeric keypad layout for those buttons with a Variable: defined address...
Page 219 "^" Button Commands (Cont.) The Text Effect is specified by name and can be found in TPD4. You can also assign the ^TEC color by name or RGB value (RRGGBB or RRGGBBAA). Set the text effect color for the Syntax: specified "'^TEC-<vt addr range>,<button states range>,<color value>'"...
Page 220 Programming "^" Button Commands (Cont.) For the ^UNI command (%UN and ^BMF command), the Unicode text is sent as ^UNI ASCII-HEX nibbles. Set Unicode text. Syntax: Variable: Example: Sets the button’s unicode character to ’A’. Note: To send the variable text ’A’ in unicode to all states of the variable text button 1, (for which the character code is 0041 Hex), send the following command: Note: Unicode is always represented in a HEX value.
Page 221: Text Effect Names
Text Effect Names The following is a listing of text effects names. This list is associated with the ^TEF command on page 209. Text Effects • Glow -S • Glow -M • Glow -L • Glow -X • Outline -S •...
Page 222: Button Query Commands
Programming Button Query Commands Button Query commands reply back with a custom event. There will be one custom event for each button/state combination. Each query is assigned a unique custom event type. The following example is for debug purposes only: NetLinx Example: CUSTOM_EVENT[device, Address, Custom event type] DEFINE_EVENT CUSTOM_EVENT[TP,529,1001]...
Page 223 All custom events have the following 6 fields: Custom Event Fields Field Uint Flag slong value1 slong value2 slong value3 string text text length (string encode) These fields are populated differently for each query command. The text length (String Encode) field is not used in any command.
Page 224 Programming Button Query Commands (Cont.) Syntax: ?BCF Get the current fill color. Variable: Example: Gets the button 'OFF state' fill color information. The result sent to the Master would be: ?BCT Syntax: Get the current text color. Variable: Example: Gets the button 'OFF state' text color information. The result sent to Master would be: "'?BCF-<vt addr range>,<button states range>'"...
Page 225 Button Query Commands (Cont.) Syntax: ?BMP Get the current "'?BMP-<vt addr range>,<button states range>'" bitmap name. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 226 Programming Button Query Commands (Cont.) Syntax: ?BRD Get the current border name. Variable: Example: Gets the button 'OFF state' border information. The result sent to the Master would be: ?BWW Syntax: Get the current word wrap flag Variable: status. Example: Gets the button 'OFF state' word wrap flag status information.
Page 227 Button Query Commands (Cont.) Syntax: ?FON Get the current "'?FON-<vt addr range>,<button states range>'" font index. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 228 Programming Button Query Commands (Cont.) Syntax: ?JSB Get the current bitmap Variable: justification. Example: Gets the button 'OFF state' bitmap justification information. The result sent to the Master would be: ?JSI Syntax: Get the current icon Variable: justification. Example: Gets the button 'OFF state' icon justification information. The result sent to the Master would be: "'?JSB-<vt addr range>,<button states range>'"...
Page 229 Button Query Commands (Cont.) Syntax: ?JST Get the current "'?JST-<vt addr range>,<button states range>'" text Variable: justification. variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 230 Programming Button Query Commands (Cont.) Syntax: ?TEF Get the current text effect name. Variable: Example: Gets the button 'OFF state' text effect name information. The result sent to the Master would be: ?TXT Syntax: Get the current text information. Variable: Example: Gets the button 'OFF state' text information.
Page 231: Panel Runtime Operations
Panel Runtime Operations Serial Commands are used in the AxcessX Terminal Emulator mode. These commands are case insensitive. Panel Runtime Operation Commands ABEEP Syntax: Output a single "'ABEEP'" beep even if beep Example: is Off. SEND COMMAND Panel,"'ABEEP'" Outputs a beep of duration 1 beep even if beep is Off. ADBEEP Syntax: Output a double...
Page 232 Programming Panel Runtime Operation Commands (Cont.) Keypad string is set to null on power up and is stored until power is lost. The Prompt Text @AKP is optional. Pop up the keypad icon and Syntax: initialize the text string to that Variables: specified.
Page 233 Panel Runtime Operation Commands (Cont.) Pops up the keypad icon and initializes the text string to that specified. The Prompt Text is @EKP optional. Extend the Keypad. Syntax: "'@EKP-<initial text>;<prompt text>'" Variables: initial text = 1 - 50 ASCII characters. prompt text = 1 - 50 ASCII characters.
Page 234 Programming Panel Runtime Operation Commands (Cont.) Syntax: @SOU Play a sound file. Variables: Example: Plays the 'Music.wav' file. @TKP Pops up the keypad icon and initializes the text string to that specified. The Prompt Text is optional. Present a telephone Syntax: keypad.
Page 235: Input Commands
Input Commands These Send Commands are case insensitive. Input Commands ^CAL Syntax: Put panel in "'^CAL'" calibration mode. Example: SEND COMMAND Panel,"'^CAL'" Puts the panel in calibration mode. Syntax: ^KPS Set keyboard "'^KPS-<passs data>'" pass-thru via the Variables: RGB card. pass data: <blank/empty>...
Page 236 Programming Input Commands (Cont.) These commands are directed at the video card subsystems. Slot commands contain a ^SLT series of name/value pairs separated by commas. These commands are case insensitive. Send a command Syntax: to a given slot. Variables: Example: Enables Interlace on the incoming Composite video signal.
Page 237: Embedded Codes
Embedded Codes The following is a list of G4 compatible embedded codes: Embedded Codes Decimal numbers Hexidecimal values VG-Series Modero Touch Panels Virtual keystroke ($08) Backspace ($0D) Enter ($1B) ($80) CTRL key down ($81) ALT key down ($82) Shift key down ($83) ($84) ($85)
Page 238: Panel Setup Commands
Programming Panel Setup Commands These commands are case insensitive. Panel Setup Commands ^MUT Syntax: Set the panel mute state. Variable: Example: Sets the panel’s master volume to mute. @PWD sets the level 1 password only. @PWD Set the page flip Syntax: password.
Page 239: Dynamic Image Commands
Dynamic Image Commands The following is a listing and descriptions of Dynamic Image Commands. Dynamic Image Commands ^BBR Syntax: Set the bitmap of "'^BBR-<vt addr range>,<button states range>,<resource name>'" a button to use a Variable: particular variable text address range = 1 - 4000. resource.
Page 240 Example: Adds a new resource. The resource name is ’New Image’, %P (protocol) is an HTTP, %H (host name) is AMX.COM, %A (file path) is Lab/Test file, and %F (file name) is test.jpg. "'^RAF-<resource name>,<data>'" resource name = 1 - 50 ASCII characters.
Page 241: Troubleshooting
• The panel can take a few minutes to detect the connection to the PC. • Make sure you have installed the latest USB driver for the AMX LAN. • Even if you have loaded the latest NetLinx Studio, it is recommended...
Page 242 • This is due to the graphics controller settings in the firmware. • Update firmware to the latest v2.XX. firmware. • Visit the www.amx.com > Tech Center > Downloadable Files > Firmware Files > Modero panels. Then Download the KIT file to your computer.
Page 243 • The NXA-BASE/B Battery base should be updated with the latest firmware (part of the Modero firmware KIT file) from www.amx.com. • The base can only charge batteries while the NXT panel is in Sleep Mode. If the panel parameters are set to their highest values, the priority for the power draw becomes the active panel functions and no power is routed to the base for charging.
Page 244 "graphics hierarchy" errors, etc.… indicating problems with the Compact Flash. • Panel will not boot, or gets stuck on "AMX" splash screen. • Other problems also started after downloading to a new panel or a panel with a TPD4 file that takes up a considerable amount of the available Compact Flash.
Page 245: Appendix
Appendix Text Formatting Codes for Bargraphs/Joysticks Text formatting codes for bargraphs provide a mechanism to allow a portion of a bargraphs text to be dynamically provided information about the current status of the level (multistate and traditional). These codes would be entered into the text field along with any other text. The following is a code list used for bargraphs: Bargraph Text Code Inputs Code...
Page 246: Text Area Input Masking
Appendix Text Area Input Masking Text Area Input Masking can be used to limit the allowed/correct characters that are entered into a text area. For example, in working with a zip code, a user could limit the entry to a max length of only 5 characters but, with input masking, you could limit them to 5 mandatory numerical digits and 4 optional numerical digits.
Page 247: Input Mask Ranges
Refer to the following Send Commands for more detailed information: • ^BIM page 194). • ^BMF ^BMF section on page 196). Input mask ranges These ranges allow a user to specify the minimum and maximum numeric value for a field. Only one range is allowed per field.
Page 248: Input Mask Output Examples
Appendix A keyboard entry using normal text entry is straightforward. However, once an input mask is applied, the behavior of the keyboard needs to change to accommodate the input mask's requirement. When working with masks, any literal characters in the mask will be "skipped" by any cursor movement including cursor keys, backspace, and delete.
Page 249: Url Resources
This URL indicates that the protocol in use is http (HyperText Transport Protocol) and that the information resides on a host machine named www.amx.com. The image on that host machine is given an assignment (by the program) name of company-info-home.asp (Active Server Page).
Page 250 Appendix VG-Series Modero Touch Panels...
Page 251 Appendix 7" Modero Widescreen Touch Panels...
Page 252 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...

This manual is also suitable for:

Modero nxd-1200vg Modero nxd-1500vg Modero nxd-1700vg Modero nxt-1200vg Modero nxt-1700vg

AMX Modero NXT-1500VG Operation/Reference Manual

Introduction

Multimedia Streaming Video Touch Panels (VG-Series)

VG-Series Modero Connectors

Connecting and Using USB Input Devices

Cleaning the Touch Overlay

Touch Panel Accessories

Overview

NXA-AVB/RGB Breakout Box (FG2254-11)

NXA-MTC/RGB Combo Table Top Cable (CA2250-70)

NXA-RGB RGB/VGA Interface Card (FG2260)

NXA-CFTP Compact Flash (FG2116-22)

NXA-PCI80211G Wireless Card (FG2255-04)

Installation and Upgrade of the Internal NXT Components

Installation and Upgrade of the Internal NXD Components

NXT-BP Power Pack (FG2255-10)

NXA-BASE/B Battery Base Kit (FG2255K)

NXT-CHG Battery Charger Kit (FG2255-50K)

Installation Procedures: 12" and 15" Panels

Overview

Unpacking the Panel

Installing Internal Components

Upgrading to the MB-TP12/MB-TP15 VESA Mounting Kit

Pre-Wall Installation of the Conduit Boxes

Installation of the NXD Touch Panel

Wiring Guidelines for the 1200VG and 1500VG Panels

Ethernet/Rj-45 Port: Connections and Wiring

Audio/Video Port: Connections and Wiring

Installation Procedures: 17" Panels

Overview

Unpacking the Panel

Installing the Internal Components

Upgrading the Back Box with the MB-TP17 VESA Housing

Pre-Wall Installation of the CB-TP17 Conduit Box

Installation of an NXD-1700VG

Wiring Guidelines for the 1700VG Panels

Audio/Video Port: Connections and Wiring

Ethernet/Rj-45 Port: Connections and Wiring

Panel Calibration

Overview

Calibrating the Modero Panel

Configuring Communication

Overview

Modero Setup and System Connection

Configuring and Using USB with a Virtual Master

Wireless Settings Page - Wireless Access Overview

Configuring a Wireless Connection

Step 1: Configuring the Panel's Wireless IP Settings

Step 2: Configuring the Card's Wireless Security Settings

Configuring a Wired Ethernet Connection

Step 1: Configuring the Panel's Wired IP Settings

Step 2: Choosing a Master Connection Mode Setting

Step 3: Configuring the Ethernet Connection Type

Using G4 Web Control to Interact with a G4 Panel

Using Your Netlinx Master to Control the G4 Panels

Upgrading Modero Firmware

Overview

Upgrading the Modero Firmware Via the USB Port

Upgrading the Modero Firmware Via an IP Address

Upgrading Accessory Devices Via an IP Address

Upgrading the NXA-RGB and NXA-AVB/RGB Firmware

Firmware Pages and Descriptions

Overview

Setup Navigation Buttons

Setup Page

Protected Setup Navigation Buttons

Protected Setup Page

Displaying Stream Content

Overview

Requirements for Receiving Streamed Content

Setting up a Modero Panel to Receive and Display a Stream

Programming

Button Assignments

Page Commands

Programming Numbers

Button Commands

Text Effect Names

Button Query Commands

Panel Runtime Operations

Input Commands
