For more detailed installation, configuration, programming, file transfer, and
operating instructions, refer to the VG-Series Modero Touch Panels Instruction
Manual available on-line at www.amx.com.

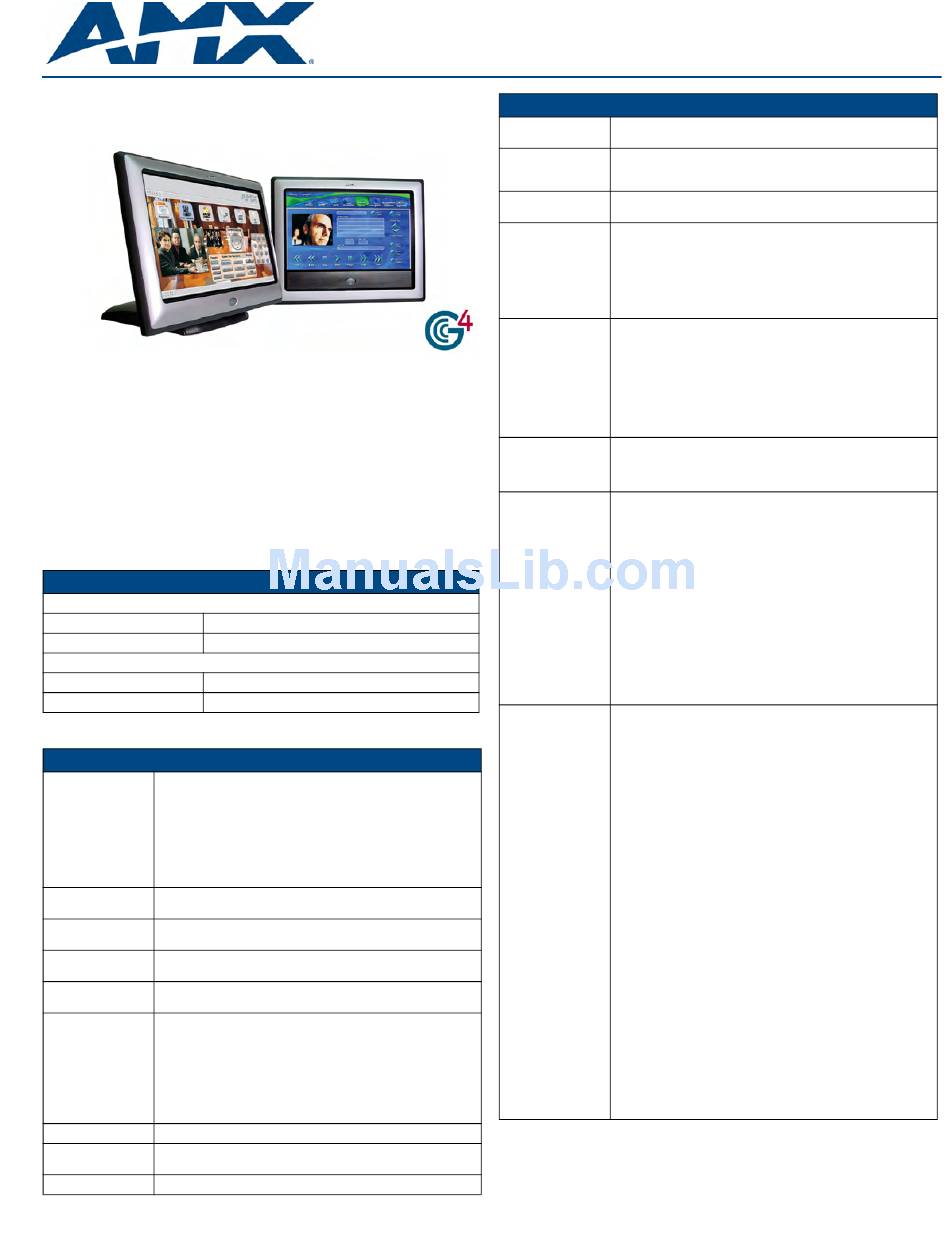

NXT-1700VG
(Table Top)
FIG. 1
Wall Mount and Table Top 1700VG Touch Panels
ATTENTION!
Verify you are using the latest NetLinx Master and Modero touch panel firmware
(available from www.amx.com). Verify the TPDesign4 program being used is
Version 2.6 or
higher.
Overview
The VG-Series of touch panels can be fitted for either Video (Composite) or RGB
(Component) via the use of two kit configurations: Video Kit and RGB Kit. Each
kit comes with its own group of standard components that are specific to its
configuration. The following table outlines the different configurations available
for 1700VG panels:
Modero 1700VG Multimedia Touch Panels
With Video Kit
NXD-1700VG (FG2256-61V)
17" Modero Multimedia WallMount Panel with Video Kit.
NXT-1700VG (FG2257-61V)
17" Modero Multimedia Table Top Panel with Video Kit.
With RGB Kit
NXD-1700VG (FG2256-61RGB)
17" Modero Multimedia WallMount Panel with RGB Kit.
NXT-1700VG (FG2257-61RGB)
17" Modero Multimedia Table Top Panel with RGB Kit.
Specifications
1700VG Specifications
Dimensions (HWD):
• NXD-1700VG (with faceplate): 14.44" x 18.09" x 3.31"
(36.68 cm x 45.95 cm x 8.41 cm)
• NXT-1700VG (Fully raised): 13.29" x 17.84" x 12.44"
(35.31 cm x 45.31 cm x 31.60 cm)
• NXT-1700VG (Fully lowered): 6.23" x 17.84" x 12.44"
(15.82 cm x 45.31 cm x 31.60 cm)
• CB-TP17 (conduit/wallbox): 13.55" x 17.07" x 3.49"
(34.43 cm x 43.38 cm x 8.85 cm)
• MB-TP17 (VESA mounting box): 14.44" x 18.09" x 3.48"
(36.68 cm x 45.95 cm x 8.84 cm)
Power:
• Constant current draw: 4.5 A @ 12 VDC (stand-alone)
• Startup current draw: 6.5 A @ 12 VDC (stand-alone)
Minimum power
• PSN6.5 Power Supply (FG423-41)
- using accessories can increase the power draw requirements
supply required:
Memory:
• 256 MB on-board memory
• 128 MB Compact Flash (upgradeable to 1 GB factory programmed)
Weight:
• NXD-1700VG: 18.20 lbs (8.26 kg)
• NXT-1700VG: 22.00 lbs (9.98 kg)
LCD Parameters:
• Aspect Ratio: 16 x 9
• Brightness: 450 cd/m2
• Channel transparency: 8-bit Alpha channel transparency
• Contrast ratio: 600:1
• Display colors: 16 million colors (24-bit color depth)
• Dot/pixel pitch: 0.289 mm
• Screen resolution (HV): 1280 x 768 pixels
• Video formats: NTSC, PAL, and SECAM (shown within variable-size
video windows)
Viewing Angles:
• Vertical: + 85° (up from center) and - 85° (down from center)
Supported Audio
• 48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz,
12000Hz, 11025Hz, and 8000Hz.
Sample Rates:
Certifications:
• FCC Part 15 Class B, CE, and EN 60950
NXD & NXT-1700VG
1700VG Specifications (Cont.)
Supported Transport
Protocols:
Supported Audio
Codecs:
Supported Video
Codecs:
Front Panel
Components:
NXD-1700VG
Rear Panel
(Wall Mount)
Components:
Operating / Storage
Environments:
Included
Accessories:
Other AMX
Equipment:
Quick Start Guide
Multimedia Touch Panel (G4)
• RTP (MPEG-2/MPEG-4 Transport Stream)
• UDP (MPEG-2 Transport Stream)
• Advanced Audio Coding (AAC)
• MPEG Audio Level 2 (MP2)
• MPEG Audio Level 3 (MP3)
• MPEG-2
• MPEG-4
• Light Sensor: Photosensitive light detector for automatic adjustment of
the panel brightness
• Motion Sensor (PIR): Proximity Infrared Detector to wake the panel
when panel is approached
• Front Setup Access Button: Pushbutton (grey) used to either put the
panel into a "sleep" or "wake" state
• Microphone: Used for intercom applications
• Speakers: Stereo output with a frequency response of 450 Hz - 7 KHz
• RGB Connector: Made available only by using an NXA-RGB interface
card installed within the touch panel. Used with Component/RGB
signals
• Audio/Video Connector: RJ-45 connector for communication of
differential audio/video signals
• Ethernet 10/100 Port: RJ-45 port for 10/100 Mbps communication
• PWR Connector: 2-pin 3.5 mm mini-Phoenix connector
• Stereo Output Connector: Stereo output through a 3.5mm mini-jack
• USB Connector: Two Type A USB ports
• Mini-USB Connector: 5-pin Mini-USB connector
• Operating Temperature: 10° C (50° F) to 40° C (104° F)
• Operating Humidity: 20% to 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% to 85% RH
• Installation Kit for 12" and 17" NXD panels (KA2251-01):
- 2-pin mini-Phoenix connector (41-5025)
- Four Drywall clips (62-5924-05) and #6 - sheet metal screws
- One CAT5 Suppression Ferrites (04-0014)
- Three Phillips-head screws (#4-20 x 0.250 Black)
• Installation Kit for 15" and 17" NXT panels (KA2251-04):
- 2-pin mini-Phoenix connector (41-5025)
- One CAT5 Suppression Ferrites (04-0014)
- Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08)
• Included within the RGB Kit (FGxxxx-xxRGB) is the following:
- Modero VG Touch Panel (NXD/NXT-1200/1500/1700VG)
- NXA-AVB/RGB Breakout Box (FG2254-11)
- NXA-RGB internal RGB/VGA Interface Card (FG2260)
- NXA-RGBCBL, 15-pin to 5X BNC RGB Breakout cable (FG2250-80)
- NXA-MTC/RGB Modero 10' foot Table Top Cable
(with RGB connector) (CA2250-70)
• Included within the Video Kit (FGxxxx-xV) is the following:
- Modero VG Touch Panel (NXD/NXT-1200/1500/1700VG)
- Modero 10' foot Table Top Cable (CA2250-50)
- NXA-AVB/ETHERNET Breakout Box (FG2254-10)
• CB-TP17 Conduit/Wallbox (FG034-10)
• CC-USB (Type A) to Mini-B 5-Wire programming cable (FG10-5965)
• Kensington Lock Bracket (FG2259-10) (optional only with NXTs)
• MAX-CSE MAX Video Encoder (FG2178-70)
• MB-TP17 Universal VESA Mounting Box (FG033-50)
• NXA-AVB/ETHERNET Breakout Box (FG2254-10)
• NXA-AVB/RGB Breakout Box (FG2254-11)
• NXA-BASE/B (FG2255)
• NXA-MTC/RGB Modero 10' foot Table Top Cable (with RGB
connector) (CA2250-70). This cable is not wall-rated for NXD models.
• NXA-PCI80211G Wireless Card (FG2255-04)
• NXA-RGBKIT RGB upgrade kit for Composite Video touch panels
(FG2255-11):
- NXA-AVB/RGB Breakout Box (FG2254-11)
- NXA-MTC/RGB Modero 10' foot Table Top Cable
(with RGB connector) (CA2250-70)
- NXA-RGB internal RGB/VGA Interface Card (FG2260)
- NXA-RGBCBL, 15-pin to 5X BNC RGB Breakout cable (FG2250-80)
- NXT Table Top replacement I/O plate (with RGB connector opening)
(62-2250-59)
- NXD WallMount replacement adhesive overlay for existing I/O plate
(53-2250-03)
Note: The NXT replacement I/O plate is a single piece which is meant to
be swapped-out with the pre-existing plate shipped with Composite
Video panels. On NXD panels, the RGB connector opening is pre-drilled
into the I/O plate but can only be accessed by replacing the adhesive
cover and maintaining the existing overlay. When upgrading NXD panels
with this kit, don't replace the NXD I/O plate, only the adhesive cover.
• NXA-RGBCBL, 15-pin to 5X BNC RGB Breakout cable (FG2250-80)
• NXA-RK17 Rackmount kit for 17" Wall Mount panels (FG2904-52)
• NXT-BP (FG2250-10)
• NXT-CHG (FG2250-50)
• PSN6.5 Power Supply (12 VDC) (FG423-41)
• Upgrade Compact Flash (factory programmed with firmware):
NXA-CFTPV256M - 256 MB V/VG compact flash card (FG2116-43)
NXA-CFTPV512M - 512 MB V/VG compact flash card (FG2116-44)
NXA-CFTPV1G - 1 GB V/VG compact flash card (FG2116-45)
