Table of Contents
- 1 Maintenance Tools
- 2 1. Remove the 4 LCD Rubber Pads (Circled Red)
- 3 2. Using a Philips Screwdriver Remove the 4 Screws
- 4 3. Using the Ends of Your Fingers Carefully Pull the LCD Frame up and out Releasing It
- 5 4. Using a Philips Screw Driver Remove the 3 Screws on each Side of the LCD Panel
- 6 5. at the Top of the LCD Panel Pull Forward Placing the LCD Panel on the Keyboard Area
- 7 6. Carefully Remove the LCD Cable from the LCD
- 8 7. Remove the LCD
- Download this manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EUROCOM P150HM
Summary of Contents for EUROCOM P150HM

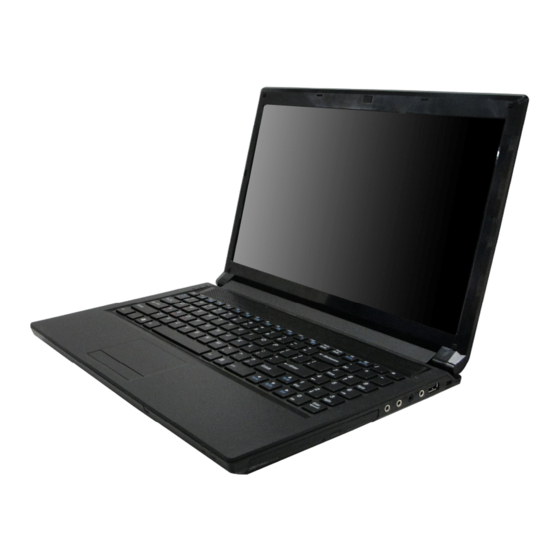

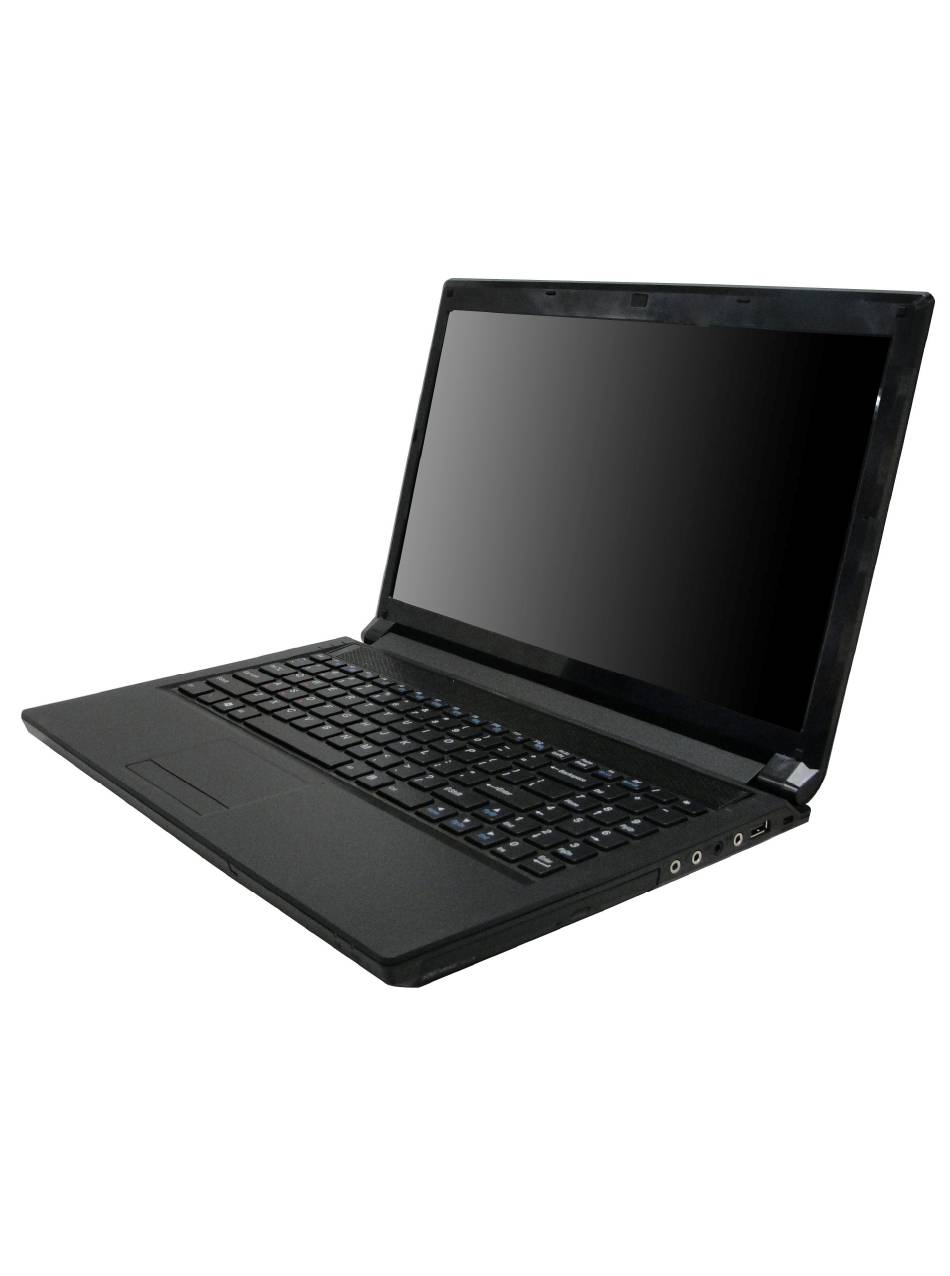

- Page 1 P150HM LCD Replacement Manual...
-
Page 2: Maintenance Tools
NOTE: All disassembly procedures assume that the system is turned OFF, and discon- nected from any power supply (the battery is removed too). Maintenance Tools The following tools are recommended when working on the notebook PC: • M3 Philips-head screwdriver •... - Page 3 3. Using the ends of your fin- gers carefully pull the LCD frame up and out releasing it Do the same on both sides and pull forward to release the LCD Front Cover 4. Using a Philips screw driver remove the 3 screws on each side of the LCD Panel...
- Page 4 5. At the top of the LCD panel pull forward placing the LCD panel on the keyboard area 6. Carefully remove the LCD cable from the LCD 7. Remove the LCD...
