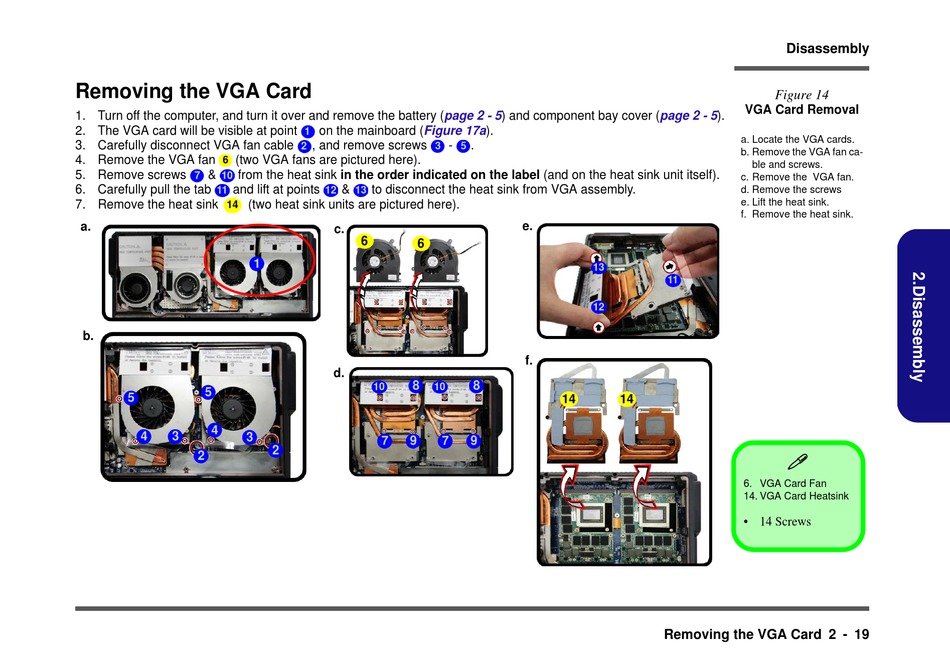

Removing the VGA Card

1. Turn off the computer, and turn it over and remove the battery
2. The VGA card will be visible at point
3. Carefully disconnect VGA fan cable
4. Remove the VGA fan (two VGA fans are pictured here).
6
5. Remove screws & from the heat sink in the order indicated on the label (and on the heat sink unit itself).
7 10
6. Carefully pull the tab and lift at points
11
7. Remove the heat sink (two heat sink units are pictured here).
14
a.
1
b.
5
5
4
4 3
3
2
(page 2 -
on the mainboard (Figure
1
, and remove screws -
3
2
& to disconnect the heat sink from VGA assembly.
12 13
c.
6
6
d.
8
10 10
7 9 7
2
5) and component bay cover
17a).
.
5
e.
13
12
f.
8
14 14
9
Disassembly
Figure 14
VGA Card Removal
(page 2 - 5).
a. Locate the VGA cards.
b. Remove the VGA fan ca-
ble and screws.
c. Remove the VGA fan.
d. Remove the screws
e. Lift the heat sink.
f. Remove the heat sink.
11

6. VGA Card Fan
14. VGA Card Heatsink
• 14 Screws
Removing the VGA Card 2 - 19
