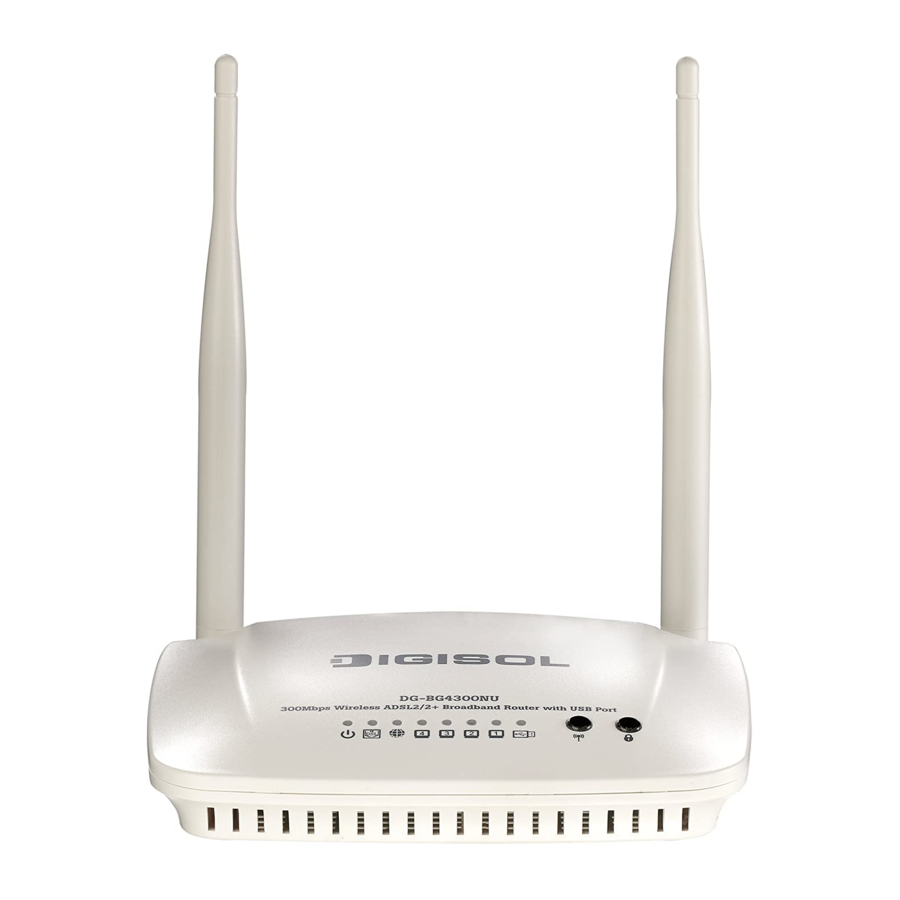

DG-BG4300NU
300Mbps Wireless ADSL2/2+
Broadband Router with USB port

User Manual

V2.0
2014-01-15
As our products undergo continuous development the specifications are subject to change without prior notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-BG4300NU and is the answer not in the manual?

Questions and answers

Related Manuals for Digisol DG-BG4300NU

Summary of Contents for Digisol DG-BG4300NU

  • Page 1: User Manual

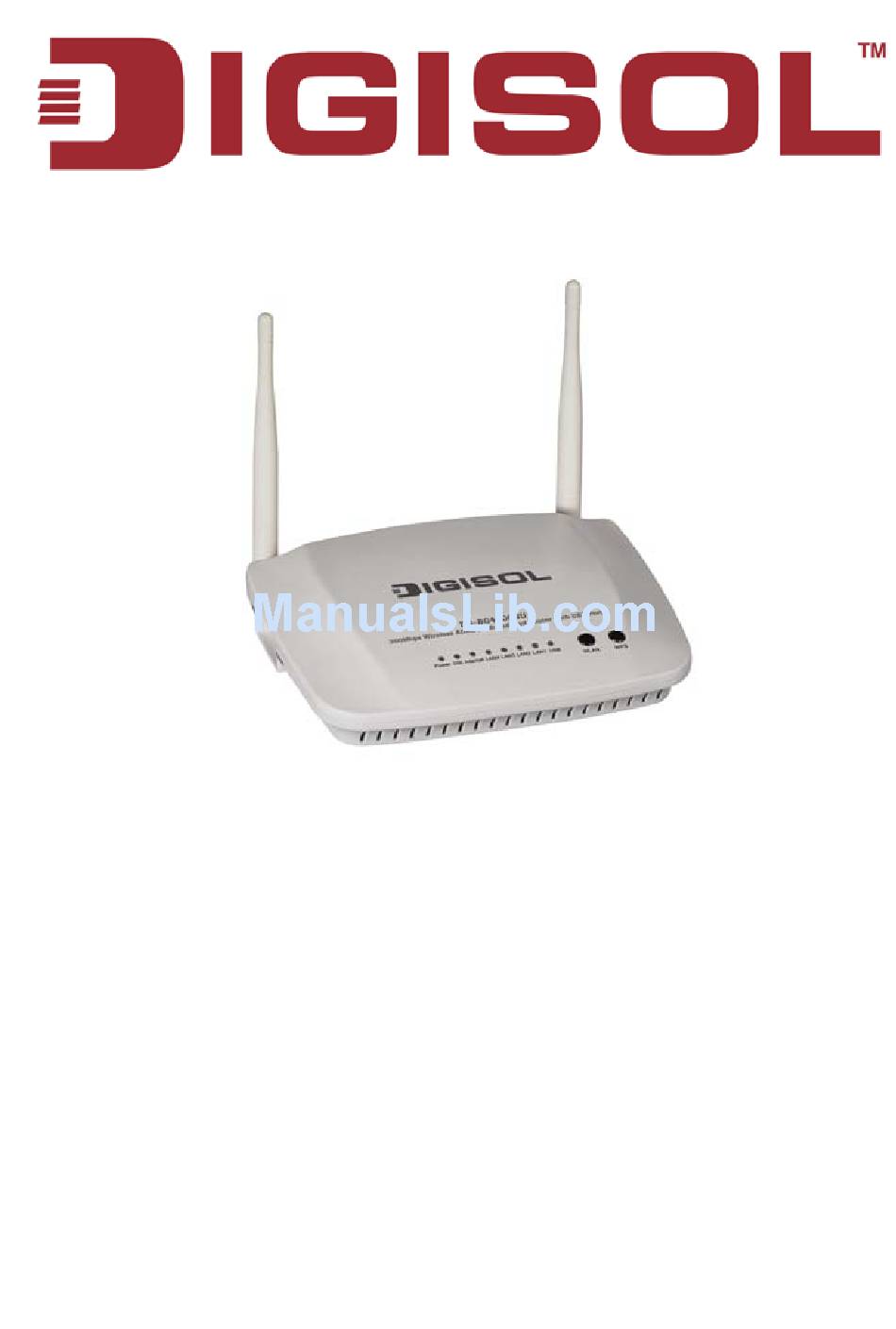

    DG-BG4300NU 300Mbps Wireless ADSL2/2+ Broadband Router with USB port User Manual V2.0 2014-01-15 As our products undergo continuous development the specifications are subject to change without prior notice...
  • Page 2 Further, this company reserves the right to revise this publication and to make changes from time to time in the contents thereof without obligation to notify any person of such revision or changes. Trademarks: DIGISOL™ is a trademark of Smartlink Network Systems Ltd. All other trademarks are the property of the respective manufacturers. Safety This equipment is designed with the utmost care for the safety of those who install and use it.

  • Page 3: Table Of Contents

    DG-BG4300NU User Manual INDEX Product Information……..................5 Safety Precautions .................. 6 System Requirements ................7 Package contents ..................7 LEDs and Interfaces ................8 Hardware Installation ..................12 Software Installation..................14 About the Web Configuration ................. 24 Access the Router ................. 24 Wizard ....................
  • Page 4 DG-BG4300NU User Manual 4.6.2 NAT ..................103 4.6.3 Port Mapping ............... 110 4.6.4 IP QoS ..................111 4.6.5 SNMP .................. 114 4.6.6 USB Storage ............... 115 4.6.7 Others .................. 116 Admin ....................120 4.7.1 Commit/Reboot ..............120 4.7.2 Update ................. 121 4.7.3...

  • Page 5: Product Information

    DG-BG4300NU User Manual Product Information Thank you for purchasing DG-BG4300NU 300Mbps Wireless ADSL2/2+ Broadband Router with USB port! This router is the best choice for Small office / Home office users, all computers and network devices can share a single Internet connection at high speed. Easy Installation wizard provided with this router is designed to setup an Internet connection in a very short time by accessing the web configuration of the router.

  • Page 6: Safety Precautions

    DG-BG4300NU User Manual Safety Precautions In order to keep the safety of users and your properties, please follow the safety instructions as mentioned below: 1. This router is designed for indoor use only; DO NOT place this router outdoor. 2. DO NOT place this router close to a hot or humid area, like kitchen or bathroom. Also, DO NOT leave this router in the car during summer.

  • Page 7: System Requirements

    Package contents Before you start using this router, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: • DG-BG4300NU ADSL 2/2+ Broadband Router With 3G • POTS splitter •...

  • Page 8: Leds And Interfaces

    DG-BG4300NU User Manual LEDs and Interfaces Top Panel The following table describes the LEDs of the device. LEDs Color Status Description Device is initializing or initialization has failed. Power Power is off. Green Power is on. Physical link is up...
  • Page 9 DG-BG4300NU User Manual PC is connected to the LAN port Green 1/2/3/4 PC is unplugged/not connected. USB device is plugged. Green USB devidce is not plugged. Wireless is enabled. WLAN Green Blinking Data is being transmitted or received. Wireless is not enabled.

  • Page 10: Rear Panel

    DG-BG4300NU User Manual Rear Panel The following table describes the interfaces of the device. Description Item Two 5dBi fixed diplole antennas. Antennas RJ-11 interface, for connecting to the ADSL interface or a splitter using a telephone cable. RJ-45 interface, for connecting to the Ethernet interface of a computer LAN4/3/2/1 or the Ethernet devices through an Ethernet cable/LAN Cable.

  • Page 11: Side Panel

    DG-BG4300NU User Manual Side Panel Description Item To connect USB 3G Dongle or USB Mass Storage. Reset to the factory default configuration. Keep the device powered Reset on, and insert a pin into the reset hole for 3 seconds, then release it.

  • Page 12: Hardware Installation

    DG-BG4300NU User Manual Hardware Installation Step 1 Connect the ADSL interface of the device and the router interface of the splitter through a telephone cable. Connect the phone to the Phone interface of the splitter through a telephone cable. Connect the incoming line to the Line interface of the splitter.
  • Page 13 DG-BG4300NU User Manual The following figure shows the application diagram for the connection of the router, PC, splitter and the telephone sets.

  • Page 14: Software Installation

    DG-BG4300NU User Manual Software Installation  Insert the Setup CD into your CD-ROM drive of notebook/desktop computer.  Explore the CD and execute the “ ” file. Screen given below will be DG-BG4300NU.EXE displayed. Click ‘Start’ to continue.
  • Page 15 DG-BG4300NU User Manual  Connect the ADSL line and the phone line to the router. Click ‘Next’.  Connect the power adapter to the AC Mains and the other end to the power interface on the router. Push the power button on the router to power up the device.Click ‘Next’.
  • Page 16 DG-BG4300NU User Manual  Connect the Ethernet interface on the router to the LAN card on the computer using the Ethernet cable. Click ‘Next’.  After powering up the router, verify the status of the LED indicators on the front panel of...
  • Page 17 DG-BG4300NU User Manual  Below as shown please select the “WAN Mode” type. Suppose you select “ADSL and 3G” option to setup 3G failover click “Next”.  Please select your ‘Country’ and ADSL service provider. VPI and VCI values will auto...
  • Page 18 DG-BG4300NU User Manual  Select the network protocol for WAN interface. Click ‘Next’. All the utility installation steps till here are the common steps to be followed for the modes. Following are the steps for configuring PPPoE connection  Enter the username and password provided by your ISP. Click ‘Next’.
  • Page 19 DG-BG4300NU User Manual  Configure the 3G Dialup parameters and click “Next”  Configure a wireless name (SSID) for your router. Click ‘Next’.
  • Page 20 DG-BG4300NU User Manual  Configure the wireless security. Click ‘Next’.  The next screen is a summary of the wireless settings of the router.
  • Page 21 DG-BG4300NU User Manual  Click on ‘Next’, the following screen will appear.  Once the connection is established, the router connection status will appear.
  • Page 22 DG-BG4300NU User Manual Bridging Mode:  To configure the router in the bridge mode select “Bridging” option. Click ‘Next’.  Configure a wireless name (SSID) for your router. Click ‘Next’.
  • Page 23 DG-BG4300NU User Manual  Configure the wireless security.  Click on ‘Next’ the following screen will appear.  Click on ‘Finish’ to complete the configuration of the router in Bridge mode.

  • Page 24: About The Web Configuration

    DG-BG4300NU User Manual About the Web Configuration This section describes how to configure the router by using the Web-based configuration utility. 4.1 Access the Router The following is the detailed description of accessing the router for the first time. Step 1 Open the Internet Explorer (IE) browser and enter http://192.168.1.1.
  • Page 25 DG-BG4300NU User Manual If you log in as a common user, you can check the status of the router, but cannot configure/modify most of the settings. Note: In the Web configuration page, you can click Apply Changes to save the settings.

  • Page 26: 4.2 Wizard

    DG-BG4300NU User Manual 4.2 Wizard When subscribing to a broadband service, you should be aware of the method by which you are connected to the Internet. Your physical WAN device can be PPP, ADSL or both. The technical information about the properties of your Internet connection is provided by your Internet Service Provider (ISP).
  • Page 27 DG-BG4300NU User Manual The following table describes the parameters in this page: Field Description Virtual path identifier (VPI) is the virtual path between two points in an ATM network. Its valid value is in the range of 0 to 255. Enter the correct VPI provided by your ISP.
  • Page 28 DG-BG4300NU User Manual PPPoE/PPPoA In the Connection Type page, set the WAN connection type to PPP over Ethernet (PPPoE), the encapsulation mode to LLC/SNAP. The following table describes the parameters in this page: Field Description There are five WAN connection types: PPP over...
  • Page 29 DG-BG4300NU User Manual After the settings are done, click Next, the page as shown in the following figure appears. The following table describes the parameters in this page: Field Description Obtain an IP address Select it, DHCP assigns the IP address for PPPoE automatically connection.
  • Page 30 DG-BG4300NU User Manual After the settings are done, click Next, the page as shown in the following figure appears. The following table describes the parameters in this page: Field Description Enter the username for PPPoE dial-up, which is provided by PPP Username your ISP.
  • Page 31 DG-BG4300NU User Manual After the settings are done, click Next, the page as shown in the following figure appears. The following table describes the parameters in this page: Field Description LAN Interface Setup Enter the IP address of LAN interface. Its valid value is LAN IP in the range of 192.168.1.1 to 192.168.1.254.
  • Page 32 DG-BG4300NU User Manual Enable DHCP Server Select the checkbox to enable DHCP server. Start IP Enter the start IP address that the DHCP sever assigns. End IP Enter the end IP address that the DHCP server assigns. The lease time determines the period that the PCs...
  • Page 33 DG-BG4300NU User Manual Click BACK to modify the settings. Click FINISH to save the settings. Click RESET to cancel the settings. Note: the WAN connection type is set to PPPoA, the parameters of the WAN connection type are the same as that of PPPoE.
  • Page 34 DG-BG4300NU User Manual After the settings are done, click Next, the page as shown in the following figure appears. The following table describes the parameters in this page: Field Description Obtain an IP address Select it, DHCP automatically assigns the IP automatically address for WAN connection.
  • Page 35 DG-BG4300NU User Manual (NAT). If you do not select it and you want to access the Internet normally, you must add a route on the uplink equipment. Otherwise, the access to the Internet fails. Normally, it is required to enable NAT.
  • Page 36 DG-BG4300NU User Manual After the settings are done, click Next, the page as shown in the following figure appears. The following table describes the parameters in this page: Field Description LAN Interface Setup Enter the IP address of LAN interface. Its valid value is in LAN IP the range of 192.168.1.1 to 192.168.255.254.
  • Page 37 DG-BG4300NU User Manual two LAN IP addresses must be in the different network. DHCP Server Enable DHCP Server Select the checkbox to enable DHCP server. Start IP Enter the start IP address that the DHCP sever assigns. End IP Enter the end IP address that the DHCP server assigns.

  • Page 38: Status

    DG-BG4300NU User Manual Status In the navigation bar, choose Status. The Status page that is displayed contains: Device Info, LAN, WLAN, WAN, Port Mapping, Statistics and ARP. 4.3.1 Device Info Choose Status > Device Info. The page that is displayed shows the current status and some basic settings of the router, such as software version, DSP version, uptime, upstream speed and downstream speed.

  • Page 39: Lan

    DG-BG4300NU User Manual 4.3.2 Choose Status > LAN. The page that is displayed shows some basic LAN settings of the router. In this page, you can view the LAN IP address, DHCP server status, MAC address and DHCP client table. If you want to configure the LAN network, refer to...

  • Page 40: Wlan

    DG-BG4300NU User Manual 4.3.3 WLAN Choose Status > WLAN. The page that is displayed shows some basic settings of wireless LAN (WLAN).

  • Page 41: Wan

    DG-BG4300NU User Manual 4.3.4 Choose Status > WAN. The page that is displayed shows some basic WAN settings of the router. In this page, you can view basic status of WAN and DNS server. If you want to configure the WAN network, refer to section 3.4.2.1 WAN...

  • Page 42: Port Mapping

    DG-BG4300NU User Manual 4.3.6 Port Mapping Choose Status > Port Mapping. In this page, you can view the mapping relation and the status of port mapping. 4.3.7 Statistics Choose Status > Statistics. The Statistics page that is displayed contains Statistics and...
  • Page 43 DG-BG4300NU User Manual 4.3.7.1 Statistics Click Statistics in the left pane. The page shown in the following figure appears. In this page, you can view the statistics of each network port.
  • Page 44 DG-BG4300NU User Manual 4.3.7.2 ADSL Statistics Click ADSL Statistics in the left pane. The page shown in the following figure appears. In this page, you can view the ADSL line status, upstream rate, downstream rate and other information.

  • Page 45: Arp Table

    DG-BG4300NU User Manual 4.3.8 ARP Table Choose Status > ARP. In the ARP Table page, you can view the table that shows a list of learned MAC addresses. Network In the navigation bar, click Network. The Network page that is displayed contains LAN, WAN and WLAN.
  • Page 46 DG-BG4300NU User Manual...
  • Page 47 DG-BG4300NU User Manual The following table describes the parameters of this page: Field Description Enter the IP address of LAN interface. It is recommended to use an address from a block that is IP Address reserved for private use. This address block for example is 192.168.1.1 - 192.168.1.254.

  • Page 48: Ipv6 Lan Config

    DG-BG4300NU User Manual 4.4.1.2 IPv6 LAN Config Click LAN IP in the left pane, the page shown in the following figure appears. In this page, you can change the IP address of the router. The default IP address is 192.168.1.1, which is...
  • Page 49 DG-BG4300NU User Manual The following table describes the RA parameters of this page. Field Description Global Address Specify the LAN global ipv6 address, which may be assigned by ISP. RA Setting Enable Enable or disable the Router Advertisement feature. Enable or disable the “Managed address configuration” flag in RA M Flag packet.
  • Page 50 DG-BG4300NU User Manual 4.4.1.3 DHCP Dynamic Host Configuration Protocol (DHCP) allows the individual PC to obtain the TCP/IP configuration from the centralized DHCP server. You can configure this router as a DHCP server or disable it. The DHCP server can assign IP address, IP default gateway and DNS server to DHCP clients.
  • Page 51 DG-BG4300NU User Manual The following table describes the parameters of this page: Field Description If set to DHCP Server, the router can assign IP addresses, IP default DHCP Mode gateway and DNS Servers to the host in Windows95, Windows NT and other operation systems that support the DHCP client.
  • Page 52 DG-BG4300NU User Manual Click Show Client in the DHCP Mode page, the page shown in the following figure appears. You can view the IP address assigned to each DHCP client. The following table describes the parameters and buttons in this page:...
  • Page 53 DG-BG4300NU User Manual Click Set VendorClass IP Range in the DHCP Mode page, the page as shown in the following figure appears. In this page, you can configure the IP address range based on the device type. In the DHCP Mode field, choose None. The page shown in the following figure appears.
  • Page 54 DG-BG4300NU User Manual In the DHCP Mode field, choose DHCP Relay. The page shown in the following figure appears. The following table describes the parameters and buttons of this page: Field Description If set to DHCP Relay, the router acts a DHCP Server and...

  • Page 55: Dhcp Static Ip

    DG-BG4300NU User Manual 4.4.1.4 DHCP Static IP Click DHCP Static IP in the left pane, the page shown in the following figure appears. You can assign the IP addresses on the LAN to the specific individual PCs based on their MAC address.

  • Page 56: Wan

    DG-BG4300NU User Manual 4.4.2 Choose Network > WAN. The WAN page that is displayed contains WAN, 3G, Auto PVC, ATM Settings and ADSL Settings. 4.4.2.1 Click WAN in the left pane, the page shown in the following figure appears. In this page, you...
  • Page 57 DG-BG4300NU User Manual The following table describes the parameters of this page: Field Description Default Route Selection You can select Auto or Specified. The virtual path between two points in an ATM network, ranging from 0 to 255. The virtual channel between two points in an ATM network,...
  • Page 58 DG-BG4300NU User Manual remote IP address and subnet mask. • If select DHCP, the router is a DHCP client, the WAN IP address is assigned by the remote DHCP server. Local IP Address Enter the IP address of WAN interface provided by your ISP.
  • Page 59 DG-BG4300NU User Manual After adding a PPPoE ATM VC to the table, click in the PPPoE mode, the page shown in the following figure appears. In this page, you can configure parameters of this PPPoE PVC. The following table describes the parameters and buttons of this page:...
  • Page 60 DG-BG4300NU User Manual timeout time. Within the preset minutes, if the router does not detect the flow of the user continuously, the router automatically disconnects the PPPoE connection. Bridge You can select Bridged Ethernet, Bridged PPPoE, or Disable Bridge. AC-Name The accessed equipment type.
  • Page 61 DG-BG4300NU User Manual 4.4.2.2 3G This page is used to configure the parameters for your 3G network access. Field Description Enable/Disable Selection will Enable or Disable 3G WAN. Pincode Enter the Pincode – Check with 3G Service provider. Enter the APN - Check with 3G Service provider.
  • Page 62 DG-BG4300NU User Manual 3G to DSL switch Set the switchover time in seconds. time Note: Kindly refer to the 3G USB compatibility list uploaded on the website. 4.4.2.3 Auto PVC Click Auto PVC in the left pane, page shown in the following figure appears. In this page, you can get PVC automatically through detecting function, and add or delete the PVC that you want or do not want.

  • Page 63: Atm Settings

    DG-BG4300NU User Manual 4.4.2.4 ATM Settings Click ATM Settings in the left pane, the page shown in the following figure appears. In this page, you can configure the parameters of the ATM, including QoS, PCR, CDVT, SCR and MBS. The following table describes the parameters of this page:...

  • Page 64: Adsl Settings

    DG-BG4300NU User Manual Maximum burst size (MBS) is the maximum number of cells that can be transmitted at the PCR. Its value ranges from 0 to 65535. 4.4.2.5 ADSL Settings Click ADSL Settings in the left pane, the page shown in the following figure appears. In this page, you can select the DSL modulation.

  • Page 65: Wlan

    DG-BG4300NU User Manual 4.4.3 WLAN Choose Network > WLAN. The WLAN page that is displayed contains Basic, Security, Access Control List, MBSSID, Advanced, WPS, WDS and WDS Security. 4.4.3.1 Basic Choose WLAN > Basic and the following page appears. In this page, you can configure the...
  • Page 66 DG-BG4300NU User Manual The following table describes the parameters of this page: Field Description Choose the working mode of the router. You can choose from drop-down list. Band Choose the network mode of the router, which is varied according to Mode the software.
  • Page 67 DG-BG4300NU User Manual 4.4.3.2 Security Choose Wireless > Security and the following page appears. The following table describes the parameters of this page: Field Description Configure the wireless encryption mode. You can choose None, WEP, WPA (TKIP), WPA (AES), WPA2 (AES), WPA2 (TKIP) or WPA2 Mixed.
  • Page 68 DG-BG4300NU User Manual authentication and improved data encryption. It is available when you set the encryption mode to WEP. Set WEP Key Click it, the Wireless WEP Key Setup page appears. • Select Personal (Pre-Shared Key), enter pre-shared key in the Pre-Shared Key field.

  • Page 69: Access Control List

    DG-BG4300NU User Manual 4.4.3.3 Access Control List Choose WLAN > Access Control List and the following page appears. In this page, you can configure the access control of the wireless clients. Choose Allow Listed as the access control mode to enable white list function. Only the devices whose MAC addresses are listed in the Current Access Control List can access the router.
  • Page 70 DG-BG4300NU User Manual 4.4.3.4 MBSSID Choose Wireless > MBSSID and the following page appears. In this page, you can configure the multiple SSID on the access point. It supports four virtual access points (VAPs). It is a unique name to identify the router in the wireless LAN.
  • Page 71 DG-BG4300NU User Manual 4.4.3.5 Advanced Choose WLAN > Advanced and the following page appears. In this page, you can configure the wireless advanced parameters. It is recommended to use the default parameters. Note: The parameters in the Advanced link are modified by the professional personnel, it is recommended to keep the default values.
  • Page 72 DG-BG4300NU User Manual • In the open system, the wireless client can directly connect to the device. • In Shared key, the wireless client connects to the router using the shared key. • The default is set to Auto, which allows either Open System or Shared Key authentication to be used.
  • Page 73 DG-BG4300NU User Manual through broadcasting SSID. • Select Disable to hide SSID, the wireless clients can not find the SSID. Wireless isolation. Once this field is Enabled, the wireless Relay Blocking clients that connected router cannot intercommunicate. Ethernet to Wireless...
  • Page 74 DG-BG4300NU User Manual 4.4.3.6 Choose WLAN > WPS and the following page appears. There are two ways for the wireless client to establish connection with the router through WPS. Click Regenerate PIN to generate a new PIN. In the wireless client tool, enter the PIN which is generated by the router, start connection.
  • Page 75 DG-BG4300NU User Manual 4.4.3.7 Choose WLAN > WDS, and the following page appears. In this page you can enable wireless distribution system (WDS) so that the router can communicate with another AP. The following table describes the parameters of this page:...
  • Page 76 DG-BG4300NU User Manual 4.4.3.8 WDS Security Choose WLAN > WDS Security, and the following page appears. In this page, you can set up wireless security for WDS. The following table describes the parameters of this page: Field Description Choose a WDS encryption algorithm from None, WEP, Encryption WPA/WPA 2 (TKIP and AES) and WPA2 Mixed.

  • Page 77: Service

    DG-BG4300NU User Manual Service In the navigation bar, click Service. The Service page that is displayed contains DNS, Firewall, UPNP, IGMP Proxy, TR-069 and ACL. 4.5.1 Domain Name System (DNS) is an Internet service that translates the domain name into IP address.
  • Page 78 DG-BG4300NU User Manual The following table describes the parameters and buttons of this page: Field Description Select it, the router accepts the first received DNS assignment Attain DNS from one of the PPPoA, PPPoE or MER enabled PVC(s) during Automatically the connection establishment.

  • Page 79: Ipv6 Dns

    DG-BG4300NU User Manual 4.5.1.2 IPv6 DNS Click DNS in the left pane, and the page shown in the following figure appears. The following table describes the parameters and buttons of this page. Field Description Select it, the router accepts the first received DNS assignment...
  • Page 80 DG-BG4300NU User Manual 4.5.1.3 DDNS Click DDNS in the left pane, and the page shown in the following figure appears. This page is used to configure the dynamic DNS address from DynDNS.org or TZO. You can add or remove to configure dynamic DNS.

  • Page 81: Firewall

    DG-BG4300NU User Manual 4.5.2 Firewall Choose Service > Firewall. The Firewall page that is displayed contains IP/Port Filter, IPv6/Port Filter, MAC Filter, URL Filter, Anti-DoS and Software Forbidden. 4.5.2.1 IP/Port Filter Click IP/Port Filter in the left pane, and the page shown in the following figure appears.
  • Page 82 DG-BG4300NU User Manual Address Destination IP Type the IPv4 address of destination device or host. Address Mask Address Type the subnet mask address. S-Port Type the Source port range. D-Port Type the destination port range. Select check box to enable the rule or uncheck to disable the Enable rule.
  • Page 83 DG-BG4300NU User Manual Field Description Select Permit to Allow packet route and select Deny to stop Rule Action the packet. Protocol Select the Protocol type for a rule. Direction Select Upstream or Downstream direction. Icmp6Type Select the ICMP version. Source IPv6 Type the IPv6 address of source device or host.

  • Page 84: Mac Filter

    DG-BG4300NU User Manual 4.5.2.3 MAC Filter Click MAC Filter in the left pane, and the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets from your local network to Internet through the gateway.

  • Page 85: Url Filter

    DG-BG4300NU User Manual Direction Select Incoming or Outgoing direction. Action Select Allow or Deny for MAC filter entry. Source MAC Type the MAC address of the source device or PC. Destination Type the MAC address of the destination device or PC.
  • Page 86 DG-BG4300NU User Manual Field Description Click it to add a URL/keyword to the URL/KEYWORD Blocking Table. Delete Select a row in the URL/KEYWORD Blocking Table and click Delete to delete the row. URL/KEYWORD A list of URL (s) to which access is blocked will be displayed in Blocking Table this table.
  • Page 87 DG-BG4300NU User Manual Click Anti-DoS in the left pane, and the page shown in the following figure appears. In this page, you can prevent DoS attacks.

  • Page 88: Software Forbidden

    DG-BG4300NU User Manual 4.5.2.6 Software Forbidden Click Software Forbidden in the left pane, the page shown in the following figure appears. This interface realizes application control. Select an application from the drop-down list to prohibit the application from accessing network resources.

  • Page 89: Upnp

    DG-BG4300NU User Manual 4.5.3 UPnP Choose Service > UPnP, and the page shown in the following figure appears. This page is used to configure UPnP. The system acts as a daemon after you enable it.

  • Page 90: Igmp Proxy

    DG-BG4300NU User Manual 4.5.4 IGMP Proxy Choose Service > IGMP Proxy, and the page shown in the following figure appears. IGMP proxy enables the system to issue IGMP host messages on behalf of hosts that the system discovered through standard IGMP interfaces. The system acts as a proxy for its hosts after you enable it.
  • Page 91 DG-BG4300NU User Manual This parameter indicates the query interval. It is the interval Query Interval in seconds (s) between general queries sent by the querier. Default is 60 secs. This parameter indicates the query response interval. It is Query response...

  • Page 92: Tr-069

    DG-BG4300NU User Manual 4.5.5 TR-069 TR-069 is a protocol for communication between a CPE and Auto-Configuration Server (ACS). Choose Service > TR-069, and the page shown in the following page appears. In this page, you can configure the TR-069 CPE.
  • Page 93 DG-BG4300NU User Manual The following table describes the parameters of this page: Field Description The URL of the auto-configuration server to connect User Name The user name for logging in to the ACS. Password The password for logging in to the ACS.

  • Page 94: Acl

    DG-BG4300NU User Manual Skip MReboot Specify whether to send an MReboot event code in the inform message. Delay Specify whether to start the TR-069 program after a short delay. Auto-Execution Specify whether to automatically start the TR-069 after the router is powered on.
  • Page 95 DG-BG4300NU User Manual The following table describes the parameters and buttons of this page: Field Description Select the router interface. You can select LAN or WAN. In Direction Select this example, LAN is selected. LAN ACL Switch Select it to enable or disable ACL function.
  • Page 96 DG-BG4300NU User Manual Set direction of the data packets to WAN, the page shown in the following figure appears. The following table describes the parameters and buttons of this page: Field Description Select the router interface. You can select LAN or WAN.
  • Page 97 DG-BG4300NU User Manual WAN to access the router. You can choose the following services from WAN: Web, Services Allowed Telnet, SSH, FTP, TFTP, SNMP or PING. You can also choose all the services. After setting the parameters, click it to add an entry to the Current ACL Table.

  • Page 98: Advanced

    DG-BG4300NU User Manual Advanced In the navigation bar, click Advanced. In the Advanced page that is displayed contains Bridge setting Routing, NAT, Port Mapping, IP QoS, SNMP and Others. 4.6.1 Routing Choose Advance > Routing, and the page shown in the following figure appears. The page that is displayed contains Static Route, IPv6 Static Route and RIP.
  • Page 99 DG-BG4300NU User Manual Next Hop Enter the IP address of the next hop in the IP route to the destination device. Metric The metric cost for the destination. Interface The interface for the specified route. Add Route Click it to add the new static route to the Static Route Table.

  • Page 100: Ipv6 Static Route

    DG-BG4300NU User Manual 4.6.1.2 IPv6 Static Route Click IPv6 Static Route in the left pane, and the page shown in the following figure appears. This page is used to configure the routing information. You can add or delete IP routes.
  • Page 101 DG-BG4300NU User Manual 4.6.1.3 Click RIP in the left pane, the page shown in the following figure appears. If you are using this device as a RIP-enabled router to communicate with others using Routing Information Protocol (RIP), enable RIP. This page is used to select the interfaces on your devices that use RIP, and the version of the protocol used.
  • Page 102 DG-BG4300NU User Manual choose RIP1 or RIP2. • Choose RIP1 indicates the router broadcasts RIP1 messages only. • Choose RIP2 indicates the router multicasts RIP2 messages only. Click it to add the RIP interface to the Rip Config List. Delete Select a row in the Rip Config List and click it to delete the row.

  • Page 103: Nat

    DG-BG4300NU User Manual 4.6.2 Choose Advanced > NAT, and the page shown in the following figure appears. The page that is displayed contains Setup DMZ, Virtual Server, NAT Forwarding, ALG, NAT Exclude IP, Port Trigger, FTP ALG Port and NAT IP Mapping.

  • Page 104: Virtual Server

    DG-BG4300NU User Manual 4.6.2.2 Virtual Server Click Virtual Server in the left pane, and the page shown in the following figure appears. The following table describes the parameters of this page. Field Description You can select the common service type, for example, AUTH, DNS or FTP.

  • Page 105: Nat Forwarding

    DG-BG4300NU User Manual 4.6.2.3 NAT Forwarding Click NAT Forwarding in the left pane, the page shown in the following figure appears. Under 1483MER or 1483Routed mode, if NAPT (Network Address Port Translation) is enabled, the Local IP Address is configured as 192.168.1.3 and the Remote IP Address is configured as 202.32.0.2, the PC with the LAN IP 192.168.1.3 will use 202.32.0.2 when it is...

  • Page 106: Nat Exclude Ip

    DG-BG4300NU User Manual 4.6.2.4 Click ALG in the left pane, and the page shown in the following figure appears. Choose the NAT ALG and Pass-Through options, and then click Apply Changes. 4.6.2.5 NAT Exclude IP Click NAT Exclude IP in the left pane, and the page shown in the following figure appears.

  • Page 107: Port Trigger

    DG-BG4300NU User Manual 4.6.2.6 Port Trigger Click Port Trigger in the left pane, and the page shown in the following figure appears. Click the Usual Application Name drop-down menu to choose the application you want to setup for port triggering. When you have chosen an application the default Trigger settings will populate the table below.
  • Page 108 DG-BG4300NU User Manual 4.6.2.7 FTP ALG Port Click FTP ALG Port in the left pane, the page shown in the following figure appears. The common port for FTP connection is port 21, and a common ALG monitors the TCP port 21 to ensure NAT pass-through of FTP.

  • Page 109: Nat Ip Mapping

    DG-BG4300NU User Manual 4.6.2.8 NAT IP Mapping NAT is short for Network Address Translation. The Network Address Translation Settings window allows you to share one WAN IP address for multiple computers on your LAN. Click NAT IP Mapping in the left pane, the page shown in the following figure appears.

  • Page 110: Port Mapping

    DG-BG4300NU User Manual 4.6.3 Port Mapping Choose Advance > Port Mapping, and the page shown in the following figure appears. In this page, you can bind the WAN interface and the LAN interface to the same group.

  • Page 111: Ip Qos

    DG-BG4300NU User Manual The procedure for manipulating a mapping group is as follows: Step 1 Select Enable to enable this function. Step 2 Select a group from the table. Step 3 Select interfaces from the WAN and LAN interface list and add them to the grouped interface list using the arrow buttons to manipulate the required mapping of the ports.
  • Page 112 DG-BG4300NU User Manual The page shown in the following figure appears.
  • Page 113 DG-BG4300NU User Manual The following table describes the parameters and buttons of this page: Field Description IP QoS Select to enable or disable IP QoS function. You need to enable IP QoS if you want to configure the parameters of this page.

  • Page 114: Snmp

    DG-BG4300NU User Manual 4.6.5 SNMP This page is used to configure the SNMP protocol. Here you may change the setting for system description, trap ip address, community name, etc. The following table describes the parameters and buttons of this page:...

  • Page 115: Usb Storage

    DG-BG4300NU User Manual 4.6.6 USB Storage This page allows you to enable the USB Mass Storage Service. User can plug the USB Pendrive / Portable drive to upload and download the data. This Storage can also be accessed remotely using the FTP port.

  • Page 116: Others

    DG-BG4300NU User Manual 4.6.7 Others Choose Advance > Others, and the page shown in the following figure appears. The page that is displayed contains Bridge Setting, Client Limit, Tunnel and Others. 4.6.7.1 Bridge Setting Choose Advance > Bridge Setting, and the page shown in the following figure appears.

  • Page 117: Client Limit

    DG-BG4300NU User Manual Click Show MACs, and the page shown in the following figure appears. This table shows a list of learned MAC addresses for this bridge. 4.6.7.2 Client Limit Choose Client Limit in the left pane, and the page shown in the following figure appears.
  • Page 118 DG-BG4300NU User Manual 4.6.7.3 Tunnel Choose Tunnel in the left pane, and the page shown in the following figure appears. You may configure tunnels to connect to ipv4 and ipv6 networks. The following table describes the parameters and button of this page.
  • Page 119 DG-BG4300NU User Manual Current General Display current general v6inv4 tunnel setting. Tunnel Table Enable Enable or disable the DS-Lite tunnel. Interface Select current wan interface used as tunnel interface. Mode: 6to4 Tunnel Enable or disable special tunnel. 4.6.7.4 Others Choose Others in the left pane, and the page shown in the following figure appears. You can...

  • Page 120: Admin

    DG-BG4300NU User Manual Admin In the navigation bar, click Admin. The Admin page that is displayed contains Commit/Reboot, Update, Log, Password and Time. 4.7.1 Commit/Reboot Choose Admin > Commit/Reboot, and the page shown in the following figure appears. You can set the router reset to the default settings or set the router to commit the current settings.

  • Page 121: Update

    DG-BG4300NU User Manual 4.7.2 Update Choose Admin > Update. The Update page that is displayed contains Upgrade Firmware and Backup/Restore. Caution: Do not turn off the router or press the Reset button while the procedure is in progress. 4.7.2.1 Upgrade Firmware Click Upgrade Firmware in the left pane, and the page shown in the following figure appears.
  • Page 122 DG-BG4300NU User Manual 4.7.2.2 Backup/Restore Click Backup/Restore in the left pane, and the page shown in the following figure appears. You can backup the current settings to a file and restore the settings from the file that was saved previously.

  • Page 123: Log

    DG-BG4300NU User Manual 4.7.3 Choose Admin > Log, and the page shown in the following figure appears. In this page, you can enable or disable system log function and view the system log. Field Description Enabling this option will display the errors such as wrong Error configuration or password is wrong.

  • Page 124: Password

    DG-BG4300NU User Manual 4.7.4 Password Choose Admin > Password, and the page shown in the following figure appears. By default, the user name and password are admin and admin respectively. The common user name and password are user and user respectively.

  • Page 125: Time

    DG-BG4300NU User Manual 4.7.5 Time Choose Admin > Time, and the page shown in the following figure appears. You can configure the system time manually or get the system time from the time server. The following table describes the parameters of this page:...

  • Page 126: Diagnostic

    DG-BG4300NU User Manual between March–April. Standard time begins in the southern hemisphere between March–April and ends between September–November. Many countries in the southern hemisphere may observe DST. NTP Configuration Select enable or disable NTP function. You need to State enable NTP if you want to configure the parameters of NTP.
  • Page 127 DG-BG4300NU User Manual The following table describes the parameter and button of this page: Field Description Host Enter the valid IP address or domain name. Ping Click it to start to Ping. 4.8.1.2 Ping6 Click Ping6 in the left pane, and the page shown in the following figure appears...

  • Page 128: Traceroute

    DG-BG4300NU User Manual 4.8.2 Traceroute Click Traceroute in the left pane, and the following page appears. By Traceroute Diagnostic, you can track the route path of information flow from your computer to the other side host. The following table describes the parameters and buttons of this page.

  • Page 129: Oam Loopback

    DG-BG4300NU User Manual 4.8.3 OAM Loopback Choose Diagnostic > OAM Loopback. The page shown in the following figure appears. In this page, you can use VCC loopback function to check the connectivity of the VCC. The ATM loopback test is useful for troubleshooting problems with the DSLAM and ATM network.

  • Page 130: Adsl Statistics

    DG-BG4300NU User Manual 4.8.4 ADSL Statistics Choose Diagnostic > ADSL Statistics. The page shown in the following figure appears. It is used for ADSL tone diagnostics. Click Start to start ADSL tone diagnostics.

  • Page 131: Diag-Test

    DG-BG4300NU User Manual 4.8.5 Diag-Test Choose Diagnostic > Diag-Test, the page shown in the following figure appears. In this page, you can test the DSL connection. You can also view the LAN status connection and ADSL connection. Click Run Diagnostic Test to start testing.

  • Page 132: Appendix

    DG-BG4300NU User Manual Appendix Technical Specifications Flash: 2MB SDRAM: 16MB Antennas: Two fixed dipole 5dBi antennas Network Interface: 1 x RJ11 interface for ADSL Line 4 x 10/100 Mbps UTP LAN ports Wireless Features Standard: IEEE802.11b/g/n Frequency band: 2.400~2.4835GHz Wireless output power: 11B: 16±1.5dBm 11G: 15±1.5dBm...
  • Page 133 DG-BG4300NU User Manual Internet LAN ports 1~4 Environment Requirements: Operating Temperature 0ºC—40ºC Storage Temperature -20ºC—70ºC Operating Humidity 10%—95%, non-condensing Storage Humidity 5%—95%, non-condensing Power Supply: 12 V DC, 1A Switching power adapter Physical Dimension: Net Dimensions (L x W x H): 181 x 124 x 29 mm...

  • Page 134: Troubleshooting

    DG-BG4300NU User Manual Troubleshooting If you encounter any problem when you are using this wireless broadband router, don’t panic. Before you call your dealer of purchase for help, please check this troubleshooting section, the solution of your problem could be very simple, and you can solve the problem yourself.

  • Page 135: Glossary

    DG-BG4300NU User Manual Glossary Default Gateway (Router): Every non-router IP device needs to configure a default gateway IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it to the destination.
  • Page 136 DG-BG4300NU User Manual IP Address and Network (Subnet) Mask: IP stands for Internet Protocol. An IP address consists of a series of four numbers separated by periods, which identifies a single, unique Internet computer host in an IP network. Example: 192.168.2.1. It consists of 2 portions: the IP network address and the host identifier.
  • Page 137 DG-BG4300NU User Manual ISP Gateway Address: (see ISP for definition). The ISP Gateway Address is an IP address for the Internet router located at the ISP's office. ISP: Internet Service Provider. An ISP is a business that provides connectivity to the Internet for individuals and other businesses or organizations.
  • Page 138 DG-BG4300NU User Manual Application Protocol Port Number Telnet SMTP POP3 H.323 1720 SNMP SNMP Trap HTTP PPTP 1723 PC Anywhere 5631 PC Anywhere 5632 PPPoE: (Point-to-Point Protocol over Ethernet.) Point-to-Point Protocol is a secure data transmission method originally created for dial-up connections; PPPoE is for Ethernet connections.
  • Page 139 DG-BG4300NU User Manual TCP/IP, UDP: Transmission Control Protocol/Internet Protocol (TCP/IP) and Unreliable Datagram Protocol (UDP). TCP/IP is the standard protocol for data transmission over the Internet. Both TCP and UDP are transport layer protocols. TCP performs proper error detection and error recovery, and thus is reliable. UDP on the other hand is not reliable. They both run on top of the IP (Internet Protocol), a network layer protocol.

Table of Contents
