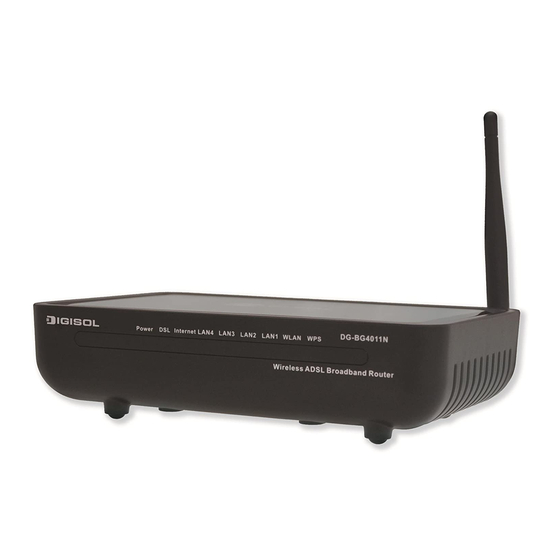

Digisol DG-BG4011N User Manual

150mbps wireless adsl router
Hide thumbs Also See for DG-BG4011N:
Table of Contents

Advertisement

Quick Links

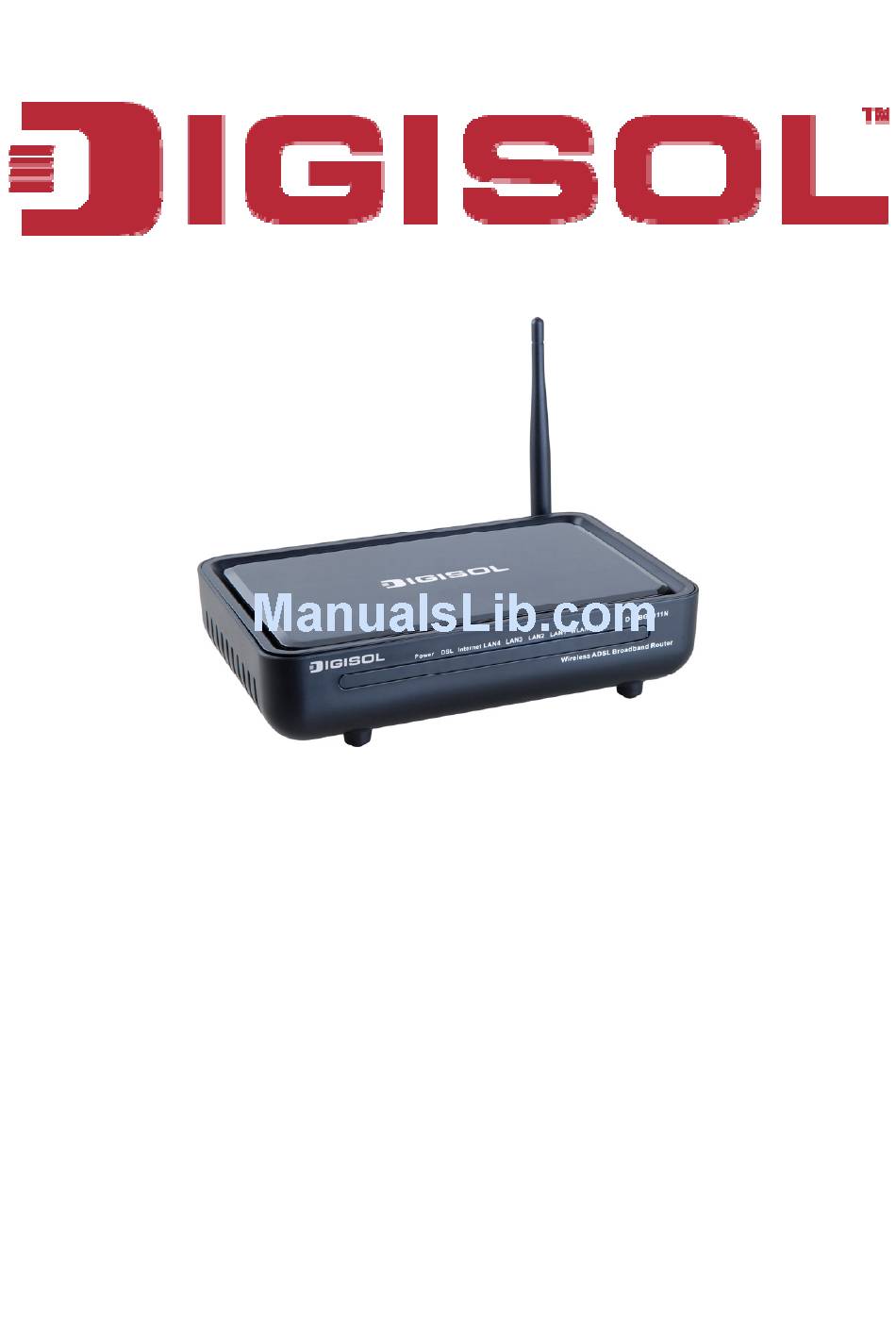

DG-BG4011N
150Mbps Wireless ADSL Router

User Manual

V1.1
2011-12-13
As our product undergoes continuous development the specifications are subject to change without prior notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-BG4011N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digisol DG-BG4011N

Summary of Contents for Digisol DG-BG4011N

  • Page 1: User Manual

    DG-BG4011N 150Mbps Wireless ADSL Router User Manual V1.1 2011-12-13 As our product undergoes continuous development the specifications are subject to change without prior notice...

  • Page 2: Table Of Contents

    DG-BG4011N User Manual Contents Overview…………………… ................4 Safety Precautions ................4 LEDs and Interfaces ................5 System Requirements ................7 Features ....................8 Hardware Installation ..................9 Web Configuration ................... 12 Accessing the Device ................12 General Configuration ................. 14 3.2.1...
  • Page 3 DG-BG4011N User Manual 3.3.13 Logout..................92 Management..................94 3.4.1 System..................94 3.4.2 Firmware Update ..............96 3.4.3 Access Controls................ 98 3.4.4 Diagnostics ................103 3.4.5 Log Configuration ..............105 3.4.6 Logout..................106 Status....................107 3.5.1 Device Information..............107 3.5.2 Wireless Clients ..............109 3.5.3...

  • Page 4: Overview

    DG-BG4011N User Manual Overview The DG-BG4011N supports multiple line modes. It provides four 10/100 base-T Ethernet interfaces at the user end. The device provides high speed ADSL broadband connection to the Internet or Intranet for high-end users, such as net cafes and office users.

  • Page 5: Leds And Interfaces

    DG-BG4011N User Manual Do not connect this device to any PCs or electronic products, unless our customer engineer or your broadband provider instructs you to do this, because any wrong connection may cause power or fire risk. Do not place the device on an unstable surface or support.
  • Page 6 DG-BG4011N User Manual Color Status Description The device is in the bridge mode. Internet connection fails after successful synchronization in the routing mode (for example: PPP dial-up is failed). The LAN connection is normal. LAN4, Data is being transmitted through the LAN...

  • Page 7: System Requirements

    DG-BG4011N User Manual The following table describes the interfaces and buttons of the device. Interface/Button Description RJ-11 interface, for connecting the interface of the Line telephone set through the telephone cable. WLAN Button to enable or disable WLAN. Restore to factory defaults. To restore factory defaults,...

  • Page 8: Features

    DG-BG4011N User Manual 1.4 Features The device supports the following features: 802.11b/g/n Various line modes External PPPoE dial-up access Internal PPPoE and PPPoA dial-up access 1483 Bridged, 1483 Routed, and MER access Multiple PVCs (up to eight) that can be isolated from each other...

  • Page 9: Hardware Installation

    DG-BG4011N User Manual Ethernet interface supports crossover detection, auto-correction and polarity correction UPnP Hardware Installation Step 1 Connect the Line interface of the device and the Modem interface of the splitter with a telephone cable. Connect the phone set to the Phone interface of the splitter through a telephone cable.
  • Page 10 DG-BG4011N User Manual Connection 1: Figure 3 shows the connection of the device, PC, splitter, and telephone sets, when no telephone set is placed before the splitter. This type of connection is recommended. Figure 3 Connection diagram (without a telephone set before the splitter) Connection 2: Figure 4 shows the connection of the device, PC, splitter, and telephone sets, when a telephone set is placed before the splitter.
  • Page 11 DG-BG4011N User Manual Note: When connection 2 is used, the filter must be installed close to the telephone cable. See Figure 4. Do not use a splitter to replace the filter. Installing a telephone directly before the splitter may lead to failure of connection between the device and the central office, failure of Internet access, or slow connection speed.

  • Page 12: Web Configuration

    DG-BG4011N User Manual Web Configuration This chapter describes how to configure the device by using the Web-based configuration utility. 3.1 Accessing the Device The following describes how to access the device for the first time in detail. Step 1 Open the Internet Explorer (IE) browser and enter http://192.168.1.1 in the address bar.
  • Page 13 DG-BG4011N User Manual If you log in as the super user successfully, the page as shown in the following figure appears: If the login information is incorrect, the page as shown in the following figure appears: Click OK to log in again.

  • Page 14: General Configuration

    DG-BG4011N User Manual 3.2 General Configuration 3.2.1 Wizard Wizard helps you to fast and accurately configure Internet connection and other important parameters. following sections describe these various configuration parameters. When subscribing to a broadband service, be aware of the Internect connection mode.
  • Page 15 DG-BG4011N User Manual Step 2 Click Setup Wizard. The page as shown in the following figure appears: There are four steps to configure the device. Click Next to continue. Step 3 Set the time and date. Then, click Next.
  • Page 16 DG-BG4011N User Manual Step 4 Configure the Internet connection. Select the protocol and the encapsulation mode. Set the VPI and the VCI. If the Protocol is set to PPPoE or PPPoA, the page as shown in the following figure appears:...
  • Page 17 DG-BG4011N User Manual You need to enter the user name and password for PPPoE or PPPoA dialup.
  • Page 18 DG-BG4011N User Manual If the Protocol is set to Dynamic IP, the page as shown in the following figure appears: If the Protocol is set to Static IP, the page as shown in the following figure appears:...
  • Page 19 DG-BG4011N User Manual You need to enter the information of the IP address, subnet mask, and gateway. If the Protocol is set to Bridge, the page as shown in the following figure appears: After setting the VPI and VCI for the Bridge connection, click Next.
  • Page 20 DG-BG4011N User Manual Step 5 Configure the wireless network. Enter the information and click Next.
  • Page 21 DG-BG4011N User Manual Step 6 View the configuration information of the device. To modify the information, click Back. To effect the configuration, click Apply. Note: In each step of the Wizard page, you can click Back to review or modify the...

  • Page 22: Internet Setup

    DG-BG4011N User Manual 3.2.2 Internet Setup Choose Setup > Internet Setup. The page as shown in the following figure appears: In this page, you can configure the WAN interface of the device. You will view the WAN connection here. By default, router is configured in Bridge mode (VPI : 0 and VCI : 32).
  • Page 23 DG-BG4011N User Manual Click Add and the page as shown in the following figure appears: The following table describes the parameters in this page. Field Description ATM PVC CONFIGURATION...

  • Page 24: Wireless Setup

    DG-BG4011N User Manual Field Description Virtual Path Identifier (VPI) is the virtual path between two points in an ATM network. Its value range is from 0 to 255. Virtual Channel Identifier (VCI) is the virtual channel between two points in an ATM network. Its value range is from 32 to 65535 (0 to 31 is reserved for local management of ATM traffic).

  • Page 25: Wireless Basics

    DG-BG4011N User Manual computers with wireless LAN cards communicating through access points that bridge network traffic to a wired LAN. Choose Setup > Wireless. The WIRELESS SETTINGS page as shown in the following figure appears: 3.2.3.1 Wireless Basics In the WIRELESS SETTINGS page, click Wireless Basic. The page as shown in...
  • Page 26 DG-BG4011N User Manual In this page, you can configure the parameters of wireless LAN clients that may connect to the device. The following table describes the parameters in this page. Field Description Select or deselect the check box to enable or disable Enable Wireless the wireless function.

  • Page 27: Wireless Security

    DG-BG4011N User Manual Field Description Invisible indicates that the device does not broadcast the SSID. Select the country where you are in from the drop-down Country list. Select the wireless channel used by the device from Wireless Channel the drop-down list. You can select Auto Scan or a value from CH1—CH13.
  • Page 28 DG-BG4011N User Manual Wireless security is vital to your network to protect the wireless communication among wireless stations, access points and the wired network. This device provides the following encryption modes: None, WEP, Auto (WPA or WPA2), WPA2 Only, and WPA Only.
  • Page 29 DG-BG4011N User Manual If the Security Mode is set to WEP, the page as shown in the following figure appears: The following table describes the parameters in this page.
  • Page 30 DG-BG4011N User Manual Field Description You can select 64 bits or 128 bits from the drop-down list. If you select 64 bits, you need to enter 10 WEP Key Length hexadecimal numbers or 5 characters. If you select 128 bits, you need to enter 26 hexadecimal numbers or 13 characters.
  • Page 31 DG-BG4011N User Manual The following table describes the parameters in this page.
  • Page 32 DG-BG4011N User Manual Field Description You can select Auto (WPA or WPA2)-PSK or Auto (WPA or WPA Mode WPA2)-Enterprise from the drop-down list. Group Key Update Set the interval for updating the key. Interval Pre-Shared Key Set the preshared key to identify the workstation.
  • Page 33 DG-BG4011N User Manual You need to enter the IP address, port, shared key of the RADIUS server. Click Apply to save the settings. WPA2 Only If the Security Mode is set to WPA2 only, the page as shown in the following...
  • Page 34 DG-BG4011N User Manual Parameters in this page are similar to those in the page for Auto (WPA or WPA2). Click Apply to save the settings. WPA Only...
  • Page 35 DG-BG4011N User Manual If the Security Mode is set to WPA only, the page as shown in the following figure appears: Parameters in this page are similar to those in the page for Auto (WPA or WPA2). Click Apply to save the settings.

  • Page 36: Local Network

    DG-BG4011N User Manual 3.2.4 Local Network You can configure the LAN IP address according to the actual application. The preset IP address is 192.168.1.1. You can use the default settings and DHCP service to manage the IP settings of the private network. The IP address of the device is the base address used for DHCP.
  • Page 37 DG-BG4011N User Manual connected to it. If you change the IP address of the device, you must also change the range of IP addresses in the pool used for DHCP on the LAN. The IP address pool can contain up to 253 IP addresses.
  • Page 38 DG-BG4011N User Manual In the LOCAL NETWORK page, you can assign LAN IP addresses for specific computers according to their MAC addresses. Click Add to add static DHCP reservation. The page as shown in the following figure appears: The following table describes the parameters in this page.

  • Page 39: Time And Date

    DG-BG4011N User Manual If the DHCP reservations list is not empty, you can select one or more items and click Edit or Delete. The NUMBER OF DYNAMIC DHCP CLIENTS page displays the DHCP clients (PCs or Laptops) currently connected to the device and the detailed information of the connected computers.

  • Page 40: Logout

    DG-BG4011N User Manual In the TIME AND DATE page, you can configure, update, and maintain the time of the internal system clock. You can set the time zone that you are in using the network time protocol (NTP) server. You can also set daylight saving time to automatically adjust the time when needed.

  • Page 41: Advanced Configuration

    DG-BG4011N User Manual 3.3 Advanced Configuration This section contains advanced features used for network management, security and administrative tools to manage the device. You can view the status and other information of the device, to examine the performance and troubleshoot.

  • Page 42: Advanced Settings

    DG-BG4011N User Manual 3.3.1.1 Advanced Settings In the ADVANCED WIRELESS page, click Advanced Settings. The page as shown in the following figure appears:...
  • Page 43 DG-BG4011N User Manual The following table describes the parameters in this page. Field Description ADVANCED WIRELESS SETTINGS Select the transmission rate of the wireless network Transmission Rate from the drop-down list. Select the multicast transmission rate of the wireless Multicast Rate network from the drop-down list.
  • Page 44 DG-BG4011N User Manual Field Description passive scanning. Select whether users of the AP can communicate with each other. You can select Off or On from the User Isolation drop-down list. On indicates that computers connected to the device cannot communicate with each other.

  • Page 45: Mac Filtering

    DG-BG4011N User Manual 3.3.1.2 MAC Filtering In the ADVANCED WIRELESS page, click MAC Filtering. The page as shown in the following figure appears: Click “Enable Access Control Mode” for enabling MAC Filter. Click Add and the page as shown in the following figure appears...

  • Page 46: Security Settings

    DG-BG4011N User Manual Click Apply to save the settings. 3.3.1.3 Security Settings In the ADVANCED WIRELESS page, click Security Settings. The page as shown in the following figure appears: Select the desired SSID from the drop-down list. Select the encryption type from the Security Mode drop-down list. You can select None, WEP, AUTO (WPA or WPA2), WPA Only, or WPA2 Only.

  • Page 47: Wps Settings

    DG-BG4011N User Manual 3.3.1.4 WPS Settings In the ADVANCED WIRELESS page, click WPS Setting. The WIRELESS WPS page as shown in the following figure appears: Enabled: The WPS service is enabled by default. NOTE : Ensure that the network card supports the WPS function.

  • Page 48: Port Forwarding

    DG-BG4011N User Manual Note: If you are using the PIN method, you need to select the mode to “Registrar”. 3.3.2 Port Forwarding This function is used to open ports in your device and re-direct data through these ports to a single PC in your network (WAN-to-LAN traffic). It allows remote users to access services in your LAN, such as FTP for file transfers or SMTP, and POP3 for e-mail.
  • Page 49 DG-BG4011N User Manual Click Add to add a virtual server. And you will see the following figure:...
  • Page 50 DG-BG4011N User Manual Select a service for a preset application or enter the name in the Custom Server field. Enter an IP address in the Server IP Address field, to appoint the corresponding PC to receive forwarded packets. The port table displays the ports that you want to open on the device. The Protocol indicates the type of protocol used by each port.

  • Page 51: Dmz

    DG-BG4011N User Manual 3.3.3 Choose Advanced > DMZ. The page as shown in the following figure appears: In this page, you can enable a DMZ host. In this way, access from Internet to the WAN IP address of the device is forwarded to the DMZ host and network server of the internal LAN is protected.

  • Page 52: Parental Control

    DG-BG4011N User Manual 3.3.4 Parental Control Choose Advanced > Parental Control. The PARENTAL CONTROL page as shown in the following figure appears: This page provides two useful tools for restricting Internet access. Block Website allows you to quickly create a list of websites that you wish to prevent users from accessing.
  • Page 53 DG-BG4011N User Manual Figure 5 Click Add. The page as shown in the following page appears: Enter the website in the URL field. Select the time to block websites from the Schedule drop-down list, or select Manual Schedule and set the corresponding time and days.

  • Page 54: Block Mac Address

    DG-BG4011N User Manual 3.3.4.2 Block MAC Address In the PARENTAL CONTROL page, click Block MAC Address. The page as shown in the following figure appears: Click Add. The page as shown in the following figure appears:...
  • Page 55 DG-BG4011N User Manual Figure 6 The following table describes the parameters in this page. Field Description Enter the name that identifies your configuration. For User Name example, kids. Current PC’s MAC Enter the MAC address of the computer that connects Address to the device.

  • Page 56: Filtering Options

    DG-BG4011N User Manual 3.3.5 Filtering Options Choose Advanced > Filtering Options. The FILTERING OPTIONS page as shown in the following figure appears:...
  • Page 57 DG-BG4011N User Manual 3.3.5.1 IP Filtering In the FILTERING OPTIONS page, click IP Filtering. The IP FILTER page appears as shown in the following figure: Click Add Filter to add an IP filter. The page as shown in the following figure...
  • Page 58 DG-BG4011N User Manual Enter the Filter Name, Interface, Traffic Direction and default action & chain. Click “Add Rule” and specify at least one of the following criteria as shown in the figure below.
  • Page 59 DG-BG4011N User Manual Select Enable to activate the rule. Specify at least one of the following criteria: protocol, action, source/destination address, subnet mask, source/destination port. Then, click Apply to save the settings.

  • Page 60: Bridge Filtering

    DG-BG4011N User Manual 3.3.5.2 Bridge Filtering In the FILTERING OPTIONS page, click Bridge Filtering. The page as shown in the following figure appears: This page is used to configure bridge parameters. In this page, you can modify the settings or view the information of the bridge and its attached ports.
  • Page 61 DG-BG4011N User Manual The following table describes the parameters in this page. Field Description Select the protocol type to be mapped from the Protocol Type drop-down list. You can select PPPoE, IPv4, IPv6, AppleTalk, IPX, NetBEUI, or IGMP. Destination MAC Enter the destination MAC address to be mapped.

  • Page 62: Qos Config

    DG-BG4011N User Manual 3.3.6 QoS Config Choose Advanced > QoS Config. The page as shown in the following figure appears:...

  • Page 63: Interface Configuration

    DG-BG4011N User Manual 3.3.6.1 Configure QoS Global Options In the QoS CONFIG page, click Configure QoS Global Options. The page as shown in the following figure appears. Select “Enable Queuing Operation” to enable QoS. 3.3.6.2 Interface Configuration In the QoS CONFIG page, click QoS Queue Config. The page as shown in the...

  • Page 64: Qos Classification

    DG-BG4011N User Manual In this page you set the Direction for which you need to enable the QoS, set the upstream bandwidth, etc. 3.3.6.3 QoS Classification In the QoS CONFIG page, click QoS Classification. The page as shown in the following figure appears: This page displays the classes.
  • Page 65 DG-BG4011N User Manual The following table describes the parameters in this page.
  • Page 66 DG-BG4011N User Manual Field Description QoS Flow Classify Config Classify Type Select Upstream flow for upstream traffic or slect downstream flow for downstream traffic. Parameters will change as per the classification type. Enable Select enable to enable the classification type.
  • Page 67 DG-BG4011N User Manual Protocol Type Select the protocol type from drop-down list. Source port range Enter the source port range. Destination port range Enter the destination port range. Classify Match Result WMM Mark Attach the WMM mark to the mapped packet.

  • Page 68: Firewall Settings

    DG-BG4011N User Manual 3.3.7 Firewall Settings A denial-of-service (DoS) attack is one of the most common network attacks and is characterized by an explicit attempt by attackers to prevent legitimate users of a service from using that service. It usually leads to overload of system server or core dump of the system.

  • Page 69: Dns

    DG-BG4011N User Manual 3.3.8 Domain name system (DNS) is an Internet service that translates domain names into IP addresses. Because domain names are alphabetic, they are easier to remember. The Internet, however, is actually based on IP addresses. Each time you use a domain name, a DNS service must translate the name into the corresponding IP address.
  • Page 70 DG-BG4011N User Manual The following table describes the parameters in this page. Field Description Obtain DNS server If you select this radio button, the device automatically address obtains IP address of the DNS server from the ISP. You automatically need not manually enter the IP address of the server.

  • Page 71: Dynamic Dns

    DG-BG4011N User Manual 3.3.9 Dynamic DNS The device supports dynamic domain name service (DDNS). The dynamic DNS service allows a dynamic public IP address to be associated with a static host name in any of the many domains, and allows access to a specified host from various locations on the Internet.
  • Page 72 DG-BG4011N User Manual Click Add to add dynamic DNS. The page as shown in the following figure appears: The following table describes the parameters in this page. Field Description Select the DDNS provider from the drop-down list. You DDNS provider can select DynDns.org, TZO, or GnuDIP.

  • Page 73: Network Tools

    DG-BG4011N User Manual 3.3.10 Network Tools Choose Advanced > Network Tools. The NETWORK TOOLS page as shown in the following figure appears:...

  • Page 74: Port Mapping

    DG-BG4011N User Manual This page contains the following function items: port mapping, IGMP proxy, IGMP snooping, UPnP, ADSL, SNMP, TR-069, certificate and ,pptpd. 3.3.10.1 Port Mapping In the NETWORK TOOLS page, click Port Mapping. The page as shown in the...
  • Page 75 DG-BG4011N User Manual In this page, you can bind the WAN interface and the LAN interface to the same group. Click Add to add port mapping. The page as shown in the following figure appears: To create a mapping group, do as follows: Step 1 Enter the group name.

  • Page 76: Igmp Proxy

    DG-BG4011N User Manual 3.3.10.2 IGMP Proxy In the NETWORK TOOLS page, click IGMP Proxy. The page as shown in the following figure appears: Figure 7 IGMP proxy enables the device to issue IGMP host messages on behalf of hosts that the system discovered through standard IGMP interfaces. The device serves as a proxy for its hosts after you enable the function.

  • Page 77: Igmp Snooping

    DG-BG4011N User Manual 3.3.10.3 IGMP Snooping When IGMP snooping is enabled, only hosts that belong to the group receive the multicast packets. If a host is deleted from the group, the host cannot receive the multicast packets any more. In the NETWORK TOOLS page, click IGMP Snooping. The page as shown in the following figure appears: Click Apply to save the settings.

  • Page 78: Adsl Settings

    DG-BG4011N User Manual In this page, you can enable universal plug and play (UPnP) and then the system serves as a daemon. UPnP is widely applied in audio and video software. It automatically searches devices in the network. If you are concerned about UPnP security, you can disable it.
  • Page 79 DG-BG4011N User Manual In this page, you can select the ADSL modulation. Normally, you are recommended to keep the factory defaults. The device supports the following modulation types: G.Dmt, G.lite, T1.413, ADSL2, AnnexL, ADSL2+, and AnnexM. The device negotiates the modulation mode with the DSLAM.
  • Page 80 DG-BG4011N User Manual The following table describes the parameters in this page. Field Description Select or deselect the check box to enable or disable Enable SNMP Agent SNMP agent. Universal character to obtain the device information. It Read Community is similar to the password. The SNMP application entity can use it to directly obtain the device information.
  • Page 81 DG-BG4011N User Manual 3.3.10.7 TR-069 In the NETWORK TOOLS page, click TR-069. The page as shown in the following figure appears: In this page, you can configure the TR-069 CPE. The following table describes the parameters in this page. Field...
  • Page 82 DG-BG4011N User Manual Field Description Enabled indicates that the device automatically sends a request of connection to the TR069 server. The following function items are available only when Inform is set to Enabled. The interval of sending a request of connection to the Inform Interval TR069 server from the device.
  • Page 83 DG-BG4011N User Manual 3.3.10.8 Certificates In the NETWORK TOOLS page, click Certificates. The Certificates page as shown in the following figure appears: Click Trusted CA and the page as shown in the following figure appears: Note: Before importing a certificate, you must synchronize the system time with...
  • Page 84 DG-BG4011N User Manual Click Input Certificate to import a certificate. The page as shown in the following figure appears:...
  • Page 85 DG-BG4011N User Manual 3.3.10.9 PPTP The Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks. PPTP uses a control channel over TCP and a GRE tunnel operating to encapsulate PPP packets. In the NETWORK TOOLS page, click PPTP. The page as shown in the following figure appears.
  • Page 86 DG-BG4011N User Manual Field Description together with the Local IP Start to determine the range of the local IP addresses. Remote IP Start The started IP address of the remote network. The valid numbers of remote IP addresses. It works...

  • Page 87: Routing

    DG-BG4011N User Manual 3.3.11 Routing Choose Advanced > Routing. The page as shown in the following page appears: This page contains the following function items: static route, default gateway, and Policy Route settings.

  • Page 88: Static Route

    DG-BG4011N User Manual 3.3.11.1 Static Route Choose Advanced > Routing and click Static Route. The page as shown in the following figure appears: This page displays the information of existing static routes. Click Add and the page as shown in the following figure appears: The following table describes the parameters in this page.

  • Page 89: Default Gateway

    DG-BG4011N User Manual Field Description Address Subnet Mask The subnet mask of the destination IP address. Use Gateway IP The gateway IP address of the device. Address Select the interface of the static routing used by the Use Interface device from the drop-down list.

  • Page 90: Schedules

    DG-BG4011N User Manual In this page, you can select Enable Automatic Assigned Default Gateway, or enter the information in the Use Gateway IP Address and Use Interface fields. Click Apply to save the settings. 3.3.11.3 Policy Route Choose Advanced > Routing and click Policy Route. The page as shown in the following figure appears: In this page, you can bind the WAN interface to one of the LAN interface.
  • Page 91 DG-BG4011N User Manual Click Add to add a schedule rule. The page as shown in the following figure appears: The following table describes the parameters in this page. Field Description Name Set the name of the schedule. You can select one, more, or all of the seven days in a Day(s) week.
  • Page 92 DG-BG4011N User Manual Field Description the 24 hours of the day. Start Time Set the start time of the firewall. End Time Set the end time of the firewall. Click Apply to save the settings. 3.3.13 NAT Choose Advance > NAT. The page as shown in the following figure appears:...

  • Page 93: Logout

    DG-BG4011N User Manual Click Apply to save the settings. 3.3.14 Logout Choose Advanced > Logout. The page as shown in the following figure appears: Click Logout to log out of the configuration page.

  • Page 94: Management

    DG-BG4011N User Manual 3.4 Management 3.4.1 System Choose Management > System Management. The System page as shown in the following figure appears:...
  • Page 95 DG-BG4011N User Manual In this page, you can restart the device, back up the current settings to a file, update the backup file, and restore the factory default settings. The following table describes the buttons in this page.

  • Page 96: Button Description

    DG-BG4011N User Manual Button Description Reboot Restart the device. Specify the path to back up the current configuration in Backup Setting a configuration file on your computer. You can rename the configuration file. Click Browse… to select the configuration file of device...
  • Page 97 DG-BG4011N User Manual In this page, you can upgrade the firmware of the device. To update the firmware, do as follows: Step 1 Click Browse…to select the file. Step 2 Click Update Firmware to update the configuration file. The device loads the file and reboots automatically.

  • Page 98: Access Controls

    DG-BG4011N User Manual 3.4.3 Access Controls Choose Management > Access Controls. The ACCESS CONTROLS page as shown in the following figure appears: This page contains Account Password, Services, and IP Address.

  • Page 99: Account Password

    DG-BG4011N User Manual 3.4.3.1 Account Password In the ACCESS CONTROLS page, click Account Password. The page as shown in the following figure appears: In this page, you can change the password and set the time for automatic logout. You are recommended to change the default password to ensure the security of...
  • Page 100 DG-BG4011N User Manual keep it in a safe location for future reference. If you forget the password, you need to reset the device to the factory default settings. In that case, all configuration settings of the device are lost. The following table describes the parameters in this page.
  • Page 101 DG-BG4011N User Manual 3.4.3.2 Services In the ACCESS CONTROLS page, click Services. The page as shown in the following figure appears: In this page, you can enable or disable the services that are used by the remote host. For example, if telnet service is enabled at port 23, the remote host can access the device by telnet through port 23.
  • Page 102 DG-BG4011N User Manual 3.4.3.3 IP Address In the ACCESS CONTROLS page, click IP Address. The page as shown in the following figure appears: In this page, you can configure the IP address in the access control list (ACL). If ACL is enabled, only devices of the specified IP addresses can access the device.

  • Page 103: Diagnostics

    DG-BG4011N User Manual Enter the IP address of the desired device in the IP Address field and click Apply to apply the settings. 3.4.4 Diagnostics Choose Management > Diagnosis. The page as shown in the following figure appears: In this page, you can test the connection status of the device. There are 2 options WAN Diagnostics and Ping Diagnostics.
  • Page 104 DG-BG4011N User Manual Click Run Diagnostics Test to run diagnostics. The page as shown in the following figure appears:...

  • Page 105: Log Configuration

    DG-BG4011N User Manual 3.4.5 Log Configuration Choose Management > Log Configuration. The SYSTEM LOG page as shown in the following figure appears: In this page, you can enable the log function. You can set Mode to Local, Remote, or Both. Local indicates to save the log in the local computer. Remote indicates to send the log to the remote log server.

  • Page 106: Logout

    DG-BG4011N User Manual Step 4 Click View System Log to view the detail information of the system log. 3.4.6 Logout Choose Management > Logout. The page as shown in the following figure appears: Click Logout to log out of the configuration page.

  • Page 107: Status

    DG-BG4011N User Manual 3.5 Status In the Status page, you can view the system information and monitor the performance of the device. 3.5.1 Device Information Choose Status > Device Info. The page as shown in the following figure appears:...
  • Page 108 DG-BG4011N User Manual The page displays the summary of the device status, including the system information, WAN connection information, wireless information, and local network information.

  • Page 109: Wireless Clients

    DG-BG4011N User Manual 3.5.2 Wireless Clients Choose Status > Wireless Clients. The page as shown in the following page appears: The page displays authenticated wireless stations and their statuses. 3.5.3 DHCP Clients Choose Status > DHCP Clients. The page as shown in the following page appears: This page displays all client devices that obtain IP addresses from the device.

  • Page 110: Logs

    DG-BG4011N User Manual 3.5.4 Logs Choose Status > Logs. The page as shown in the following figure appears: This page displays the system log. Click Refresh to refresh the system log shown in the box.

  • Page 111: Statistics

    DG-BG4011N User Manual 3.5.5 Statistics Choose Status > Statistics. The page as shown in the following figure appears:...
  • Page 112 DG-BG4011N User Manual This page displays the statistics information of the network and data transmission. The information helps technicians to identify whether the device is functioning properly. The information does not affect the functions of the device.

  • Page 113: Route Information

    DG-BG4011N User Manual 3.5.6 Route information Choose Status > Route Info. The page as shown in the following figure appears: The table displays destination routes commonly accessed by the network. 3.5.7 Logout Choose Staus > Logout. The page as shown in the following figure appears: Click Logout to log out of the configuration page.
  • Page 114 DG-BG4011N User Manual Question Answer Check the connection between the power adapter Why are all the and the power socket. indicators off? Check whether the power switch is turned on. Check the following: The connection between the device and the PC, the hub, or the switch.
  • Page 115 DG-BG4011N User Manual Question Answer default configuration button for 5 seconds. Then, the device automatically after incorrect reboots and is restored to the factory default configuration? configuration. The default configuration of the device is as follows: IP address: 192.168.1.1 Subnet mask: 255.255.255.0.
