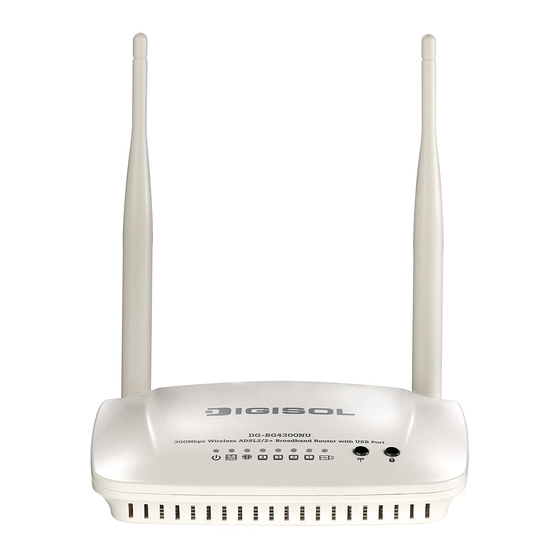

HOW TO CONFIGURE DG-BG4300NU/IS IN PPPoE(DSL) FOR INTERNET ACCESS
STEP 1: ACCESSING THE WEB CONFIGURATION PAGE INSIDE THE ROUTER
Open the configuration page of the router by typing
http://192.168.1.1
in a web browser. We recommend this
one time configuration to be done using
Internet Explorer.
Enter the username as
admin
and password as
admin
and click on Login
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Digisol DG-BG4300NU/IS
Summary of Contents for Digisol DG-BG4300NU/IS
- Page 1 HOW TO CONFIGURE DG-BG4300NU/IS IN PPPoE(DSL) FOR INTERNET ACCESS STEP 1: ACCESSING THE WEB CONFIGURATION PAGE INSIDE THE ROUTER Open the configuration page of the router by typing http://192.168.1.1 in a web browser. We recommend this one time configuration to be done using Internet Explorer.
- Page 2 STEP 2: CONFIGURE THE ROUTER IN PPPOE MODE Click on Setup > WAN First delete the entry in WAN Interface Table which is at bottom of the page WAN Physical Type > Select ADSL WAN Enter values as provided by the ISP ( For Ex : For BSNL, VPI –...
- Page 3 Scroll to the end of the page, till you see the WAN Interfaces Table. Click option found just above the WAN Interfaces table. Reboot the router and wait till Internet LED turns Green.
- Page 4 STEP 3: CHECK THE DSL STATUS Status >> Device Info >> ADSL WAN Interface Table. P.T.O.
- Page 5 Once the Internet LED turns Green, you wil be able to access internet through DG-BG4300NU router.
