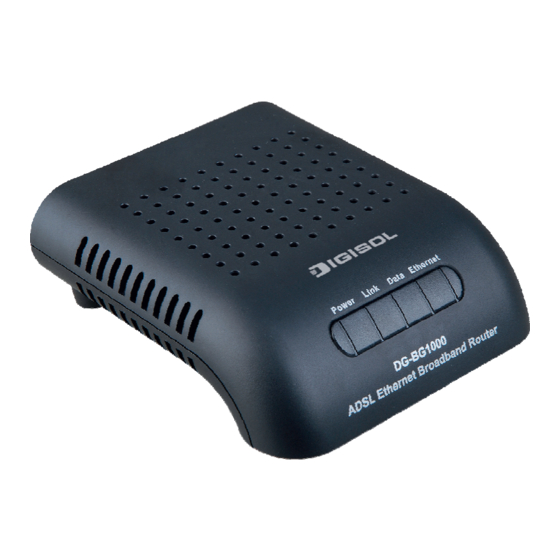

Digisol DG-BG100 User Manual

Adsl2+ ethernet broadband router
Hide thumbs
Table of Contents

Advertisement

Quick Links

DG-BG1000

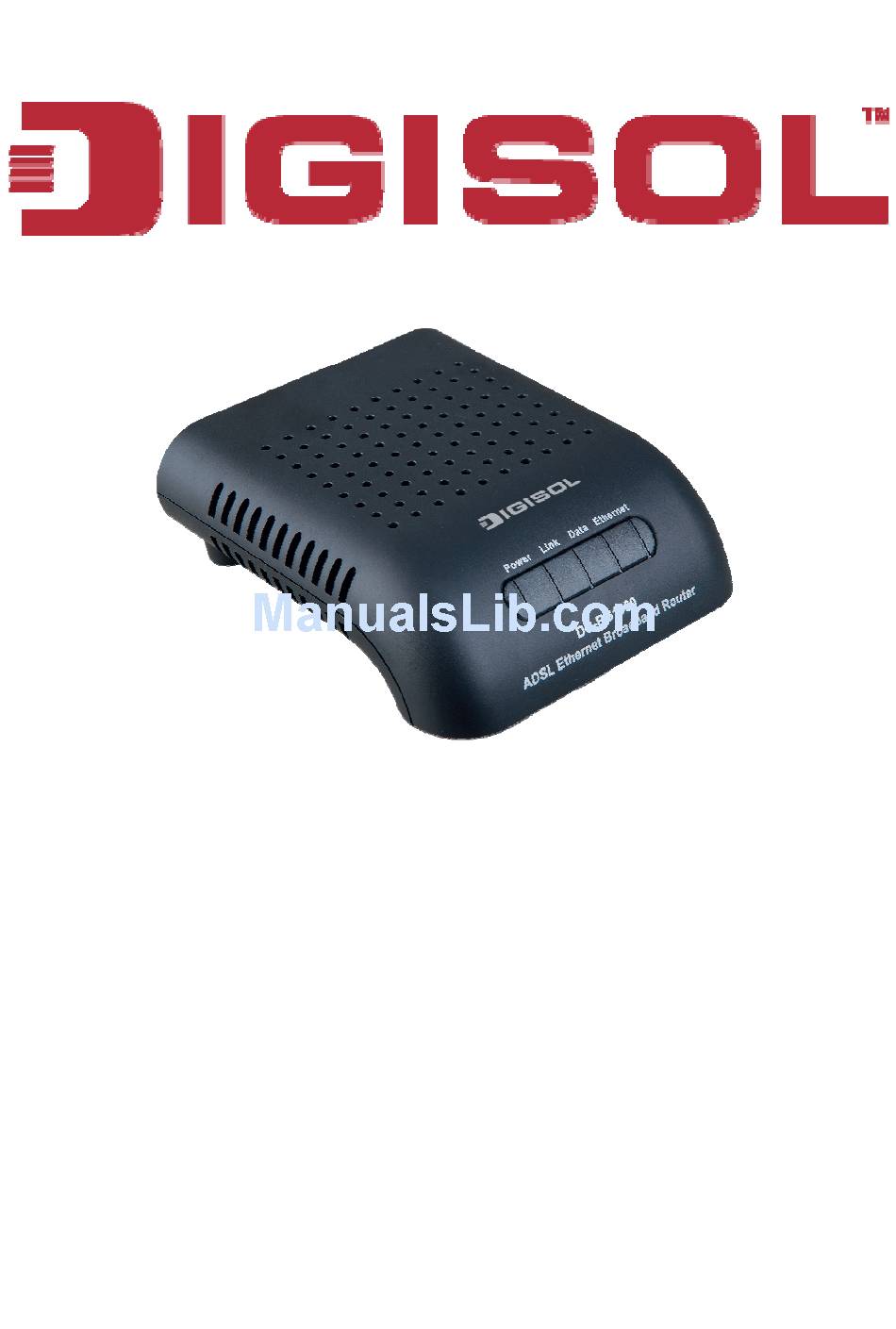

ADSL2+ Ethernet Broadband Router

User Manual

V1.1
2012-12-12
As our product undergoes continuous development the specifications are subject to change without prior notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-BG100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digisol DG-BG100

Summary of Contents for Digisol DG-BG100

  • Page 1: User Manual

    DG-BG1000 ADSL2+ Ethernet Broadband Router User Manual V1.1 2012-12-12 As our product undergoes continuous development the specifications are subject to change without prior notice...

  • Page 2: Table Of Contents

    DG-BG1000 User Manual INDEX Introduction………....................4 Packing List ................... 4 Safety Precautions ................4 LEDs and Interfaces ................6 System Requirements ................8 Features ....................8 Hardware / Software Installation ................ 9 Hardware Installation:................9 Software Installation: ................12 About the Web Configuration ................19 Access the Router ................
  • Page 3 DG-BG1000 User Manual 3.6.2 Routing ..................66 3.6.3 QoS................... 69 3.6.4 SNMP ..................72 3.6.5 Others ..................73 Admin ....................73 3.7.1 Commit/Reboot................. 73 3.7.2 Upgrade ..................74 3.7.3 System Log................76 3.7.4 Password .................. 77 3.7.5 Time Zone................. 78 Diagnostic....................

  • Page 4: Introduction

    DG-BG1000 User Manual Introduction Thank you for purchasing DG-BG1000 ADSL2+ Ethernet Broadand Router! The DG-BG1000 is an ADSL router that supports multiple line modes. It provides one 10/100Base-T Ethernet interface at the user end. The device provides high-speed ADSL broadband connection to the Internet or Intranet users, such as cyber café and office.
  • Page 5 DG-BG1000 User Manual Proper space left for heat dissipation is necessary to avoid damage caused by overheating to the device. The long and thin holes on the device are designed for heat dissipation to ensure that the device works normally. Do not cover these heat dissipation holes.

  • Page 6: Leds And Interfaces

    DG-BG1000 User Manual 1.3 LEDs and Interfaces Front Panel The following table describes the LEDs of the device: LEDs Color Status Description Power Green The device is powered on or the initiation of the device is successful. The device is powered off. The device is self-testing, the self-test has failed or the software is upgrading.

  • Page 7: Rear Panel

    DG-BG1000 User Manual LEDs Color Status Description Ethernet Green The LAN connection is normal and activated. Blinks Data is being transmitted on the LAN or data is being transmitted on the Internet in the bridged mode. The LAN connection of the device has failed. Rear Panel The following table describes the interfaces of the device: Items...

  • Page 8: System Requirements

    DG-BG1000 User Manual 1.4 System Requirements Recommended system requirements are as follows: A 10/100 base-T Ethernet card, installed on your PC Operating system: Win 98SE / 2000 / ME / XP Internet Explorer V6.0 or higher, Netscape V4.0 or higher, or Firefox 1.5 or higher 1.5 Features The device supports the following features:...

  • Page 9: Hardware / Software Installation

    DG-BG1000 User Manual IP quality of service (QoS) Remote access control Line connection status test Remote managing through Telnet or HTTP Backup and restoration of configuration file Ethernet interface supporting crossover detection, auto-correction, and polarity correction Universal plug and play (UPnP) Hardware / Software Installation Hardware Installation: Step 1...
  • Page 10 DG-BG1000 User Manual Step 3 Plug one end of the power adapter to the wall outlet and connect the other end to the Power interface of the device. Connection 1 Figure 1 shows the application diagram for the connection of the router, PC, splitter and the telephone sets, when no telephone set is placed before the splitter.
  • Page 11 DG-BG1000 User Manual Connection 2 Figure 2 shows the connection when the splitter is installed close to the router. Figure 2 Connection diagram (Connecting a telephone set before the splitter) Note: When connection 2 is used, the filter must be installed close to the telephone cable.

  • Page 12: Software Installation

    DG-BG1000 User Manual Software Installation: Insert the supplied software installation CD in the CD-ROM of your computer. The following screen will appear. Click ‘User manual’ to get configuration guide in detail and click ‘QIG’ to view Quick Installation Guide. Click ‘Start’ to begin with the routers configuration.
  • Page 13 DG-BG1000 User Manual 3. Click ‘Next’, to continue with the installation. 4. Click ‘Next’, to continue with the installation.
  • Page 14 DG-BG1000 User Manual 5. The following screen displays the LED status of the router. Click ‘Next’, to continue with the installation. 6. In this page, enter the user ID and password to log in to the router. The default user ID and password are ‘admin’ and ‘admin’ respectively. Click ‘Next’ to continue with the installtion.
  • Page 15 DG-BG1000 User Manual 7. Configure the ADSL setting for the router in the following screen. Select the country and service provider from the drop-down list. You can change the default VPI/VCI values as instructed by your ISP. VPI: The valid value is in the range of 0 to 255. VCI: The valid value is in the range of 32 to 65535.
  • Page 16 DG-BG1000 User Manual If you select PPPoE or PPPoA as the network protocol, then the following page appears. In this page, enter the correct user ID and password that is provided by your ISP.
  • Page 17 DG-BG1000 User Manual Click ‘Next’, to proceed with the installation. Saving configuration Then the following page appears. In this page, you can view the running status. Running status...
  • Page 18 DG-BG1000 User Manual Note: If the IP address appears 0.0.0.0, then click ‘Refresh’ for retrying the connection to Internet. If a valid IP address appears, other than 0.0.0.0, then click ‘Finish’ to complete the configuration. Congrulations! The router configuration is now finished.

  • Page 19: About The Web Configuration

    DG-BG1000 User Manual About the Web Configuration This chapter describes how to configure the router by using the Web-based configuration utility. 3.1 Access the Router The following is the detailed description of accessing the router for the first time. Step 1 Open the Internet Explorer (IE) browser and enter http://192.168.1.1.

  • Page 20: Wizard

    DG-BG1000 User Manual If you log in as a super user, the page shown in the following figure appears. You can check, configure and modify all the settings. If you log in as a common user, you can check the status of the router, but can not configure the most of the settings.
  • Page 21 DG-BG1000 User Manual In the navigation bar, click Wizard. The page as shown in the following figure appears. The following table describes the parameters in this page: Parameter Description Virtual path identifier (VPI) is the virtual path between two points in an ATM network. Its valid value is in the range of 0 to 255.
  • Page 22 DG-BG1000 User Manual PPPoE/PPPoA In the Connection Type page, set the WAN connection type to PPP over Ethernet (PPPoE), the encapsulation mode to LLC/SNAP. The following table describes the parameters in this page: Parameter Description There are five WAN connection types: PPP over ATM (PPPoA), PPP over Ethernet WAN Connection Type (PPPoE), 1483 MER, 1483 Routed, and 1483...
  • Page 23 DG-BG1000 User Manual After setting, click Next, the page as shown in the following figure appears. The following table describes the parameters in this page: Parameter Description Obtain an IP address Select it, the DHCP assigns the IP address for automatically PPPoE connection.
  • Page 24 DG-BG1000 User Manual After setting, click Next, the page as shown in the following figure appears. The following table describes the parameters in this page: Parameter Description Enter the username for PPPoE dial-up, which is PPP Username provided by your ISP. Enter the password for PPPoE dial-up, which is provided PPP Password by your ISP.
  • Page 25 DG-BG1000 User Manual Note: If the WAN connection type is set to PPPoA, the parameters of the WAN connection type are the same as that of PPPoE. For the parameters in these pages, refer to the parameter description of PPPoE. 1483 MER/1483 Routed n the Connection Type page, set the WAN connection type to 1483 MER, the encapsulation mode to LLC/SNAP.
  • Page 26 DG-BG1000 User Manual The following table describes the parameters in this page: Parameter Description Obtain an IP address Select it, DHCP automatically assigns the IP automatically address for WAN connection. Select it, you need to manually enter the IP Use the following IP address, subnet mask, and default gateway address for WAN connection, which are provided by...
  • Page 27 DG-BG1000 User Manual 1483 Bridged In the Connection Type page, set the WAN connection type to 1483 Bridged, the encapsulation mode to LLC/SNAP. After setting, click Next, the page as shown in the following figure appears.
  • Page 28 DG-BG1000 User Manual The following table describes the parameters in this page: Parameter Description LAN Interface Setup Enter the IP address of LAN interface. Its valid value range 192.168.1.1 LAN IP 192.168.1.254. default address 192.168.1.1. Enter the subnet mask of LAN interface. Its valid LAN Netmask value is in the range of 255.255.255.0 to 255.255.255.254.
  • Page 29 DG-BG1000 User Manual After setting, click Next, the page as shown in the following figure appears. Click Back to modify the settings. Click Finish to save the settings. Click Reset to cancel the settings. Note: After you save the settings in the Wizard page, the PVC in the Wizard page replaces that in the Channel Configuration page.

  • Page 30: Status

    DG-BG1000 User Manual 3.3 Status In the navigation bar, click Status. In the Status page that is displayed contains System, LAN, WAN, Statistics and ARP Table. 3.3.1 System Choose Status > System. The page that is displayed shows the current status and some basic settings of the router, such as, uptime, software version, upstream speed, downstream speed, and other informations.

  • Page 31: Lan

    DG-BG1000 User Manual 3.3.2 LAN Choose Status > LAN. The page that is displayed shows some basic LAN settings of the router. In the LAN Status page, you can view the LAN IP address, DHCP server status, MAC address and DHCP client table. If you want to configure the LAN network, refer to the chapter 3.4.1 LAN.

  • Page 32: Statistics

    DG-BG1000 User Manual 3.3.4 Statistics Choose Status > Statistics. The Statistics page that is displayed contains Traffic Statistic and ADSL Statistic. 3.3.4.1 Traffic Statistic Click Traffic Statistic in the left pane, the page shown in the following figure appears. In this page, you can view the statistics of each network interface.

  • Page 33: Arp Table

    DG-BG1000 User Manual 3.3.4.2 ADSL Statistic Click ADSL Statistic in the left pane, the page shown in the following figure appears. In this page, you can view the ADSL line statistics, downstream rate, upstream rate and other information. 3.3.5 ARP Table Choose Status >...

  • Page 34: Network

    DG-BG1000 User Manual 3.4 Network In the navigation bar, click Network. The Network page that is displayed contains LAN and WAN. 3.4.1 Choose Network > LAN. The LAN page that is displayed contains LAN IP, DHCP, and DHCP Static IP. 3.4.1.1 LAN IP Click LAN IP in the left pane, the page shown in the following figure appears.
  • Page 35 DG-BG1000 User Manual The following table describes the parameters of this page: Parameter Description Enter the IP address of LAN interface. It is recommended to use an address from a block that IP Address is reserved for private use. This address block is 192.168.1.1- 192.168.1.254.
  • Page 36 DG-BG1000 User Manual 3.4.1.2 DHCP Dynamic Host Configuration Protocol (DHCP) allows the individual PC to obtain the TCP/IP configuration from the centralized DHCP server. You can configure this router as a DHCP server or disable it. The DHCP server can assign IP address, IP default gateway, and DNS server to DHCP clients.
  • Page 37 DG-BG1000 User Manual Parameter Description If set to DHCP Server, the router can assign IP addresses, IP default gateway and DNS Servers to DHCP Mode the host in Windows95, Windows NT and other operation systems that support the DHCP client. It specifies the first and the last IP address in the IP IP Pool Range address pool.
  • Page 38 DG-BG1000 User Manual Click Show Client in the DHCP Mode page, the page shown in the following figure appears. You can view the IP address assigned to each DHCP client. The following table describes the parameters and buttons in this page: Description Parameter It displays the IP address assigned to the DHCP...
  • Page 39 DG-BG1000 User Manual Click Set VendorClass IP Range in the DHCP Mode page, the page as shown in the following figure appears. In this page, you can configure the IP address range based on the device type. In the DHCP Mode field, choose None. The page shown in the following figure appears.
  • Page 40 DG-BG1000 User Manual In the DHCP Mode field, choose DHCP Relay. The page shown in the following figure appears. The following table describes the parameters and buttons of this page: Parameter Description If set to DHCP Relay, the router acts a surrogate DHCP Mode DHCP Server and relays the DHCP requests and responses between the remote server and the client.
  • Page 41 DG-BG1000 User Manual 3.4.1.3 DHCP Static IP Click DHCP Static IP in the left pane, the page shown in the following figure appears. You can assign the IP addresses on the LAN to the specific individual PCs based on their MAC address. The following table describes the parameters and buttons of this page: Parameter Description...

  • Page 42: Wan

    DG-BG1000 User Manual 3.4.2 Choose Network > WAN. The WAN page that is displayed contains WAN, ATM Setting, and ADSL Setting. 3.4.2.1 Click WAN in the left pane, the page shown in the following figure appears. In this page, you can configure WAN interface of your router.
  • Page 43 DG-BG1000 User Manual The following table describes the parameters of this page: Parameter Description Default Route Selection You can select Auto or Specified. The virtual path between two points in an ATM network, ranging from 0 to 255. The virtual channel between two points in an ATM network, ranging from 32 to 65535 (1 to 31 are reserved for known protocols) Encapsulation...
  • Page 44 DG-BG1000 User Manual Parameter Description WAN IP Settings You can choose Fixed IP or DHCP. If select Fixed IP, you should enter the local IP address, remote IP address and subnet Type mask. If select DHCP, the router is a DHCP client, the WAN IP address is assigned by the remote DHCP server.
  • Page 45 DG-BG1000 User Manual The following table describes the parameters and buttons of this page: Parameter Description Protocol It displays the protocol type used for this WAN connection. ATM VCC The ATM virtual circuit connection assigned for this PPP interface (VPI/VCI). Login Name The user name provided by your ISP.

  • Page 46: Atm Setting

    DG-BG1000 User Manual Parameter Description disconnects the PPPoE connection. Bridge You can select Bridged Ethernet, Bridged PPPoE, or Disable Bridge. AC-Name The accessed equipment type. Service-Name The service name. 802.1q You can select Disable or Enable. After enable it, you need to enter the VLAN ID. The value ranges from 0 to 4095.

  • Page 47: Adsl Setting

    DG-BG1000 User Manual The following table describes the parameters of this page: Parameter Description The virtual path identifier of the ATM PVC. The virtual channel identifier of the ATM PVC. The QoS category of the PVC. You can choose UBR, CBR, rt-VBR, or nrt-VBR. Peak cell rate (PCR) is the maximum rate at which cells can be transmitted along a connection in the ATM network.

  • Page 48: Service

    DG-BG1000 User Manual Service In the navigation bar, click Service. The Service page contains DNS, Firewall, UPNP, IGMP Proxy, TR-069, and ACL options. 3.5.1 DNS Domain Name System (DNS) is an Internet service that translates the domain name into IP address. Because the domain name is alphabetic, it is easier to remember.
  • Page 49 DG-BG1000 User Manual 3.5.1.1 Click DNS in the left pane, the page shown in the following figure appears. The following table describes the parameters and buttons of this page: Parameter Description Select it, the router accepts the first received DNS Obtain DNS assignment from one of the PPPoA, PPPoE or MER Automatically...
  • Page 50 DG-BG1000 User Manual The following table describes the parameters of this page: Parameter Description Choose the DDNS provider name. You can choose DDNS provider DynDNS.org or TZO. Hostname The DDNS identifier. Interface The WAN interface of the router. Enable Enable or disable DDNS function. Username The name provided by DDNS provider.

  • Page 51: Firewall

    DG-BG1000 User Manual 3.5.2 Firewall Choose Service > Firewall. The Firewall page that is displayed contains IP/Port Filter, MAC Filter, URL Blocking, Virtual Server, IP Address Mapping, DMZ Setting, NAT EXCLUDE IP, ALG Setting, and Anti-DoS. 3.5.2.1 IP/Port Filter Click IP/Port Filter in the left pane, the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets through the gateway.

  • Page 52: Mac Filter

    DG-BG1000 User Manual 3.5.2.2 MAC Filter Click MAC Filter in the left pane, the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets from your local network to Internet through the gateway. These filters are helpful in securing or restricting your local network.

  • Page 53: Url Blocking

    DG-BG1000 User Manual 3.5.2.3 URL Blocking Click URL Blocking in the left pane, the page shown in the following figure appears. This page is used to block a fully qualified domain name, such as tw.yahoo.com and filtered keyword. You can add or delete FQDN and filtered keyword.

  • Page 54: Virtual Server
