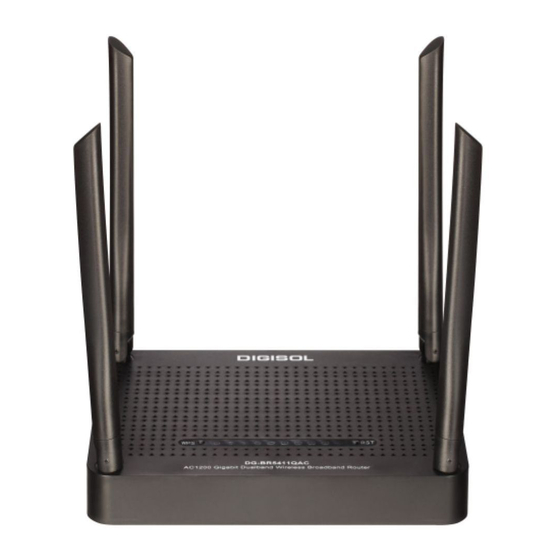

Digisol DG-BR5411QAC Manual

Digisol DG-BR5411QAC Manual

Sop for repeater mode
Hide thumbs Also See for DG-BR5411QAC:

Advertisement

Quick Links

SOP for REPEATER Mode
DG-BR5411QAC
Hardware ver . A1
Firmware : RF014
SOP version : 1.0
Standard/Channel Release

Advertisement

loading
Need help?

Need help?

Do you have a question about the DG-BR5411QAC and is the answer not in the manual?

Questions and answers

Summary of Contents for Digisol DG-BR5411QAC

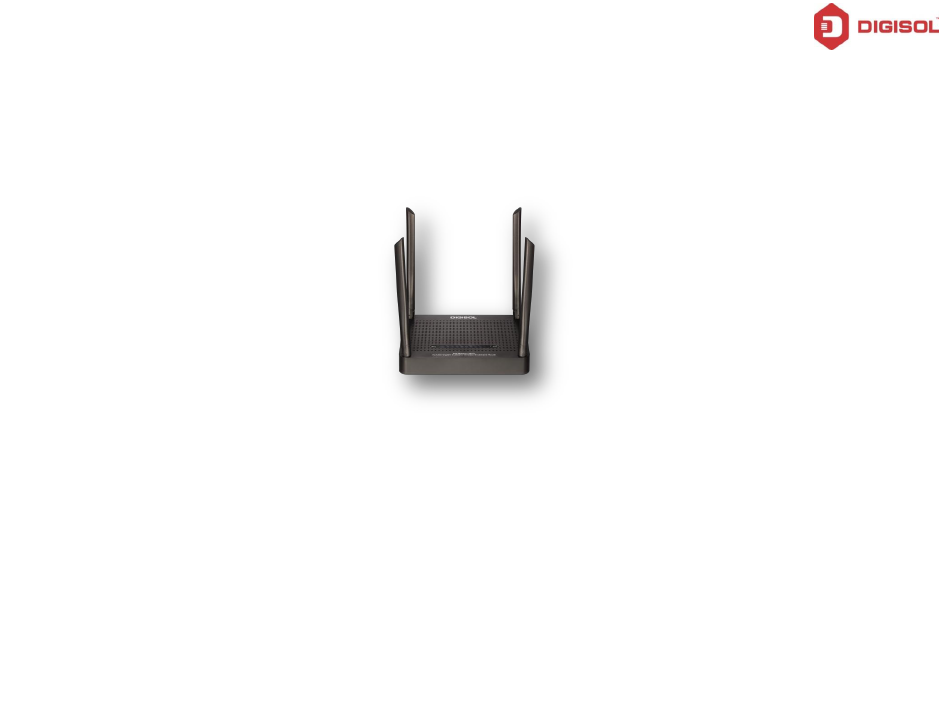

  • Page 1 SOP for REPEATER Mode DG-BR5411QAC Hardware ver . A1 Firmware : RF014 SOP version : 1.0 Standard/Channel Release...
  • Page 2: Application Scenario

    Application Scenario Internet / Main Wireless PC Repeater Router...
  • Page 3 Configuration of Repeater STEP 1 : Access Web Interface Please connect your PC to DG-BR5411QAC via wireless or wired. Open the web browser and type the IP address http://digisol.ap or http://192.168.2.1 into the address bar and then Press Enter key.
  • Page 4 Type the username and password into the boxes of the login page, and the default username and password are admin and 1234 , then press Enter. Note: the default working mode of DG-BR5411QAC is router mode, so its web interface can only be logged in through wireless connection on default settings.
  • Page 5 STEP 2 : Go to NETWORK > LAN page Disable the DHCP server Next Click “Apply Changes” button and then Click “Reboot Later “ Incase in future if you want to Modify/view the settings of Please Note : Incase in future if you want to Modify/view the settings of Please Note Repeater then you need to Manually Add the IP Address (eg ;...
  • Page 6 STEP 3 : Setup Wireless Name/Key (optional) Go to WLAN1_5G and WLAN2_2.4G As per customer requirement, Please set/customize the Wireless SSID and Password for Repeater , for both WLAN1_5G and WLAN2_2.4G bands. This is an optional step . This setting is only for the repeater , not for the Root / Main AP. •...
  • Page 7 STEP 4: Go to > WLAN1_5G > BASIC SETTING Select Universal Repeater mode Next Click “Apply Changes” button Next Click “Reboot Later” button...
  • Page 8 Go to SITE SURVEY page (on leftside menu) Click “Site Survey” Button Select the SSID of Main/ Root AP Click “Next>>” button...
  • Page 9 Type the Wi-Fi password of the Root AP or MAIN Router into the Pre-shared Key field and Click Connect button.
  • Page 10 Select “Add to wireless Profile” Click “Reboot Now” button The device will reboot …………. with new settings to apply. You may also Power cycle to reboot the Repeater.
  • Page 11 How to verify Repeater is ready ? After the reboot the PC/Laptop will obtain the new IP address from the Internet/Main Router Ping internet address 8.8.8.8 google.com Open any website www.google.com using the browser...
  • Page 12 Congratulations Repeater Setup procedure is Completed. Toll Free : 1800 209 3444 Email : helpdesk@digisol.com...
