Chapter 4—Print Frame

4.1 Description

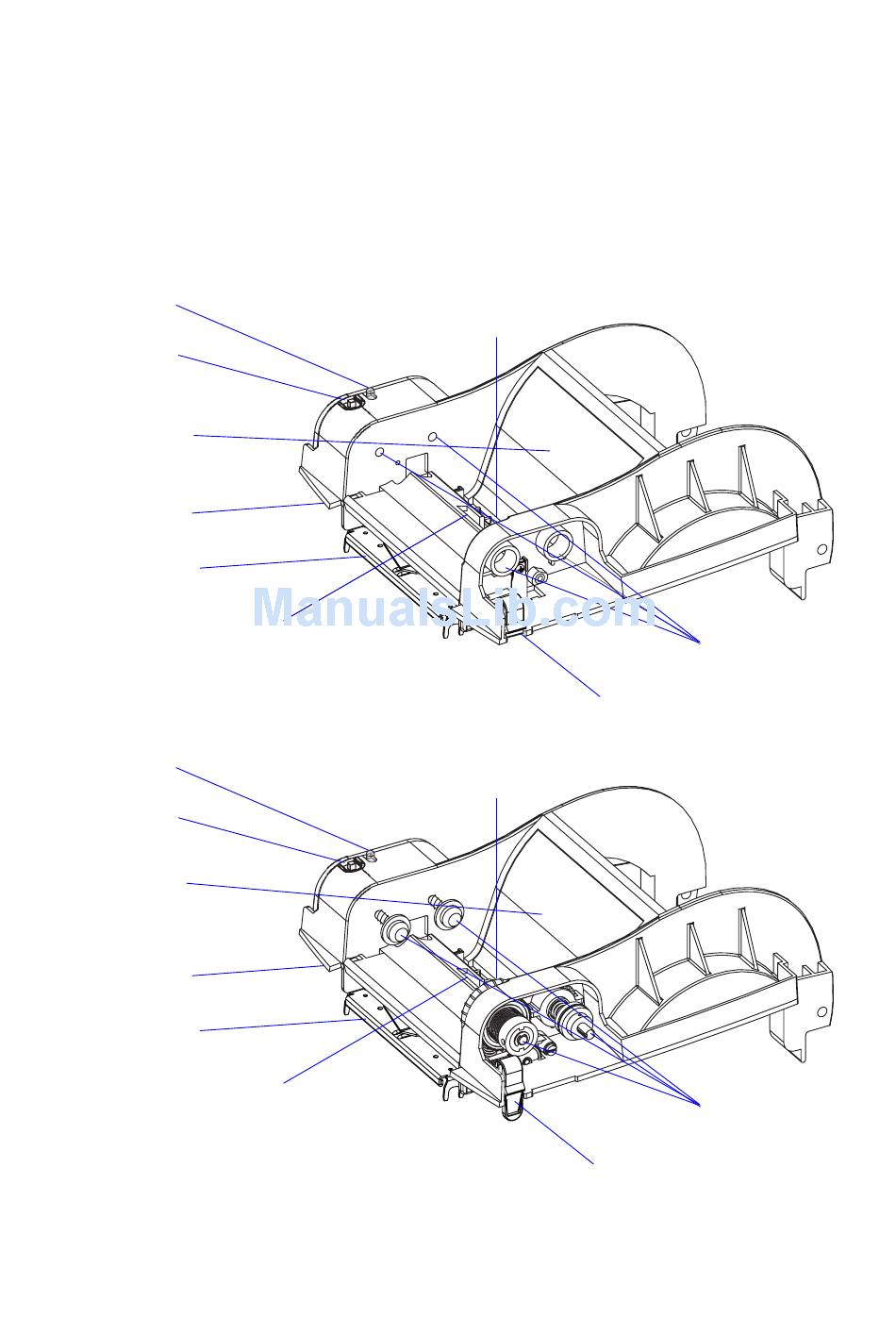

Direct Thermal (DT) Model
LED control lamp
Feed switch
(No ribbon load label)
Print frame moulding
Printhead
(No ribbon end sensor)
Thermal Transfer (TTR) Model
LED control lamp
Feed switch
Ribbon load label
Print frame moulding
Printhead
Ribbon end sensor
18
The print frame comes in two versions; one for the DT model and another
for the TTR model. Both are based on the same plastic moulding. They are
both equipped with a 203.2 dpi (8 dots/mm) printhead.
Label gap sensor
(Emitter)
Short top cover locks
Label gap sensor
(Emitter)
Long top cover locks
Intermec EasyCoder PC41—Service Manual
(No transfer
ribbon mechanism)
Transfer
ribbon mechanism
