Chapter 4—Print Frame
Ribbon Takeup
Ribbon rewind shaft
One-way clutch holder
30
The ribbon takeup is driven by the stepper motor via a train of gears and
rotates the ribbon takeup core so the transfer ribbon is pulled forward
along with the media. There is a spring-loaded friction coupling similar
to the ribbon supply. A large green wheel which engages a one-way clutch
makes it easier to wind up the ribbon leader at ribbon load.
If you need to replace the right-side base lock spring hook, just remove the
E-ring and lift out the entire rewind assembly without dismantling it any
further. This way, you will keep the factory adjustments.

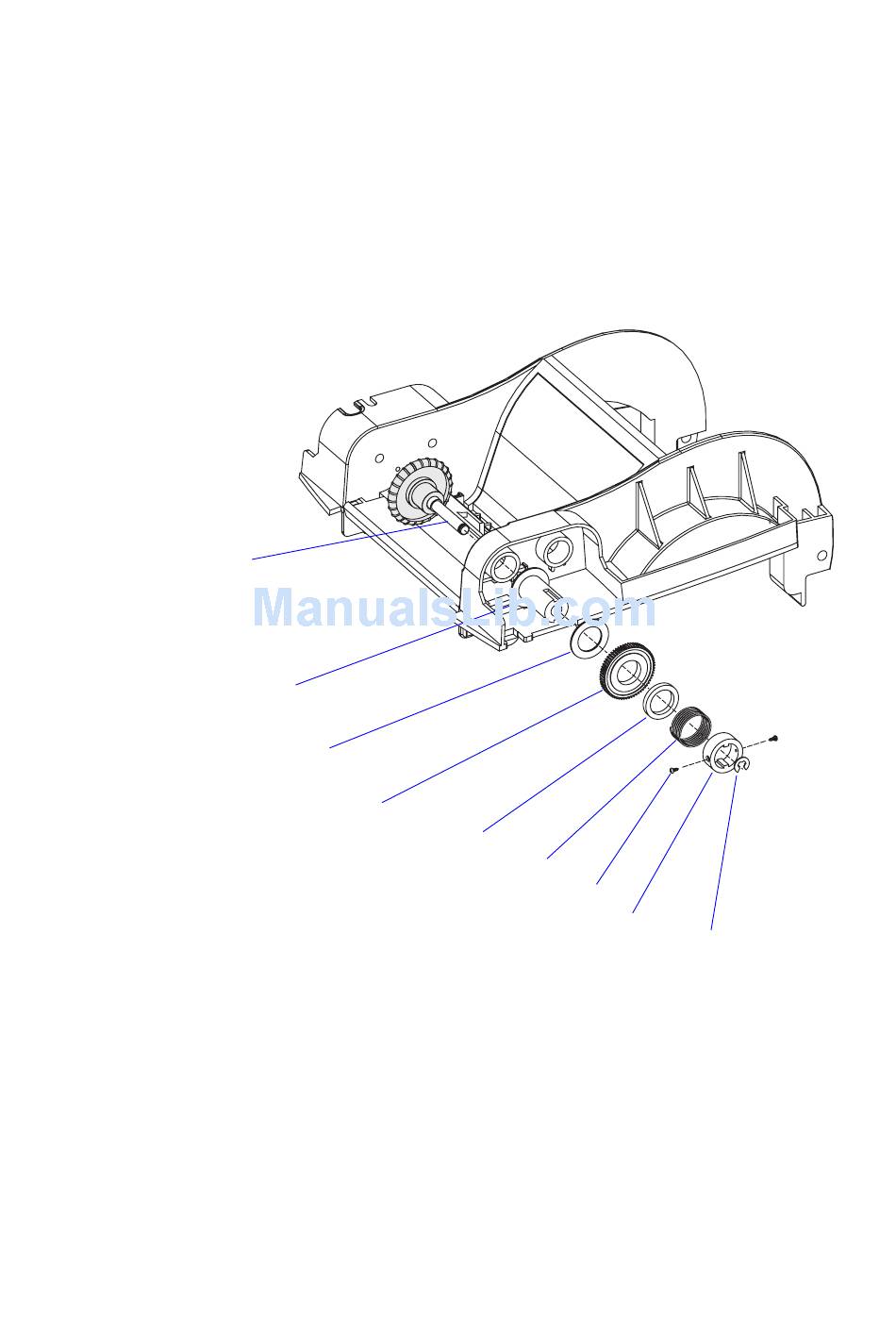

Wool fiber disc
Gear
Friction plate
Spring
Screws (2)
Fixed holder
Intermec EasyCoder PC41—Service Manual
E-ring
