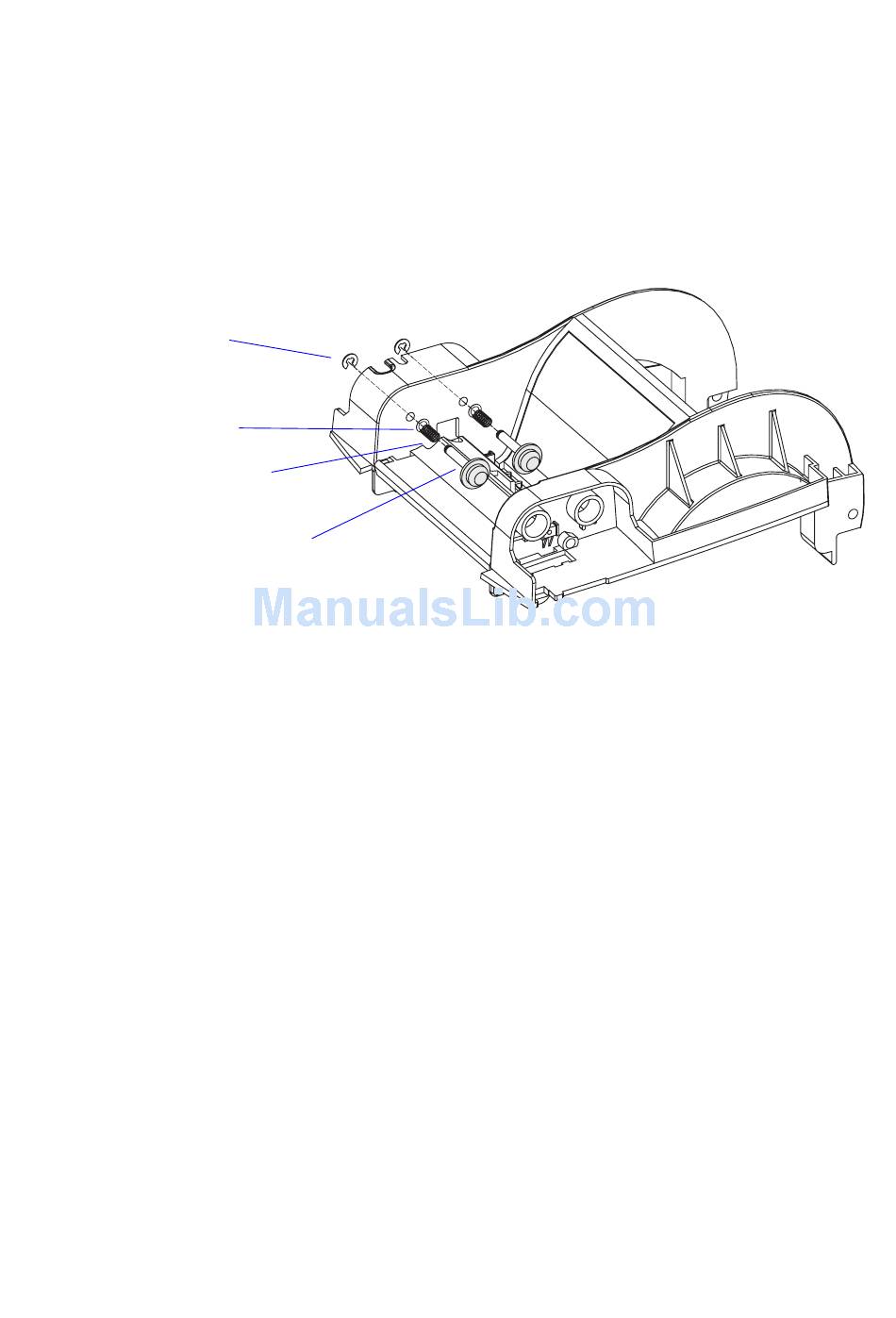

Ribbon Core Holders

E-ring

Washer

Spring

Ribbon core holder

Intermec EasyCoder PC41—Service Manual

The ribbon core holders are spring-loaded and hold the ends of the ribbon

cores opposite to the ribbon feed mechanism. A green plastic disc is press-

ﬁtted on a metal shaft, that goes through the left-side wall of the print

frame moulding. The shaft is held by an E-ring inside the Feed button

cavity. A spring on the shaft makes it possible to snap the core in place. No

adjustments are facilitated.
