Intermec EasyCoder PC41 Service Manual page 75

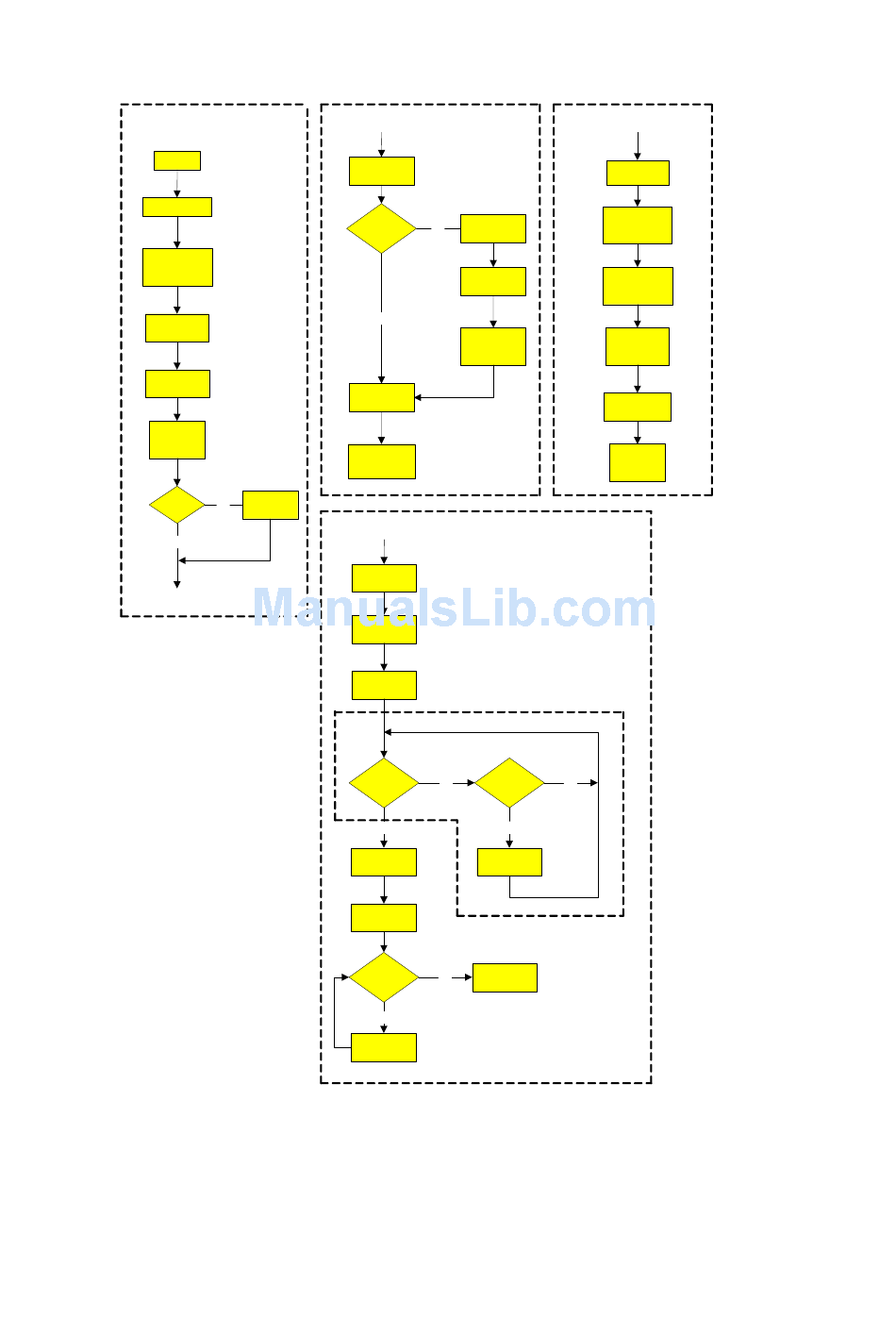

Power On
Power On
Green LED on
Initiate buffer
Initiate processor
Initiate hardware
Check external
memory
Clear image
buffer
Load
saved setup
No
Load OK ?
Yes
Intermec EasyCoder PC41—Service Manual
Normal Mode
Orange LED
flash
Is media
loaded ?
Yes
Green LED on
Start
Normal print
mode
Set printer to
default setup
Test Mode
Orange LED
flash
Print HW config
label
Green LED on
Is Feed key
Pressed?
Yes
Suspend
Dump Mode
Print SW config
labels
Is Feed key
Pressed?
Yes
Print Pitch
Label
Factory Default Mode
No
Red LED on
Orange LED on
Wait for media
load and Feed
to be pressed
Dump Mode
Is data
No No
received on
any port ?
Yes
Print Data
No
Wait for reboot
Chapter 10—Starting Up
Orange LED
flash
Wait for Feed
key to be
pressed
Red LED flash
Wait for Feed
key press
> 8 secs
Reset to
Factory Defaults
Wait for
reboot
69
