Chapter 5—Base Frame

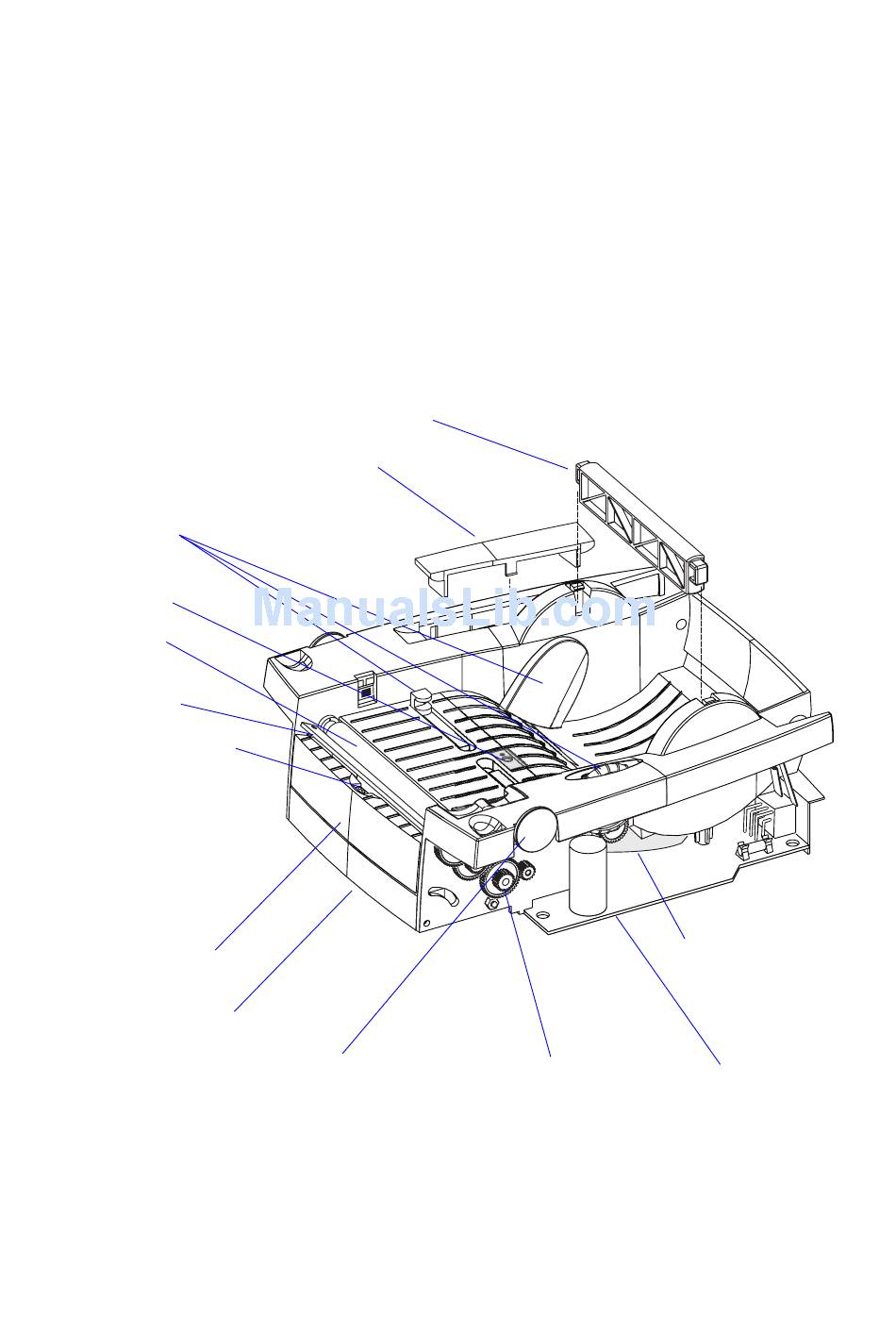

5.1 Main Parts

Memory cartridge blind plate
Media guide assy
Black mark/
Label gap sensor
Platen roller
Peel-off bar
Label taken sensor
Peel-off mechanism
(or Paper cutter)
Base frame moulding
34
The base frame consists of a plastic moulding to which a number of assem-
blies are fitted. The same base frame is used for both the DT and the TTR
models of the EasyCoder PC41.
The optional paper cutter is normally factory-fitted, but could be field-
installed by an authorized service technician (see
Cutter, Installation Instructions). It replaces the standard peel-off mecha-
nism.
Media spindle
Base lock assy
EasyCoder PC4/PC41
Motor assy
Intermec EasyCoder PC41—Service Manual
Dust protection
sheet
Main board
