Chapter 1—Models and Options

1.1 Models

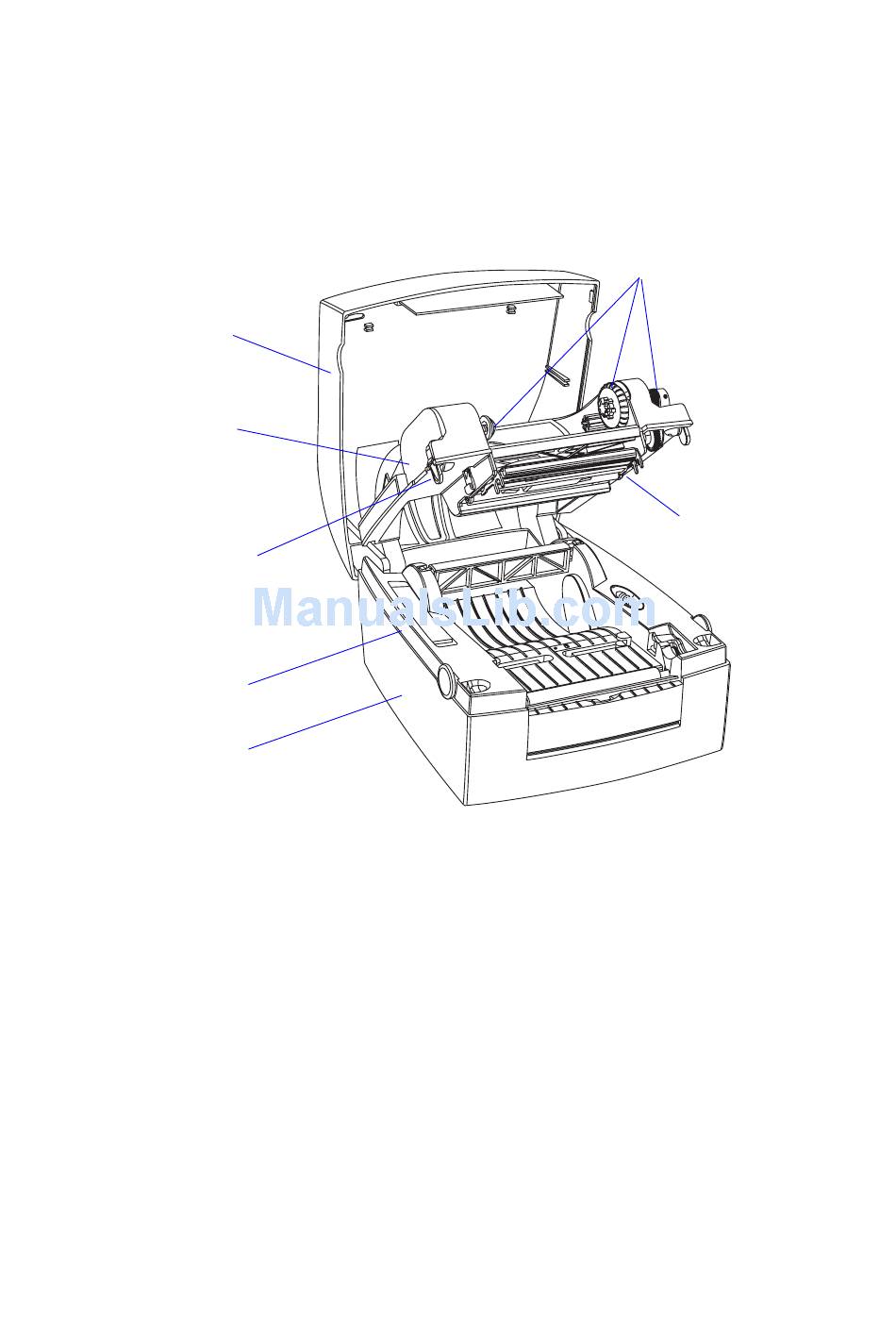

Top cover
Print frame
Top cover locks
(differ in DT and
TTR models)
Base Frame
Bottom Cover
2
The EasyCoder PC41 uses both Direct Thermal (DT) and Thermal Trans-
fer (TTR) printing technology. It employs a printhead with a printing den-
sity of 203.2 dots per inch (8 dots per mm) and a maximum print width of
4.1 inches (104 mm).
The machine label, which provides information on model, part number,
serial number, etc. is attached to the bottom of the base frame.
The EasyCoder PC41 has a separate power supply unit that delivers 24
VDC to the printer's main board, where it is transformed to the various
voltages required by the printhead, motor, and logics (see Chapter 8.1).
The power supply unit (PSU) accepts 100 to 240 VAC/50 to 60 Hz. The
power supply has a standard 2-pin input voltage socket, so various types of
power cords can be used according to local voltages and standards.
The power supply has a fixed 1.5 m (4.9 ft) long cable that is connected to
the printer's rear plate.
Thermal transfer
mechanism
(omitted in DT model)
