Lan - Draytek Vigor2130 Series User Manual

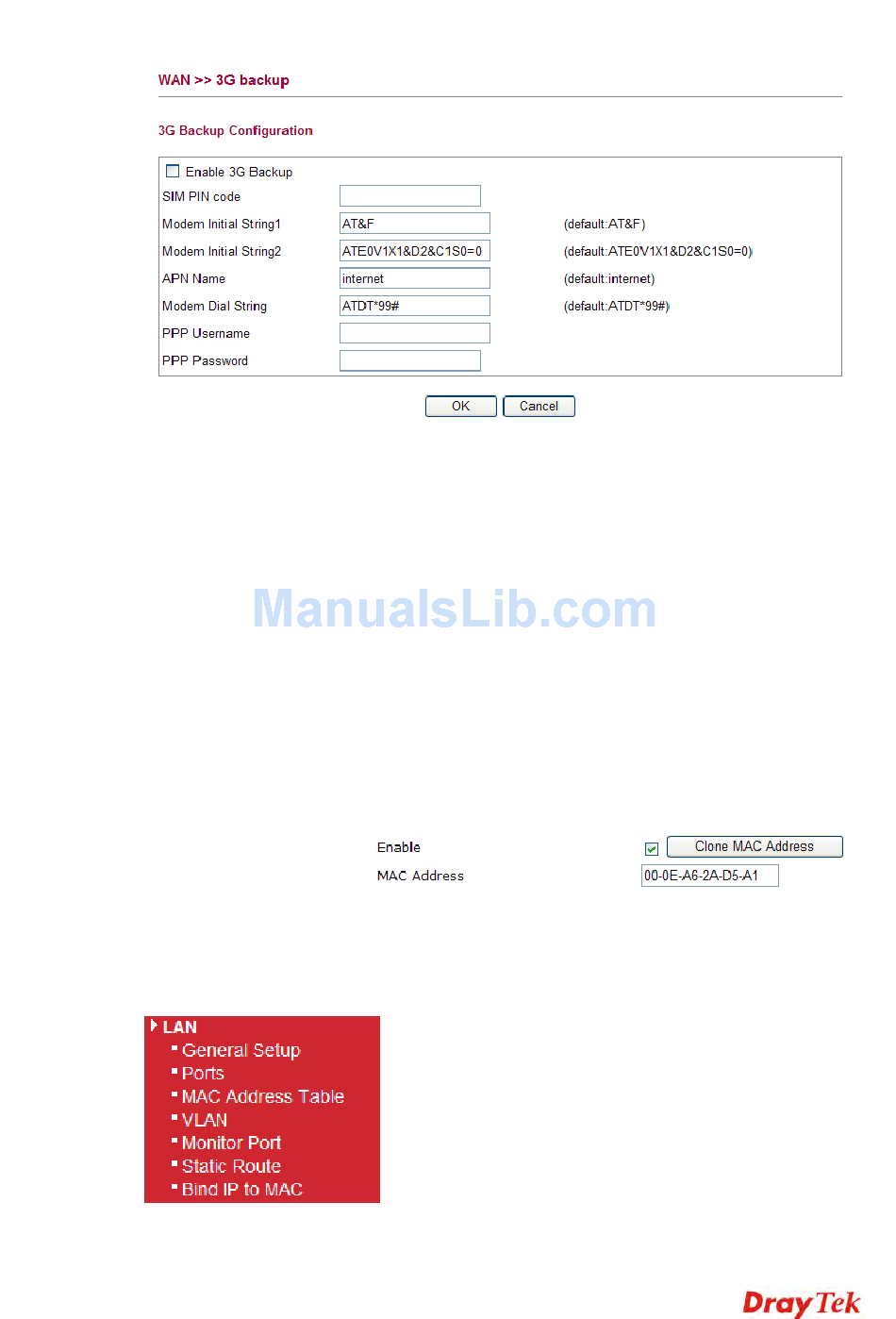

SIM PIN code
Modem Initial String1/2
APN Name
Modem Dial String
PPP Username
PPP Password
Clone MAC Address
4 . 2 L A N
4 . 2 L A N
Local Area Network (LAN) is a group of subnets regulated and ruled by router. The design of
network structure is related to what type of public IP addresses coming from your ISP.
B a s i c s
B a s i c s
Vigor2130 Series User's Guide
Type PIN code of the SIM card that will be used to access
Internet.
Such value is used to initialize USB modem. Please use the
default value. If you have any question, please contact to your
ISP.
APN means Access Point Name which is provided and
required by some ISPs.
Such value is used to dial through USB mode. Please use the
default value. If you have any question, please contact to your
ISP.
Type the PPP username (optional).
Type the PPP password (optional).
It is available when the box of Enable is checked. Click Clone
MAC Address. The result will be displayed in the field of
MAC Address.
o f L A N
o f L A N
115
