Draytek Vigor2130 Series User Manual page 208

Log Level
Enable (Mail Alert...)
SMTP Server
Mail To
Mail From
User Name
Password
Enable E-mail Alert
Click OK to save these settings.

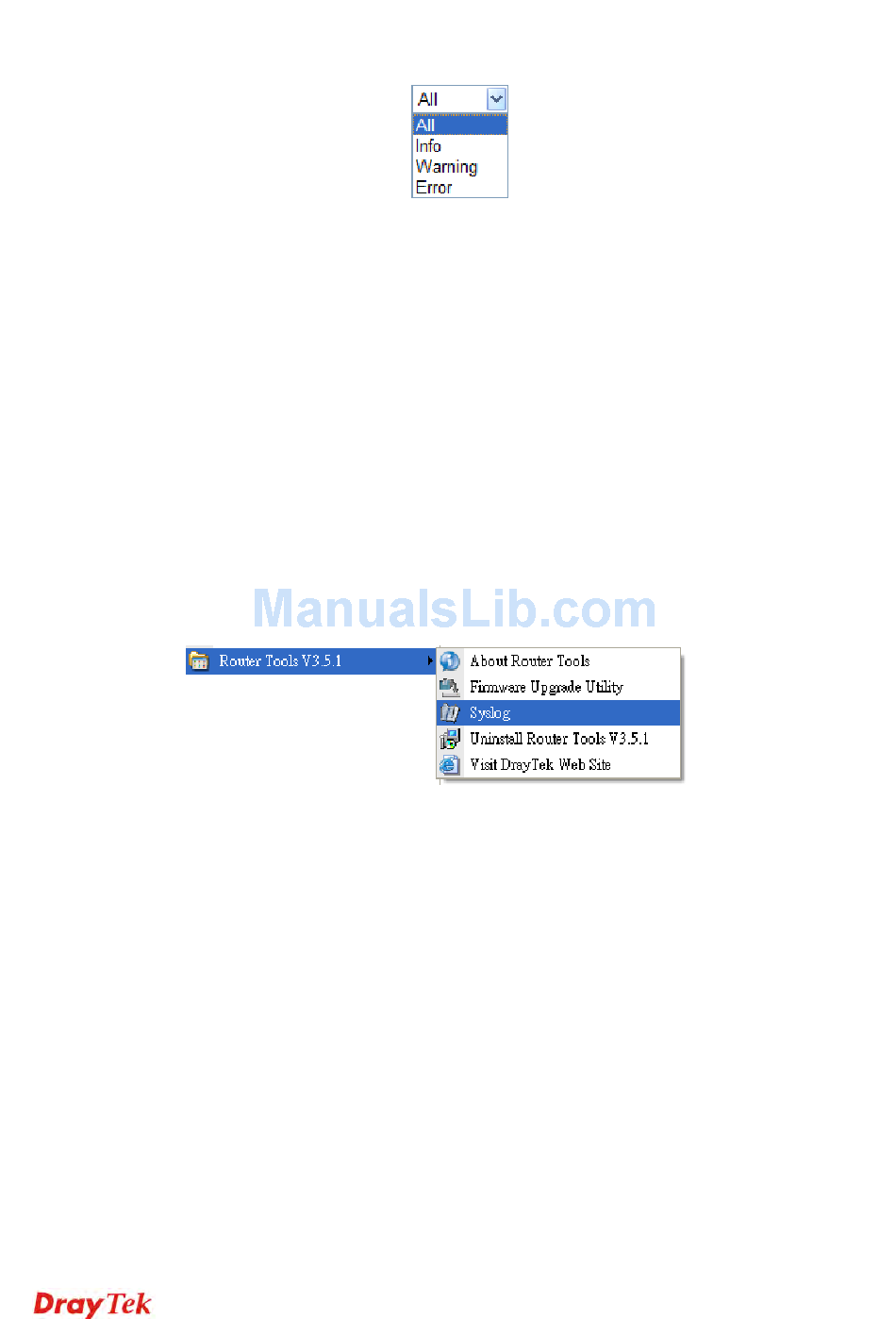

For viewing the Syslog, please do the following:
4. Just set your monitor PC's IP address in the field of Server IP Address
5. Install the Router Tools in the Utility within provided CD. After installation, click on the
Router Tools>>Syslog from program menu.
6. From the Syslog screen, select the router you want to monitor. Be reminded that in
Network Information, select the network adapter used to connect to the router.
Otherwise, you won't succeed in retrieving information from the router.
Choose the severity level for the system log entry.
Check "Enable" to activate function of mail alert.
The IP address of the SMTP server.
Assign a mail address for sending mails out.
Assign a path for receiving the mail from outside.
Type the user name for authentication.
Type the password for authentication.
Check the box of User Login to send alert message to the
e-mail box while the router detecting the item(s) you
specify here.
200
Vigor2130 Series User's Guide
