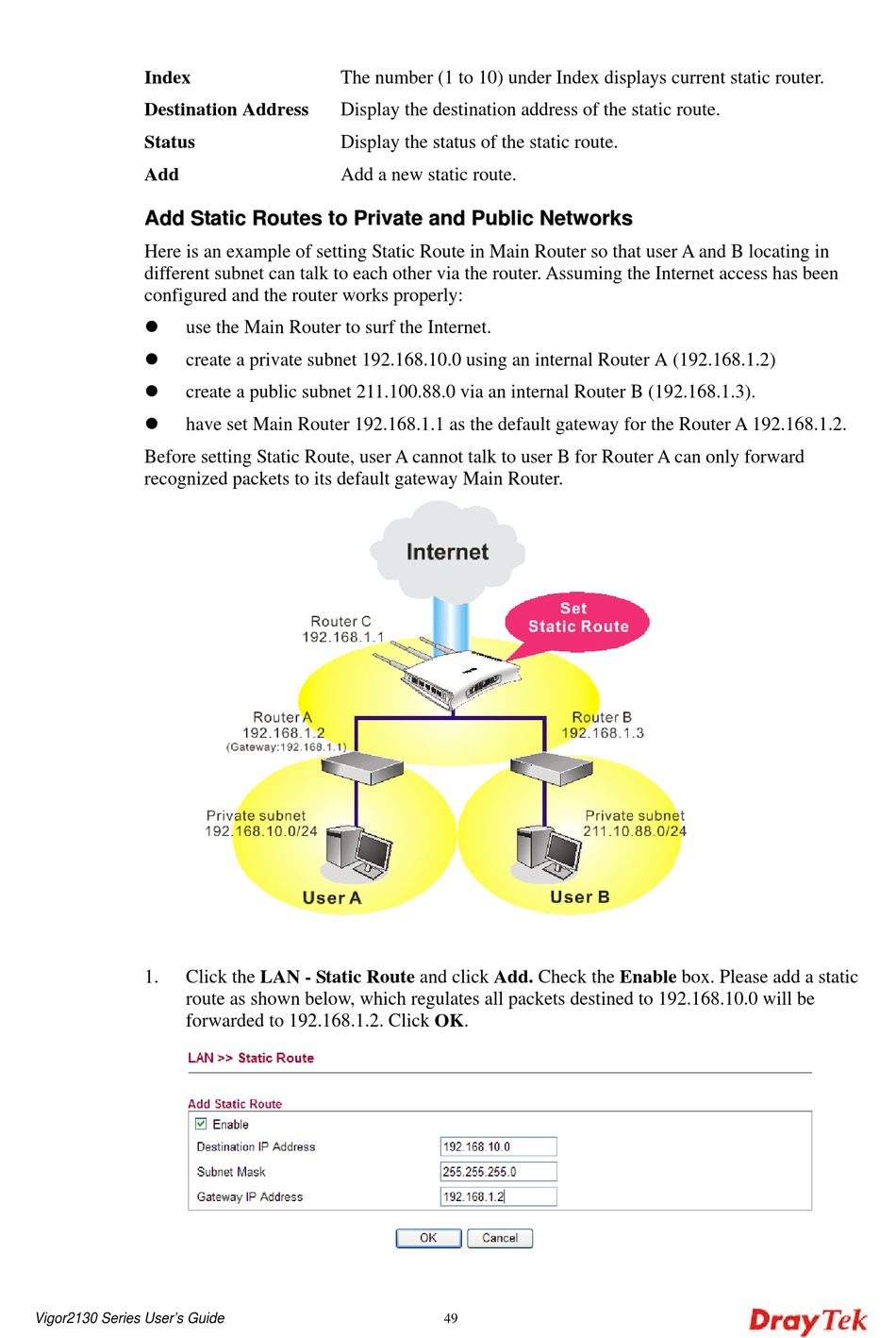

Here is an example of setting Static Route in Main Router so that user A and B locating in
different subnet can talk to each other via the router. Assuming the Internet access has been
configured and the router works properly:
use the Main Router to surf the Internet.
create a private subnet 192.168.10.0 using an internal Router A (192.168.1.2)
create a public subnet 211.100.88.0 via an internal Router B (192.168.1.3).
have set Main Router 192.168.1.1 as the default gateway for the Router A 192.168.1.2.
Before setting Static Route, user A cannot talk to user B for Router A can only forward
recognized packets to its default gateway Main Router.
1.
Click the LAN - Static Route and click Add. Check the Enable box. Please add a static
route as shown below, which regulates all packets destined to 192.168.10.0 will be
forwarded to 192.168.1.2. Click OK.
Vigor2130 Series User's Guide
The number (1 to 10) under Index displays current static router.
Display the destination address of the static route.
Display the status of the static route.
Add a new static route.
