Draytek Vigor2130 Series User Manual page 117

Router Name
Clone MAC Address
After finishing all the settings here, please click OK to activate them.
P P P o E
P P P o E

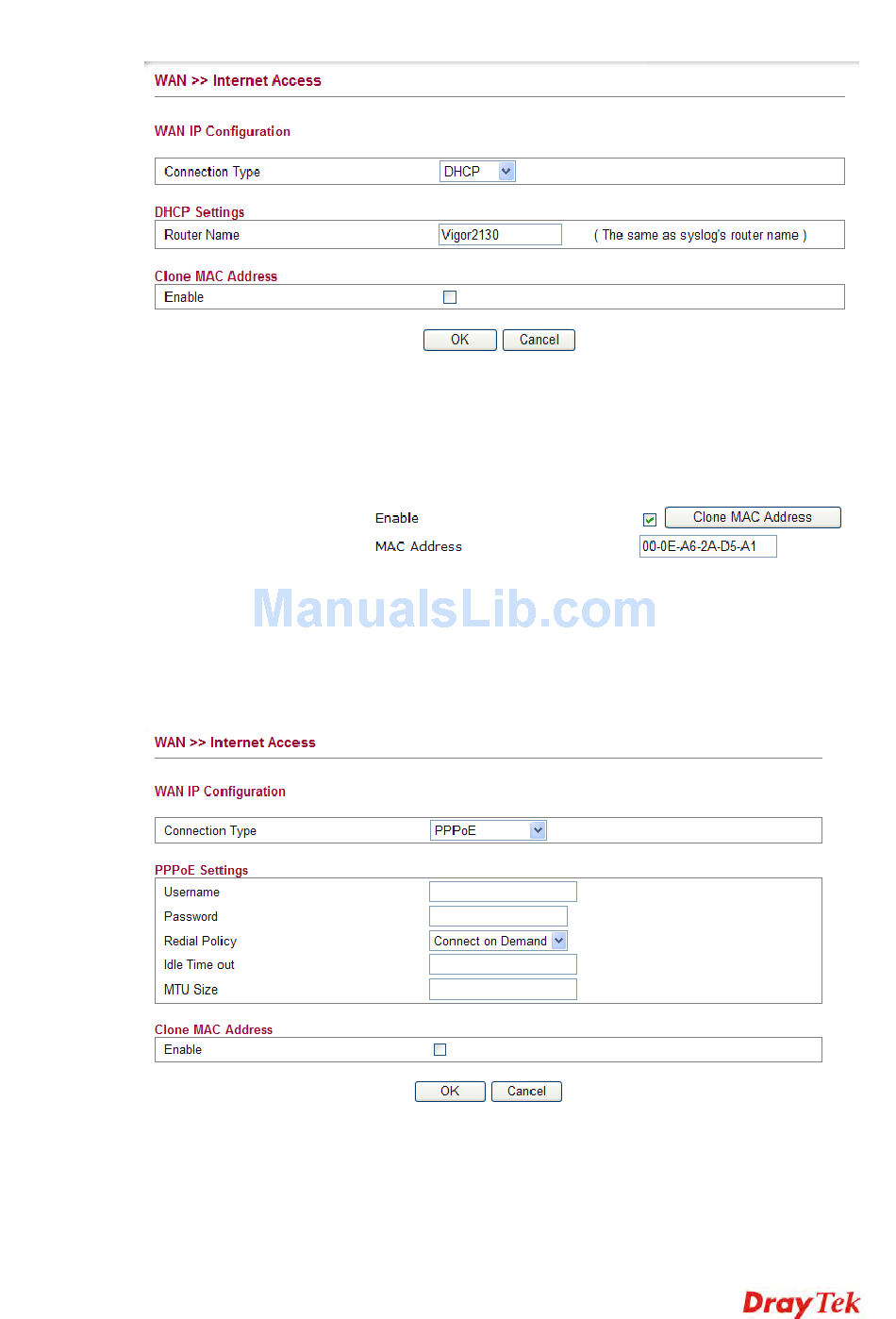

To choose PPPoE as the accessing protocol of the internet, please select PPPoE from the
Internet Access menu. The following web page will be shown.
Username
Password
Vigor2130 Series User's Guide
Type in a name for the router. It must be the same as the name
used in Syslog.
It is available when the box of Enable is checked. Click Clone
MAC Address. The result will be displayed in the field of
MAC Address.
Type in the username provided by ISP in this field.
Type in the password provided by ISP in this field.
109
