Bandwidth Limit - Draytek Vigor2130 Series User Manual

Default Max Sessions
Limitation List
Start IP
End IP
Maximum Sessions
Add
Edit
Delete
When you finish adding a new session limit, simply click OK. The following page will appear
for you to check.
4 . 5 . 2 B a n d w i
4 . 5 . 2 B a n d w i
The downstream or upstream from FTP, HTTP or some P2P applications will occupy large of
bandwidth and affect the applications for other programs. Please use Limit Bandwidth to make
the bandwidth usage more efficient.

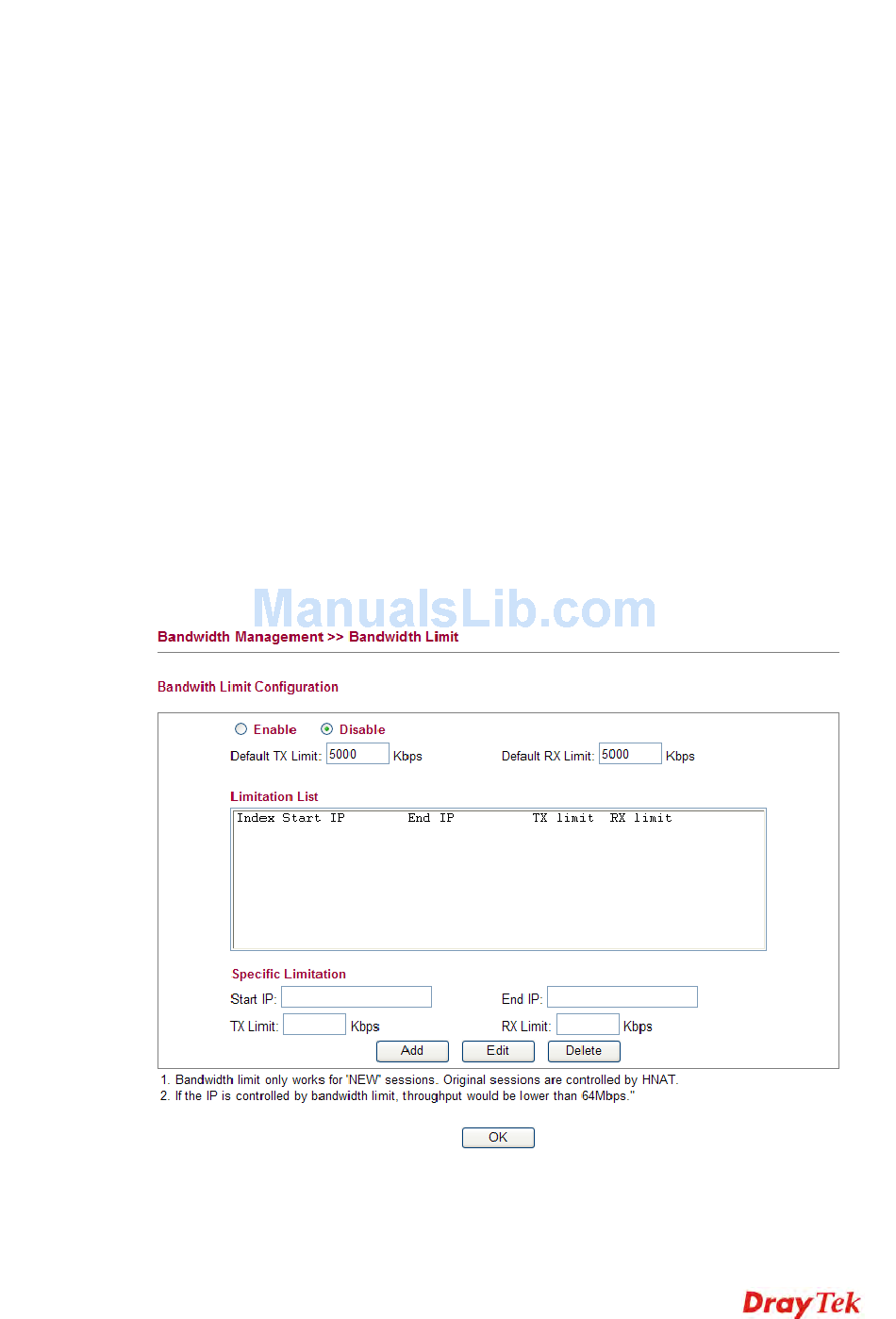

In the Bandwidth Management menu, click Bandwidth Limit to open the web page.
To activate the function of limit bandwidth, simply click Enable and set the default upstream
and downstream limit.
Vigor2130 Series User's Guide
Defines the start LAN IP address for limit session.
Defines the end LAN IP address for limit session.
Defines the available session number for each host in the
specific range of IP addresses. If you do not set the session
number in this field, the system will use the default session limit
for the specific limitation you set for each index.
Adds the specific session limitation onto the list above.
Allows you to edit the settings for the selected limitation.
Remove the selected settings existing on the limitation list.
d t h L i m i t
d t h L i m i t
Defines the default session number used for each computer in
LAN.
Displays a list of specific limitations that you set on this web
page.
145
