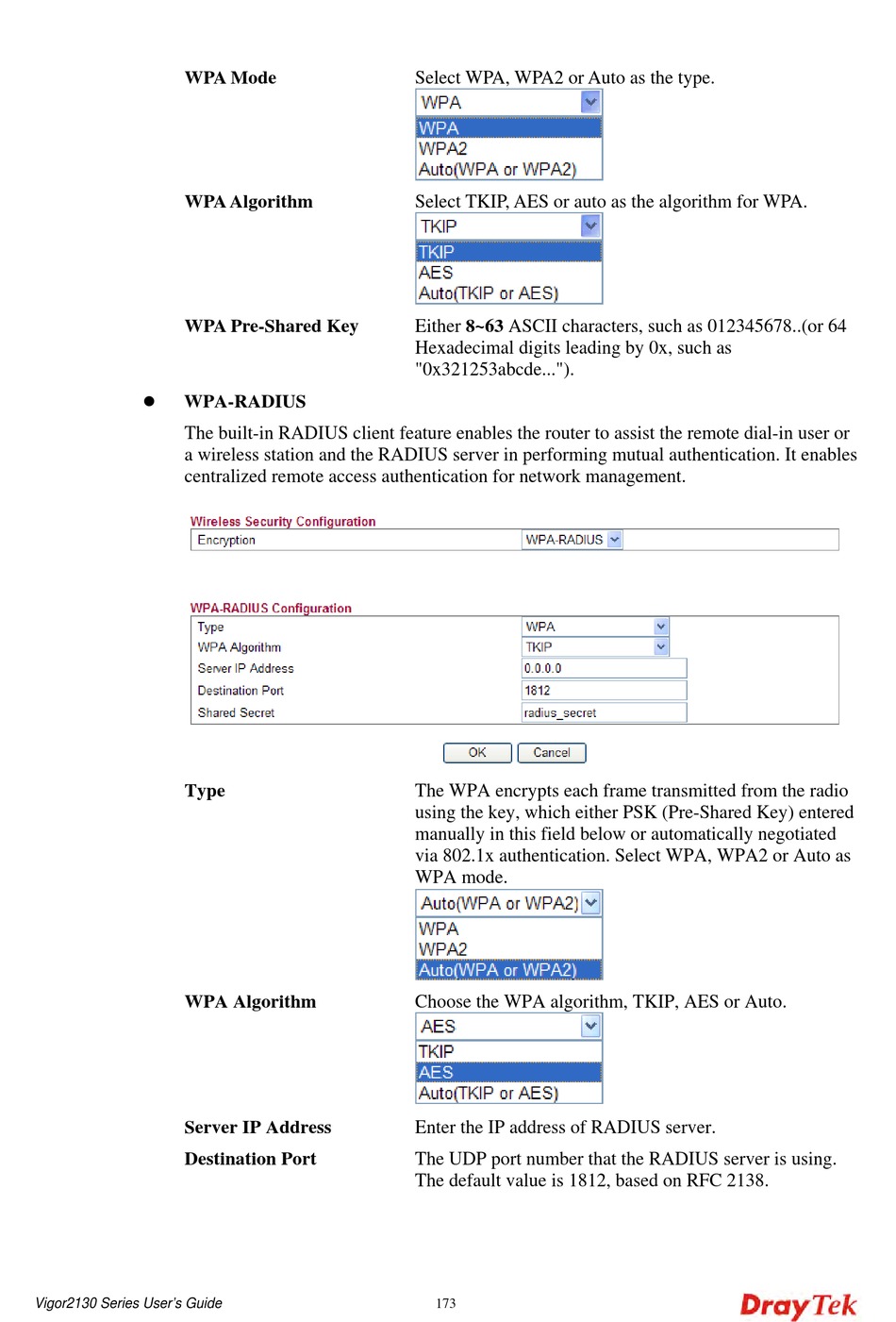

Draytek Vigor2130 Series User Manual page 181

WPA Mode
WPA Algorithm
WPA Pre-Shared Key
WPA-RADIUS
The built-in RADIUS client feature enables the router to assist the remote dial-in user or
a wireless station and the RADIUS server in performing mutual authentication. It enables
centralized remote access authentication for network management.
Type
WPA Algorithm
Server IP Address
Destination Port
Vigor2130 Series User's Guide
Select WPA, WPA2 or Auto as the type.
Select TKIP, AES or auto as the algorithm for WPA.
Either 8~63 ASCII characters, such as 012345678..(or 64
Hexadecimal digits leading by 0x, such as
"0x321253abcde...").
The WPA encrypts each frame transmitted from the radio
using the key, which either PSK (Pre-Shared Key) entered
manually in this field below or automatically negotiated
via 802.1x authentication. Select WPA, WPA2 or Auto as
WPA mode.
Choose the WPA algorithm, TKIP, AES or Auto.
Enter the IP address of RADIUS server.
The UDP port number that the RADIUS server is using.
The default value is 1812, based on RFC 2138.
