3 . 5 . 4 I G M P S t
3 . 5 . 4 I G M P S

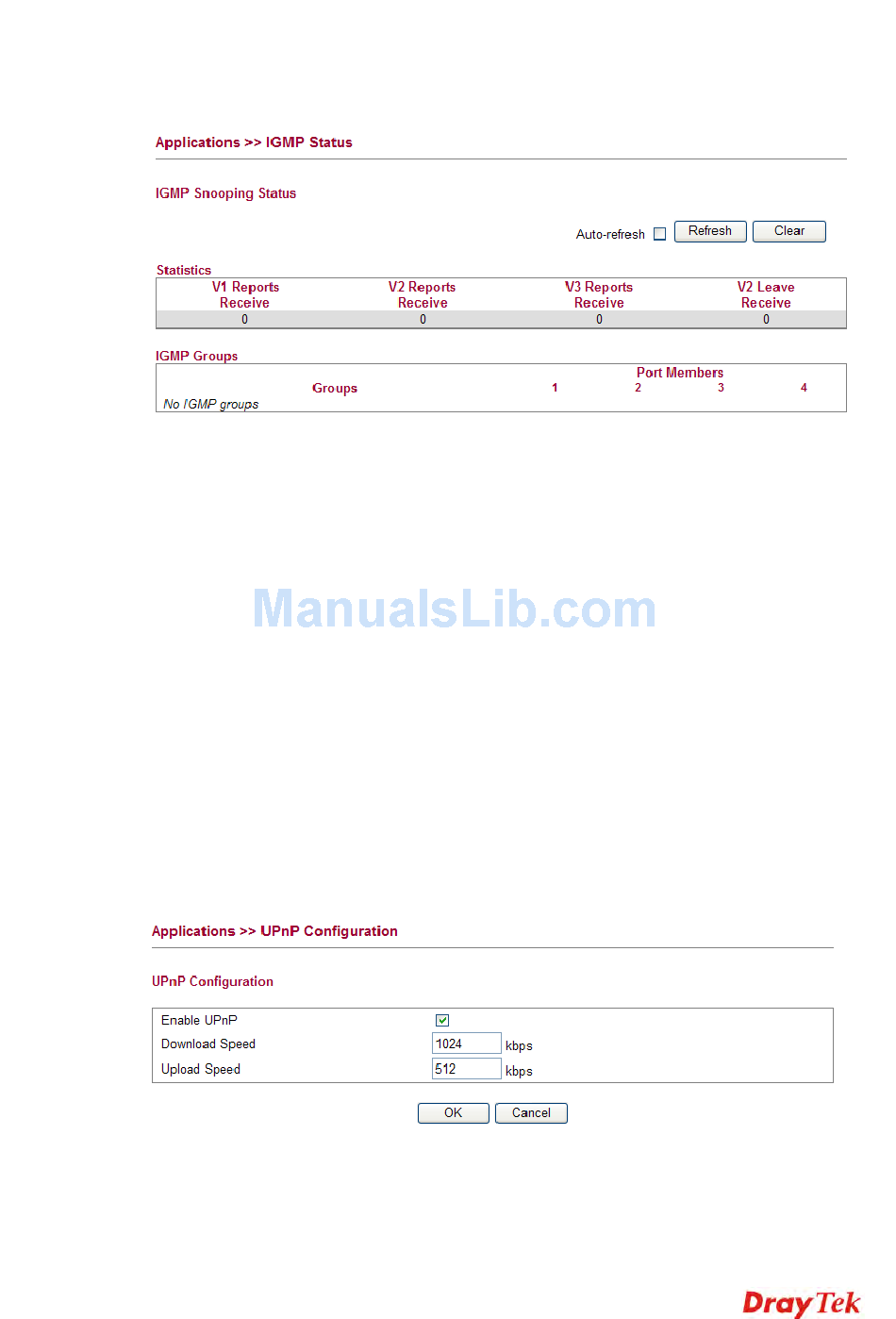

This page display current IGMP snooping status.
V1~3 Reports Receive
V2 Leave Receive
Groups
Port Members
Refresh
Clear
3 . 5 . 5 U P n P C
3 . 5 . 5 U P n P C
The UPnP (Universal Plug and Play) protocol is supported to bring to network connected
devices the ease of installation and configuration which is already available for directly
connected PC peripherals with the existing Windows 'Plug and Play' system. For NAT routers,
the major feature of UPnP on the router is "NAT Traversal". This enables applications inside
the firewall to automatically open the ports that they need to pass through a router. It is more
reliable than requiring a router to work out by itself which ports need to be opened. Further,
the user does not have to manually set up port mappings or a DMZ. UPnP is available on
Windows XP and the router provide the associated support for MSN Messenger to allow full
use of the voice, video and messaging features.
Enable UPNP
Vigor2130 Series User's Guide
a t u s
t a t u s
Display the number of Received V1 – V3 Reports.
Display the number of Received V2 Leave.
Display current
for each VLAN can be set is 128.
Display the LAN ports in this group.
Click this button to refresh the page immediately.
Click this button to clear the settings on this page.
o n f i g u r a t i o n
o n f i g u r a t i o n
IGMP groups. Maximum number of group
Enable UPnP function. You have to type the download and
upload speed.
69
