Enable
Disable
Default TX limit
Default RX limit
Limitation List
Start IP
End IP
TX Limit
RX Limit
Add
Edit
Delete
When you finish adding a new bandwidth limit, simply click OK. The following page will
appear for you to check.
4 . 5 . 3 P o r t R a t e C
4 . 5 . 3 P o r t R a t e C

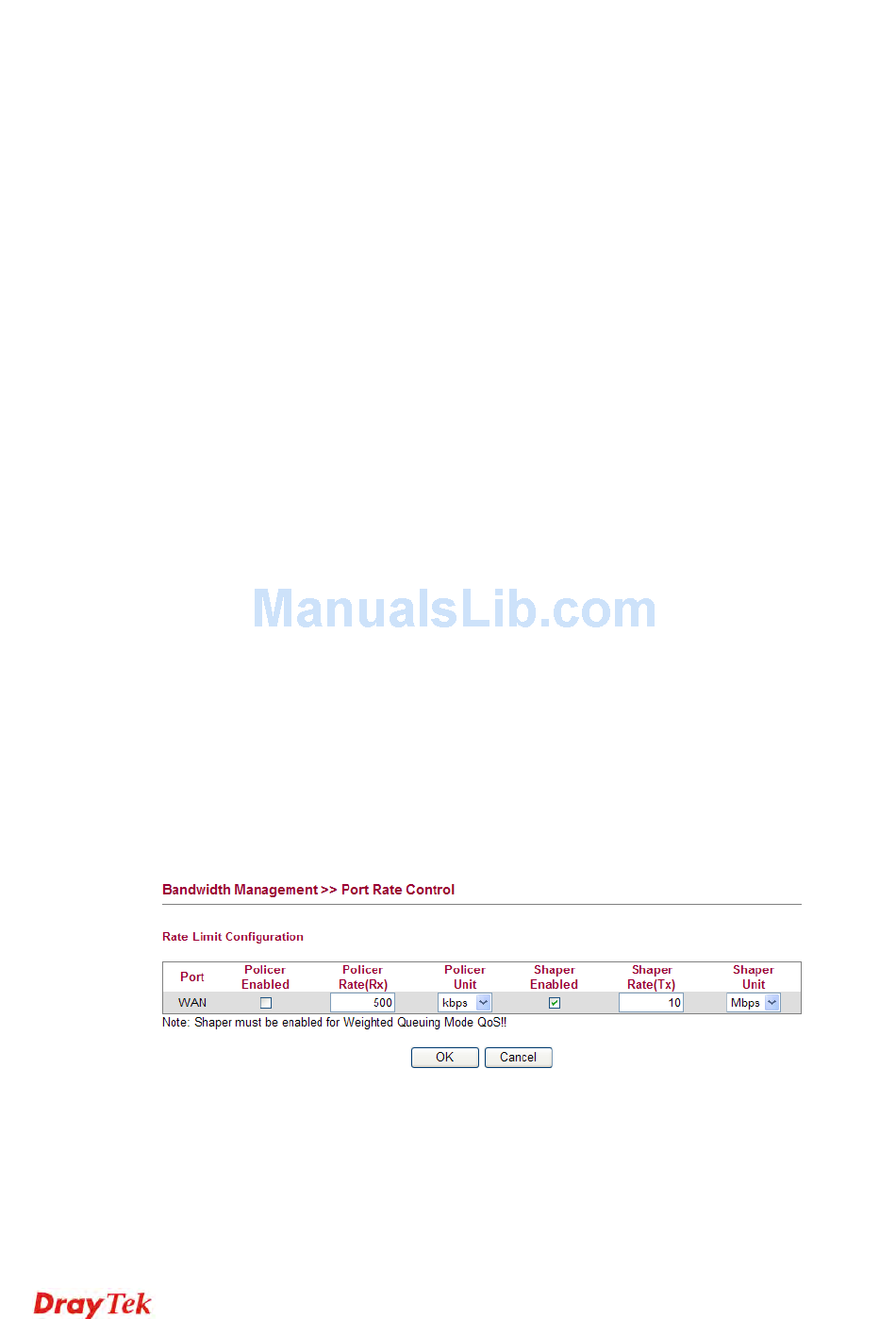

A policer can limit the bandwidth of received frames. It is located in front of the ingress queue.
And a shaper can limit the bandwidth of transmitted frames. It is located after the ingress
queues. This page allows you to configure the switch port rate limit for Policers and Shapers.
Port
Policer Enabled
Policer Rate(Rx)
Click this button to activate the function of limit bandwidth.
Click this button to close the function of limit bandwidth.
Define the default speed of the upstream for each computer in
LAN.
Define the default speed of the downstream for each computer
in LAN.
Display a list of specific limitations that you set on this web
page.
Bandwidth limit can be applied on certain IP range. That's, only
the PCs within the range will be influenced by the bandwidth
limitation set here. Please define the start IP address for the
specific limitation.
Define the end IP address for the specific limitation.
Define the limitation for the speed of the upstream to be applied
as specific limitation. If you do not set the limit in this field, the
system will use the default speed for the specific limitation you
set for each index.
Define the limitation for the speed of the downstream to be
applied as specific limitation. If you do not set the limit in this
field, the system will use the default speed for the specific
limitation you set for each index.
Add the specific speed limitation onto the list above.
Allows you to edit the settings for the selected limitation.
Remove the selected settings existing on the limitation list.
o n t r o l
o n t r o l
Represent LAN or WAN interface.
Check this box to enable policer function.
Type the number for policer function. The default value is 500.
It is restricted to 500-1000000 when the Policer Unit is set in
146
Vigor2130 Series User's Guide
