1 . 2 . 2 F o r V i g o r 2 1
1 . 2 . 2 F o r V i g o r 2 1
3 0 n
3 0 n

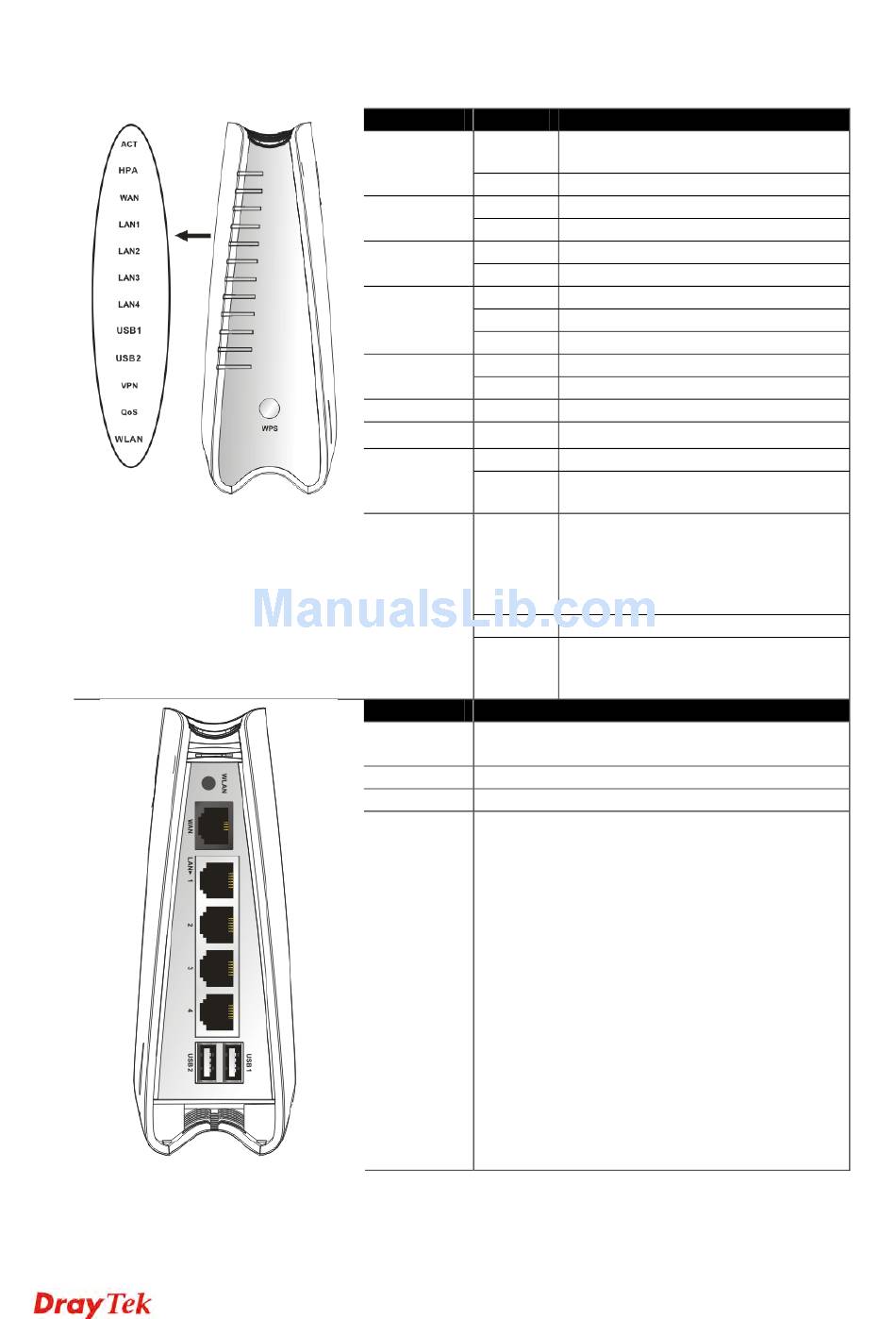

LED
ACT
(Activity)
HPA
WAN
LAN1/2/3/4
USB1/2
VPN
QoS
WLAN
WPS Button
Interface
WLAN
WAN
LAN (1-4)
USB
Status Explanation
Blinking The router is powered on and running
normally.
Off The router is powered off.
On Hardware NAT is enabled.
Off Hardware NAT is disabled.
On The WAN port is connected.
Blinking It will blink while transmitting data.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On A USB device is connected and active.
Blinking The data is transmitting.
On The VPN tunnel is active.
On The QoS function is active.
On Wireless access point is ready.
Blinking It will blink while wireless traffic goes
through.
On Press this button for 2 seconds to wait
for client device making network
connection through WPS. When the
LED lights up, the WPS connection
will be on.
Off The WPS is off.
Blinking Waiting for wireless client sending
requests for connection about two
minutes.
Description
Press the button once to enable (WLAN LED on) or
disable (WLAN LED off) wireless connection.
Connector for accessing the Internet.
Connectors for local networked devices.
Connector for USB storage (Pen Driver /Mobile
HD) or printer.
4
Vigor2130 Series User's Guide
