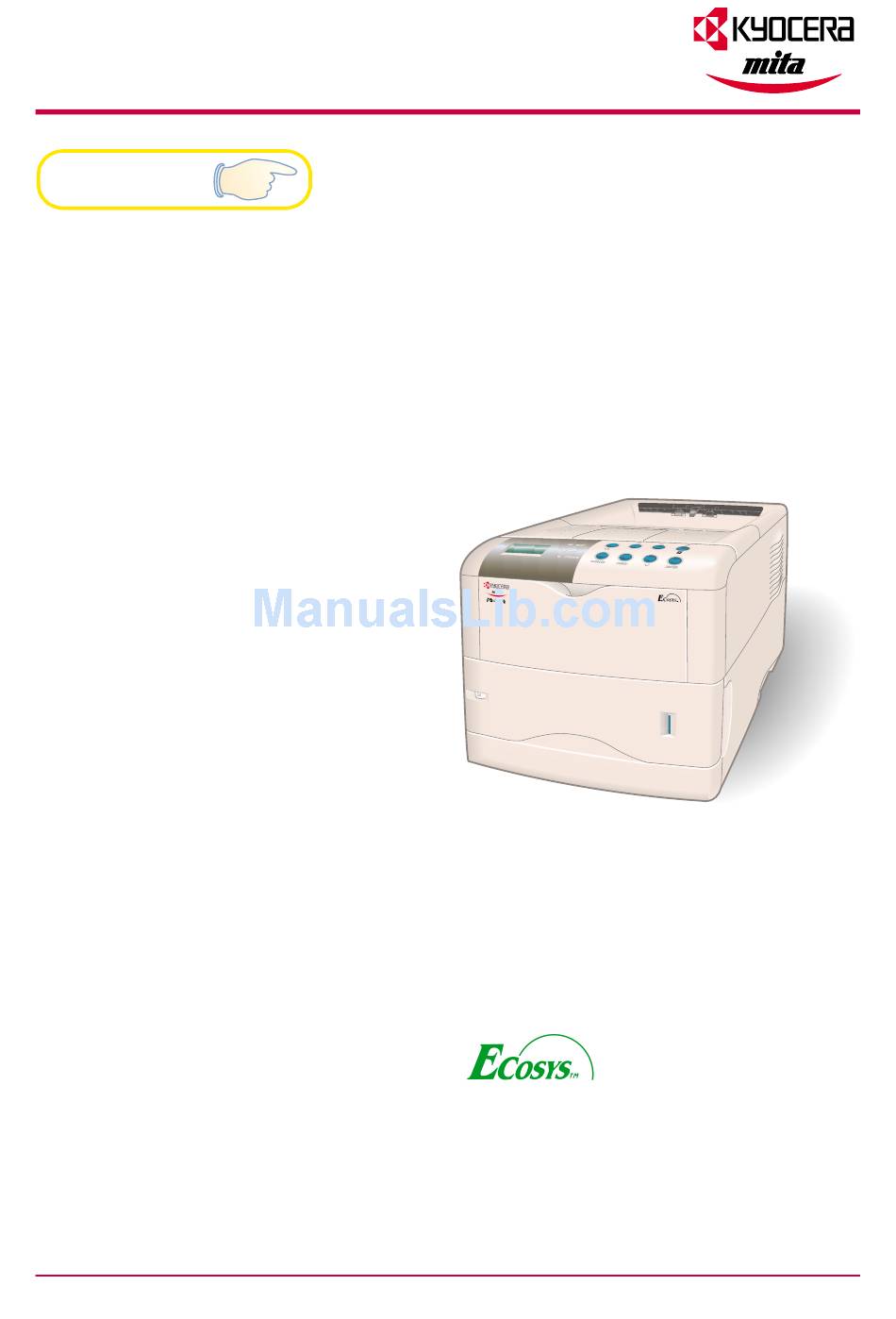

Page 1 Table of Contents FS-1800/N FS-3800/N Page Printers User's Manual...
Page 2 Caution NO LIABILITY IS ASSUMED FOR ANY DAMAGE CAUSED BY IMPROPER INSTALLATION. Notice on Software SOFTWARE USED WITH THIS PRINTER MUST SUPPORT THE PRINTER'S EMULATION MODE. The printer is factory-set to emulate the PCL. The emulation mode can be changed by following the procedures described in Chapter Notice The information in this manual is subject to change without notification.
Page 3: Limited Warranty
IBM PROGRAM LICENSE AGREEMENT THE DEVICE YOU HAVE PURCHASED CONTAINS ONE OR MORE SOFTWARE PROGRAMS ("PROGRAMS") WHICH BELONG TO INTERNATIONAL BUSINESS MACHINES CORPORATION ("IBM"). THIS DOCUMENT DEFINES THE TERMS AND CON- DITIONS UNDER WHICH THE SOFTWARE IS BEING LICENSED TO YOU BY IBM. IF YOU DO NOT AGREE WITH THE TERMS AND CONDITIONS OF THIS LICENSE, THEN WITHIN 14 DAYS AFTER YOUR ACQUISITION OF THE DEVICE YOU MAY RETURN THE DEVICE FOR A FULL REFUND.
Page 4 Typeface Trademark Acknowledgement All resident fonts in this printer are licensed from Agfa Corporation. Helvetica, Palatino and Times are registered trademarks of Linotype-Hell AG. ITC Avant Garde Gothic, ITC Bookman, ITC ZapfChancery and ITC Zapf Dingbats are registered trademarks of International Type- face Corporation.
Page 5: Table Of Contents
Contents Contents Introduction ....................vii Features ................................ viii For More Information............................. xi Guide to the User's Manual .......................... xii Using the Operator Panel ............1-1 Chapter 1 1.1 Understanding the Operator Panel ...................... 1-2 1.2 Using the Operator Panel........................1-6 1.2.1 Menu Selection System........................
Page 6 Contents Maintenance ................2-1 Chapter 2 2.1 Toner Container Replacement ......................2-2 2.1.1 Toner Container Replacement Interval ..................2-2 2.1.2 Replenishing Toner ........................2-3 2.2 Waste Toner Bottle Replacement ......................2-6 2.2.1 Replacing the Waste Toner Bottle ....................2-6 2.3 Cleaning ..............................2-9 2.3.1 Cleaning the Charger Wire......................
Page 7 Contents Fonts ..................A-1 Appendix A Expansion Memory ..............B-1 Appendix B B.1 Expanding the Printer Memory ......................B-2 Host Computer Interface ............C-1 Appendix C C.1 Parallel Interface...........................C-2 C.1.1 Parallel Interface Communication Modes ..................C-2 C.1.2 Interface Signals..........................C-2 C.2 Serial Interface............................C-5 C.2.1 Interface Signals..........................C-5 C.3 RS-232C Protocol...........................C-7 C.4 RS-232C Cable Connection........................C-9...
Page 8: Introduction
Introduction The Kyocera Mita page printer has many extremely desirable features. It was designed to make a contribution to a cleaner environment as well as to represent the latest generation of page printer technology. This section explains the following topics: •...
Page 9: Features
The drum has been developed using Kyocera's unique ceramic technology using amorphous silicon. KIR (Kyocera Image Refinement) This is Kyocera Mita's original smoothing function. It uses software to enhance the printer's resolution and produce high-quality printing. The default setting is Off.
Page 10 Network Support (Models FS-1800N and FS-3800N) The N models come standard with a 10/100 Base-TX network interface card for connecting to an Ethernet network. Wide Variety of Available Fonts The printer comes with 80 PCL/PS compatible fonts and a line printer bitmap font installed.
Page 11 Kyocera Mita PrintMonitor Utility Provides network wide management of the printers. Refer to the readme file located in the Kyocera Mita Digital Library CD-ROM (supplied with the printer) for details.
Page 12: For More Information
For More Information... Item Description Installation Manual Describes procedures from printer setup to (paper manual) printing a test page. User's Manual Guides you through topics concerning the (this manual) operations and maintenance of the printer. Printer Driver Guide Describes how to install and set the printer driver. This manual is contained in the CD-ROM supplied with the printer.
Page 13: Guide To The User's Manual
Guide to the User's Manual This User's Manual has the following chapters: Chapter 1 Operator Panel This chapter explains the message display, indicators and keys on the operator panel, and how to make various settings from the operator panel. Chapter 2 Maintenance This chapter explains how to replace the toner container, waste toner bottle, and how to care for your printer.
Page 14 Appendix E Specifications This appendix lists the printer's specifications. Glossary This glossary explains the terminology used in this manual. xiii...
Page 15: Using The Operator Panel
Using the Operator Chapter 1 Panel This chapter explains the following topics: • Understanding the Operator Panel • Using the Operator Panel...
Page 16: Understanding The Operator Panel
Understanding the Operator Panel Understanding the Operator Panel The operator panel has a LCD message display, indicators, and eight keys. Message Display The message display gives information in the form of short messages. The eight messages listed below are displayed during normal warm-up and printing.
Page 17: Paper Size Indicator
Understanding the Operator Panel SIZE Paper Size Indicator This indicator indicates the paper size of the current paper cassette. The following abbreviations are used to indicate the paper sizes. Message Paper Size Message Paper Size Display Display ISO A4 (21 × 29.7 cm) ISO DL (11 ×...
Page 18 Understanding the Operator Panel Other Indicators The following indicators light during normal operation and when the READY printer needs attention. DATA ATTENTION INTERFACE SIZE TYPE Indicator Description Flashing: Indicates when an error occurs that you can clear READY by yourself. Lit: Indicates that the printer is on-line.
Page 19 Understanding the Operator Panel Keys The operator panel keys are used to configure the printer. Note the certain keys have the secondary function. CANCEL MENU ENTER Settings made with these keys effect only the interface currently in use. Note Function •...
Page 20: Using The Operator Panel
Using the Operator Panel Using the Operator Panel This section explains how to use the menu selection system. The MENU key on the operator panel allows you to use the menu to set or change the printer environment such as the number of copies to make, emulation, etc., to your specific needs.
Page 21 Using the Operator Panel Continued from previous page Interface > >Parallel I/F Parallel Nibble (high) Interface > >Parallel I/F Serial Auto Interface > >Parallel I/F Option Normal >Parallel I/F High Speed >Baud Rate 9600 >Data Bits >Stop Bits >Parity None >Protocol DTR (pos.)&XON >Barcode Mode...
Page 22 Using the Operator Panel Continued from previous page Font > > I000 Internal Font > Option >Courier Dark >Courier Regular >Letter Gothic Regular >Letter Gothic Dark >Size 012.00 point(s) >Pitch 10.00 cpi >List of Fonts >Copies Page Set > >Orientation Portrait >Orientation Landscape...
Page 23 Using the Operator Panel Continued from previous page Print Quality > >KIR Mode >KIR mode >Ecoprint Mode >Ecoprint Mode >Resolution Fast 1200 mode >Resolution Fine 1200 mode >Resolution 300 dpi >Resolution 600 dpi >Print Density Opt. ROM > >Read Data >List of Partitions Hard Disk...
Page 24 Using the Operator Panel Continued from Previous page Paper Handling > >MP Tray Mode First >MP Tray Size A4 or Letter >MP Tray Type Plain >EF Size DL or Business >EF Type Envelope >BulkFeeder Size >BulkFeeder Type Plain >Cassette Size > >>Unit >>Unit inch...
Page 25 Using the Operator Panel Continued from previous page Others > >MSG language English >Form Feed Time Out 030sec. >Sleep timer > >>Sleep Mode 015 min. >>Sleep Mode >Print HEX-DUMP >Printer Reset >Resource prot. >Resource prot. Permanent >Resource prot. Perm / Temp >Buzzer >Buzzer >Auto Continue...
Page 26: Using The Menu Selection System
Using the Operator Panel 1.2.2 Using the Menu Selection System This section explains the procedure for using the menu selection system. The menu selection system is activated by the MENU key while the printer is Ready. Printing the Menu Map The printer prints a full list of menu selection system.
Page 27 Using the Operator Panel Sample MENU MAP 1-13...
Page 28: Printing Status Page
Using the Operator Panel Printing Status Page If you want to check the printer's current status, including memory Print available and option settings, you can find the information you need on the Status Page status page. Press the MENU key. MENU Press the key repeatedly until Print Status Page...
Page 29 Using the Operator Panel The following is a sample status page. The numbers below refer to the contents explained on the following pages. Items and values on the status page may vary depending on the printer's firmware version. Note 1-15...
Page 30 Using the Operator Panel 1 — Software Version This information shows the firmware version and date of issue of the printer. 2 — Hardware Information This information shows various printer settings, such as the size and type of the paper in the paper cassettes. 3 —...
Page 31 This information shows the default font and the default emulation for all interfaces installed in the printer. 11 — KIR Test Pattern KIR is the Kyocera Mita's original smoothing function. This test pattern shows the effect of the KIR (Kyocera Image Refinement) system. 1-17...
Page 32: E-Mps Printing
Using the Operator Panel e-MPS Printing To use the e-MPS system, an option Microdrive must be installed in the printer. Option What is e-MPS? e-MPS > ‘e-MPS’ is an abbreviation for ‘enhanced-Multiple Printing System,’ which is a post-processing function that combines electronic sorting, job retention, virtual mailboxing, and a barcode printing system for job retrieval.
Page 33 Using the Operator Panel Four Job Retention modes have the following benefits: • Quick Copy: When you need another copy of a finished print job, you can print it out at the printer operator panel. There is no need to print from the computer again. •...
Page 34 Using the Operator Panel Virtual Mail Box Virtual mailbox is the ability to store print jobs in the virtual mailboxes on the Microdrive, enabling you to retrieve and print it later from the printer's operator panel or the option barcode reader (BC-1). You can later print out only the jobs you desire using the operator panel on the printer.
Page 35 Using the Operator Panel Quick Copy This mode enables you to print additional copies of a finished print job. >Quick Copy If you print a Quick Copy using the printer driver, it is printed and stored on the Microdrive. If additional copies are required, you can reprint the required number of copies from the printer operator panel.
Page 36: User Name
Using the Operator Panel Press the ENTER key. A blinking question mark (?) appears before a user name. ENTER >Quick Copy ?user name Press the key to display the desired user name. >Quick Copy ?user name Press the ENTER key. user name and the name entered for Custom Job Name in the printer driver (job title, in this example) appear with a question mark (?) shown blinking before that name.
Page 37 Using the Operator Panel Deleting a Quick Copy Job Follow the same steps as step1 through 8 in the above section. With the title of the job to be deleted displayed, press the ENTER key. The cursor below the copy count starts to blink. ENTER >job title ?copy...
Page 38 Using the Operator Panel Proof and Hold When printing multiple copies, this mode first prints one copy so that you can check it before continuing to print the remaining copies. Since you can check the printouts before printing the remaining copies, the waste of paper can be reduced.
Page 39 Using the Operator Panel Printing a Private Job or Stored Job To use this mode, an option Microdrive must be installed in the printer. Option The printer holds the job mode secures confidentiality of the print job. >Private/stored Private or Stored Job mode. The printer holds the jobs in Microdrive until you release it using the printer's operator panel.
Page 40 Using the Operator Panel Press the key to display the desired user name. >Private/Stored ?user name Press the ENTER key. user name and the name entered for Custom Job Name in the printer driver (job title, in this example) appear with a question mark (?) shown blinking before that name.
Page 41 Using the Operator Panel Deleting a Private Job or Stored Job Follow the same steps as step1 through 8 in the above section. With the title of the job to be printed displayed, press the ENTER key. If a user ID has been registered using the printer driver, enter the ID and press the ENTER key.
Page 42 Using the Operator Panel Printing a List of Code Jobs (Permanent Jobs) Barcode IDs of code job (permanent code job) that are stored on the Microdrive can be printed on the list of code jobs. Since the Code Job function administers the print jobs by their barcode IDs, you can print the job you desire by reading its barcode ID with the option barcode reader.
Page 43 Using the Operator Panel Virtual Mail Box (VMB) To use this mode, an option Microdrive must be installed in the printer. Option The virtual mail box function can be used when Microdrive unit is installed Print VMB Data > on the printer. With a virtual mail box, data sent from the computer is Tray###:%%%%%%%% stored in the Microdrive.
Page 44 Using the Operator Panel Printing the Job Stored in the Mail Box Press the MENU key. MENU Press the key repeatedly until e-MPS > appears. e-MPS > Press the > key. Press the key repeatedly until >Print VMB Data appears. The VMB number will appear in the location marked by #'s below, while the VMB name will appear in the location marked by %'s.
Page 45 Using the Operator Panel Printing a List of VMB This feature prints a list of jobs posted in all the virtual mail boxes. Press the MENU key. MENU Press the key repeatedly until e-MPS > appears. e-MPS > Press the > key. Press the key repeatedly until >List of VMB appears.
Page 46: E-Mps Configuration
Using the Operator Panel e-MPS Configuration You can change the maximum number of jobs and the area in the Microdrive to hold them for the e-MPS system. You can change: Option • Maximum Number of Quick Copy Jobs • Maximum Area in Microdrive to hold Temporary Code Jobs •...
Page 47 Using the Operator Panel Press the ENTER key. A blinking cursor ( ) appears. >>Quick Copy ENTER Press the key to increace or decrease the value of the figure where the cursor is blinking. It can be set between 0 and 50. You can use the >...
Page 48 Using the Operator Panel Changing the Maximum Area in Microdrive for Temporary Code Jobs Press the MENU key. MENU Press the key repeatedly until e-MPS > appears. e-MPS > Press the > key. Press the key repeatedly until >e-MPS Configuration > appears.
Page 49 Using the Operator Panel Press the key to increace or decrease the value of the figure where the cursor is blinking. It can be set between 0 and 9999 (the actual maximum effective size is the size of free hard disk space). You can use the >...
Page 50 Using the Operator Panel Changing the Maximum Area in Microdrive to Hold Permanent Code Jobs Press the MENU key. MENU Press the key repeatedly until e-MPS > appears. e-MPS > Press the > key. Press the key repeatedly until >e-MPS Configuration > appears.
Page 51 Using the Operator Panel Press the key to increace or decrease the value of the figure where the cursor is blinking. It can be set between 0 and 9999 (the actual maximum effective size is the size of free hard disk space) MB. You can use the >...
Page 52 Using the Operator Panel Changing the Maximum Area in Microdrive to Hold Virtual Mail Box (VMB) Press the MENU key. MENU Press the key repeatedly until e-MPS > appears. e-MPS > Press the > key. Press the key repeatedly until >e-MPS Configuration > appears.
Page 53 Using the Operator Panel Press the key to increace or decrease the value of the figure where the cursor is blinking. It can be set between 0 and 9999 (the actual maximum effective size is the size of free hard disk space). You can use the keys to move the cursor right and left.
Page 54: Changing The Interface Parameters
Using the Operator Panel Changing the Interface Parameters The printer is equipped with both a parallel and serial interface. In Interface > addition, the N version model has an Ethernet network interface. Various Parallel printing environment parameters such as the default emulation can be changed indepently on different interfaces by using the printer's menu selection system.
Page 55 Using the Operator Panel Press the > key. The message display changes to the communication mode menu. Press the ENTER key. A blinking question mark (?) appears. ENTER >Parallel I/F ? Nibble (high) Press the key to display the desired mode. The display changes as shown below.
Page 56 Using the Operator Panel Changing Serial Interface Modes You can set the baud rate, data bits, stop bits, parity, and protocol for the serial interface. Press the MENU key. MENU Press the key repeatedly until Interface > appears. One of the interface names shown below appears, indicating the current interface.
Page 57: Baud Rate
Using the Operator Panel Press the > key. Each time the key is pressed, the setting item and current setting change as shown below. Definable baud rates: 1200, 2400, >Baud Rate 4800, 9600 (default), 19200, 38400, 9600 57600, 115200 Definable data bits: 7, 8 (default) >Data Bits Definable stop bits: 1 (default), 2 >Stop Bits...
Page 58 Using the Operator Panel Press the key to display the desired setting. The setting changes as shown below. The baud rate can be selected from 1200, 2400, 4800, 9600 (default), 19200, 38400, 57600, and 115200. Some computers may not be compatible with a baud rate of 115200 bps. If you set the baud rate to 115200 and communication problems occur, lower the baud rate.
Page 59 Using the Operator Panel Changing Network Interface Parameters This section applies to the printers having the option network card installed. The FS-1800N/FS-3800N come standard with a network interface card installed. For details concerning the network when using Option the FS-1800N/FS-3800N, refer to the supplied Network Manual.
Page 60 Using the Operator Panel Press the > key. Each time the key is pressed, the display changes as shown below. >NetWare > >TCP/IP > >EtherTalk >Opt. StatusPage This is the network interface card status page print menu. See page 1-48. The following example explains how to activate TCP/IP protocol to connect the printer in the network.
Page 61: Subnet Mask
Using the Operator Panel Press the > key. Each time the key is pressed, the item changes as shown below. >>DHCP >>IP Address 000.000.000.000 >>Subnet Mask 000.000.000.000 >>Gateway 000.000.000.000 Display the item to be set and press the ENTER key. For DHCP , a question mark (?) appears.
Page 62 Using the Operator Panel Printing a Network Card Interface Status Page To use this function, the network interface card must be installed on the printer. The FS-1800N/FS-3800N come standard with a network interface card installed. Option You can have your printer print out a status page for the network interface card each time the printer is turned on.
Page 63 Using the Operator Panel Press the > key and then press the key repeatedly until the message display indicates >Opt. StatusPage. >Opt. StatusPage The default setting is On. If it is set to Off, change it as follows. Press the ENTER key. A blinking question mark (?) appears. ENTER >Opt.
Page 64: Changing The Emulation
Using the Operator Panel Changing the Emulation The emulation mode for the current interface can be changed. Emulation > PCL 6 Press the MENU key. MENU Press the key repeatedly until Emulation appears. One of the emulation names shown below appears, indicating the current emulation.
Page 65 Using the Operator Panel KPDL (AUTO) Emulation KPDL is the Kyocera Mita's implementation of the PostScript language. The KPDL (AUTO) emulation enables the printer to automatically change the emulation mode according to the data received when printing. In addition to KPDL (AUTO) emulation, you can use the operator panel to set another emulation mode that is used very often.
Page 66 Using the Operator Panel Press the ENTER key. A blinking question mark (?) appears. >Alt. Emulation ENTER ?PCL 6 Press the key repeatedly until the desired alternative emulation appears. If you want to abandon the setting procedure, press the CANCEL key.
Page 67 Using the Operator Panel Select KPDL or KPDL (AUTO) using the key. Emulation ?KPDL If you want to abandon the setting procedure, press the CANCEL key. Press the ENTER key. ENTER Press the > key. The message display changes to that shown below. If >Alt.
Page 68: Setting The Default Font
Using the Operator Panel Setting the Default Font You can select the default font for the current interface. In addition to the Font > internal fonts, all fonts that are downloaded to the printer memory, or fonts Internal stored on a CompactFlash card, Microdrive, or option ROM, can be selected as the default font.
Page 69 Using the Operator Panel Press the ENTER key. A blinking question mark (?) appears. >?I000 ENTER Press the key repeatedly until the desired font number appears. For font numbers of the internal fonts, see List of Fonts page A-2. If you want to abandon the selection, press the CANCEL key. When the desired font is displayed, press the ENTER key.
Page 70 Using the Operator Panel Changing Type for Courier/Letter Gothic >Courier Courier or Letter Gothic font type can be selected as Regular or Dark. For example, to change the type of Courier, proceed as follows: Press the MENU key. MENU Press the key repeatedly until Font >...
Page 71 Using the Operator Panel Changing the Font Size >Size You can change the size of the default font. If the default font is a fixed font such as Courier or Letter Gothic, the character pitch can be changed instead of the font size. Press the MENU key.
Page 72 Using the Operator Panel Setting the Character Pitch for Courier/Letter Gothic >Pitch You can set the character pitch for fixed fonts when the default font is Courier or Letter Gothic. Press the MENU key. MENU Press the key repeatedly until Font > appears. Font >...
Page 73: List Of Fonts
Using the Operator Panel Printing a List of Fonts >List of Fonts To help in selecting fonts, you can print a list of the fonts including option fonts. Press the MENU key. MENU Press the key repeatedly until Font > appears. Font >...
Page 74 Using the Operator Panel List of Fonts 1-60...
Page 75: Using Page Set Menus
Using the Operator Panel Using Page Set Menus In Page Set menus, you can set the number of copies, the page Page Set > orientation, and other settings regarding pagination. Setting the Number of Copies >Copies You can set the number of copies to be printed of each page for the current interface.
Page 76 Using the Operator Panel Press the key to increase or decrease the value of the figure where the cursor is blinking. It can be set between 1 and 999. You can use the > and < keys to move the right and left. If you want to abandon the setting procedure, press the CANCEL key.
Page 77 Using the Operator Panel Selecting the Printing Orientation >Orientation You can select the portrait (upright) or landscape (sideways) page orientation. The page orientation can be set whenever the message display indicates Ready. Paper feed direction Portrait Landscape Press the MENU key. MENU Press the key repeatedly until Page Set >...
Page 78 Using the Operator Panel Select Portrait or Landscape using the key. If you want to abandon the setting procedure, press the CANCEL key. Press the ENTER key. ENTER Press the MENU key. The message display returns to Ready. MENU 1-64...
Page 79: Page Protect
Using the Operator Panel Page Protect Mode >Page Protect Although Auto is the default setting and this menu does not usually appear, Page Protect will be forcibly set to On if a Print overrun Press GO error occurs due to insufficient printer memory. Be sure to return this setting to Auto in order to maintain high printer memory efficiency.
Page 80 Using the Operator Panel Press the key repeatedly until Auto appears. >Page Protect ? Auto If you want to abandon the setting procedure, press the CANCEL key. Press the ENTER key. ENTER Press the MENU key. The message display returns to Ready. MENU 1-66...
Page 81 Using the Operator Panel Linefeed (LF) Action >LF Action This procedure instructs the printer what to do when it receives a linefeed code (character code 0AH). Press the MENU key. MENU Press the key repeatedly until Page set > appears. Page set >...
Page 82 Using the Operator Panel Carriage-Return (CR) Action >CR Action This procedure instructs the printer what to do when it receives a carriage- return code (character code 0DH) Press the MENU key. MENU Press the key repeatedly until Page set > appears. Page set >...
Page 83 Using the Operator Panel Wide A4 >Wide A4 Turn this to On to increase the maximum number of characters that can be printed in a line for A4 page (78 characters at 10 pitch) and Letter size page (80 characters at 10 pitch). This setting is effective in only PCL 6 emulation.
Page 84: Setting The Print Quality
Using the Operator Panel Setting the Print Quality You can make the following settings to enhance the print quality: Kyocera Print Quality > Image Refinement (KIR), a software algorithm for increasing printout quality; Ecoprint, a printing mode that reduces toner consumption during printing;...
Page 85: Print Quality
Using the Operator Panel Press the key repeatedly until Print Quality > appears. Print Quality > Press the > key. Press the key repeatedly until >KIR Mode appears. >KIR Mode Press the ENTER key. A blinking question mark (?) appears. >KIR Mode ENTER ? On...
Page 86: Ecoprint Mode
Using the Operator Panel Ecoprint >Ecoprint Mode The Ecoprint enables you to reduce the amount of toner consumed on the page so as to save your printing costs. You can set to Ecoprint mode on, as follows. (The factory default setting is Off. ) The Ecoprint mode setting is On when the printing image becomes lighter, yet very readable.
Page 87 Using the Operator Panel Press the ENTER key. A blinking question mark (?) appears. >Ecoprint Mode ENTER ? Off Select On or Off using the key. If you want to abandon the setting procedure, press the CANCEL key. Press the ENTER key. ENTER Press the MENU key.
Page 88 Using the Operator Panel Resolution >Resolution You can set the default print resolution in four ways — 300 dpi, 600 dpi, Fast 1200 mode, and Fine 1200 mode. The clarity of printed characters and graphics becomes sharper in this order. Fine 1200 mode renders optimum print quality but requires more printer memory and increase the time it takes up to print a job.
Page 89: Print Density
Using the Operator Panel Adjusting the Print Density >Print Density The print density can be adjusted in five steps: from 01 (light) to 05 (dark). The factory setting is 03. Press the MENU key. MENU Press the key repeatedly until Print Quality > appears. Print Quality >...
Page 90: Operating A Compactflash (Memory) Card
Using the Operator Panel Operating a CompactFlash (Memory) Card The printer is equipped with a slot for a CompactFlash card. By inserting a Memory Card > CompactFlash card into the printer, the following operations become available. For details about the handling of the CompactFlash card, see Appendix •...
Page 91: Memory Card
Using the Operator Panel Press the ENTER key. Processing appears and the reading of fonts from the CompactFlash card starts. ENTER If you want to abandon the reading of fonts, press the CANCEL key. When the reading of fonts ends, the message display returns to >Read fonts.
Page 92 Using the Operator Panel Press the key to display the desired data name. If you want to abandon the reading of data, press the CANCEL key. Press the ENTER key. Processing appears and the reading of data from the CompactFlash card starts. ENTER Writing Data Data can be written to a CompactFlash card until no space is left for...
Page 93 Using the Operator Panel Press the ENTER key. A question mark (?) appears. >Write Data ? ENTER Press the ENTER key. Processing appears, then Waiting. If you want to abandon writing, press the CANCEL key. ENTER In this state, send the file from the computer to the printer as in the example below.
Page 94: Deleting Data
Using the Operator Panel Check that the message display has changed to Waiting, then press the GO key. This writes the file to the memory card and instructs the printer to automatically print out a CompactFlash card write information page as shown below. Partition Type.
Page 95 Using the Operator Panel Press the key repeatedly until Memory Card > appears. Memory Card > Press the > key. Press the key repeatedly until > Delete Data appears. The data name also appears. >Delete Data data name Press the ENTER key. A blinking question mark (?) appears before the data name.
Page 96 Using the Operator Panel Formatting Formatting allows data to be written to the card. A new CompactFlash card must be formatted before it can be used in the printer. Formatting destroys any existing data on the CompactFlash card. Note To format a CompactFlash card, proceed as follows. Press the MENU key.
Page 97 Using the Operator Panel When the formatting is successfully completed, the printer automatically prints out a format information page as shown below. Capacity. The total size of the CompactFlash card memory. Used Space. The size the printer uses for its system. Free Space.
Page 98 Using the Operator Panel Press the ENTER key. A question mark (?) appears. >List of Partitions ? If you want to abandon the printing of the list, press the CANCEL key. Press the ENTER key. Processing appears and the printing of the list starts.
Page 99: Operating The Microdrive (Hard Disk)
Using the Operator Panel Operating the Microdrive (Hard Disk) By installing the option Microdrive into the printer, the e-MPS function can Hard Disk > be used. The printer's menu selection system allows you to perform the following operations on the Microdrive. For details, see 3.4 e-MPS Printer Driver Guide).
Page 100: Setting The Ram Disk
Using the Operator Panel Setting the RAM Disk The RAM disk is a memory space shared within the printer memory that RAM Disk Mode > can temporarily store print jobs. The RAM disk can be used only for electronic sorting. The stored print job can then be used to print multiple copies of the job reducing the total amount of period required to print the whole job.
Page 101: Ram Disk Mode
Using the Operator Panel Press the MENU key. MENU Press the key repeatedly until RAM Disk Mode > appears. RAM Disk Mode > The default setting is Off. Press the ENTER key. A blinking question mark (?) appears. Select On using the key, and then press the ENTER key.
Page 102: Paper Handling
Using the Operator Panel Paper Handling You can change the MP tray mode, the paper size and type for each paper Paper Handling > source, the sorter mode, the paper source, and paper destinations. MP Tray Mode >MP Tray Mode The MP tray can be used in one of two modes: first mode or cassette mode.
Page 103 Using the Operator Panel Press the ENTER key. A blinking question mark (?) appears. >MP Tray Mode ENTER ? First Select First or Cassette using the key . If you want to abandon the setting procedure, press the CANCEL key. Press the ENTER key.
Page 104 Using the Operator Panel Setting the MP Tray Size >MP Tray Size When using the MP tray in the cassette mode, you should set the MP tray size to the paper size that is used to format the job to print. If they do not match, printing will not be made on the correct size paper when automatic paper size selection is made by the application (printer driver).
Page 105 Using the Operator Panel Press the key to display the desired MP tray size. The display changes as shown below. Executive Letter Legal Custom Hagaki Oufukuhagaki Monarch Business Comm. #9 Comm. #6 3/4 ISO B5 If you want to abandon the selection, press the CANCEL key. Press the ENTER key.
Page 106 Using the Operator Panel Setting the MP Tray Type >MP Tray Type You can automatically select the paper cassette according to the selection made by the application (printer driver). The factory default setting is Plain. For more details about the paper types that can be fed from the MP tray, Chapter Press the MENU key.
Page 107 Using the Operator Panel Press the key to display the desired MP tray type. The display changes as shown below. Plain Transparency Preprinted Labels Bond Recycled Vellum Rough Letterhead Color Prepunched Envelope Cardstock Custom (1 to 8) If you want to abandon the selection, press the CANCEL key. When the desired MP tray type is displayed, press the ENTER key.
Page 108 Using the Operator Panel Custom Paper Size Setting >Cassette Size > In addition to the standard sizes A5, A4, B5, and Letter for the paper cassette, paper of other sizes can be fed as custom sizes. When placing paper of sizes other than A5, A4, B5, or Letter into the paper cassette, set the size of the paper to be used into the printer by following the procedure given below.
Page 109 Using the Operator Panel Press the key repeatedly until >Cassette Size > appears. If option paper feeders are added, Cassette 1 Size will appear for the standard paper cassette and Cassette 2 Size, Cassette 3 Size, and Cassette 4 Size will appear for the option paper feeders.
Page 110 Using the Operator Panel Press the ENTER key. A blinking cursor ( ) appears. >>X Dimension ENTER 216 mm Press the key to increase or decrease the value of the figure where the cursor is blinking and display the desired width. The width can be set between 148 and 216 mm (5.83 to 8.5 inches).
Page 111 Using the Operator Panel Setting the Cassette Paper Type >Cassette Type Make this setting to match the paper type fed from the paper cassette of the printer. If the paper type is set correctly, you can perform printing using the media type selection function from the application (printer driver).
Page 112 Using the Operator Panel Press the key to display the desired cassette type. The display changes as shown below. Plain Preprinted Bond Recycled Rough Letterhead Color Prepunched Custom(1 to 8) If you want to abandon the selection, press the CANCEL key. When the desired cassette type is displayed, press the ENTER key.
Page 113 Using the Operator Panel Selecting the Paper Source >Feed Select > You can select from which paper source printing will be performed. If no option units are installed, the only selections are the paper cassette and MP tray of the printer. If option paper feeders are installed, they can also be selected.
Page 114 Using the Operator Panel Press the key to display the desired paper source. The display changes as shown below according to the installed option units. MP tray Cassette (Printer's standard paper cassette when option paper Cassette 1 feeders are installed) (Paper cassette of the top option paper feeder) Cassette 2 (Paper cassette of the second option paper feeder)
Page 115: Setting Duplex Printing
Using the Operator Panel Setting Duplex Printing To use this function, the duplexer must be installed on the printer. Option Using the option duplexer (DU-60), you can automatically print on both >Duplex Mode > sides of the paper. The duplexer is mounted underneath the printer. For details about the installation procedure, see Appendix D and the...
Page 116: Duplex Mode
Using the Operator Panel Press the key repeatedly until Paper Handling > appears. Paper Handling > Press the > key. Press the key repeatedly until >Duplex Mode > appears. >Duplex Mode > None Press the ENTER key. A blinking question mark (?) appears. >Duplex Mode >...
Page 117: Stack Select
Using the Operator Panel Selecting the Output Device >Stack Select You can select whether printouts will be received by the face-down output tray or to the face-up output tray. If an option sorter is installed, it can also be selected. Press the MENU key.
Page 118 Using the Operator Panel Selecting the Sorter Mode To use this function, the sorter must be installed on the printer. Option If an option sorter (SO-60) is installed, you can have your printouts >Opt.StackerMode automatically sorted in three different ways when printing multiple copies of a document.
Page 119 Using the Operator Panel Press the ENTER key. A blinking question mark (?) appears. >Opt.StackerMode ENTER ? Sorter Press the key to display the desired sorter mode. The display changes as shown below. Sorter (default) Collater Mail box When the desired sorter mode displayed, press the ENTER key. ENTER Press the MENU key.
Page 120 Using the Operator Panel Overriding A4 and Letter Size Difference >Override A4/LT This selects whether to enable or disable the difference between A4 size and Letter size. Under the default setting of Off, the paper size of the paper source is matched to the paper size formatting the jobs. If these differ, a corresponding error message is displayed.
Page 121: Type Adjust
Using the Operator Panel Customizing Paper Type >Type Adjust > The following describes the procedure used to set a user-defined paper type for the printer. Eight custom user settings may be registered. After having been set, any of these may be called up when setting the paper type for a paper source.
Page 122 Using the Operator Panel Press the key to display the desired paper type. The display changes as shown below. Custom (1 to 8) Plain Transparency Preprinted Labels Bond Recycled Vellum Rough Letterhead Color Prepunched Envelope Cardstock When the paper type to be customized is displayed, press the ENTER key.
Page 123: Paper Weight
Using the Operator Panel Setting the Paper Weight >>Paper Weight You can set the paper thickness for your custom paper type to be customized. Display the custom paper type (see Customizing Paper Type page 1-107) and press the > key. Press the key repeatedly until >>Paper Weight appears.
Page 124 Using the Operator Panel Setting the Duplex Path To use this function, the duplexer must be installed on the printer. Option If the paper type is set to Custom and the option duplexer is installed on the printer, you can set whether or not to enable duplex printing as follows. The default setting is Enable.
Page 125 Using the Operator Panel Resetting the Type Adjust >Reset Type Customizing Paper Resets the settings of Custom 1 to 8 that are set in Adjust Type on page 1-107. Press the MENU key. MENU Press the key repeatedly until Paper handling > appears.
Page 126: Verifying The Total Printed Pages And Resetting The Toner Counter
Using the Operator Panel Verifying the Total Printed Pages and Resetting the Toner Counter You can display the total number of pages printed by your printer for Life Counters > confirmation whenever necessary. The total number of printed pages can also be checked on the status page.
Page 127 Using the Operator Panel Resetting the Remaining Toner Counter If the toner container was replaced when Replace toner Clean Printer was not displayed, reset the toner counter as follows so that an accurate toner gauge measurement is indicated on the status page. Note that if this operation is performed when the toner cartridge is not replaced, the toner gauge measurement will not be indicated correctly.
Page 128: Other Modes
Using the Operator Panel Other Modes The modes described in the following pages can be accessed in the Others Others > submenu. To enter the Others submenu, press the > key while Others > is displayed. The following submenus can be displayed by pressing the > key and then key.
Page 129 Using the Operator Panel Message Language Selecting >MSG Language You can select the language of the messages on the message display by following the procedure given below. Press the MENU key. MENU Press the key repeatedly until Others > appears. Others >...
Page 130 Using the Operator Panel Press the key. The display cycles through the available selections in the following order (The key cycles in the reverse order): >MSG Language ? English >Berichttaal ? Nederlands >Lingua ? Italiano >Anzeigesprache ? Deutsch >Langue ? Francais If you want to abandon the setting procedure, press the CANCEL key.
Page 131: Form Feed
Using the Operator Panel Automatic Form Feed Timeout Setting >Form Feed When the printer receives no data for a certain time, it time out and Time Out releases the current interface: it prints whatever data it has in its buffer and feeds out the page.
Page 132: Sleep Timer
Using the Operator Panel Sleep Timer Setting >Sleep Timer > The printer has a sleep timer to conserve power when the printer is not printing, processing, or receiving data. You can adjust the timer value, the length of time the printer waits before entering sleeping mode in the absence of data.
Page 133: Sleep Mode On
Using the Operator Panel Turning Off the Sleep Timer You can turn off the sleep timer function by following the procedure given below. Press the MENU key. MENU Press the key repeatedly until Others > appears. Others > Press the > key. Press the key repeatedly until >Sleep Timer >...
Page 134: Sleep Mode
Using the Operator Panel Select Off using the key. >>Sleep Mode ? Off If you want to abandon the setting procedure, press the CANCEL key. Press the ENTER key. ENTER Press the MENU key. The message display returns to Ready. MENU 1-120...
Page 135 Using the Operator Panel Received Data Dumping >Print HEX-DUMP It is possible to print data received by the printer as hexadecimal code for the purposes of debugging programs and files. Press the MENU key. MENU Press the key repeatedly until Others > appears. Others >...
Page 136 Using the Operator Panel Press the ENTER key again. Processing appears for a second, and then Waiting appears. ENTER >Processing >Waiting Send data to be dumped to the printer. The message Processing will be displayed during receiving the data. Once the dumped data you require has been output, it is possible to cancel the printing of any further dumped data by taking the printer offline by pressing the GO key and then pressing the CANCEL key.
Page 137: Printer Reset
Using the Operator Panel Printer Resetting >Printer Reset The procedure described below resets the printer's temporary conditions, such as the current unit of measurement, page orientation, font, character code set, margins, etc., set by commands to their default values. Press the MENU key. MENU Press the key repeatedly until Others >...
Page 138 Using the Operator Panel Resource Protection >Resouce Prot. When you switch from the PCL 6 emulation to another, all downloaded fonts and macros are lost. Resource protection preserves these PCL resources in memory so that they are intact when you change the emulation back to PCL 6.
Page 139 Using the Operator Panel Press the key to display the desired mode. The display changes as shown below. Off (default) Permanent Perm / Temp When the desired mode is displayed, press the ENTER key. ENTER Press the MENU key. The message display returns to Ready. MENU 1-125...
Page 140 Using the Operator Panel Alarm (Buzzer) Setting >Buzzer In addition to the message displayed when the paper supply is exhausted, or when paper jamming occurs, an audio warning is made to sound. This is useful, for example, when the printer is in a location some distance from the user.
Page 141: Auto Continue
Using the Operator Panel Auto Continue Setting >Auto Continue > If an error that still allows you to continue printing occurs (Memory Mode overflow Press GO, Print overrun Press GO, KPDL error Press GO, and File not found Press GO), the next received data is automatically printed after a set period of time elapses.
Page 142 Using the Operator Panel Setting the Auto Continue Recovery Time Follow the procedure given below to change the recovery time for Auto Continue. Press the MENU key. MENU Press the key repeatedly until Others > appears. Others > Press the > key. Press the key repeatedly until Auto Continue Mode >...
Page 143 Using the Operator Panel Press the key to increase or decrease the value of the figure where the cursor is blinking and set the desired time. The time must be set between 000 and 495 seconds, in 5-second increments. If set to 000, printing will be continued immediately without allowing any time interval.
Page 144 Using the Operator Panel Service Menu >Service > The service menu contains maintenance operations to be performed by service personnel. The Print Status Page, Toner ID, Developer, and Drum menus appear; however, in general, you will only need to use the Print Status Page and Toner ID menus.
Page 145: Status Page
Using the Operator Panel Press the ENTER key. A question mark (?) appears. >>Print ENTER Status Page ? Press the ENTER key. The message display indicates Processing and printing starts. ENTER Press the MENU key. The message display returns to Ready. MENU 1-131...
Page 146 Using the Operator Panel Setting the Toner ID >>Toner ID If the type of the toner kit (TK-60 [20,000 pages] or TK-60E [10,000 pages]) was changed, set the toner ID as follows so that on accurate toner gauge measurement is indicated on the status page. The default setting is CA (TK-60).
Page 147 Using the Operator Panel Press the ENTER key. ENTER Press the key and display CA for the TK-60 or BA for the TK- 60E in place of ##. The factory default setting is CA (TK-60). >>Toner ID Press the ENTER key. ENTER Press the MENU key.
Page 148: Chapter 2 Maintenance
Maintenance Chapter 2 This chapter explains how to replace the toner container and how to clean parts such as the registration roller and charger wire. This chapter explains the following topics: • Toner Container Replacement • Waste Toner Bottle Replacement •...
Page 149: Toner Container Replacement
Be sure to clean the inside of the printer when replacing the toner container. For details, see section 2.3 Cleaning on page 2-9. • Use of original Kyocera Mita toner kits is highly recommended to prevent printer trouble and ensure the long life of the printer.
Page 150: Replenishing Toner
Toner Container Replacement 2.1.2 Replenishing Toner Open the printer top cover all the way. Top Cover Pull the lock lever (green colored) to the right and gently lift the old toner container. Lock Lever Keep the toner container as level as possible while removing. Note Put the old toner container in the plastic bag supplied with the toner kit and dispose of it.
Page 151 Toner Container Replacement Take the new toner container from the bag. With the label side down, thoroughly shake the toner container (in the direction of the arrows) ten times or more. This ensures that the toner is evenly distributed inside. New Toner Container 10 times or more...
Page 152 Toner Container Replacement Push firmly on the top of the toner container at the positions marked PUSH HERE. When the toner container fits into place, it will lock with a clicking sound. Close the top cover. It is necessary to clean the inside of the printer after replacing the toner container.
Page 153: Waste Toner Bottle Replacement
Waste Toner Bottle Replacement Waste Toner Bottle Replacement 2.2.1 Replacing the Waste Toner Bottle When replacing the toner container, the used waste toner bottle in the printer should also be replaced with the new one from the new toner kit. Note Open the side cover on the left side of the printer.
Page 154 Waste Toner Bottle Replacement Cap the waste toner bottle after removing from the printer. Old Waste Toner Bottle To avoid toner spilling, place the capped waste toner bottle in the plastic bag supplied before proper disposal. Plastic Bag Open the cap of the new waste toner bottle. New Waste Toner Bottle...
Page 155 Waste Toner Bottle Replacement Insert the new waste toner bottle as shown in the figure below. The bottle will be locked when it fits into place. New Waste Toner Bottle Ensure that it is correctly inserted and close the side cover. The printer parts must be cleaned when replacing the toner 2.3 Cleaning on page 2-9.
Page 156: Cleaning
Cleaning Cleaning To avoid print quality problems, the following printer parts must be cleaned with every toner container replacement. In addition, the charger wire and paper feed unit should be cleaned from time to time, or whenever print quality problems occur. If the toner container was replaced when Replace toner Clean printer was displayed, Clean printer Press GO will appear after replacement.
Page 157: Cleaning The Charger Grid
Cleaning 2.3.2 Cleaning the Charger Grid The charger grid is a part located at the bottom of the charger unit, which also needs to be cleaned. You should use a grid cleaner attaching it to the printer and pull out the charger unit as instructed below. Take the grid cleaner from protective bag in the new toner kit, and remove the cap.
Page 158 Cleaning Slowly pull out and then push back in the charger unit at least 5 times. It is easier to pull out the charger unit for the first time if it is raised slightly, as shown in the figure. This cleans grid part underneath the charger unit. Charger Unit Remove the grid cleaner from the printer and dispose of it.
Page 159: Paper Feed Unit
Cleaning After cleaning the charger wire and grid, push the charger unit all the way in and close the side cover. 2.3.3 Paper Feed Unit To avoid print quality problems due to paper dust and debris, clean the paper feed unit in the following manner. While pulling the paper feed unit release lever, pull out the paper feed unit.
Page 160 Cleaning Wipe away the paper dust on the registration roller and the paper ramp using the wiper cloth included in the toner kit. Transfer Roller [Black] Note below. Wiper Cloth Paper Ramp Registration Roller [Metal] Paper Feed Unit Be careful not to touch the transfer roller (the black roller) during cleaning as this may adversely affect print quality.
Page 161: Chapter 3 Troubleshooting
Troubleshooting Chapter 3 This chapter explains how to handle printer problems that may occur. If a problem cannot be corrected, contact your Kyocera Mita dealer. This chapter explains the following topics: • General Guide • Print Quality Problems • Indicators and Messages •...
Page 162: General Guide
General Guide General Guide There are quite a few printer problems that you can deal with by yourself. This section explains how to correct these problems. Therefore, if some kind of problem should occur, check the following before concluding the printer is broken. Symptom Check Items Corrective Action...
Page 163: Print Quality Problems
As the following table shows, there are many possible causes of print quality problems, such as blank output as. The troubleshooting procedure for each type of problem is explained below. If you still can not solve the problem, contact your Kyocera Mita dealer. Printed Results Corrective Action Check the developer unit.
Page 164 Print Quality Problems Printed Results Corrective Action Black or white vertical streaks Check the operator panel. If the Toner low TK-60 message is displayed and the ATTENTION indicator is flashing, install a new toner kit. 2.1 Toner Container Replacement on page 2-2. Clean the charger wire.
Page 165 Print Quality Problems Printed Results Corrective Action Dirt on the top edge or back of the paper Check the paper chute and the ramp. Pull out the paper feed unit and check for toner on the paper ramp. Clean the paper ramp using a soft, dry, lint- 2.3 Cleaning on page 2-9.
Page 166: Indicators And Messages
Indicators and Messages Indicators and Messages The tables on the following pages indicate how to respond to problems indicated by the operator panel indicators and messages. 3.3.1 Indicators Indicator Name Condition Description Flashing An error occurs that you can clear by yourself. The printer is on-line.
Page 167: Maintenance Messages
3.3.2 Maintenance Messages The following table lists maintenance messages that you can deal with by yourself. If Call service person appears, turn off the printer, disconnect the power cord, and contact your Kyocera Mita dealer. Message Corrective Action Add paper (paper source) The paper has run out.
Page 168 Indicators and Messages Message Corrective Action There is data for printing that matches with a paper cassette setting (paper size, Load Cassette # (paper size)/(paper type)* paper type), but there is no paper in the paper cassette. Set paper into the paper source as displayed on the operator panel, and press the GO key to restart printing.
Page 169 Indicators and Messages Message Corrective Action Replace the toner container using a new toner kit. See 2.1 Toner Container Toner low Replacement on page 2-2. TK-60 Open the top cover, then close tightly. Top cover open Printing job cannot be done in current resolution because there is not enough Warning Appendix internal memory.
Page 170: Error Messages
Indicators and Messages 3.3.3 Error Messages The following table lists error messages that can be dealt with by the user. Message Corrective Action VMB: A VMB tray that was specified for output does not contain any jobs, or the VMB File not found tray is not being used.
Page 171 Indicators and Messages Message Corrective Action The CompactFlash card is accidentally removed from the printer's memory card slot Memory card err during reading. If you continue reading the memory card, insert the same memory Insert again card into the slot again. The printer again reads it from the beginning of the data. Note: We recommend that you follow the reading procedure from the beginning to ensure correct reading of the memory card.
Page 172: Correcting A Paper Jam
Correcting a Paper Jam Correcting a Paper Jam The Paper jam message is displayed on the message display when paper becomes stuck in the paper transport system, the paper feed timing is incorrect, or paper fails to feed at all. The jam can be corrected by removing the paper.
Page 173 Correcting a Paper Jam When the jammed paper has been removed, open and close the printer's top cover or the paper feed unit. Then the printer automatically warms up, goes on-line, and continues printing. Depending on the point at which the jam occurred, the printer may or may not print the jammed page.
Page 174: Jam At The Paper Cassette Or Inside The Printer
Correcting a Paper Jam 3.4.1 Jam at the Paper Cassette or Inside the Printer Paper is jammed at the paper cassette or inside the printer. Remove the Paper jam jammed paper using the procedure given below. Cassette 1 While the display alternates between the paper jam message and HELP START, press the key.
Page 175 Correcting a Paper Jam If paper is jammed before the registration roller, remove it as shown in A. If paper is jammed under the registration roller, remove it as shown in B. Registration Registration Roller Roller Open the rear cover and remove the jammed paper. Also, remove the paper jam Rear Cover...
Page 176: Paper Jam At The Option Duplexer
Correcting a Paper Jam 3.4.2 Paper Jam at the Option Duplexer Paper is jammed inside the rear cover of the option duplexer or at the Paper jam duplexer drawer. Remove the jammed paper using the procedure given Duplexer below. While the display alternates between the paper jam message and HELP START, press the key.
Page 177 Correcting a Paper Jam Remove the jammed paper. and remove the paper jam. Close the rear cover of the duplexer and the duplex drawer. Close rear cover duplex drawer. - HELP END -- Press 3-17...
Page 178: Paper Jam At The Option Sorter
Correcting a Paper Jam 3.4.3 Paper Jam at the Option Sorter Paper is jammed at the option sorter. Remove the jammed paper using the Paper jam procedure given below. Option Stacker While the display alternates between the paper jam message and HELP START, press the key.
Page 179 Correcting a Paper Jam Close the rear cover of the option sorter. Close rear cover. - HELP END -- Press 3-19...
Page 180: Jam At The Mp Tray
Correcting a Paper Jam 3.4.4 Jam at the MP Tray Paper is jammed at the MP tray. Remove the jammed paper using the Paper jam procedure given below. MP tray While the display alternates between the paper jam message and HELP START, press the key.
Page 181: Chapter 4 Paper Selection
Paper Selection Chapter 4 This chapter explains the following topics: • General Guidelines • Special Paper • Paper Type...
Page 182: General Guidelines
General Guidelines General Guidelines The printer is designed to print on high-quality copier bond paper (the kind used in ordinary dry copier machines), but it can also accept a variety of other types of paper within the limits specified below. The manufacturer assumes no liability for problems that occur when paper not satisfying these requirements is used.
Page 183: Selecting The Right Paper
General Guidelines 4.1.3 Selecting the Right Paper Laser printing is a process involving laser light, electrostatic discharge, toner, and heat. In addition, as the paper passes through the printer it undergoes considerable sliding, bending, and twisting motions. A high- quality printing paper matching the printer's requirements withstands all these stresses, enabling the printer to turn out clean, crisp printed copies consistently.
Page 184: Paper Size
General Guidelines Paper Size Cassettes and an MP tray are available for the paper sizes listed in the table below. The dimensional tolerances are ±0.7 mm (±0.0276 inches) for the length and width. The angle at the corners must be 90° ±0.2°. Multi-purpose tray Size Cassette or multi-...
Page 185: Moisture Content
General Guidelines Thickness (Caliper) Thick paper is referred to as high-caliper paper and thin paper as low- caliper paper. The paper used with the printer should be neither extremely thick nor extremely thin. If you are having problems with paper jams, multiple feeds, and faint printing, the paper you are using may be too thin.
Page 186 General Guidelines Other Paper Properties Porosity: Refers to the density of the paper structure; that is, how openly or compactly the fibers are bonded. Stiffness: Limp paper can buckle inside the printer, while paper that is too stiff may bind. Either way the result is a paper jam. Curl: Most paper has a natural tendency to curl in one direction.
Page 187: Special Paper
Special Paper Special Paper This section explains printing on special paper. The page printer can use the following types of special paper. In this case, set the media type according to the table below. Paper type Media type Colored paper Color Preprinted paper Preprinted...
Page 188: Adhesive-Backed Labels
Special Paper 4.2.2 Adhesive-Backed Labels The basic rule for printing on adhesive labels is that the adhesive must never come into contact with any part of the printer. Adhesive paper sticking to the drum or rollers will damage the printer. Label paper must be manually fed.
Page 189: Colored Paper
Special Paper The table below lists the specifications for adhesive label paper. Item Specification Weight of top sheet 44 to 74 g/m (12 to 20 lb/ream) Composite weight 104 to 151 g/m (28 to 40 lb/ream) Thickness of top sheet 0.086 to 0.107 mm (3.9 to 4.2 mils) Composite thickness 0.115 to 0.145 mm (4.5 to 5.7 mils)
Page 190 Special Paper Recycled Paper Select recycled paper that meets the same specifications as the white bond paper (see 4.1.2 Paper Specifications on page 4-2) except whiteness. Before purchasing recycled paper, test a sample on the printer and check that the print quality is satisfactory. Note 4-10...
Page 191: Paper Type
Paper Type Paper Type The printer is capable of printing under the optimum setting for the type of paper being used. Setting the paper type for the paper source from the printer's operator panel will cause the printer to automatically select the paper source and print in the mode best suited to that type of paper.
Page 192: Appendix A Fonts
Fonts Appendix A This appendix explains the types of fonts you can use with the printer. A font is a set of characters of a particular design. The design is referred to as a typeface. Several characteristics identify a font. These include the code set (For details on the code sets, read Programming Manual on the supplied CD-ROM), spacing, pitch, height, style, stroke weight, and typeface family.
Page 193 List of Fonts This section contains a full list of the printer's internal fonts. The printer has 80 PCL/PS compatible fonts and a bitmap font for a line printer. You can print the same font list from the printer by using the printer's operator panel key.
Page 194 Font number Font samples...
Page 195 Font number Font samples...
Page 196 KPDL Fonts (1)
Page 197 KPDL Fonts (2)
Page 198: Appendix B Expansion Memory
Expansion Memory Appendix B This appendix explains how to expand the printer's memory. Expanded printer memory enables you to print more complex pages, download more fonts, and define more macros.
Page 199: Expanding The Printer Memory
264 MB, and that in the FS-3800/FS-3800N can be increased to a maximum of 272 MB. The expansion memory should be installed only by a Kyocera Mita authorized dealer or Kyocera Mita certified technician. Kyocera Mita shall...
Page 200 Expanding the Printer Memory Removing the Main Circuit Board The main circuit board of the printer is equipped with two sockets for memory expansion. Expansion memory is available in the form of DIMMs. The following instructions are intended for the technician only. Note Notes on Handling the Main Circuit Board and DIMM Protect the electronics by taking these precautions:...
Page 201 Expanding the Printer Memory Remove the two screws from the printer's rear panel. Screws Pull the main circuit board all the way out of the printer. DIMM Socket Before pulling the main circuit board out, clear away the area, behind the printer.
Page 202: Installing Dimms
Expanding the Printer Memory DIMMs to be used See your Kyocera Mita dealer for purchasing information of the DIMMs that are best suited for use with this printer. 16 MB, 32 MB, 64 MB, and 128 MB DIMMs can be used for memory expansion.
Page 203 Expanding the Printer Memory Removing DIMM To remove a DIMM, carefully pull the end clips outwards, then pull the DIMM out of the socket. Return the main circuit board to the printer by reversing the procedure explained in Removing the Main Circuit Board from the Printer.
Page 204: Appendix C Host Computer Interface
Host Computer Appendix C Interface This appendix explains the signals used in the printer's parallel and RS-232C interfaces. It also lists pin assignments, signal functions, timings, connector specifications, and voltage levels. The RS-232C protocols are also covered. Finally, it explains how to use the printer in a multi-computer environment.
Page 205: Parallel Interface
Parallel Interface C.1 Parallel Interface C.1.1 Parallel Interface Communication Modes The printer features fast data transmission with the parallel interface. The parallel interface mode can be activated from the operator panel. Changing Parallel Interface Modes on page 1-40. Use a parallel printer cable that complies with the IEEE1284 standard. Note Nibble (high) [default] High speed data communication is used in compliance with the IEEE1284...
Page 206 Parallel Interface Parallel Connector Pin Assignment In/out Description Strobe* [nStrobe] In/Out Data 0 [Data 1] In/Out Data 1 [Data 2] In/Out Data 2 [Data 3] In/Out Data 3 [Data 4] In/Out Data 4 [Data 5] In/Out Data 5 [Data 6] In/Out Data 6 [Data 7] In/Out...
Page 207 Parallel Interface Detailed descriptions of the signals follow. Strobe* [nStrobe] (Pin 1) A negative-going Strobe* pulse causes the printer to read and latch the data on the Data 0 [1] to Data 7 [8] signal lines. Data 0 [1] to Data 7 [8] (Pins 2 to 9) These eight signals form the data byte sent from the host computer to the printer.
Page 208: Serial Interface
Serial Interface C.2 Serial Interface C.2.1 Interface Signals The pins of the printer's RS-232C interface connector carry the signals listed in the table below. The table also indicates whether each signal is incoming or outgoing with respect to the printer. RS-232C Signal Pin Assignment In/out Signal...
Page 209 Serial Interface DTR - Data Terminal Ready - (Pin 20) This output is used as a buffer nearly-full handshake line. It is held high (above 3 volts) when the buffer can accept more data. RS-232C Interface Voltage Levels The voltage levels of the interface signals conform to EIA RS-232C specifications.
Page 210: Rs-232C Protocol
RS-232C Protocol C.3 RS-232C Protocol A protocol is a set of rules the computer follows in sending data to the printer. They are indicated on the status page. Parameters can be changed Changing Serial Interface Modes from the operator panel. See on page 1-42.
Page 211 RS-232C Protocol H5: Protocol logic Parameter value Meaning Combination of 1 and 3 below DTR, positive logic DTR, negative logic XON/XOFF ETX/ACK XON/XOFF recognized only as protocol The factory default setting is 0. H6: Buffer nearly-full threshold This is a percentage from 0 to 99. The factory default setting is 90. H7: Buffer nearly-empty threshold This is a percentage from 0 to 99.
Page 212: Rs-232C Cable Connection
RS-232C Cable Connection C.4 RS-232C Cable Connection C.4.1 Preparing an RS-232C Cable After obtaining an RS-232C cable, check that it is wired correctly, referring to the table in RS-232C Signal Pin Assignment on page C-5. If you have an IBM communication adapter cable type 1502067, you will have to resolder the wiring at the printer end of the cable.
Page 213: Setting The Rs-232C Parameters
RS-232C Cable Connection The printer RS-232C parameters are factory-set to the following values: Baud rate=9600 bps, data bits (character length)=8 bits, stop bits=1, parity=none The two RS-232C protocols are XON/XOFF and DTR. The printer performs both of them simultaneously, using positive logic for DTR. If you are uncertain as to the printer's current parameter settings, you can reset them to the values listed above by following the procedure explained in...
Page 214 RS-232C Cable Connection The Properties sheet is displayed for the selected COM port. Click on the Port Settings tab and set the port properties. After setting the properties, click OK button. Enter the following commands: C:\>MODE COM1:96,N,8,1,P C:\>MODE LPT1:=COM1 To test the interface, enter the following: CTRL P C:\>DIR CTRL P...
Page 215: Appendix D Option Units
Option Units Appendix D This appendix explains how to install each option unit. Also refer to the manuals of the respective option units. This appendix explains the following option units: • PF-60 Paper Feeder • DU-60 Duplexer • SO-60 Sorter •...
Page 216: Available Options
Available Options Available Options SO-60 Sorter SO-60 Sorter Equipped with five trays each with 200 sheets capacity. Performs sorting, collating, and mailbox functions. Attaches Face-up to the top of the printer. Output Tray Face-up Output Tray This is a face-up tray. It attaches to the rear of the printer. Network Interface Card Enables printing from multiple computers via a network.
Page 217: Installing Option Units
Installing Option Units Installing Option Units D.2.1 PF-60 Paper Feeder Up to three option paper feeders can be installed below the printer. A paper feeder can hold approximately 500 sheets of paper at a time. By using option paper feeders in conjunction with the printer paper cassette, which can also hold approximately 500 sheets of paper, up to approximately 2,000 sheets of paper can be fed continuously.
Page 218 Installing Option Units Push down the bottom plate until it locks. Set the paper size dial to the size of paper to be used. Adjust the paper guides and paper stopper to the size of paper to be used.
Page 219 Installing Option Units Load paper. • Do not load more paper than will fit under the load limits on the paper guides. Note • The paper cassette will hold approximately 500 sheets of paper with a 80 g/m² (21 lb) basis weight, or with a thickness of 0.11 mm. Load Limit Load Limit Set the stack of paper so that it is under the clips as shown in the...
Page 220: Duplexer
Installing Option Units D.2.2 DU-60 Duplexer Install the option duplexer immediately below the printer. By combining the two binding modes (short edge bind and long edge bind) with the two printing orientations (portrait and landscape), duplex printing is possible in four different methods (see Setting Duplex Printing on page 1-101).
Page 221 Installing Option Units Gently place the printer on top of the duplexer. Connect the printer cable (parallel interface cable, serial interface cable or network interface cable) according to your operation environment. Connect the power cord to the printer.
Page 222 Installing Option Units Pass the connected cable and power cord through the opening in the duplexer. Install the duplexer rear cover.
Page 223: Sorter
Installing Option Units D.2.3 SO-60 Sorter Install the option sorter on top of the printer. It is equipped with five sorter trays, with a capacity of 200 sheets each. There are three modes in which printouts can be received: the sorter mode, the collator mode, and the mail box mode (for details about the modes, refer to the Printer Drivers Guide).
Page 224 Installing Option Units If the duplexer is installed, remove the duplexer rear cover, power cord, and printer cable. Remove the sorter connection cover from the printer. Store the removed cover in a safe place. Sorter Connection Cover Install the sorter by inserting the four hooks on its attachment legs into the notches in the printer.
Page 225 Installing Option Units Push the sorter down. The levers of the attachment legs are in the lock position. When removing the sorter, unlock the attachment legs by releasing the levers as shown in the figure one by one, and then lift the sorter. Connect the sorter cable to the printer.
Page 226 Installing Option Units When disconnecting the sorter cable, hold the grip on the connector as shown in the figure and then pull it out. Grip The sorter is equipped with two power cord sockets. The upper one is to be connected to a power outlet and the lower one is to be connected to the printer.
Page 227 Installing Option Units If the duplexer is installed, secure the power cord to the duplexer. If the duplexer is installed, remove the two cut-out portions from the upper part of the duplexer rear cover removed in step 5. Reinstall the duplexer rear cover. Duplexer Rear Cover D-13...
Page 228 Installing Option Units Install the five sorter trays to the sorter. Sorter Tray Connect the power cord supplied with the printer to the sorter. Do not move or lift the printer with the sorter installed. Warning D-14...
Page 229: Face-Up Output Tray
Installing Option Units D.2.4 Face-up Output Tray Use the face-up output tray when you wish paper to be stacked with the printed side facing up (reverse order), or when you are printing on envelopes, postcards, transparencies, or thick paper. Install the paper stopper according to the size of paper to be used. Legal Size A4 Size Letter Size...
Page 230: Network Interface Card (Models Fs-1800 And Fs-3800
Installing Option Units D.2.5 Network Interface Card (Models FS-1800 and FS-3800) Insert the option network interface card into the option interface slot at the rear of the printer. The network interface card enables the printer to be used in a network. The FS-1800N/FS-3800N have network interface card already installed at the factory.
Page 231 Installing Option Units Connect the network cable. Network Cable Set the network address from the printer operator panel (for details about the modes, see Changing Network Interface Parameters on page 1-45). D-17...
Page 232: Microdrive
Installing Option Units D.2.6 Microdrive Insert the Microdrive into its slot on the main circuit board of the printer. If a Microdrive is installed in the printer, received data can be rasterized and stored on this Microdrive. This enables high-speed printing of multiple copies using an electric sort function.
Page 233 Installing Option Units Install the Microdrive into its slot on the main circuit board. Microdrive Slot Microdrive Return the main circuit board to the printer by reversing the procedure followed when removing it. D-19...
Page 234: Compactflash Card
Installing Option Units D.2.7 CompactFlash Card Insert the CompactFlash card into the card slot located near the handle on the right of the printer. A CompactFlash card is a microchip card that may contain option fonts, macros, forms, etc. The printer reads the contents of the card into its internal memory when printer is turned on.
Page 235: Appendix E Specifications
Specifications Appendix E...
Page 236: Printing Method
Specifications Specifications Description Item FS-1800/FS-1800N FS-3800/FS-3800N Printing method Electrophotography, laser scan Printing speed 16 pages/minute (A4 size) 24 pages/minute (A4 size) 17 pages/minute (Letter size) 25 pages/minute (Letter size) when printing multiple copies of the when printing multiple copies of the same page same page Resolution...
Page 237 Specifications Description Item FS-1800/FS-1800N FS-3800/FS-3800N Ambient conditions Temperature: 10 to 32.5 °C (50 to 90.5 °F) Humidity: 20 to 80 % RH Optimum conditions: 23 °C (73.4 °F), 60 % RH Altitude: Max. 2,000 m (6500 feet) Illumination: Max. 1,500 lux Power requirements 120 V , 60 Hz, max.
Page 238: Glossary
Glossary Glossary-1...
Page 239: Cassette Mode
See your Kyocera Mita dealer to purchase the This is a network management tool that can be DIMM that is best suited for use with this used with the Kyocera Mita FS series. You can printer. view information for printers connected to the network using SNMP commands.
Page 240: Printer Driver
Turn the printer online if you want to print. print data created using application software. The printer driver for either the printer is on the Kyocera Mita Digital Library CD-ROM supplied Online with the printer. Install the printer driver on the computer connected to the printer.
Page 241: Index
Index Index-1...
Page 242 Job retention ix Amorphous silicon drum viii Auto continue 1-127 Automatic manual feeding 1-88 Keys 1-5 KIR 1-17, 1-70 Kyocera Mita Digital Library x, Glossary-2 Cassette size 1-94 Kyocera Mita PrintMonitor x, Glossary-2 Charger unit 2-11 Cleaning 2-9 charger wire 2-9...
Page 243 Index condition 4-3 Side cover 2-6, 2-9 envelope 4-9 Simple Network Management Protocol grain 4-5 (SNMP) ix, Glossary-3 preprinted paper 4-9 Sleep mode viii, 1-2, 1-118, Glossary-3 recycled paper 4-10 Sleep timer 1-2, 1-118 size 4-4 Sorter (SO-60) 1-104, 3-18, D-9 special paper 4-7 Specifications E-1 specifications 4-2...
Page 244 1000EC...
Page 245 Printer Driver Guide Printer Driver Guide Printer Driver Guide Printer Driver Guide FS-1800/N FS-1800/N FS-3800/N FS-3800/N...
Page 246 Notice The information in this manual is subject to change without notification. Additional pages may be inserted in future editions. The user is asked to excuse any technical inaccuracies or typographical errors in the present edition. No responsibility is assumed if accidents occur while the user is following the instructions in this manual. No responsibility is assumed for defects in the printer's firmware (contents of its read-only memory).
Page 247 • Apple Macintosh OS 7 or greater • IBM OS/2 Version 2.0 or greater The manual focuses on using the printer driver on Windows95 and Windows98. The latest Kyocera Mita printer drivers and utilities are readily available at the following web site: http://www.kyocera.com/w2k.
Page 248 Contents Chapter 1 Installing the Printer Driver............. 1-1 Chapter 2 Setting the Defaults ..............2-1 2.1 Adding Optional Devices (Setup)....................2-1 2.1.1 Installing the Paper Feeder (PF-60) ................2-1 2.1.2 Installing the Duplexer (DU-60) ..................2-2 2.1.3 Installing the Sorter (SO-60) ..................2-4 2.1.4 Installing the Microdrive ....................
Page 249: Chapter 1 Installing The Printer Driver
Installing the Printer Driver Chapter 1 Installing the Printer Driver Kyocera Mita Digital Library CD-ROM will automatically starts to play its installation menu which guides you through the installation of the printer driver. To make CD-ROMs play automatically when inserted in the CD-ROM drive, the Auto insert notification for the CD-ROM drive must be activated.
Page 250 Installing the Printer Driver Kyocera Mita FS-3800 driver is the Microsoft's universal printer driver. The available printer features may be restricted. To take the full advantage of the printer features including e-MPS, use the XL printer driver. This driver provides compatibility with the latest level of the HP's command language, PCL6, including the support for the 1200 dpi printing solution.
Page 251: Chapter 2 Setting The Defaults
Check that the option paper feeder (PF-60) is installed on the printer correctly. Browse through Windows Start > Settings > Printers. Right click on the Kyocera Mita FS-1800 or Kyocera Mita FS-3800 icon and then click Properties. The Properties dialog box is displayed.
Page 252: Installing The Duplexer (Du-60)
Check that the option duplexer (DU-60) is installed on the printer correctly. Browse through Windows Start > Settings > Printers. Right click on the Kyocera Mita FS-1800 or Kyocera Mita FS-3800 icon and then click Properties. The Properties dialog box is displayed.
Page 253 Setting the Defaults Click the Setup tab. Click Duplex Unit in the Available Options list box and then the Add button. Duplex Unit appears in the Installed Options list box. Click the OK button.
Page 254: Installing The Sorter (So-60)
Check that the option sorter (SO-60) is installed on the printer correctly. Browse through Windows Start > Settings > Printers. Sorter Right click on the Kyocera Mita FS-1800 or Kyocera Mita FS-3800 icon and then click Properties. The Properties dialog box is displayed.
Page 255: Installing The Microdrive
For details of available Microdrives, see your dealer. Check that the option Microdrive is installed in the printer correctly. Browse through Windows Start > Settings > Printers. Right click on the Kyocera Mita FS-1800 or Kyocera Mita FS-3800 icon and then click Properties. The Properties dialog box is displayed.
Page 256: Chapter 3 Printing Through Application Software
Printing through Application Software Chapter 3 Printing through Application Software This section uses a document created using Microsoft Word as an example of how to print from applications. Setting the Paper Size If there is paper on the MP tray, the printer always prints from the MP tray first.
Page 257 Printing through Application Software Click the Properties button in the Print dialog box. The Properties dialog box is displayed. Click the paper size icon in the Paper Size list box so that it is greyed, then click the OK button. A5 was selected for the following example.
Page 258 Printing through Application Software Once you finish making paper size settings, the Print dialog box is displayed again. Click the OK button to start printing. Settings made from applications are not saved when the application is closed. The default settings are restored when the application is opened the next time.
Page 259: Custom Size Settings
Printing through Application Software 3.1.1 Custom Size Settings The printer can feed non-standard paper sizes. The paper cassette can accommodate sizes ranging from 148 to 216 mm in width and 216 to 297 mm in length. The MP tray can accommodate sizes ranging from 80 to 216 mm in width and 148 to 297 mm in length.
Page 260: Using The Duplexer (Du-60)
Printing through Application Software Enter a name for your custom size and click the Add button. Name settings Add button Units Paper size Select the unit of measurement, Inches or Millimeters. Enter the height and width of the custom size in Size. Click the OK button.
Page 261 Printing through Application Software In Duplex Mode, check the Long Edge Binding or Short Edge Binding radio button. Check None if you want to change to simplex printing. The graphic icon will change to illustrate your selection. Portrait, Portrait, short-edge long-edge Binding Binding...
Page 262: Using The Sorter (So-60)
Printing through Application Software Using the Sorter (SO-60) Browse File > Print. The Print dialog box will be displayed. Click on the Name pull-down list, all the printers installed under Windows are listed. Click the name of the printer you want to use. Select the range of the pages you want to print in the document, All or Current page only in Page range.
Page 263 Printing through Application Software Sorter modes Sorter Mode Description Sort mode The sort mode delivers the output pages by copy as shown in the example. This mode is useful when you Tray 1 need several independent copies of a document. Tray 2 The maximum number of copies is 5.
Page 264: E-Mps
Printing through Application Software e-MPS Job Retention This function allows you to save print jobs to the option Microdrive and print them out as desired at the operator panel. When printing, select a Job Retention mode at the printer driver. The following four modes are available: •...
Page 265: Job Storage
Printing through Application Software Virtual Mail Box Virtual mailbox is the ability to store print jobs in the virtual mailboxes on the Microdrive, enabling you to retrieve and print it later from the printer's operator panel or the option barcode reader (BC-1). You can later print out only the jobs you desire using the operator panel on the printer.
Page 266: Using Job Retention
Printing through Application Software 3.4.1 Using Job Retention Quick Copy This allows you to print as many additional copies as you want until the printer is turned off, it is useful in cases such as when there are sudden increases in the required number of copies during a meeting. To print, proceed as follows.
Page 267 Printing through Application Software Click the Properties button. The Properties dialog box is displayed. Click the Options tab and then checkmark the Job Retention check box. Click the Job tab. Click the Quick Copy radio button. Then checkmark the Custom Job Name and User Name check boxes below.
Page 268: Proof And Hold Printing
Printing through Application Software Proof and Hold Printing You can check the first copy before printing the remaining copies, paper wastage can be avoided. The print jobs will be deleted when the printer is turned off. To print, proceed as follows. Browse through Windows File >...
Page 269 Printing through Application Software Click the Properties button. The Properties dialog box is displayed. Click the Options tab and then checkmark the Job Retention check box. Click the Job tab. Click the Proof and Hold radio button. Then checkmark the Custom Job Name and User Name check boxes below.
Page 270: Private Printing
Printing through Application Software Private Printing You need to enter a password at retrieving the job, confidentiality is assured even if you share the printer with others. Print jobs will be deleted when they are printed or when the printer is turned off. To print, proceed as follows.
Page 271 Printing through Application Software Click the Properties button. The Properties dialog box is displayed. Click the Options tab and then checkmark the Job Retention check box. Click the Job tab. Click the Private Print radio button and then checkmark the Custom Job Name and User Name check boxes below.
Page 272: Stored Job Printing (Job Storage)
Printing through Application Software Set the desired 4-digit number for PIN using any numbers between 0 and 9. This number is synonymous to user ID which is required to enter at the printer operator panel when retrieving. Click the OK button. The Print dialog box is displayed again. Click the OK button.
Page 273 Printing through Application Software Select the range of the pages you want to print in the document, All or Current page only in Page range. To print part of the document, enter page numbers separated by commas. Specify the number of pages you want to print in the Number of copies combo box in Copies.
Page 274 Printing through Application Software You can add security to the print job. To do so, checkmark the Required PIN to Print check box and enter the desired 4-digit number for PIN using any numbers between 0 and 9. You must enter this number at the printer operator panel when printing.
Page 275: Virtual Mail Box Printing
Printing through Application Software 3.4.2 Virtual Mail Box Printing Virtual mailbox is the ability to store print jobs in the virtual mailboxes on the Microdrive, enabling you to retrieve and print it later from the printer's operator panel or the option barcode reader (BC-1). A maximum of 255 virtual mail boxes can be set up, making it possible to allocate documents not just for individual departments or groups, but even for individual people.
Page 276 Printing through Application Software Click the Properties button in the Print dialog box. The Properties dialog box is displayed. Click the Options tab and check that the Job Retention check box is not checkmarked. Click the Job tab and then the Virtual Mail Box radio button. Checkmark the Job Date, Custom Job Name, and User Name check boxes on the right and enter the desired names for Custom Job Name and User Name.
Page 277 Printing through Application Software Give a name to your virtual mail box tray and click the Add button. The name of your virtual mail box tray will be entered in Mailbox Name List. Specify the desired virtual mail box tray in Mailbox Bin Number or Range.
Page 278: Printing With Job Storage
Printing through Application Software 3.4.3 Printing with Job Storage Using Job Storage, you can print multiple copies by sending the data for just one copy (electronic sorting), or print jobs stored on the Microdrive at any time as required using the option barcode reader. Electronic Sorting The electronic sorting function allows you to print multiple copies of a document while only requiring the data to be transferred to the printer...
Page 279: Barcode Printing
The number appears when jobs are listed in utilities such as Printer Disk Manager or Kyocera Mita PrintMonitor. The number is also printed, together with its barcode, on the Job List. The Job List can be printed using the list of Code Job menu of the printer.
Page 280 Printing through Application Software Specify the number of pages you want to print in the Number of copies combo box in Copies. Click the Properties button. The Properties dialog box is displayed. Click the Options tab and check that the Job Retention check box is not checkmarked.
Page 281 Printing through Application Software Set whether or not to print the barcode on the printouts. The barcode can also be printed in various positions on the page, with or without its code number as shown here by selecting its position in the printer driver.
Page 282 1000EC...
