NETWORK CONNECTION*

T h e r e a r e t w o o p t i o n s t o p o w e r t h e M P T Z 2 0 X c a m e r a .
U s e a P o E - e n a b l e d s w i t c h t o c o n n e c t d a t a a n d p o w e r t h r o u g h a s i n g l e
c a b l e a n d b e g i n v i e w i n g a n d r e c o r d i n g i m a g e s i n s t a n t l y . A n o n - P o E
s w i t c h w i l l r e q u i r e a n a d a p t o r f o r p o w e r t r a n s m i s s i o n .

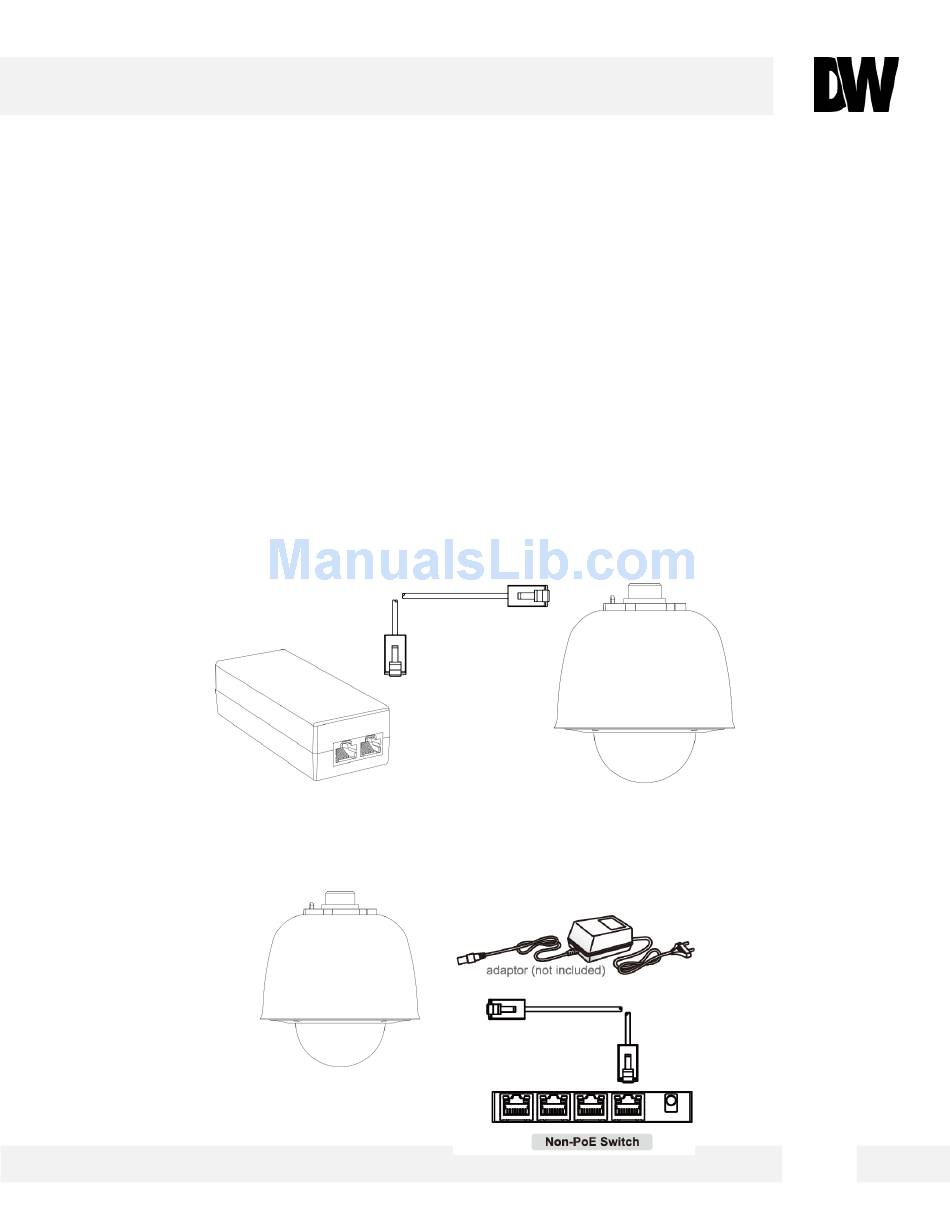

1. Using a PoE-Enabled Switch
The MEGAPIX Camera is PoE compliant, allowing transmission of power and data via a
single Ethernet cable connected to a PoE injector. PoE injectors eliminates the need for the
different cables used to power, record, or control the camera. Follow the illustrations below to
connect the camera to a PoE- injector using an Ethernet cable.
2. Using 24VAC
If a PoE injector is not available, use a power adaptor for power transmission and a non-PoE
switch for data transmission. Follow the illustrations below to connect the camera without a
PoE Injector.
24VAC
1 2
