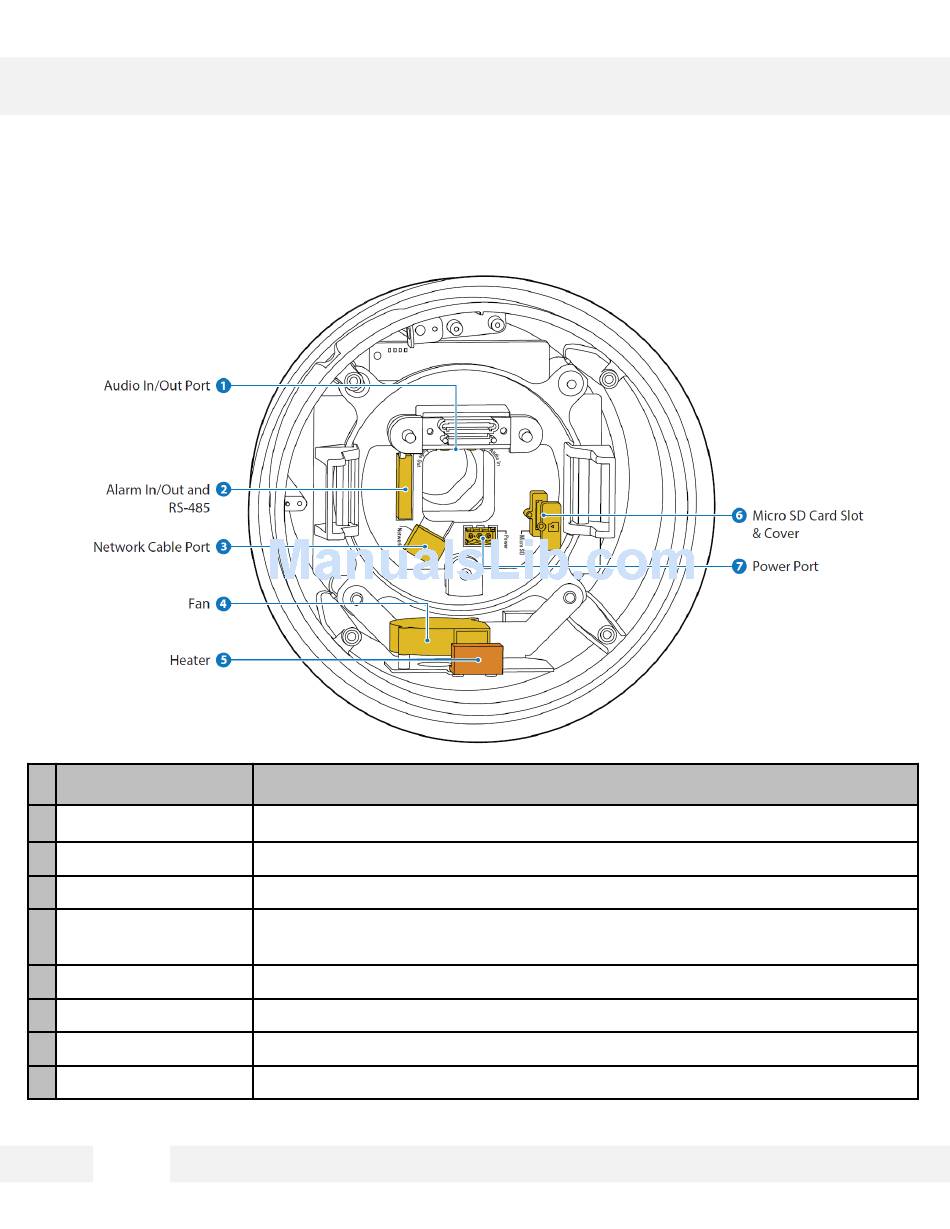

PARTS & DESCRIPTIONS*
Camera Part
1 Alarm In/ Out
2 Network Cable Port
3 Fan
4 Heater
5 Audio Output Port
6 Audio Input Port
7 Micro SD Card Slot
8 Power Port
7
Description
Connects to peripheral devices according to camera settings
RJ45 Cross over network cable connector
Defrosts the dome cover and removes moisture.
Defrosts the dome in low temperature by increasing the internal temperature of the
camera housing.
Connection for audio output cables
Connection for audio input cables.
Enter a micro SD card for local emergency backup (not included)
Connect 24VAC power source.
