INSTALLATION*
11. Run all the necessary cables via the mounting accessory's bracket to the upper housing.

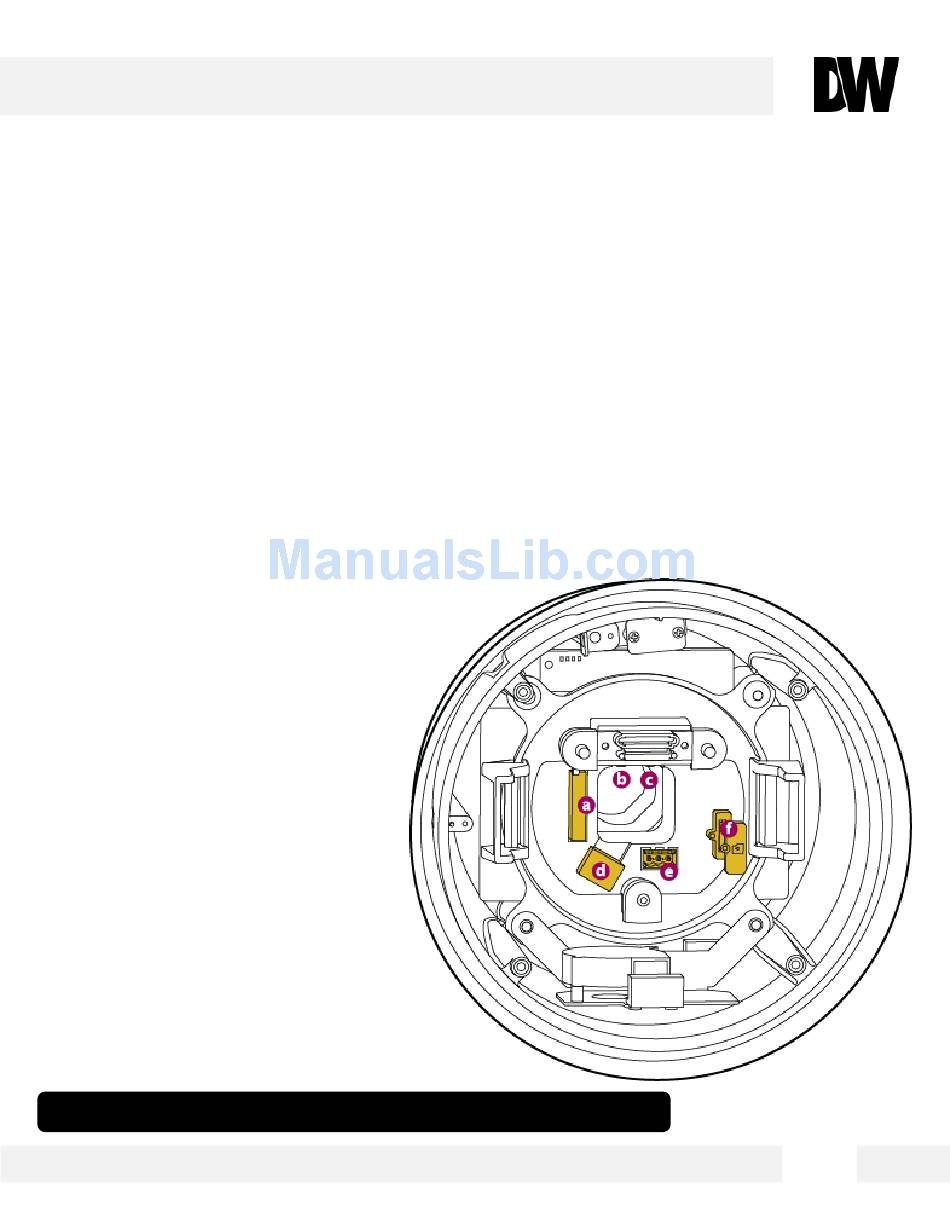

12. Connect each of the following cables to the applicable port. Use the diagram below for
more information.*
a. Alarm In/ Out Port
b. Audio In Port
c. Audio Out Port
d. Network Cable Port
e. Power Port
f. Micro SD Card Slot & Cover
13. Check the LED lights are on. Green light flickers when the camera is booting, and Red
light turns on when booting is complete.
* See next page for proper cabling connections and SD Card installation.
