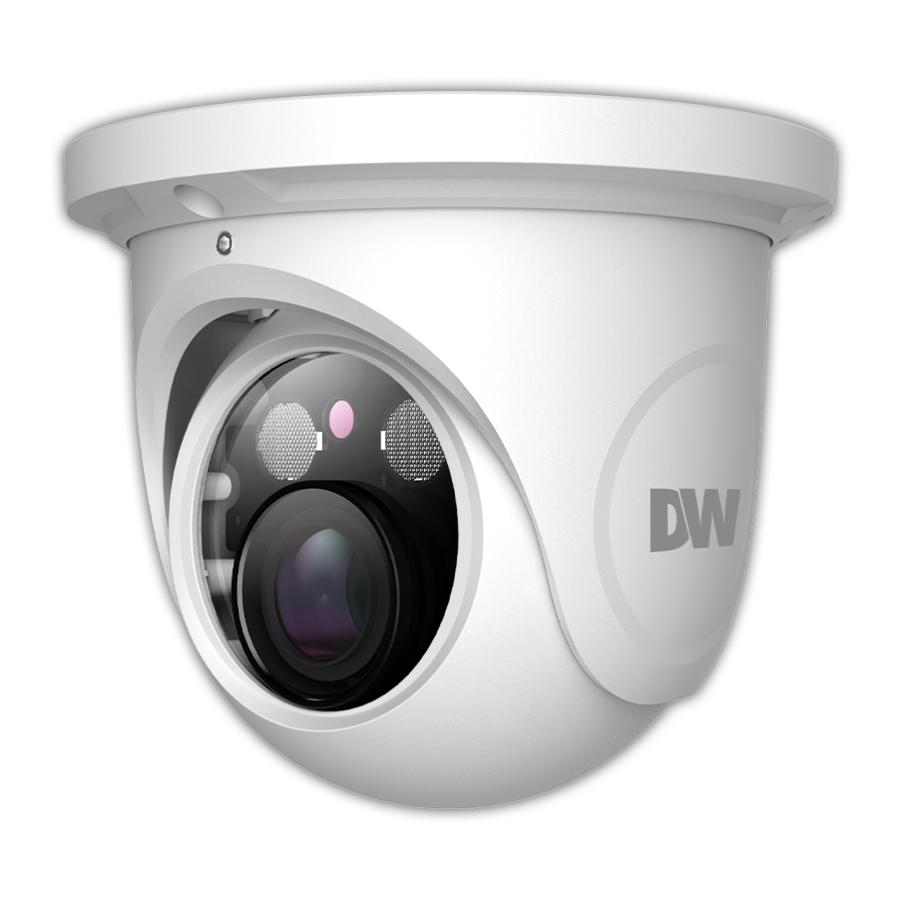

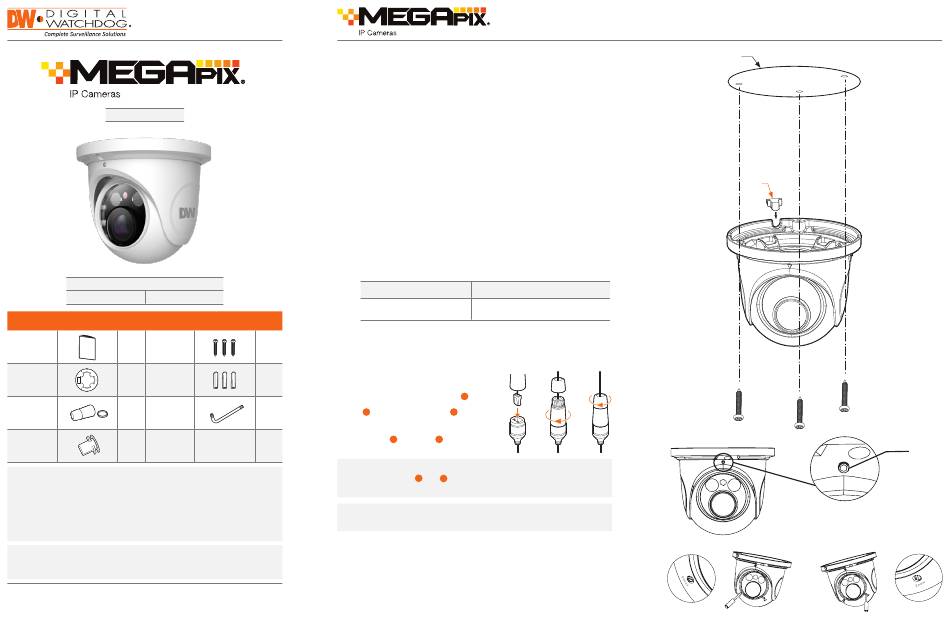

Digital Watchdog MEGApix DWC-MTT4WiA Quick Start Manual

Quick Start Guide
DWC-MTT4WiA
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
Tapping
Quick setup
1 screws PA
guide
4x35 – 3pcs
Mounting Plastic plugs
1
template – 3pcs
Waterproof Allen
1
cap wrench
Rubber plug 1
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search your product by entering the part number in the 'Search by Product'
search bar. Results for applicable part numbers will populate automatically
based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start
Guides (QSG), software and firmware will appear in the results.
Attention: This document is intended to serve as a quick reference for the
initial setup. It is recommended that the user read the entire instruction
manual for complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday through Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear three times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover to
be damaged. This may cause a breakdown or fire.
3. Using the mounting template sheet or the camera itself, mark and drill the
necessary holes in the wall or ceiling.
STEP 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
Pass the wires through the mount bracket and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the
camera using an Ethernet cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect the
camera to the switch using an Ethernet cable for data transmission and use a
power adapter to power the camera.
Power Requirements
DC 12V
POE IEEE 802.3af
1 set
STEP 3 – INSTALLING THE CAMERA
1. To use the camera's waterproof wiring:
1 set
a. Install the LAN cable into
b. will be assembled to
b
1
with a 1/4 turn.
c. Thread
NOTE: To ensure moisture seal, make sure the o-ring is in place
between
outdoor rated sealer is recommended.
NOTE: When using the waterproof cap, crimp the RJ45 connector
after passing the cable through the waterproof cap.
2. Adjust the camera to obtain an optimum angle by loosening the lock
screw, located under the camera's lens module. Tighten the lock
screws after you finish adjusting the view angle of the camera.
3. Adjust the focus and zoom screws at the base of the camera module
digital-watchdog.com
to achieve a clear image.
4. Remove the protection film softly to complete the installation.
Power Consumption
Max. 5.5W
.
a
a
tightly to .
c
b
and . In extreme environments use of an
a
b
Quick Start Guide
Mounting
template
Rubber
plug
Lock
screw
