INSTALLATION*

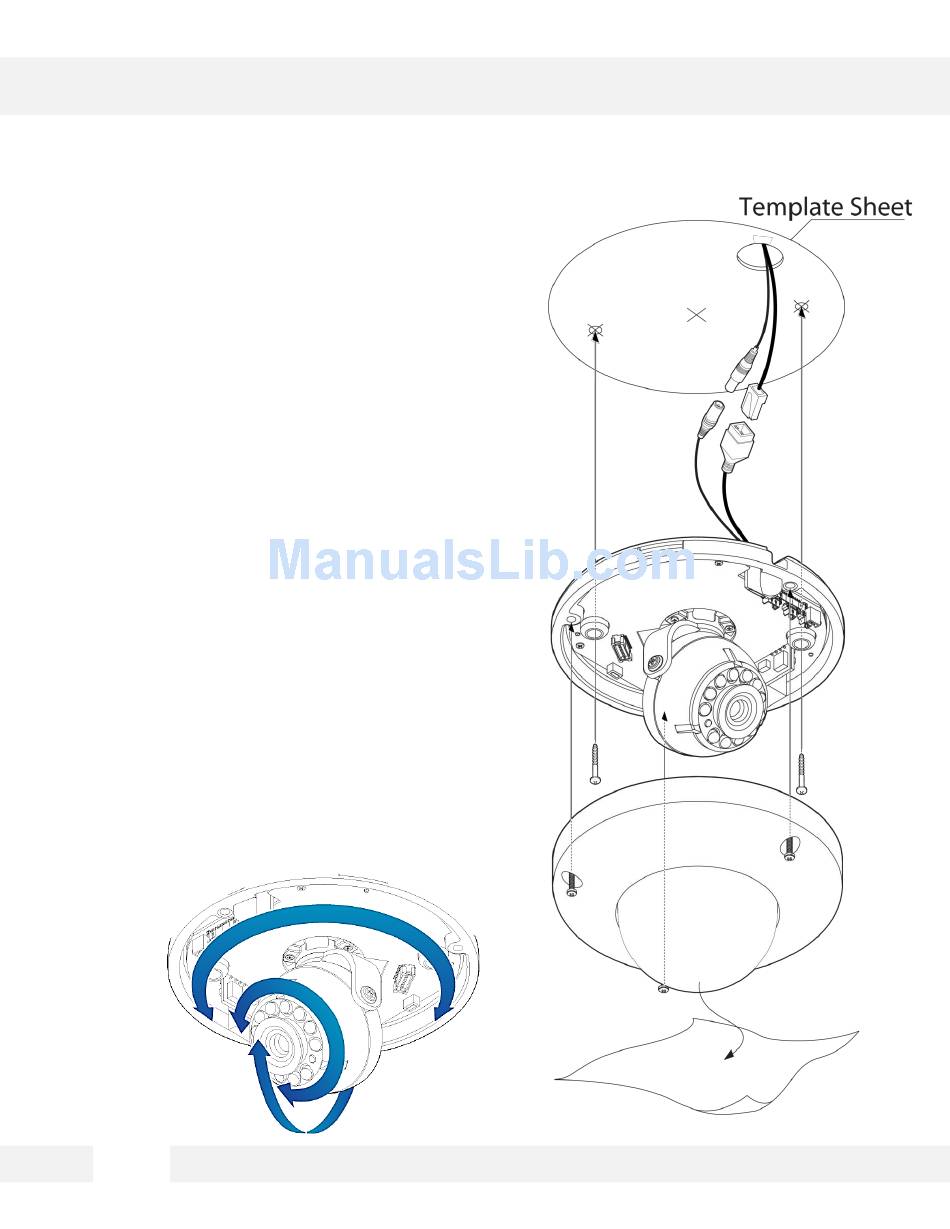

E a s y C a m e r a I n s t a l l a t i o n
Detach the camera's cover dome from the
1.
camera's module by unscrewing the three cover
dome screws using the L-Wrench.
2. Use the camera or mounting template to mark
and drill the necessary holes in the wall or
ceiling.
3. Pull wires through and make connections.
4. Using three (3) included screws, mount and
secure the camera to the wall or ceiling.
Secure the camera's cover dome onto the
5.
camera base to complete the installation.
A d j u s t i n g t h e C a m e r a ' s A n g l e
To adjust the camera's orientation:
1. 1. Loosen the tilt stopper screw at the base of the
camera's Gimbal by rotating it counter clock-wise.
2. 2. Move the camera to the desired angle.
3. Secure the camera's lens position by screwing
3.
the tilt stopper screw clock-wise.
9
