INSTALLATION - FLUSH MOUNT*

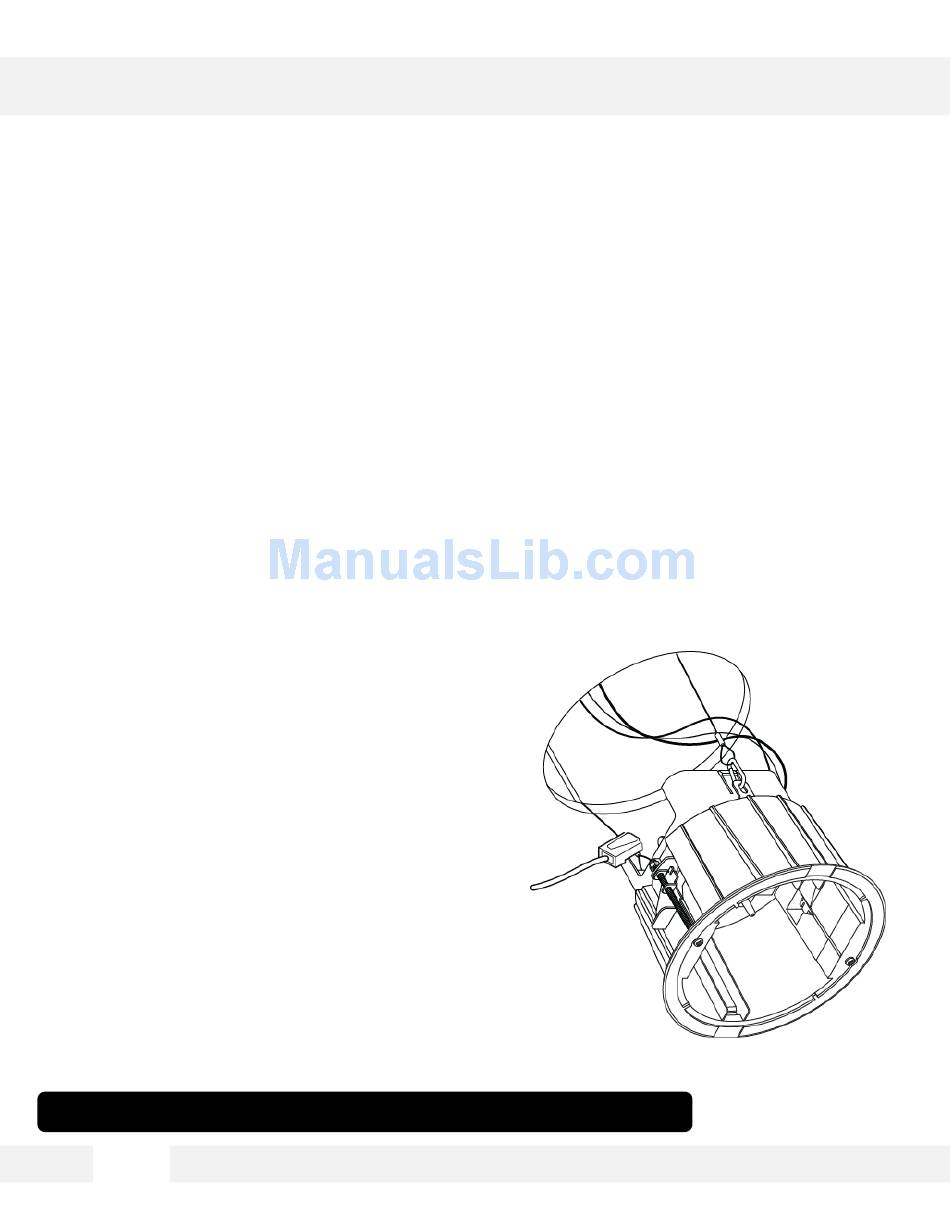

Run all the necessary cables via the mounting accessory's bracket to the upper housing.
5.
6. Connect each of the following cables to the applicable port. Use the diagram below for more
information.*
a. Alarm In/ Out Port
b. Audio In Port
c. Audio Out Port
d. Network Cable Port
e. Power Port
f. Micro SD Card Slot & Cover
7. Check the LED lights are on. Green light flickers when the camera is booting, and Red light
turns on when booting is complete.
* See pages 17-20 for proper cabling connections and SD Card installation.
