WEBVIEWER*
S e t u p > P T Z > R S - 4 8 5
T h e M P T Z 2 0 X c a m e r a o f f e r s b o t h n e t w o r k a n d R S - 4 8 5 c o m m u n i c a t i o n
o p t i o n s . T h i s a l l o w s t h e c a m e r a t o c o m m u n i c a t e w i t h o t h e r d e v i c e s ,
s u c h a s : J o y s t i c k C o n t r o l l e r , P T Z R e m o t e C o n t r o l l i n g , A l a r m S e n s o r ,
e t c .

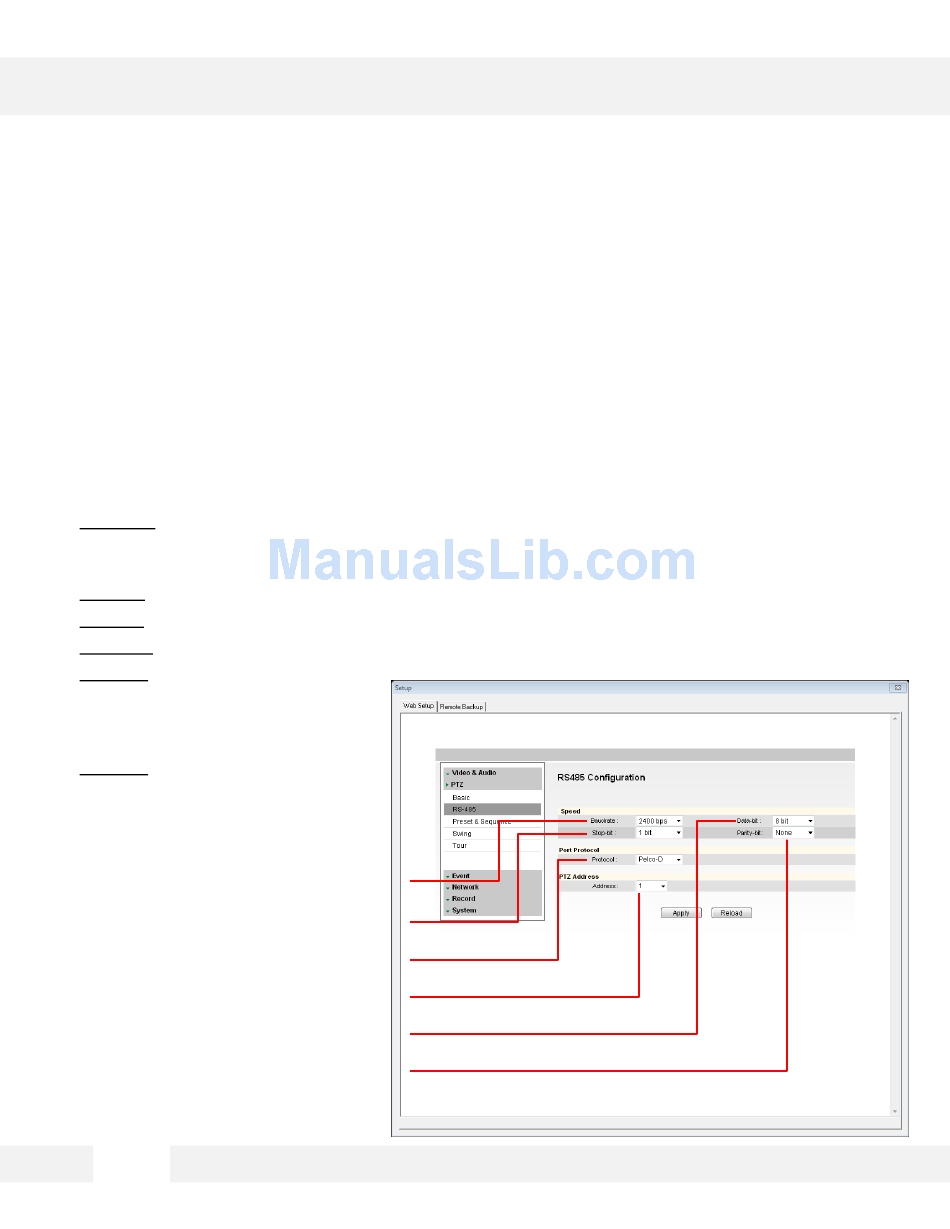

1. Baudrate- Select the camera's Baudrate from the drop-down values: 2,400, 4,800, 9,600,
192,000, and 38,400 bps. The Baudrate may vary depending on the distance and Baudrate of the
device to which the camera is connected. The default Badrate of the camera is 2400.
2. Data-bit- Select from the drop-down values between 5-bit and 8-bit. Default is 8-bit.
3. Stop-bit- Select from the drop-down values between 1-bit and 2-bit. Default is 1-bit.
4. Parity-bit- Select from the drop-down values: None, Even, Odd. Default is None.
5. Protocol- Select the protocol as Pelco-D or Pelco-P. The protocol set in the camera must be
identical in the external device
you are connecting to the camera.
Camera's Default protocol is Pelco-D.
6. Address- Set the camera's address
for communication with external
devices. The camera's address must
match the ID set in the external
device. Select from the value range
of 1-255. Default Camera Address
is 1.
5 2
