INSTALLATION - FLUSH MOUNT*

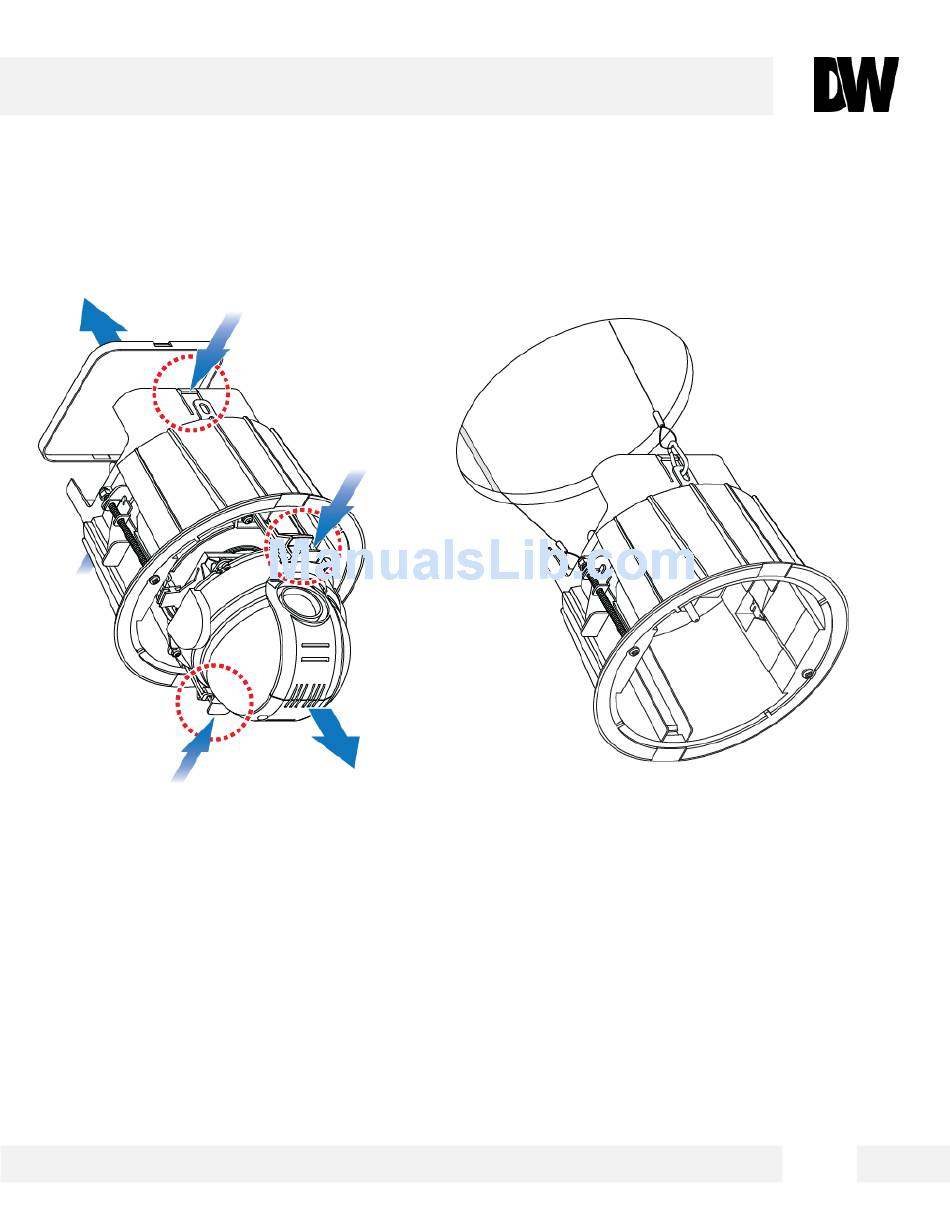

1. Remove the PTZ mechanism from the in-ceiling housing to connect all necessary cables. To
detach camera mechanism, press down and hold both black handles on the camera
mechanism. Pull them up to detach the camera.
2. Detach the Flush Mount cover by pressing on the connectors on the side of the flush mount
housing.
To mount the flush mount camera in the ceiling, drill a 190mm (7.48") diameter hole in the
3.
ceiling.
4. Use the safety wires to secure the flush mount to the ceiling during and after installation.
