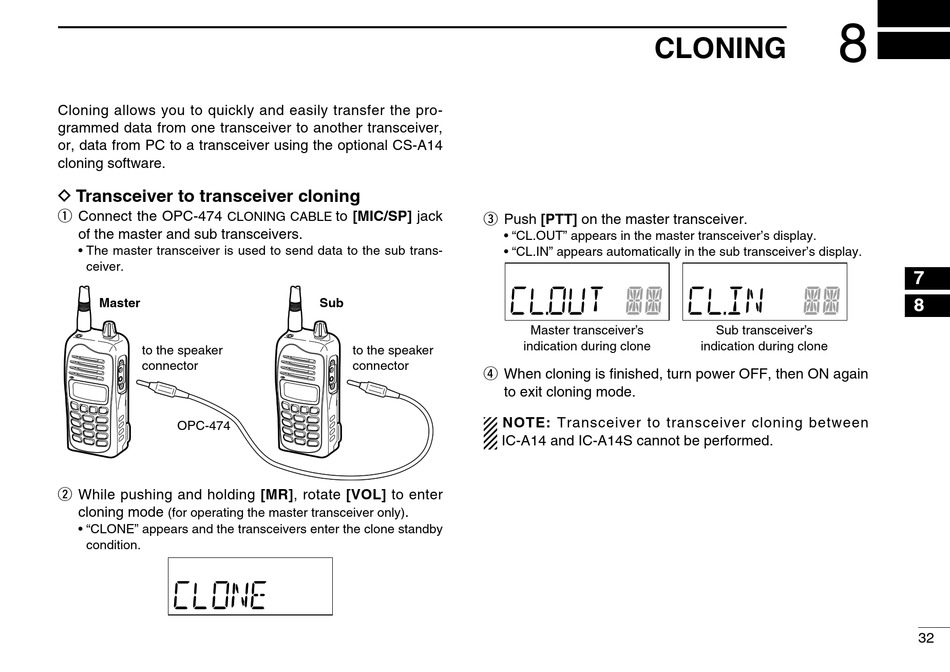

Cloning - Icom IC-A14S Instruction Manual

Cloning allows you to quickly and easily transfer the pro-
grammed data from one transceiver to another transceiver,
or, data from PC to a transceiver using the optional CS-A14
cloning software.
D Transceiver to transceiver cloning
q Connect the OPC-474
CLONING CABLE
of the master and sub transceivers.
• The master transceiver is used to send data to the sub trans-
ceiver.
Master
to the speaker
connector
OPC-474
w While pushing and holding [MR], rotate [VOL] to enter
cloning mode
(for operating the master transceiver only)
• "CLONE" appears and the transceivers enter the clone standby
condition.
to [MIC/SP] jack
e Push [PTT] on the master transceiver.
Sub
to the speaker
connector
r When cloning is finished, turn power OFF, then ON again
.

CLONING

• "CL.OUT" appears in the master transceiver's display.
• "CL.IN" appears automatically in the sub transceiver's display.
Master transceiver's
indication during clone
to exit cloning mode.
NOTE: Transceiver to transceiver cloning between
IC-A14 and IC-A14S cannot be performed.
8
Sub transceiver's
indication during clone
