Chapter 3: System Setup

Removing the Chassis Cover

Prior to removing the chassis cover, make sure
the unit's power is off and disconnected from
the power sources to prevent electric shock or
system damage.
The screws around the cover are used to secure the
1.
cover to the chassis. Remove these screws and put
them in a safe place for later use.

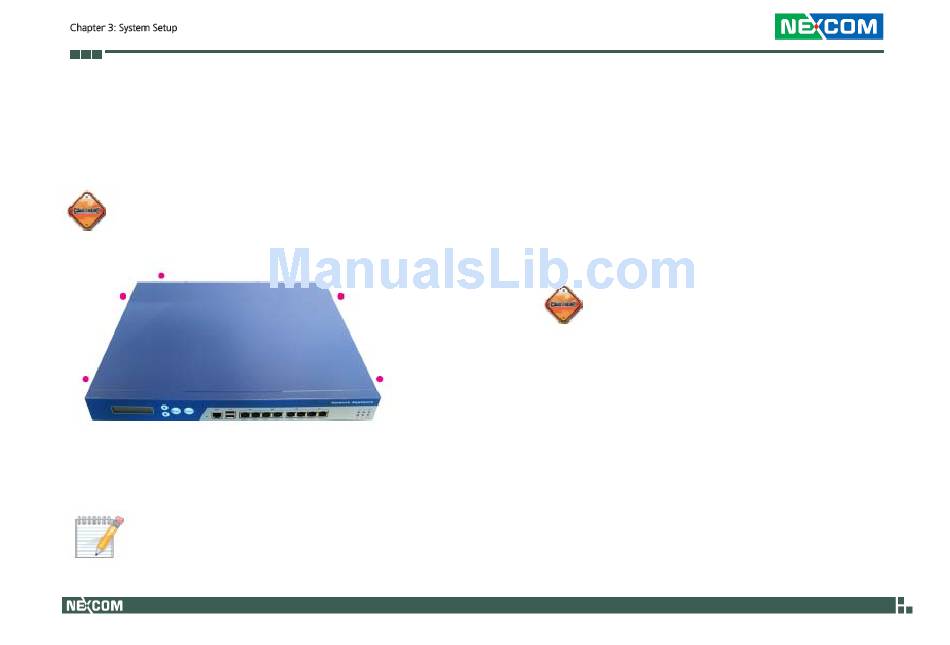

The dots denote the locations of the screws.
2. Lift up the cover then remove it from the chassis.
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.

Installing the CPU

If the system came with the heat sink already installed,
1.
loosen the mounting screws that secure the heat sink to
the board.
• Before you proceed, make sure
(1) the CPU socket comes with a
protective cap, (2) the cap is not
damaged and (3) the socket's contact
pins are not bent.
• Make sure all power cables are
unplugged before you install the CPU.
• The CPU socket must not come in
contact with anything other than the
CPU. Avoid unnecessary exposure.
Remove the protective cap only when
you are about to install the CPU.
Remove the heat sink to access the CPU socket.
2.
21 NSA 3130 User Manual
