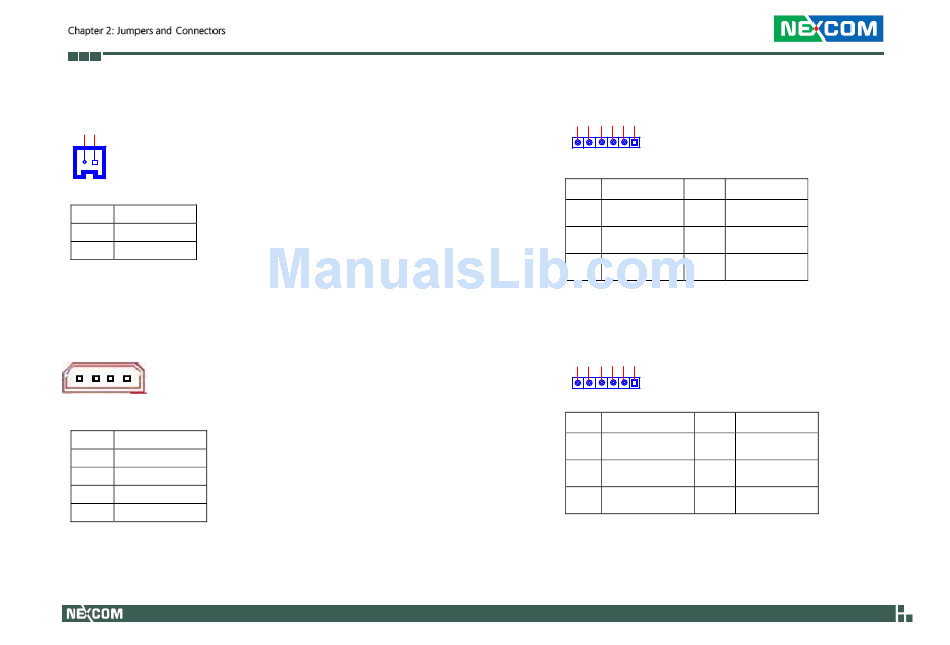

SATA DOM PWR (J12)
Connector Size: 1X2 = 2-Pin , 2.0mm ,180°, JST
2 1
J12
Pin
Definition
1
VCC5
2
GND
Power Connector (J14)
Connector Size: 1X4 = 4-pin
Pin
Definition
1
VCC12
2
GND
3
GND
4
VCC5
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
GAL Programming Connector (J6)
Connector Size: 1X6 = 6-Pin
5
4
3
2
6
Pin
Definition
1
3VSB
3
GAL_TCK
5
GAL_TD1
USB JST 2.00mm (J13)
Connector Size: 1X6 = 6-Pin
4
3
6
5
2
Pin
Definition
1
P5V_USB_P23
3
5
17
1
J6
Pin
Definition
2
GND
4
GAL_TDO
6
GAL_TMS
1
J13
Pin
Definition
2
USB2-
4
USB2+
USB3-
6
USB3+
USB23GND
