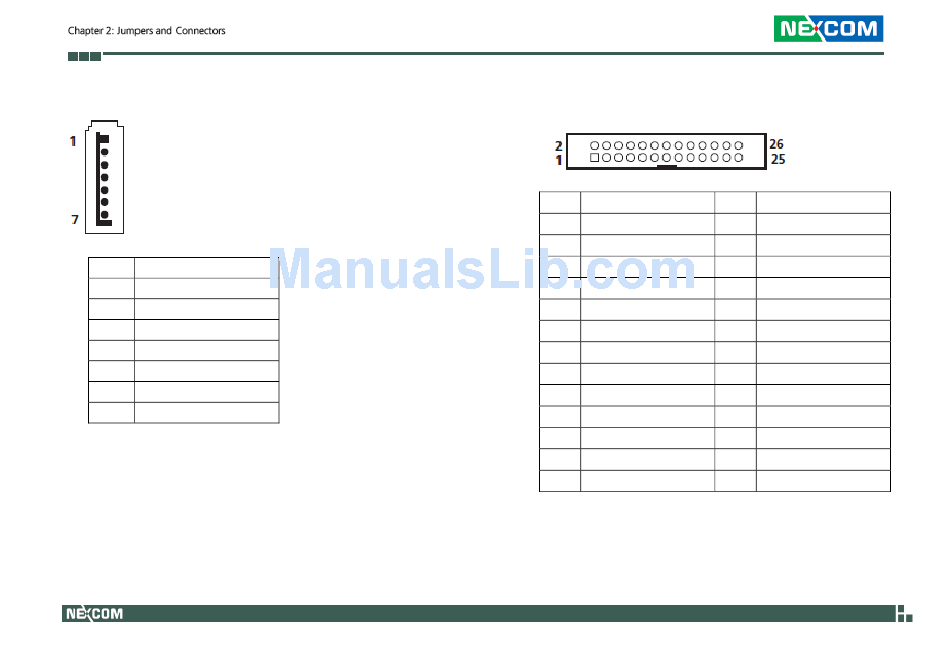

SATA Connector (J10/J8/J5)
Connector Size: Standard Serial ATAII, 1.27mm
Pin Definition
1 GND
2 TXP0
3 TXN0
4 GND
5 RXN0
6 RXP0
7 GND
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
LCM Module Connector (CN2)
Connector Size: 2X13 26-pin boxed header, 2.0mm pitch
Pin Description
1 LPT_STB#R
3 LPT_PDR0
5 LPT_PDR1
7 LPT_PDR2
9 LPT_PDR3
11 LPT_PDR4
13 LPT_PDR5
15 LPT_PDR6
17 LPT_PDR7
19 LPT_ACK#R
21 LPT_BUSY
23 LPT_PE
25 LPT_SLCT
15
Pin Description
2 LPT_AFD#R
4 LPT_ERR#R
6 LPT_INIT#R
8 LPT_SLIN#R
10 GND
12 GND
14 GND
16 GND
18 GND
20 GND
22 GND
24 GND
26 NC
