Getting to Know the NSA 3130

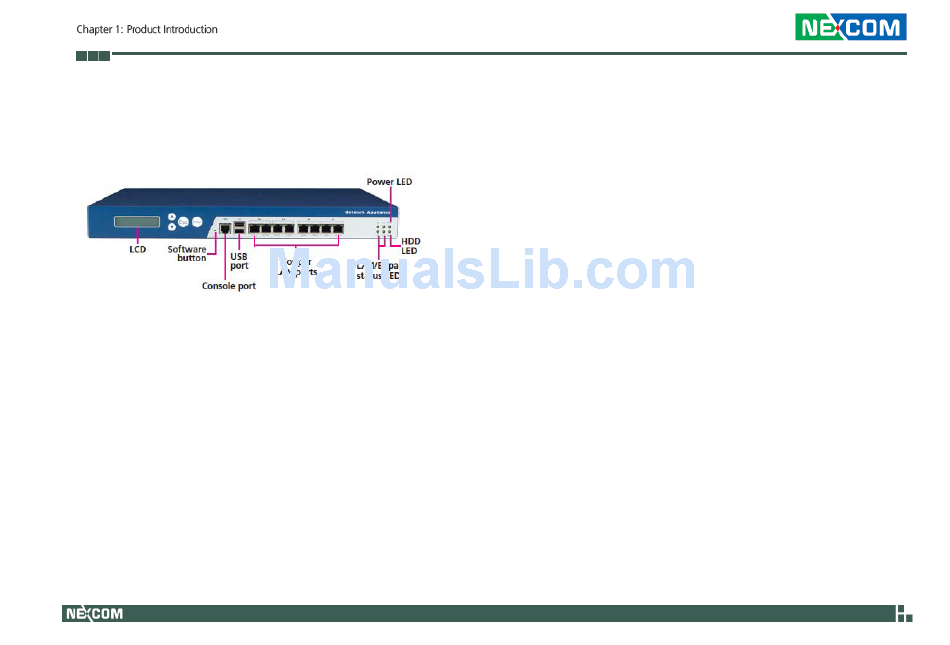

Front Panel

Power LED
It indicates the power status of the system.
HDD LED
It indicates the status of the hard drive.
LAN/Bypass Status LEDs
They indicate the status of the LAN/Bypass.
Copper LAN Ports
They are used to connect LAN network devices.
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
USB Port
It is used to connect USB 2.0/1.1 devices.
Console Port
It is used to connect RJ45 type Console device.
Software Button
This is a GPIO software button.
LCD
2x16 characters LCD module, PIO interface.
