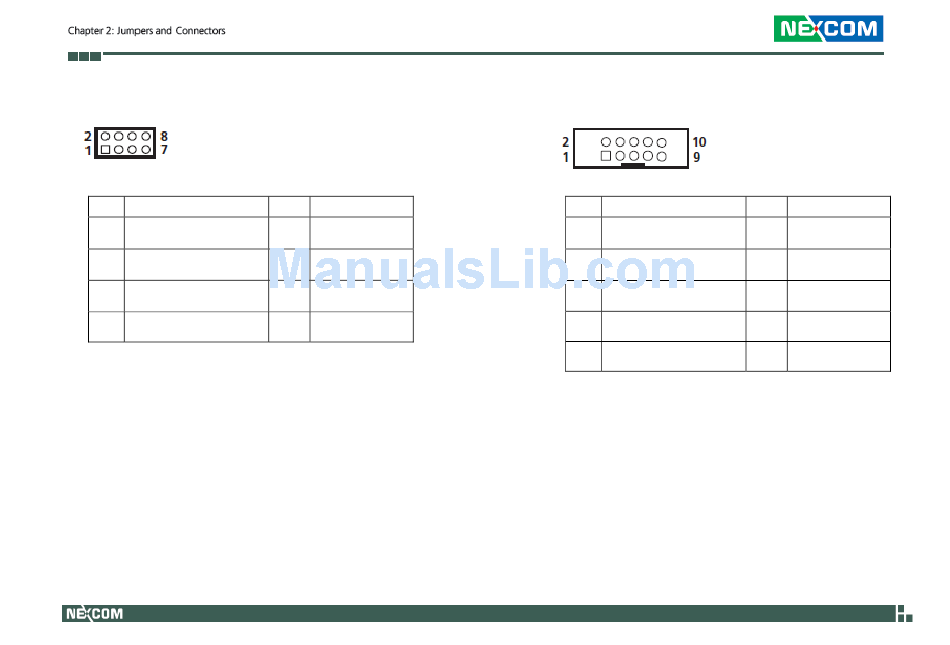

PS/2 Keyboard/Mouse Connector
Connector Size: 2x4 8-pin header, 2.54 mm pitch
Pin
Definition
1
VCC5
3
KB_DATA
5
KB_CLK
7
GND
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
VCC5
4
LM_DATA
6
LM_CLK
8
GND
14
COM2 Connector (CN4) (RS232)
Connector Size: 2x5 10-pin box header, 2.0 mm pitch
Pin
Definition
1
SP_DCD2
3
SP_TXD2
5
COM2_GND
7
SP_RTS2
9
SP_RI2
Pin
Definition
2
SP_RXD2
4
SP_DTR2
6
SP_DSR2
8
SP_CTS2
10
COM2_GND
NSA 3130 User Manual
