Rj45 Type Console Port (Lan1) (Rs232 Only) - Nexcom NSA 3130 User Manual

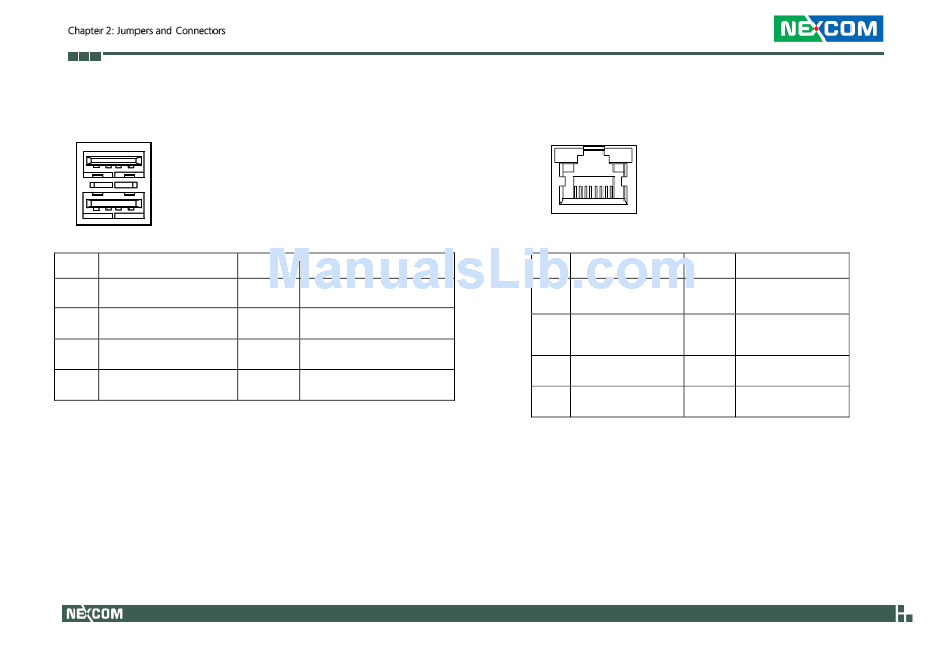

USB Ports (CN1)
Connector Size: Dual USB port
Pin Definition
1
VCC
2
USB0-
3
USB0+
4
GND
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
5
VCC
6
USB1-
7
USB1+
8
GND

RJ45 Type Console Port (LAN1) (RS232 Only)

Connector Size: RJ45 port
Pin Definition
1
SP_RTS1_R
3
SP_TXD1_R
5
SP_DCD1_R
7
SP_DSR1_R
11
Pin Definition
2
SP_DTR1_R
4
GND
6
SP_RXD1_R
8
SP_CTS1_CON
