1.1 CONNECTIONS

1.1.1 Power Supply

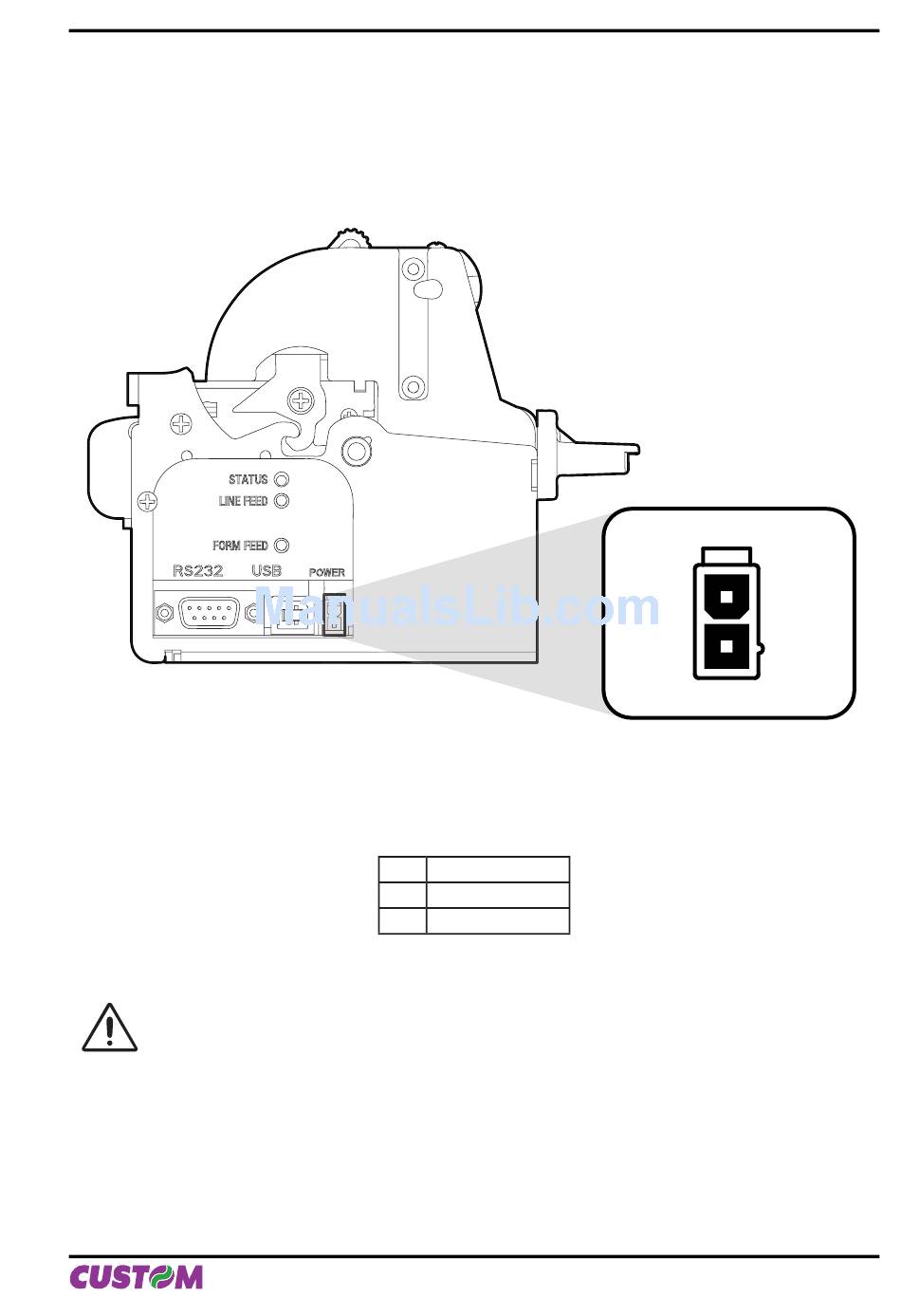

The printer is equipped with a 2 pin male molex connector series 5569 (Vertical), for the power supply (see
Fig. 1.1). The connector pin confi guration is as follows :
(Fig.1.1)
Model no. type:
WARNING:
Respect power supply polarity.
Header : 90° Molex series 5569 (no. 39-30-1020)
Housing: Molex series 5557 (no. 39-01-3022)
PIN
1
2

1. INSTALLATION AND USE

SIGNAL
+24 V
(Tab.1.1)
GND
User Manual
2
1
VKP80II 1-1
