1. INSTALLATION AND USE

1.1 CONNECTIONS

1.1.1 Battery Recharger

For the Battery Recharger/Power Supply and serial connection, the printer is equipped with a connecting cable

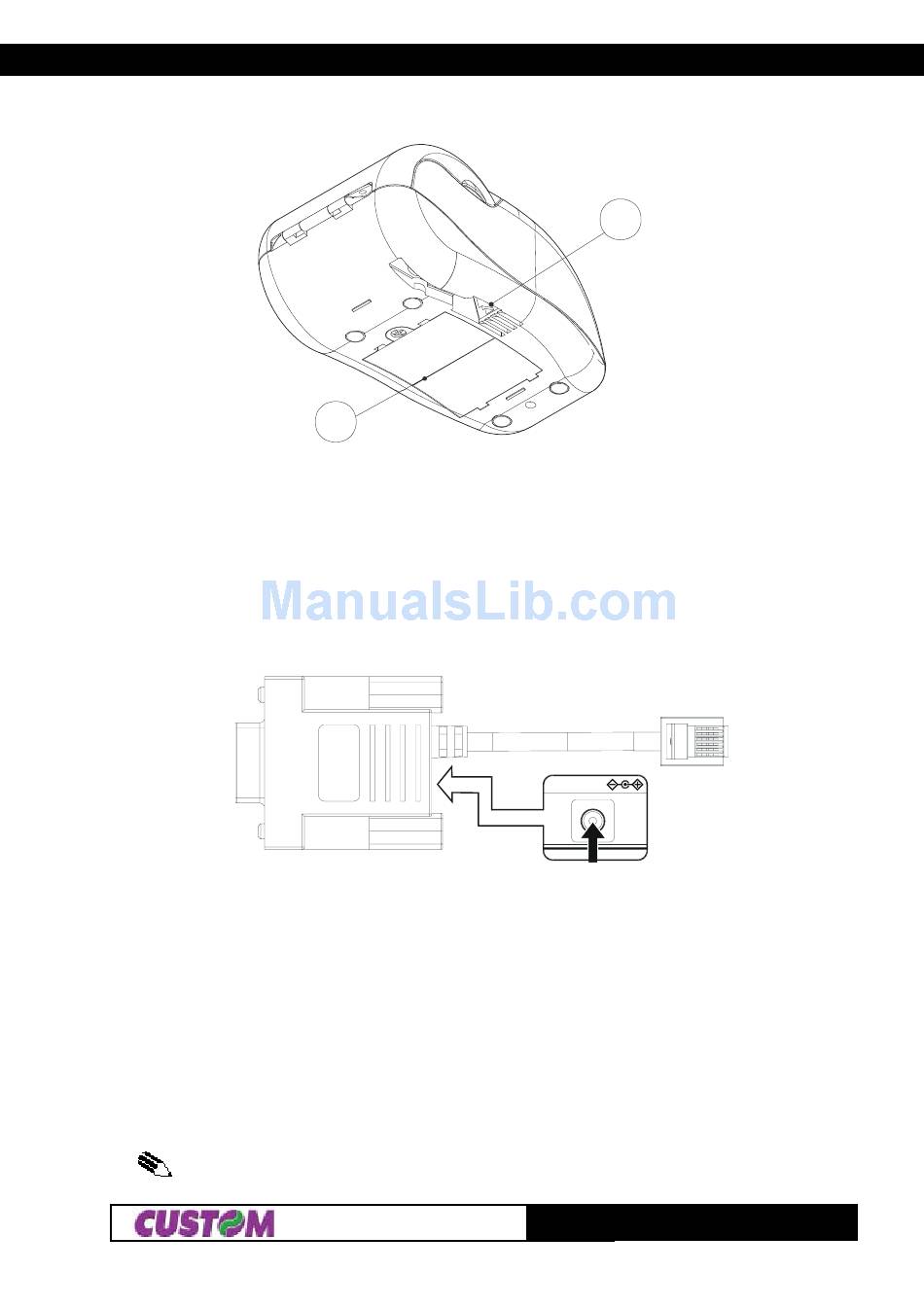

(fig. 1.2) that comes packed with the printer and has a double connection system. On one side is a 9-pin
female connector (fig. 1.2.A) for the serial port; on the other side of the same connector is a RJ11 connector
(fig. 1.2.B) and a jack (fig. 1.2.C) for connection to the battery recharger.
The printer is equipped with a rechargeable battery pack, located in the battery compartment (2), self-sufficient
for printing. To recharge the batteries, use the connection cable (fig. 1.2) that comes packed with the printer
and following the instructions reported in the 1.2.1 paragraph.
(Fig.1.2.A)

1.1.2 Turning the printer On and Off

How to turn the printer On
• by briefly pressing the multi-function key
• by sending a characters set on the serial line—it is better to send characters that are not read as
printer controls (ex. 0x0E)
• with the battery recharger connected
How to turn the printer Off
• by briefly pressing the multi-function key
• by sending the character ESC 0 over the serial line
• following a given period of inactivity as specified in setup (see sec. 1.3)
(1) NOTE: If the printer is connected to the battery recharger and it recharging the batteries it's not
possible to turn off the printer. It must wait that the operation in terminated.
2
(1)
1- 1
1
(Fig.1.1)
DC IN
(Fig.1.2.C)
DPT100-B/I/BT
(Fig.1.2.B)
