1. INSTALLATION AND USE

1.5.5 Notes for installation and use of printer with retracting

N.B.: "Ejector outfeed": When assembling the printer on the machine, be sure to leave ad-
equate space for the paper loop below. If this is not done, the ticket could crease at the cutting
area, causing the ticket to jam in the paper outfeed opening.
1-10 VKP80II
User Manual
+0.5 +0.5
85.5 9.5
-0.5 -0.5
M4; n°3 thread
90° max
38.5
125.5
149.5
11

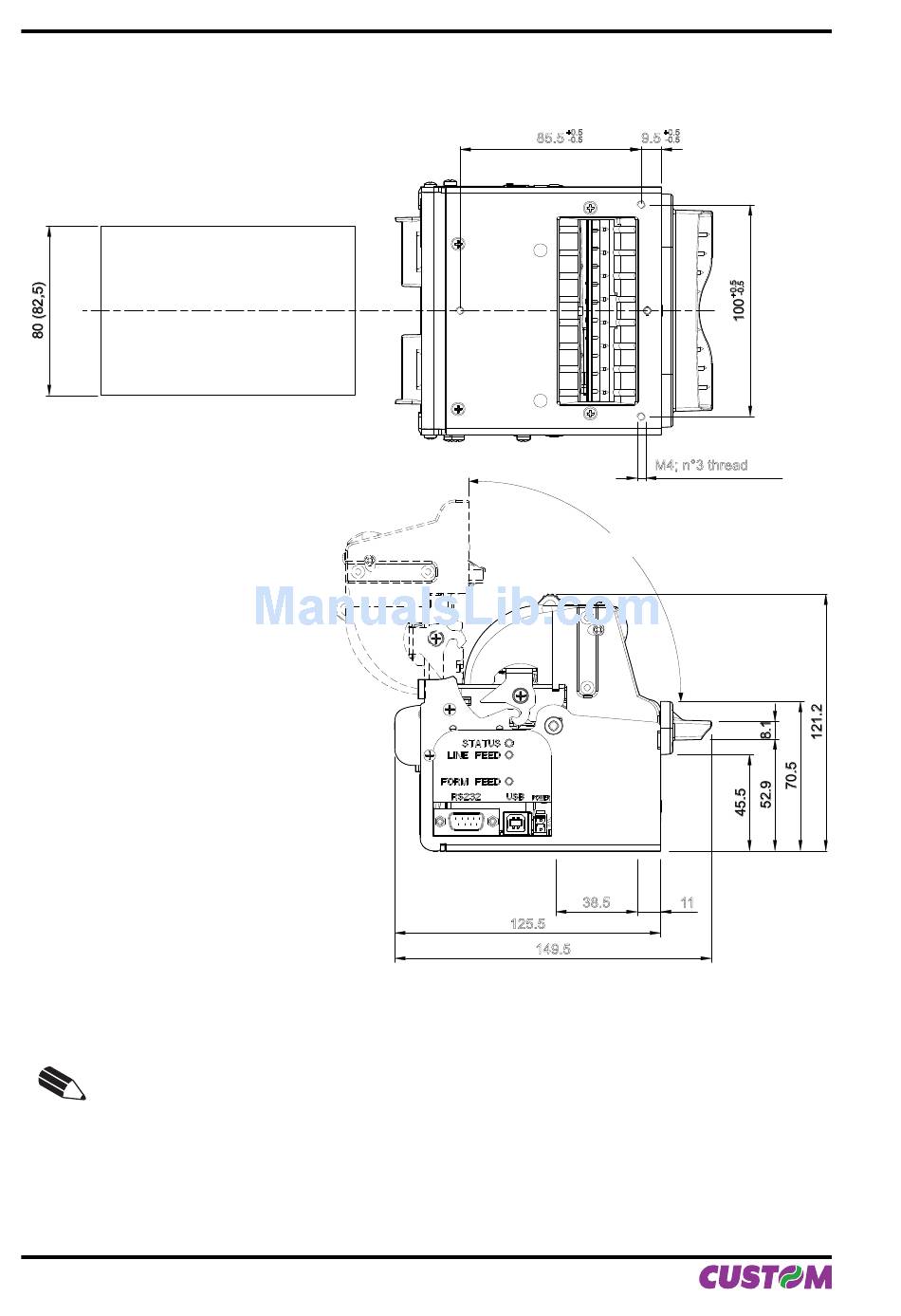

(Fig.1.13)
