3.2 DIMENSIONS

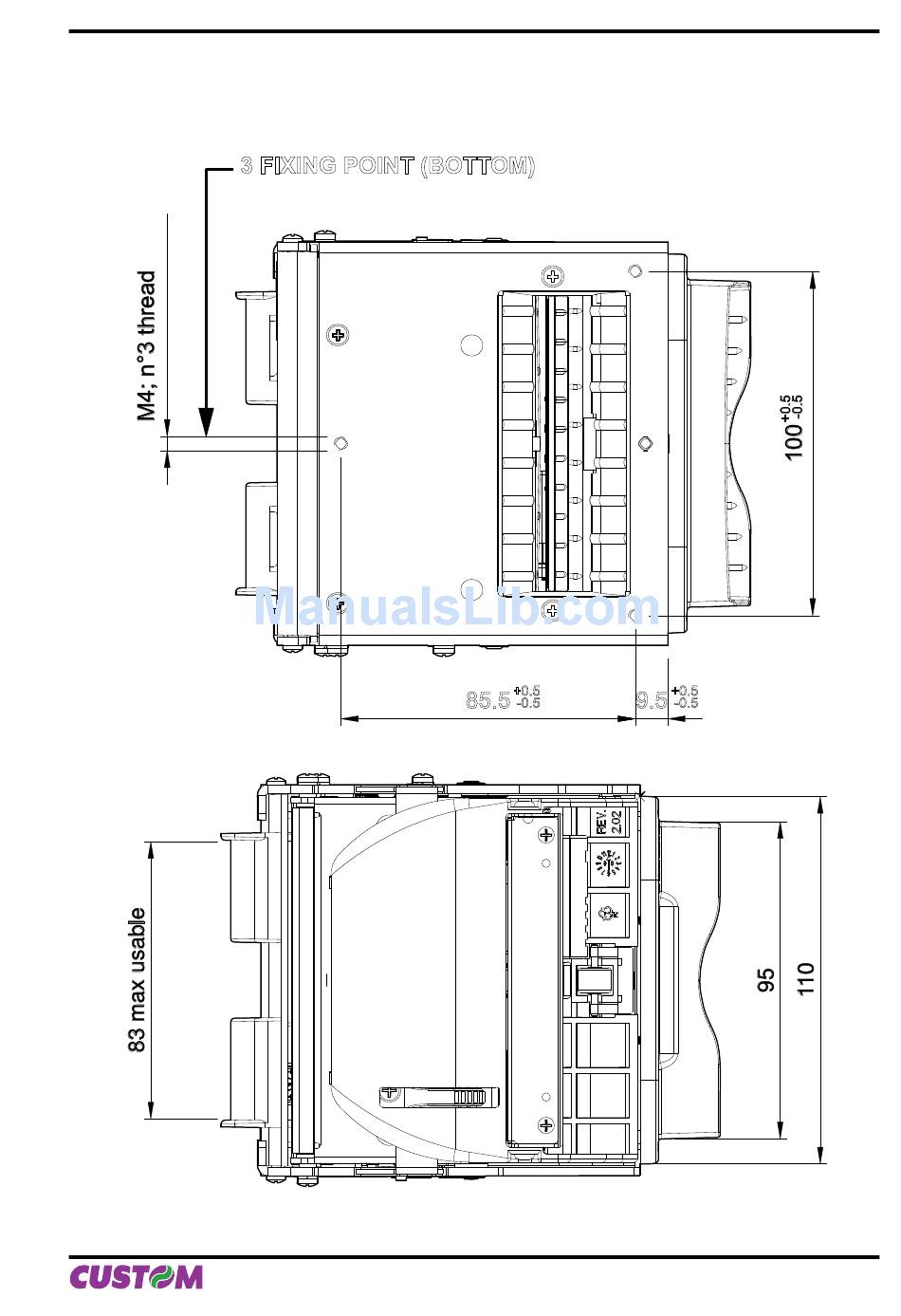

In the following fi gures shows the dimensions of the printer.
Bottom view
(Fig. 3.1)
Top view
(Fig. 3.2)
3 FIXING POINT (BOTTOM)
3. TECHNICAL SPECIFICATIONS
+0.5
85.5
-0.5
+0.5
9.5
-0.5
VKP80II 3-3
