APPENDIX B - ALIGNMENT MANAGEMENT
B.3 CHARACTERISTICS OF THE PAPER.
B.3.1 Dimensions and position of the notch.

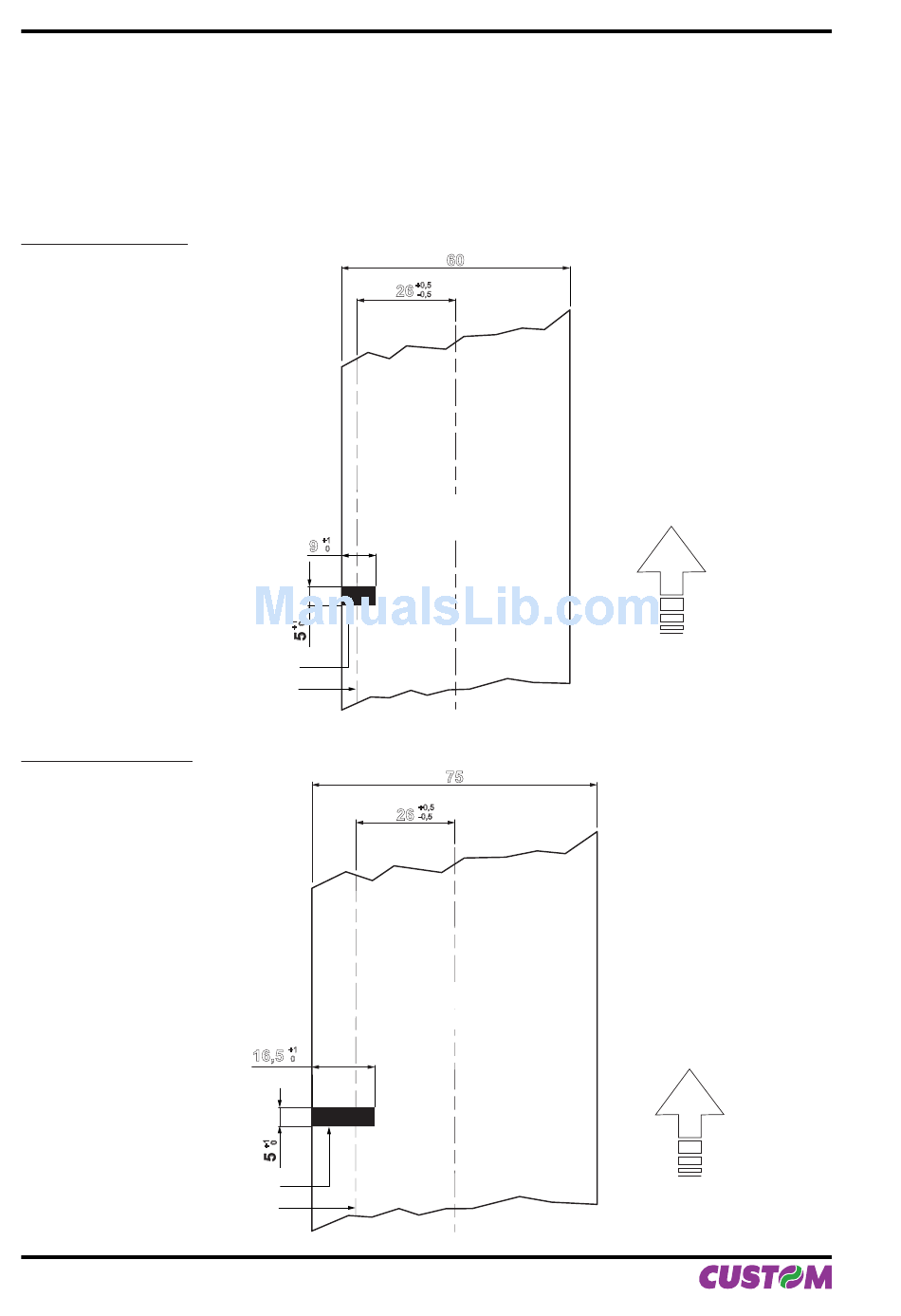

The notch must be positioned on the non-heat sensitive side of the paper as shown in fi gures B.7, B.8, B.9
and B.10, showing some fac-similes of paper with alignment notch depending on the width of the paper
used.
Notch on 60mm paper
Notch sensor axis
Notch on 75 mm paper
Black notch
Notch sensor axis
B-6 VKP80II
User Manual
+1
9
0
Black notch
+1
16,5
0
60
+0,5
26
-0,5
NON HEAT
SENSITIVE Side
75
+0,5
26
-0,5
NON HEAT
SENSITIVE Side
Direction
of paper
(Fig.B.7)
feed
Direction
of paper
(Fig.B.8)
feed
