APPENDIX A - ACCESSORIES AND SPARE PARTS

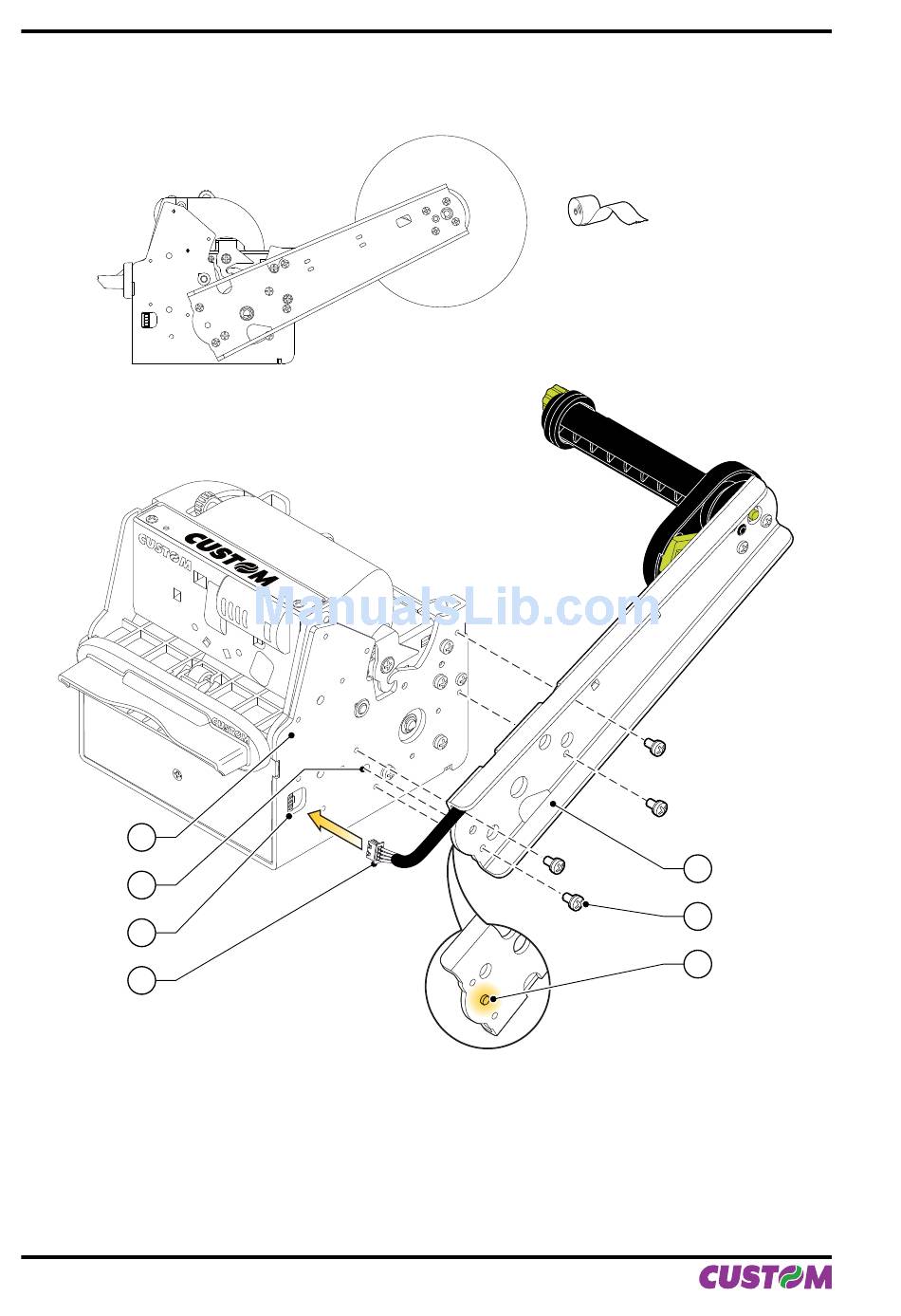

Rear attachment
(Fig.A.4)
1
2
3
4
1. Put the paper holder support near the printer body. Insert the point of reference (2) (paper holder sup-
port) into the hole (7) (printer body) (see fi g. A.5).
2. Attach the paper holder support (4) to the printer body (1) using four M4x8 screws (5) supplied with the
kit (see fi g. A.5).
3. Insert the near paper end sensor connector (3) of the paper holder support into the connector of the sen-
sor card located on the printer (6) (see fi g. A.5).
A-4 VKP80II
User Manual
Ø MAX = 180mm
7
6
5
(Fig.A.5)
