1. INSTALLATION AND USE
On the basis of panel thickness calculate the screws length as follows :
Lv ≤ Pn + Sp
where
Lv : indicates screw length
Pn : 8 mm
Sp : panel thickness
For example if panel thickness is 10mm ( Sp = 10mm ) the max screw length will be 18mm.

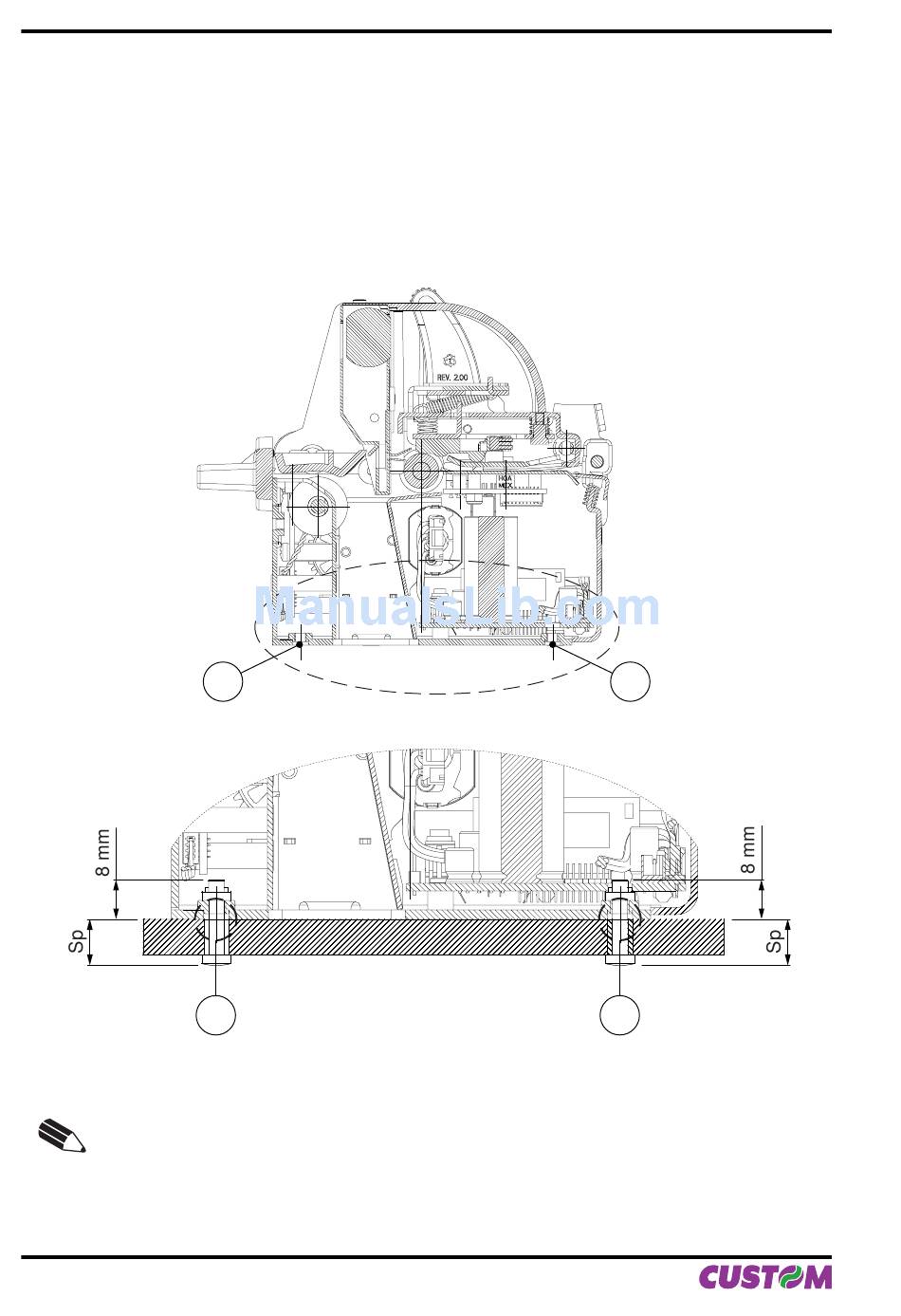

N.B.: The reference (1) indicates the screws that must located in the two external holes in front
of the printer; the reference (2) indicates the screw that must located in the center hole of the
rear side of the printer.
1-12 VKP80II
User Manual
1
1
2
2
(Fig.1.15)
